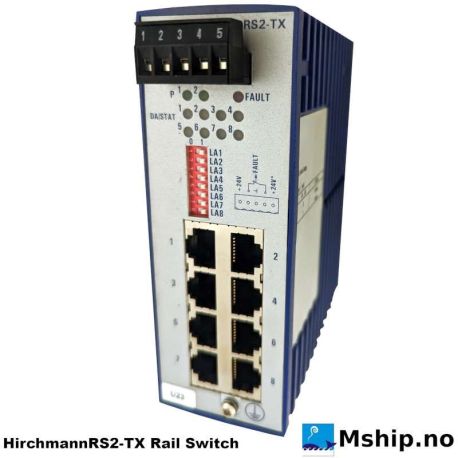

HirchmannRS2-TX Rail Switch

HirchmannRS2-TX Rail Switch

The Rail Switch RS2 has been especially
designed for use in industrial environments.
It supports ETHERNET 10 MBit/s and Fast
ETHERNET 100 MBit/s.

The Rail Switch modules support switched
ETHERNET networks in accordance with
IEEE standard 802.3 using copper technolo-
gy. The switch modules are plugged onto
the standard bar.

The RS2-TX modules have eight 10/100
MBit/s twisted pair ports (RJ45 connectors).
It is possible to connect up to eight data ter-
minal equipments or other network seg-
ments to the 10/100 Mbit/s ports using twi-
sted pair cabling. The ports support auto
negotiation, autopolarity and autocrossing.

24 VDC power input and an average MTBF exceeding 100 years.
