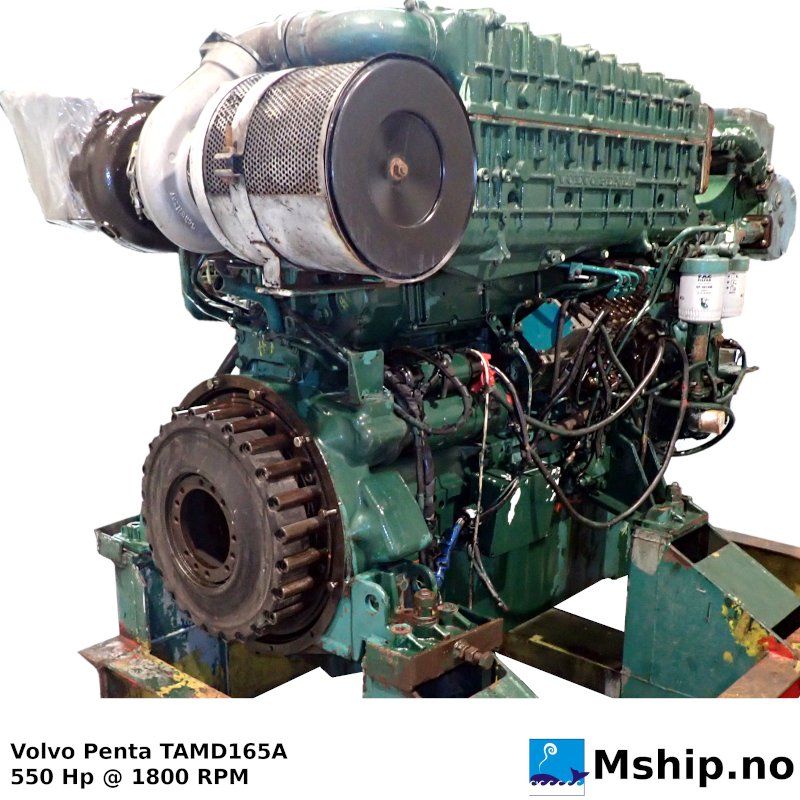

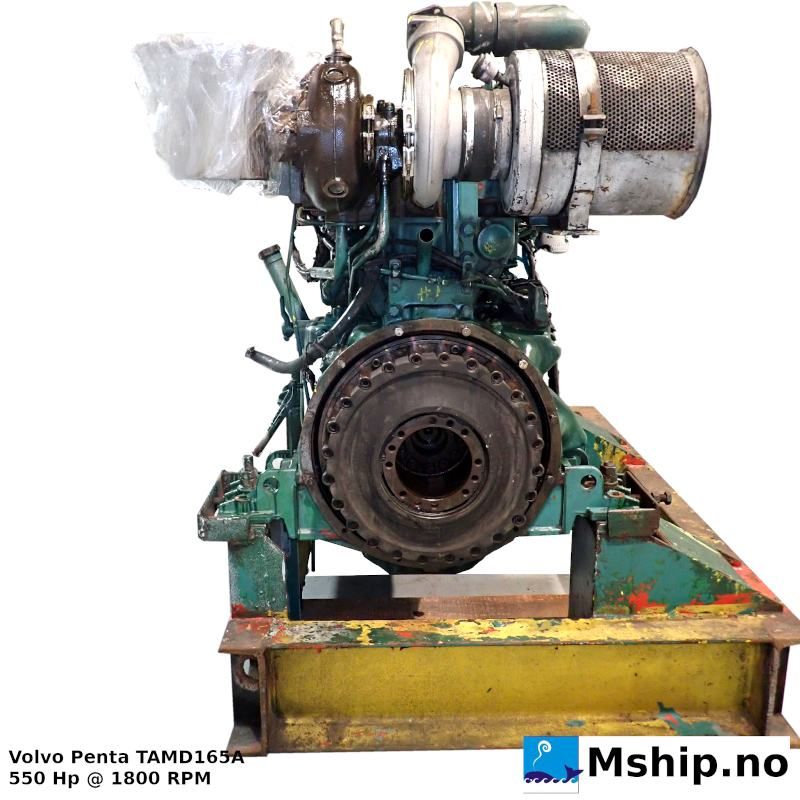

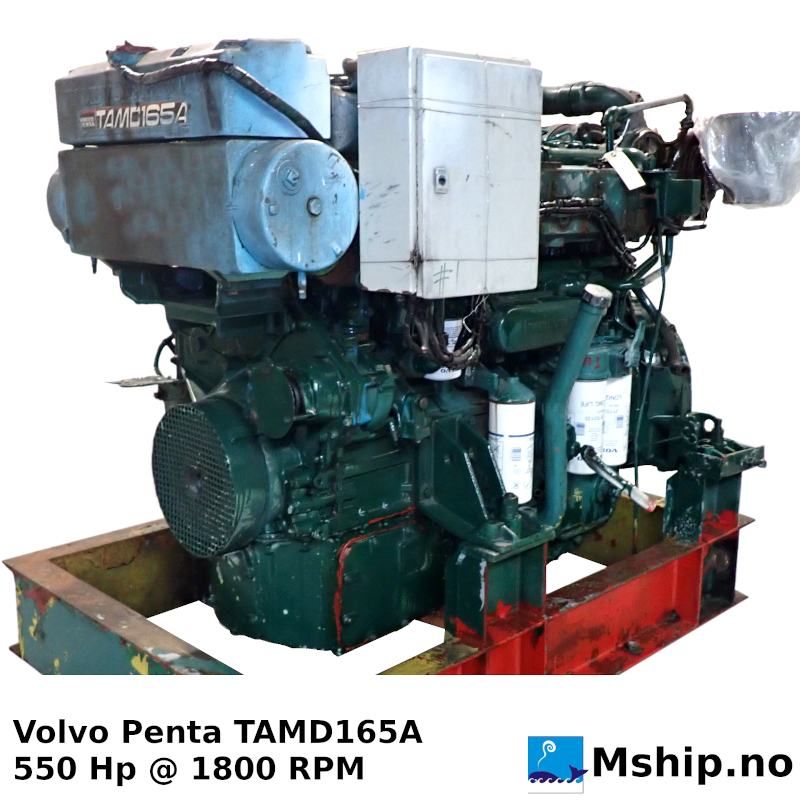

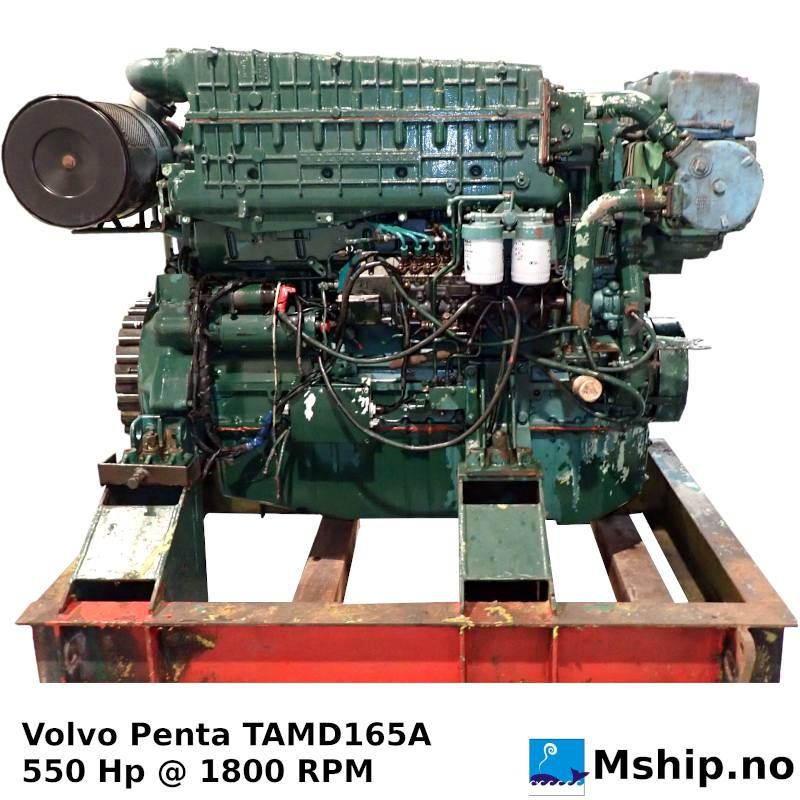

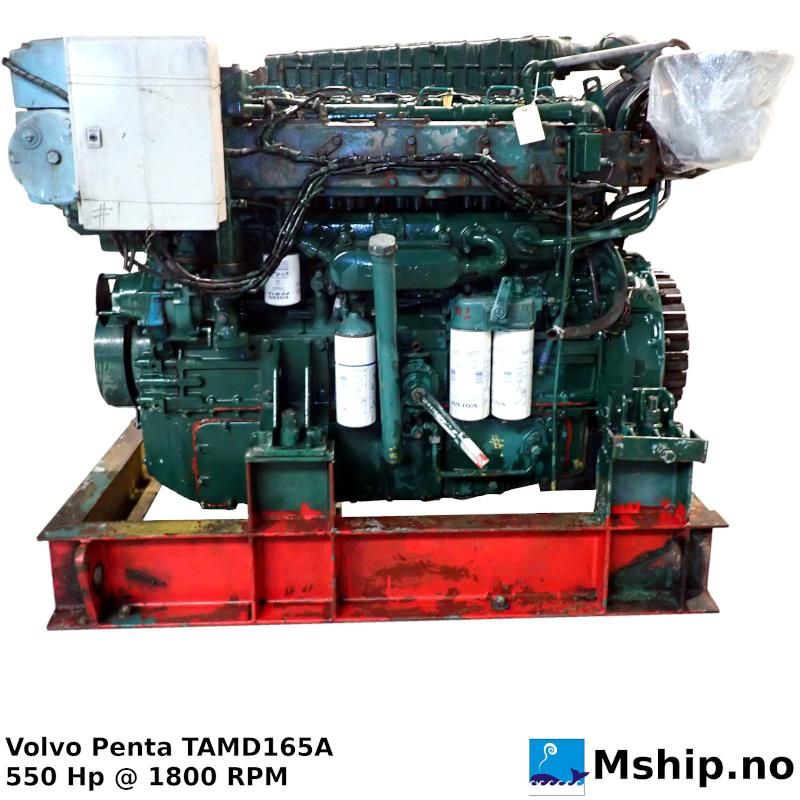

Volvo Penta TAMD165A

Volvo Penta TAMD165A

THIS ENGINE IS DISMANTLED
ONLY CRANKSHAFT AND BLOCK AVAILABLE

Volvo Penta TAMD 165 is a versatile marine diesel engine designed to meet the most
stringent emission requirements. The TAMD 165 is a 16-liter, in-line six-cylinder engine for all types
of commercial marine applications: as a power source for planing and displacement craft, marine
auxiliary systems and generator sets. The TAMD 165 is a modified version of Volvo Penta’s existing
16-liter engine. The comprehensive improvement program has resulted in reduced exhaust
emissions, lower engine oil consumption, greater reliability and a longer service life.

The 16-liter TAMD 165 is a complete marine diesel for commercial applications. It is manufactured
in different versions to meet demands ranging from heavy, continual operation in displacement
boats to lighter operations in planing hulls. The TAMD 165 can also function as an auxiliary
engine, with radiator cooling or keel-cooling and is available as a complete generator set, with
a range of outputs.

Technical data:
TAMD 165 (A/C/P)
Engine: in-line 6-cylinder marine diesel
Cylinder volume: 16, 12.1
Crankshaft
output:* Rating 1: 510-550 hp/375-404 kW
Rating 2: 600 hp/441 kW
Rating 3: 680 hp/500 kW
Rating 4. 751 hp/552 kW
Generator output: 240-352 kWe depending on type of generator
Dry weight, excl.
Weight (dry), propulsion engine with heat
exchanger (seawater), without reverse gear,
approx.:1,765 kg (3,891 lbs)
