Kumera Helseth Type 4H 4 blade CPP propeller — Manufacturer: Kumera HELSETH, Model: Type 4H, Manufacturers part number: Propeller system: 4H110/100-1700 port side + STB side, Year: 2022, RPM: Propeller design speed, about 280 RPM, Rotation direction: CW and CCW propeller available in stock, Class: DNV GL, Other: Used pair of CPP propellers including propeller axle in very good condition, Maximum speed: Up to 35 Knot View larger
Previous Next

Kumera Helseth Type 4H 4 blade CPP propeller

4H110100

Used

Kumera Helseth Type 4H 4 blade CPP propeller

More details

    • Data sheet

    Manufacturer Kumera HELSETH
    Model Type 4H
    Manufacturers part number Propeller system: 4H110/100-1700 port side + STB side
    Year 2022
    RPM Propeller design speed, about 280 RPM
    Rotation direction CW and CCW propeller available in stock
    Class DNV GL
    Other Used pair of CPP propellers including propeller axle in very good condition
    Maximum speed Up to 35 Knot

    More info

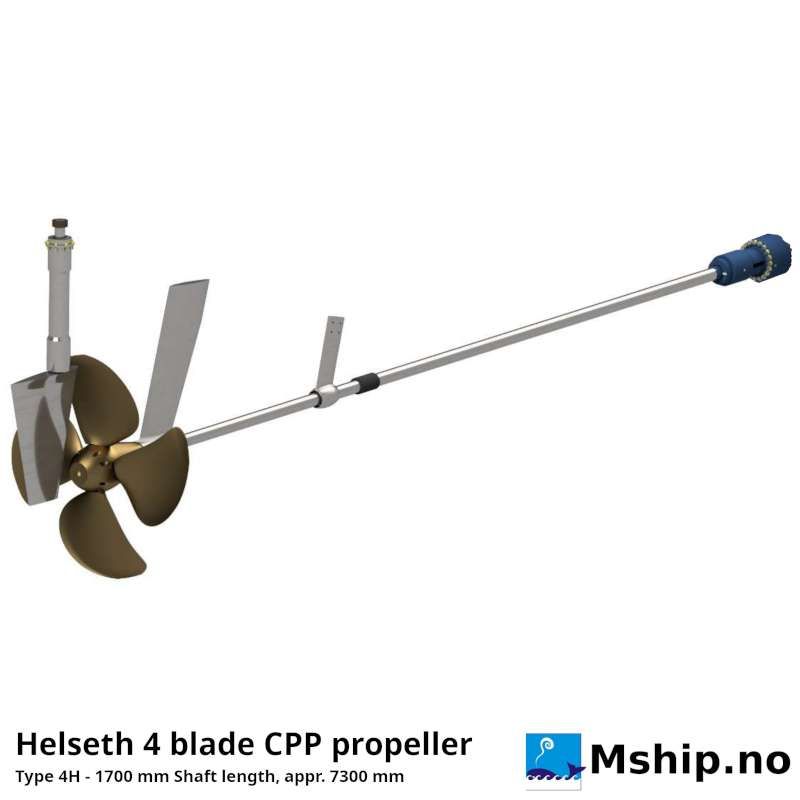

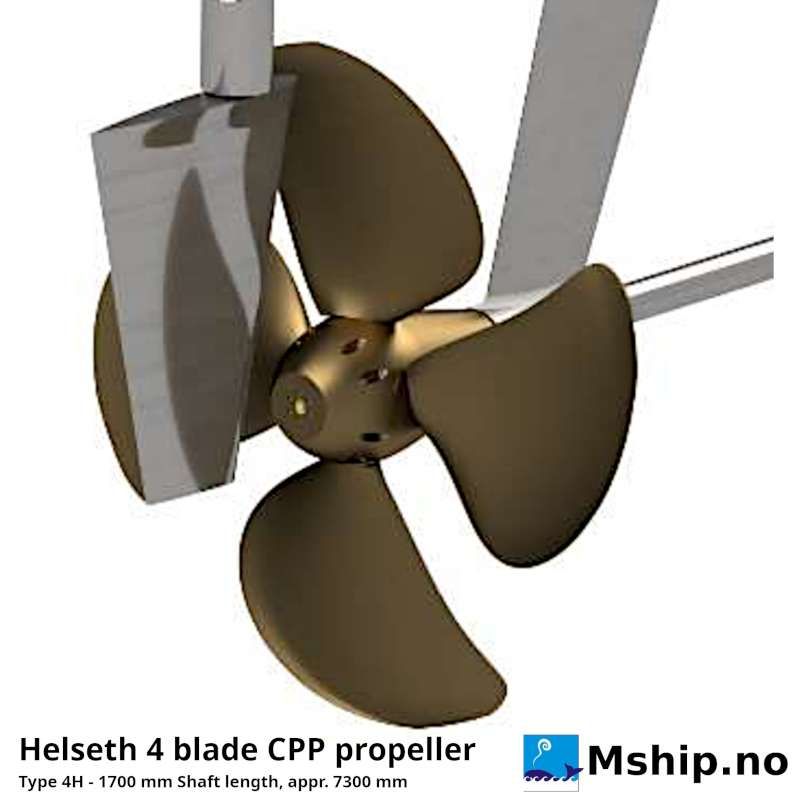

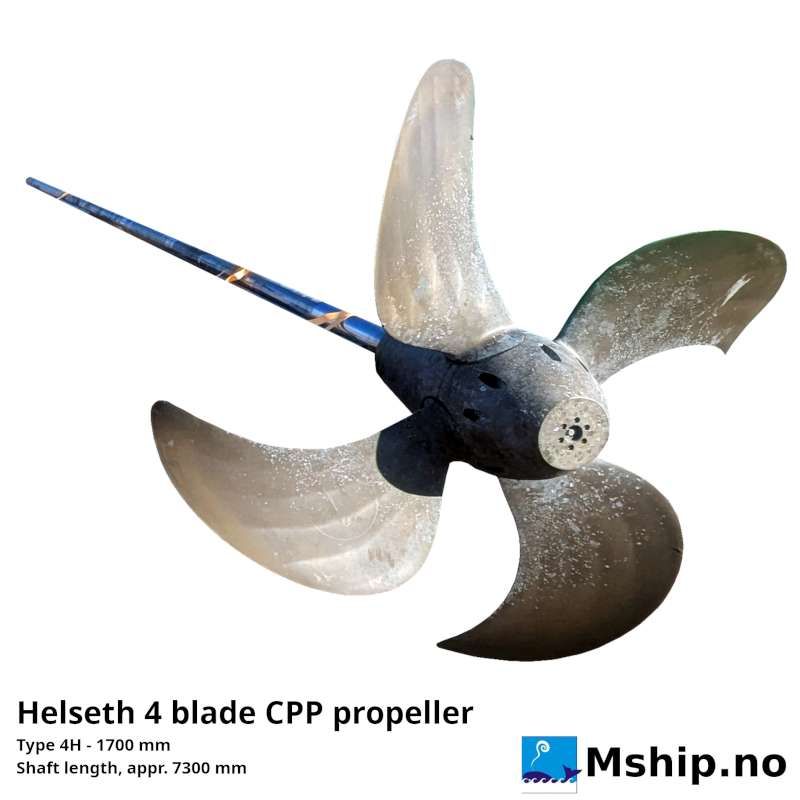

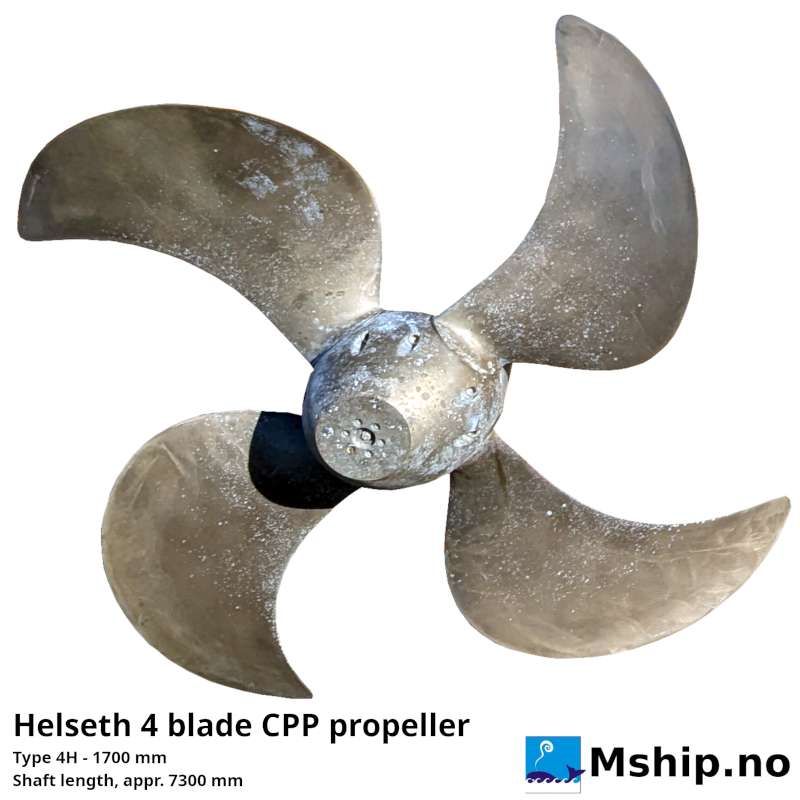

    Helseth Type 4H 4 blade CPP propeller

    • 2 pcs CP propeller with propeller axle, type 4H110/100-1700 HS+VS
    • Propeller diameter, cw and ccw rotation 1700 mm
    • Shaft diameter 100 mm
    • Shaft length, appr. 7300 mm
    • Shrink-fit shaft flange, motor/shaft
    • Class: DNV
    • Speed range, up to 35 knot.

    Propellers Type 4H
    Propellers for Medium Duty Use
    The Helseth 4H propeller series has been developed for
    all types of vessels requiring optimum efficiency. The 4H
    series is designed for pitch control by means of a pitching
    rod connected to gears with built-in pitch piston, or shaft
    mounted piston units.
    The propeller hub is streamlined, and the blades are flush
    mounted to ensure best possible water flow around the
    propeller.
    The propeller en-sure high efficiency despite low noise and vibration levels.
    Propellers of the H series are suitable for medium duty
    vessels such as work boats, fishing vessels, passenger
    vessels and monohull/catamaran high speed vessels
