Woodward 9907-175

Woodward 9907-175
Load sharing module rev B

For PWM/Caterpillar
Serial 15070658   0702
161-0797 ELC01
Module - Load sharing 24 Volt

Applications

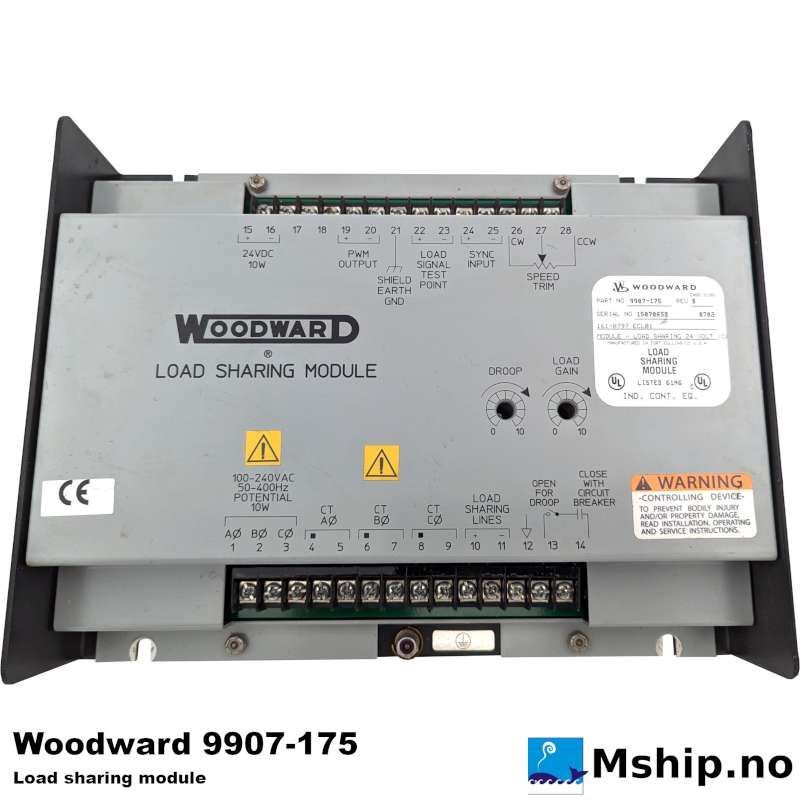

Woodward makes models of its Load Sharing Module
for use with engines equipped with speed controls that
accept a ±3 Vdc speed setting input, a 0.5 to 4.5 Vdc
input, or a PWM (pulse-width-modulated) input. The
Load Sharing Module allows use of Woodward power
generation accessories and allows load sharing
between engines equipped with speed controls
that are not manufactured by Woodward and
engines controlled with Woodward electronic
controls, or controls using other Woodward load
sharing modules

Description

The Load Sharing Module provides isochronous
and droop load-sharing capability for engines in
generator set applications. Additional equipment
in the control system can include the Woodward
SPM-A Synchronizer, SPM-D Synchronizer,
Automatic Generator Loading Control (AGLC),
and Automatic Power Transfer and Loading
Control (APT
