Auto-Maskin DCU 305 R3 LT Engine Controller
AM1006420
New product

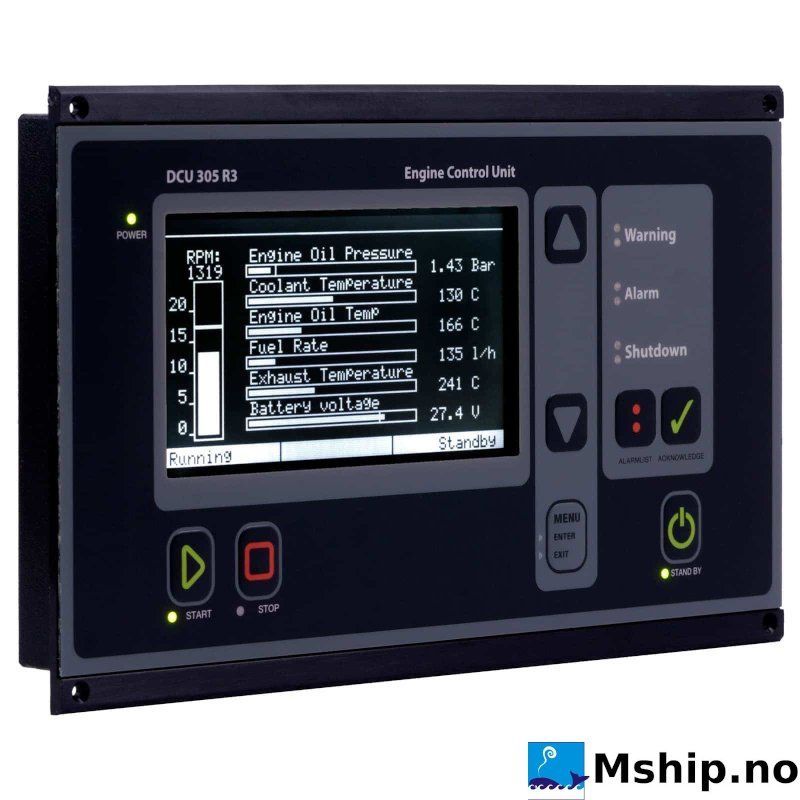

Auto-Maskin DCU 305 R3 LT engine controller for mechanical engines, Marine Pro 300, IACS type approved.
Price on request
or call +47 908 92 500
Data sheet
| Manufacturer | Auto-Maskin |
| Model | DCU 305 R3 LT (Marine Pro 300 Series) |
| Manufacturers part number | 1006420 |

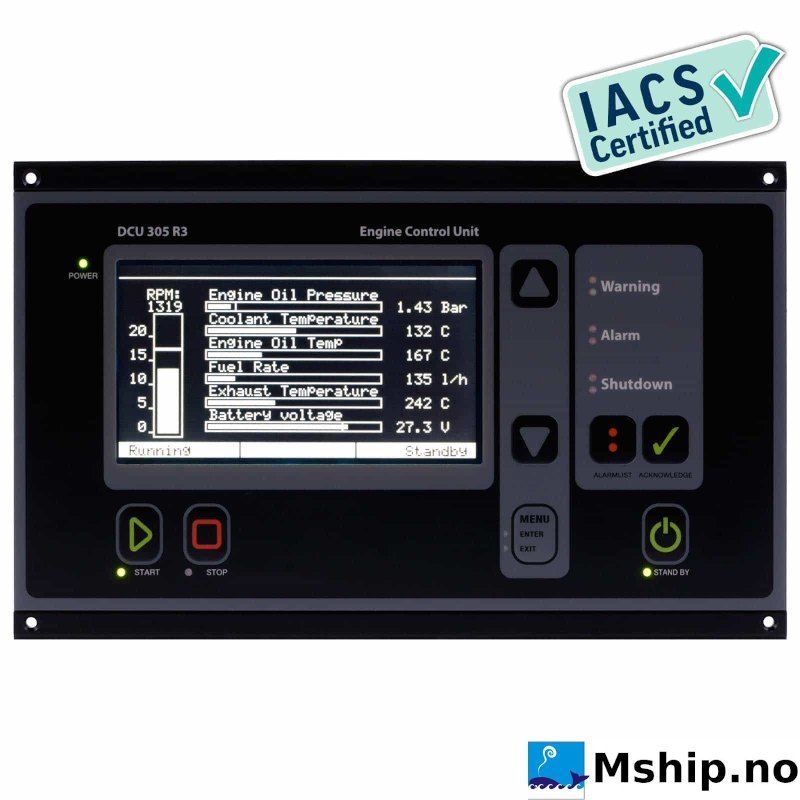

| Performance specification | Engine controller for non-CAN (mechanical) engines; 5.6" backlit graphic display 240 x 128; front IP44 |
| Class | IACS type approved: DNV (TAA000014T), LR (LR23194352TA), BV (10747/E0) – DCU 305 R3 LT |
| Other | Inputs: 12 switch (1-6 active below 2 V, 7-12 active below 12 V), 5 x 4-20 mA, 2 magnetic pickups (0.1-10 kHz). Outputs: 4 switch outputs (0.2 A), 2 potential-free relays (1 A) |
| Weight | Panel 1.6 kg, RK-66 terminal card 1.0 kg |
| Amps | 0.5 A typical, 2 A max at 24 VDC |
| Volt | 18-32 VDC (24 VDC nominal), two supply inputs |
| Working temperature max, celsius degrees | Operating 0 to +50 °C, storage -20 to +60 °C |
| Remarks | Interfaces: Modbus RTU / configuration port 9600 baud, I/O expansion for AK-6 and MK-14, RSP 305 remote panel. Configuration with Rudolf R3 PC software |

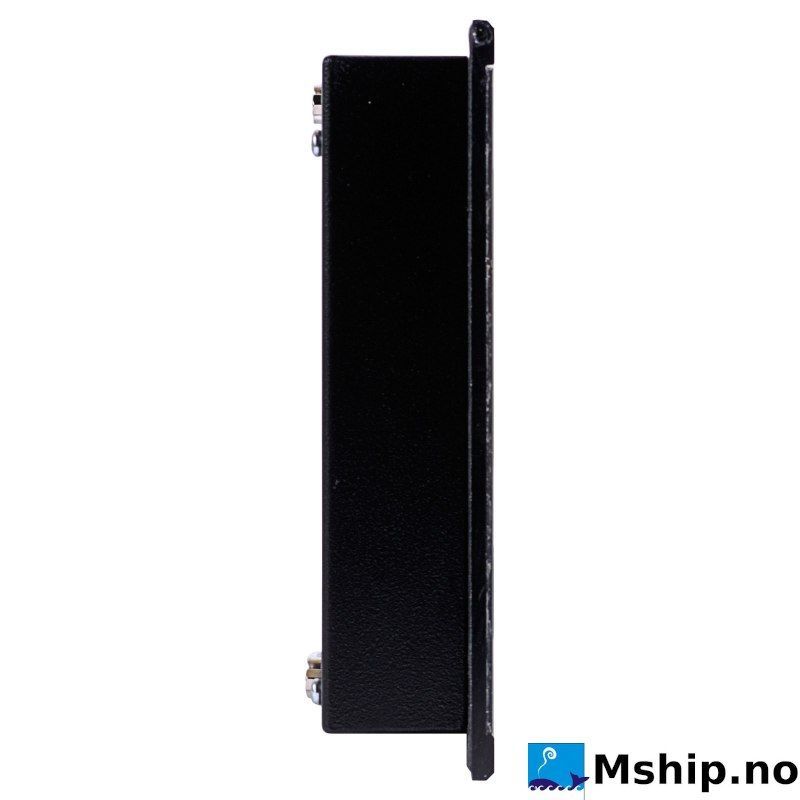

| DIMENSIONs | Panel 260 x 160 x 35 mm (W x H x D); cut-out 230 x 146 mm, access depth 60 mm. RK-66 terminal card on 35 mm DIN rail |
More info
The DCU 305 R3 LT is the class-approved Auto-Maskin panel for engines without an electronic CAN bus – the classic mechanical diesel on a generator set, emergency set, fire pump or propulsion engine. It combines the separate monitoring and safety functions the classification societies require in one unit, with a built-in backup of the shutdown channels.
On board it handles
- Start, stop and blackout start in emergency, auxiliary or combined mode
- 12 switch inputs, 5 × 4–20 mA inputs and two magnetic pickups for engine speed
- Every channel set as warning, alarm or shutdown; event log and plain-text alarms on the backlit display
- 4 switch outputs and 2 potential-free relays, Modbus RTU to the ship's alarm system
- Configured from a PC with the Rudolf R3 software
System

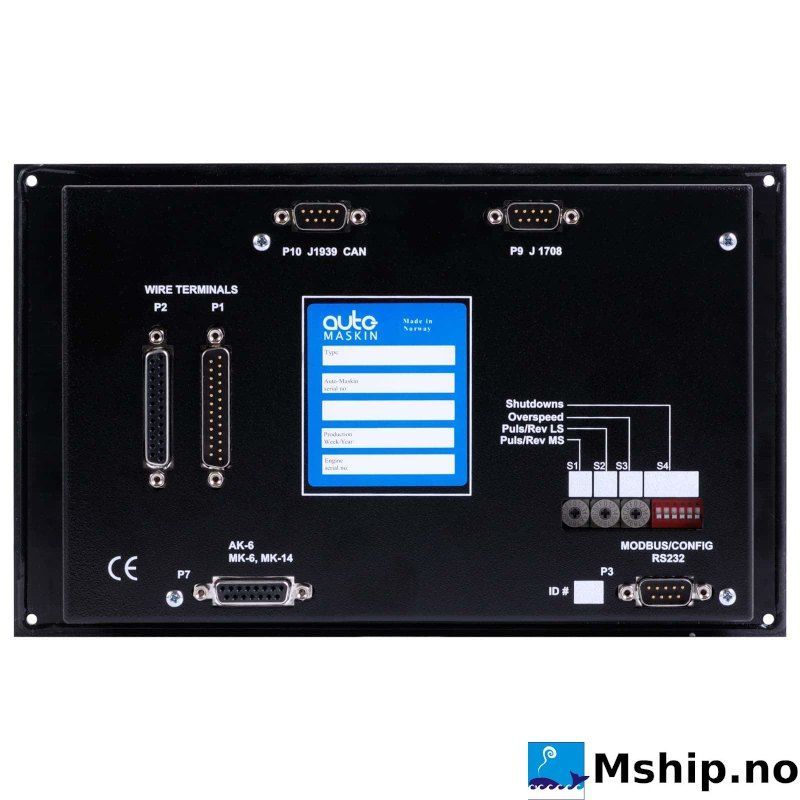

A DCU 305 consists of the control panel, the RK-66 terminal card where the engine switches and senders are wired, and the two cables between them. The panel is slim enough for small enclosures and the terminal card mounts on a 35 mm DIN rail. Six extra 4–20 mA channels can be added with the AK-6, extra relays with the MK-14, and up to four DCU 305 units can be shown on one RSP 305 remote panel.
Replacing an older Auto-Maskin panel
The DCU 305 R3 LT is the direct successor of the DCU 305 R2 and the replacement for the old 2217, 2700, 500 and DCU 205 systems. Auto-Maskin re-wiring guides for each of them are included in the downloads below.
Type approved by DNV, Lloyd's Register and Bureau Veritas (Marine Pro 300 certificates in the downloads).
Most units are delivered from stock or at short notice from the manufacturer.
Contact us for price, delivery time and help choosing the right replacement.
