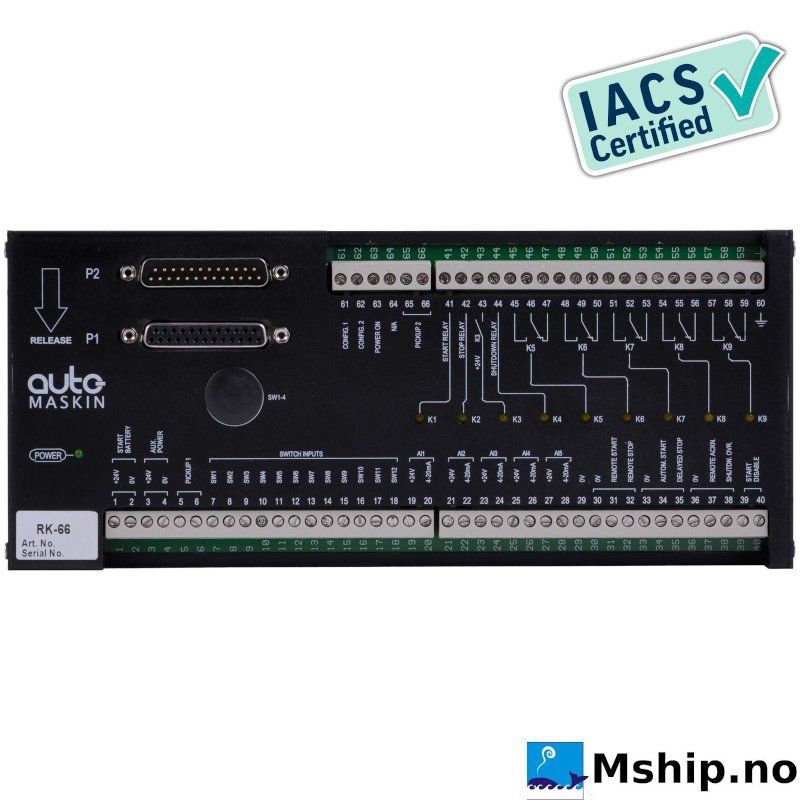

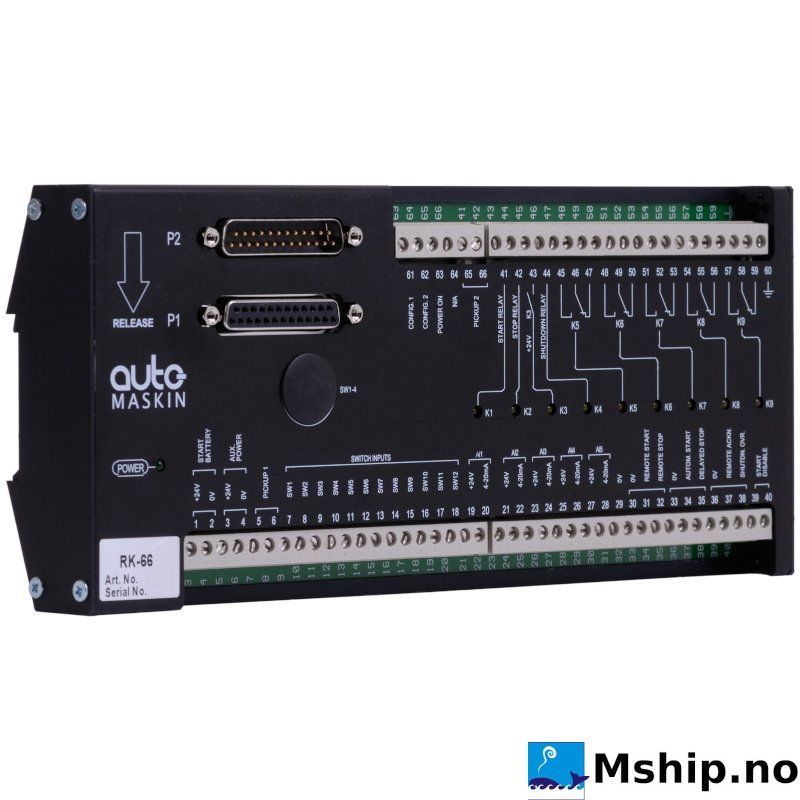

Auto-Maskin RK-66 Interface Module

Name: Auto-Maskin RK-66 Interface Module
Brand: AUTO-MASKIN
SKU: AM1075410

Reference: AM1075410

Condition: New product

Auto-Maskin RK-66 wire terminal card for DCU 305 R2 / R3 / R3 LT engine controllers.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Auto-Maskin
Model	RK-66 (Marine Pro 300 Series)
Manufacturers part number	1075410
Performance specification	Wire terminal card for DCU 305 R2 / R3 / R3 LT, 35 mm DIN rail
Class	IACS type approved: DNV (TAA000014T), LR (LR23194352TA), ABS (PDA 22-2227067-PDA) – RK-66 as part of the DCU 305 system
Other	Connections: 12 switch inputs, 5 analog inputs, 2 speed sensors, power supply, speed relays and the two cables to the DCU 305 panel
Weight	1.0 kg

More info

The RK-66 is the terminal card between the engine and a DCU 305 panel. All engine switches, senders, speed pickups, power supply and speed relays are wired here, and two cables connect the card to the panel. One RK-66 is required for every DCU 305 and is part of each DCU 305 kit.

For DCU 305 R2, DCU 305 R3 and DCU 305 R3 LT
12 switch inputs, 5 analog inputs, 2 speed sensors, power and speed relay connections

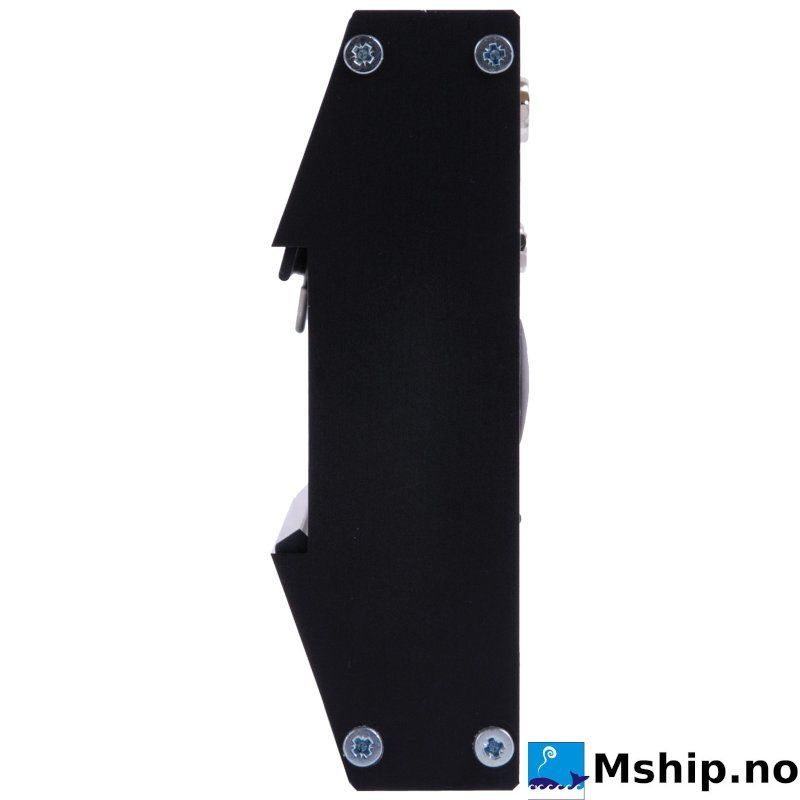

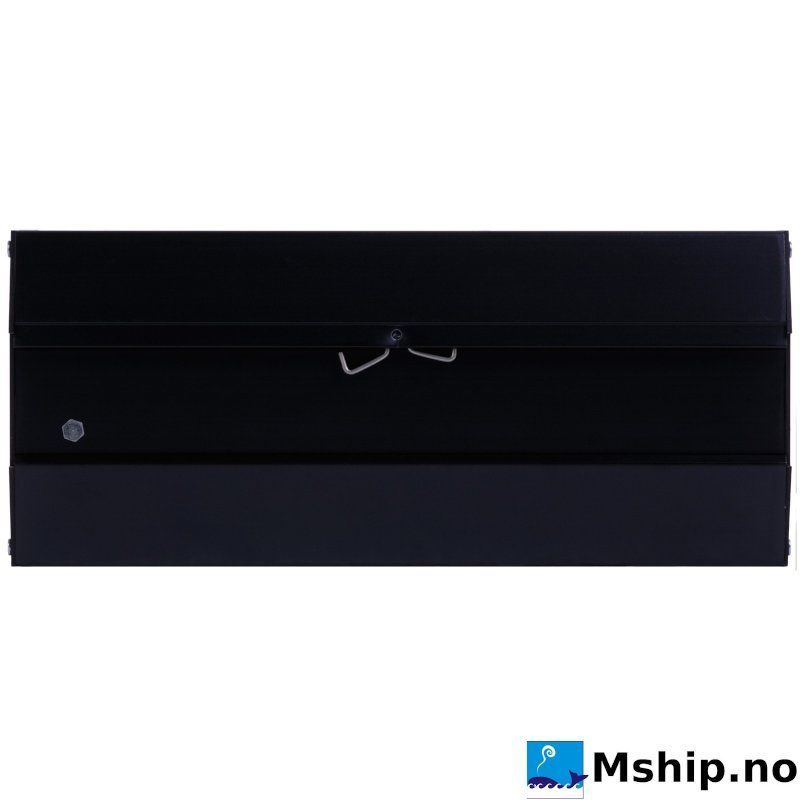

Mounts on a standard 35 mm DIN rail

Approved by DNV, Lloyd's Register and ABS as part of the DCU 305 system (certificates in the downloads).

Most units are delivered from stock or at short notice from the manufacturer.
