ProConnect X15

Connect your Cummins X15 engine

Ordering info:

•   ProConnect X15  Part number 1500394

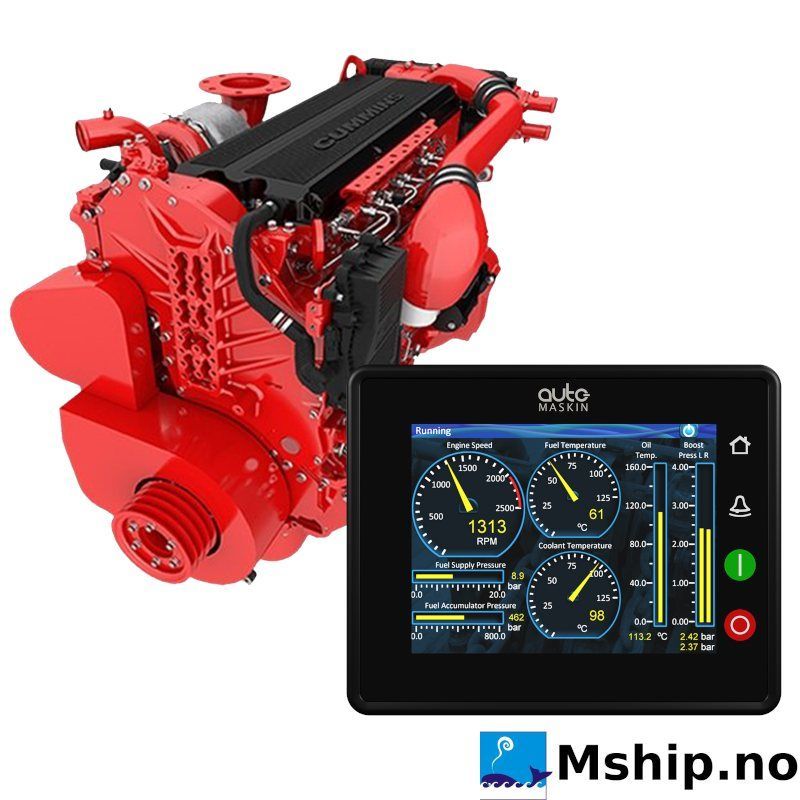

A “Plug and Play” control system for Cummins X15 engines
    Includes a connection harness with all necessary and a set of optional connectors, a DCU 210E engine control unit and a USB stick with pre-defined configuration files
    Pre-defined configuration files means no programming
    The DCU 210E features and functions compliment the engine capability
    No special software required; if additional configuration is needed, it can be done using any web browser
    Full system warranty from Auto-Maskin means “Peace of Mind”
    Supported globally by the Auto-Maskin network


Feature rich

    Dedicated Start/Stop controls
    Operator selectable 13 languages built-in
    Operator selectable Metric/US units
    All data accessible on Modbus TCP/RTU

Robust, heavy-duty, reliable

    Glove-capable operation
    Sunlight-capable touchscreen
    IP56 compliant including connectors
    Tough marine-grade construction

Dedicated to engine

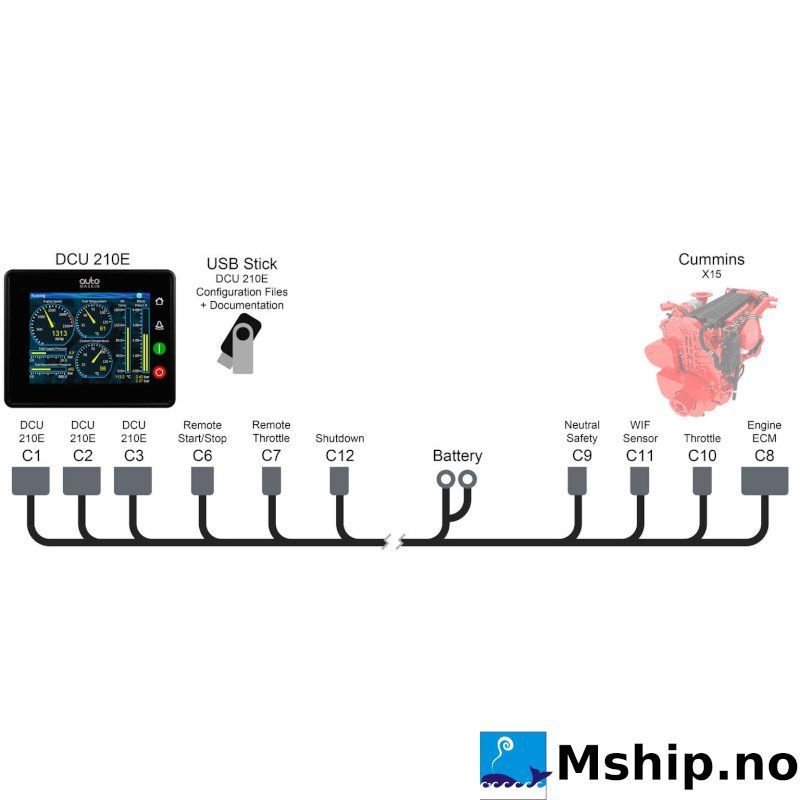

    “Plug In“ harness with connectors matched to the engine
    Ready for additional customer installed options
    Preconfigured files
    Full J1939 CAN bus integration

Easy to use

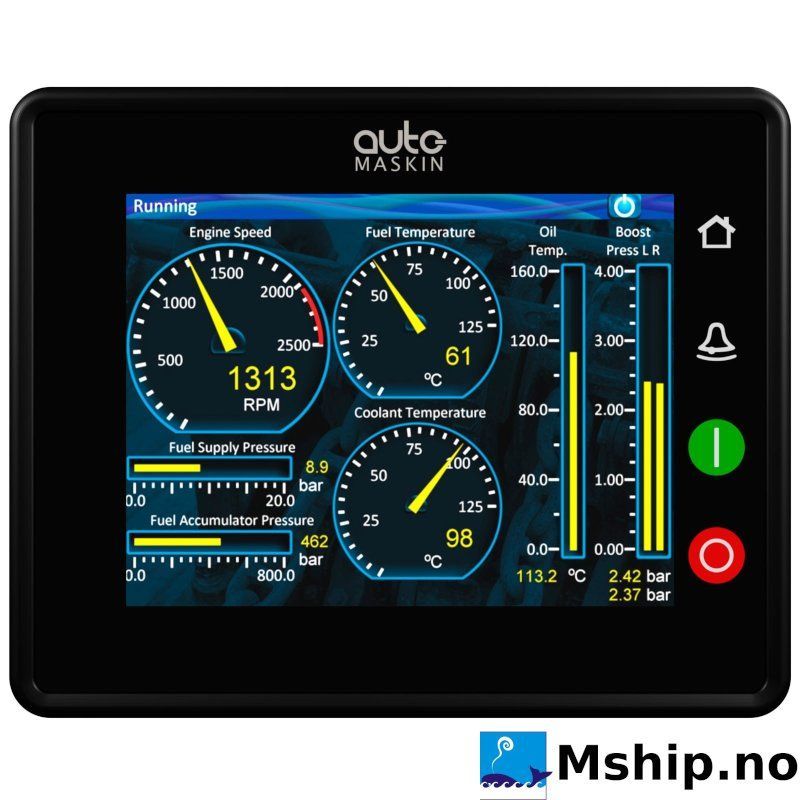

    Large, clear color display
    Icon-based menus
    Dedicated alarm banners
    One-touch alarm list, counters and a protected event log

Why customers select Marine ProConnect

    Fast, clear icon-based information promotes safe and efficient operation
    Pre-engineered solution means fast, low-cost installation
    Quality-assured solution presents low business and operational risk
    Aligns to same architecture as Cummins C Command
    Looks fantastic!

At a glance

• A “Plug and Play” control system for Cummins X15 engines

• Includes connection harness,
• connectors and DCU 210E Predefined configuration files means no programming.

• The DCU 210E features and functions compliment the engine capability

• No special software or licensing,

• you just need a web browser if you want to customize

• Full system warranty from means “Peace of Mind”
