AVK Generator DSG99L1-6

AVK-6916053A001

Used

AVK Generator DSG99L1-6
50 Hz 2525 kVA 1000 RPM

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer AVK
Model DSG99L1-6
Serial number 6916053A001
Year 1993
RPM 1000
Weight about 7200 kg
Amps 2113
Volt 690/398 Y
HZ 50
kVA 2525
cos φ 0,8

More info

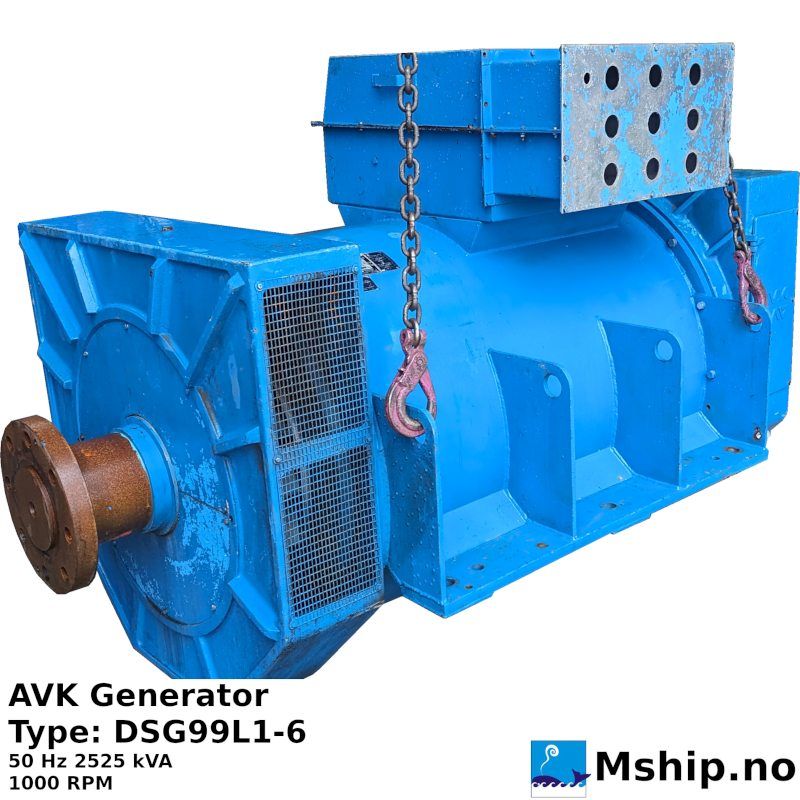

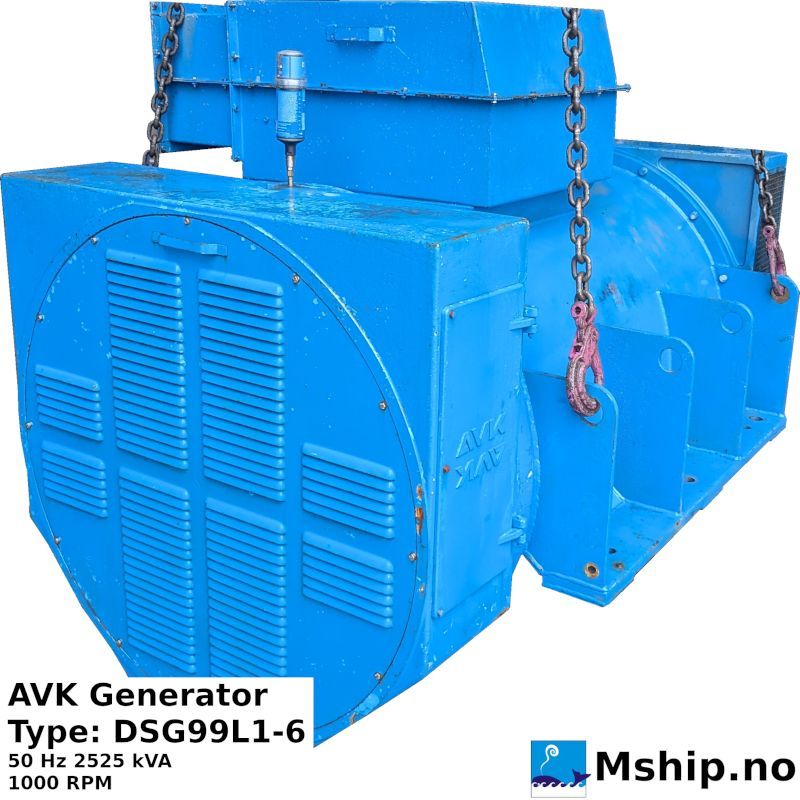

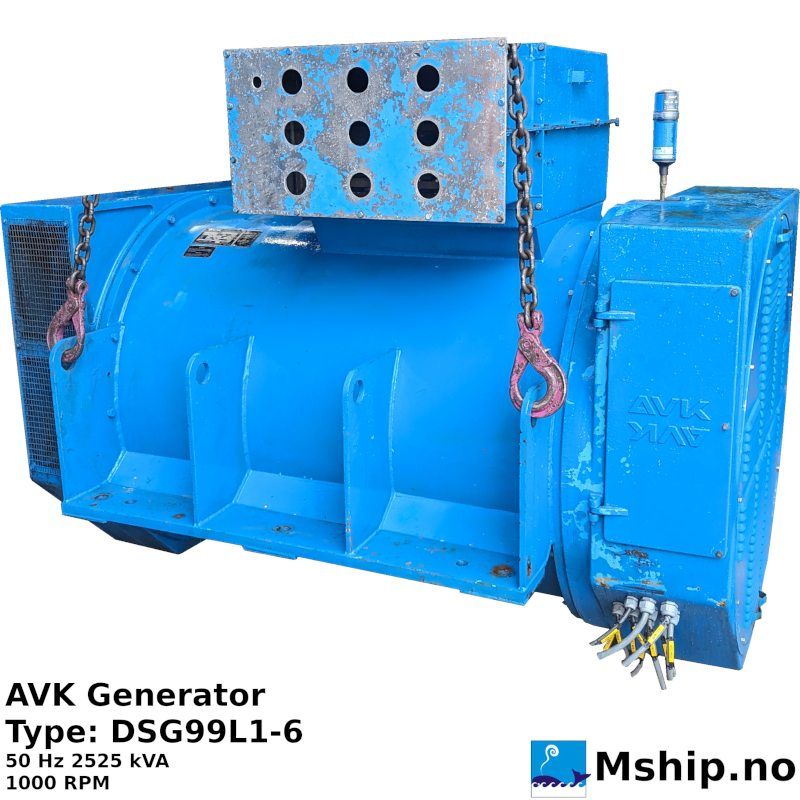

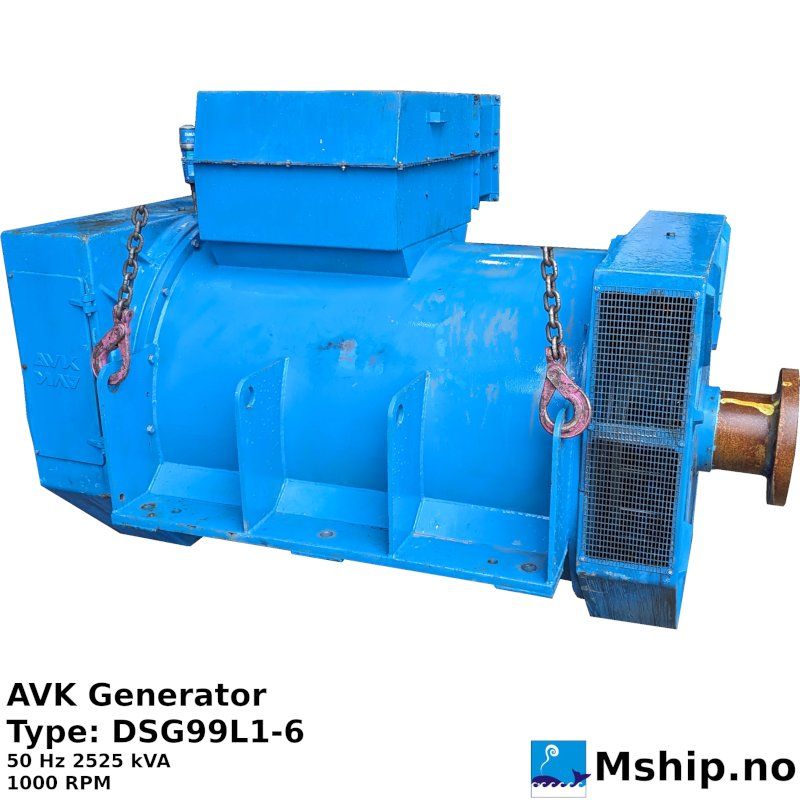

AvK DSG99L1-6 self-regulating synchronous generator – 2525 kVA, 690/398 V, 50 Hz, 1000 rpm

This generator is fitted to the Bergen KVGS12 G4 lean burn gas generator set 2525 kVA. Engine and generator can be sold separately – the generator can be bought on its own or together with the complete generator set.

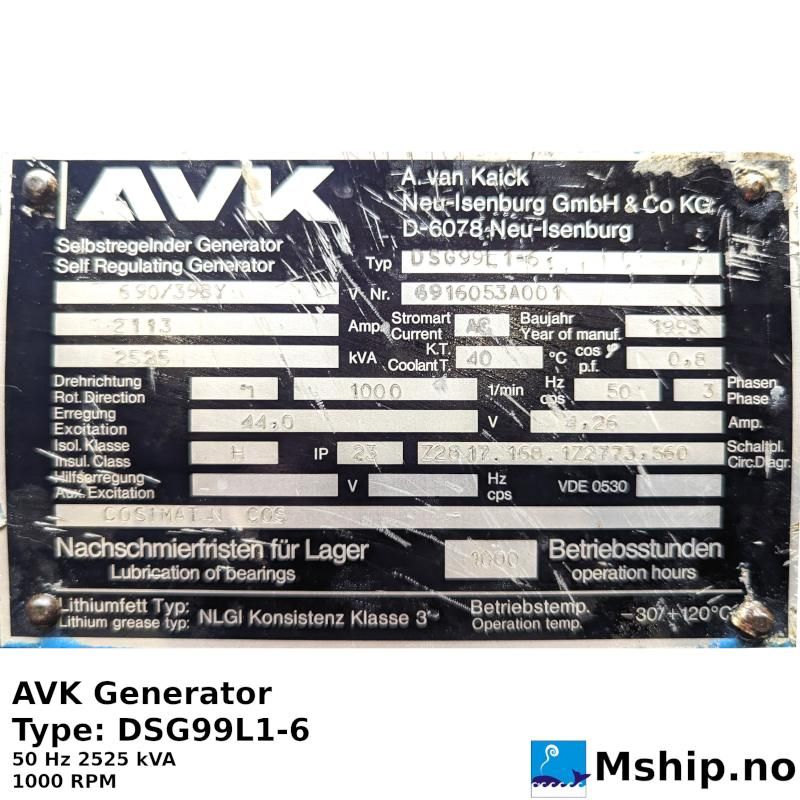

Nameplate data (A. van Kaick Neu-Isenburg GmbH & Co KG, D-6078 Neu-Isenburg)

  • Type: DSG99L1-6, self-regulating generator, VDE 0530
  • Serial no.: 6916053A001, year of manufacture 1993
  • Output: 2525 kVA, 690/398 V (Y), 2113 A, cos φ 0.8
  • Frequency / speed: 50 Hz, 1000 rpm, 3 phases, AC
  • Excitation: 44 V / 4.26 A, voltage regulator Cosimat N
  • Insulation class H, IP23, coolant temperature 40 °C
  • Weight: about 7200 kg
