Bergen KVGS12 G4 lean burn gas generator set 2525 kVA

BERGENKVGS12G420047

Used

Bergen KVGS12 G4 lean burn gas generator set, 2300 kW / 2525 kVA, 690 V 50 Hz – complete biogas power station

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Bergen engines
Model KVGS-12G4 lean burn
Serial number 20047
Performance specification Totally overhauled and upgraded to G4 version in 2009.
Year 1995 (engine, upgraded to G4 2009)
HP 3080 BHP
kW 2300 kW
RPM 1000
Running Hours 81.654 since overhaul and upgrade to G4 version.
Cylinder bore 250 mm
Piston Stroke 300 mm
Number of cylinders 12
Displacement 176.7 L
Cylinder configuration V-engine
Rotation direction CW - Clockwise seen from aft
Fuel Type Bio gas
Other Engine nameplate: Rolls-Royce Marine AS, Bergen Norway. Generator serial no. 6916053A001 (1993), Cosimat N regulator. Compressor machine no. 2851150. RMG gas control line. Maintained by Rolls-Royce since new
Generator end type AvK DSG99L1-6, 2525 kVA, 690/398 V, 2113 A, IP23, insulation class H
Amps 2113
Volt 690/398
HZ 50
kVA 2525
Gas compressor Gardner Denver ROW 170 GFU, biogas, 1288 m³/h, 6 bar g, 132 kW, 2009
Pump Pressure BAR 6
m³ /h, cubic meter per hour capacity 1288
Electric motor type Siemens 1MU7 313-4CA61-Z 315M, 132 kW, Ex de IIC T4 (gas compressor drive)
Generator serial number 6916053A001
Generator year 1993

More info

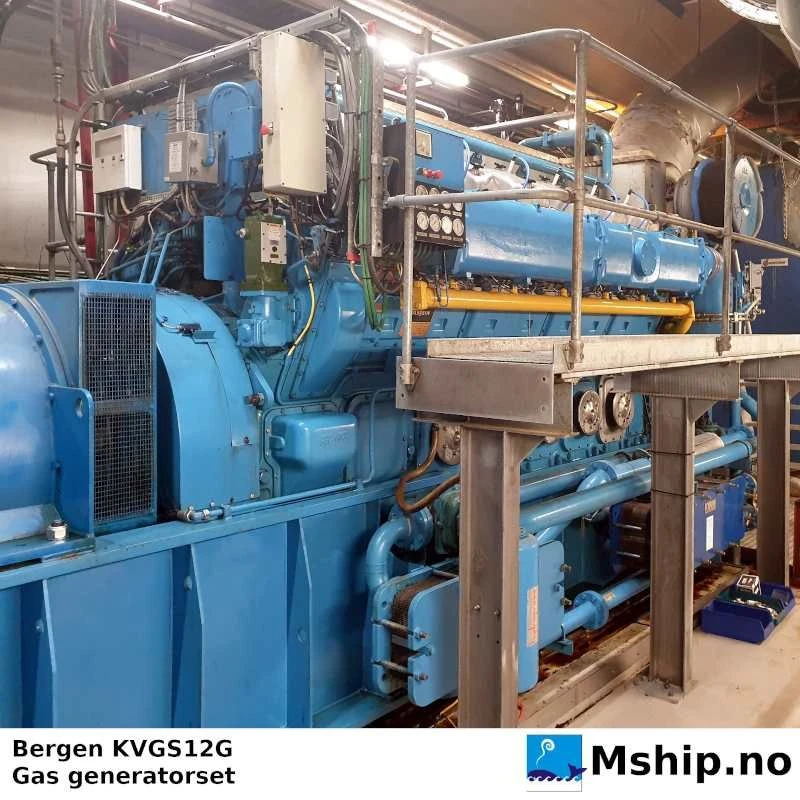

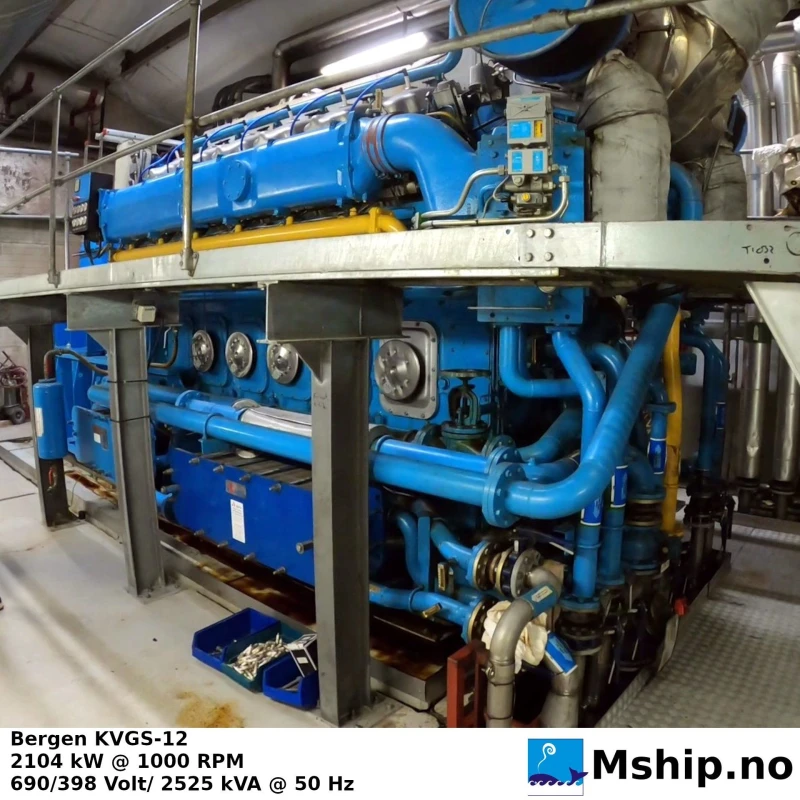

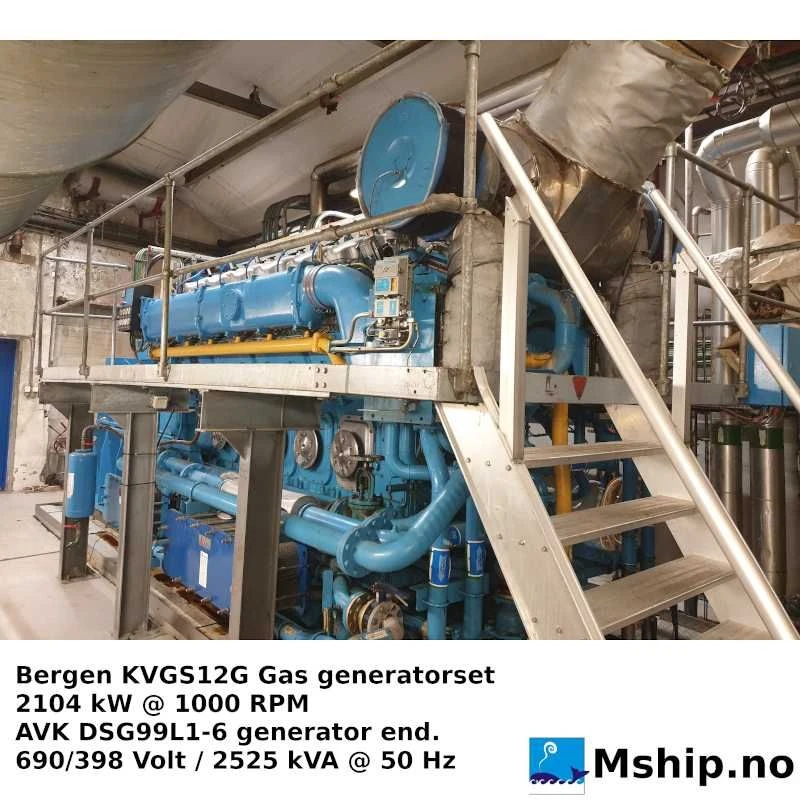

Rolls-Royce Bergen KVGS12 G4 lean burn gas generator set, 2300 kW / 2525 kVA

This offering is a complete power station for biogas, including all associated equipment. The plant has been maintained by the manufacturer Rolls-Royce under a maintenance contract since new, according to Rolls-Royce service specifications, and is in excellent condition. Totally overhauled and upgraded to G4 version in 2009; all service and later overhauls done by Rolls-Royce according to the scheduled maintenance plan. Running hours: 81,654 since the upgrade to G4.

Included

  • Bergen KVGS12 G4 lean burn gas engine, 2300 kW (3080 BHP) at 1000 rpm, serial no. 20047
  • AvK DSG99L1-6 generator, 2525 kVA
  • Gardner Denver ROW 170 GFU biogas compressor with Siemens Ex drive motor

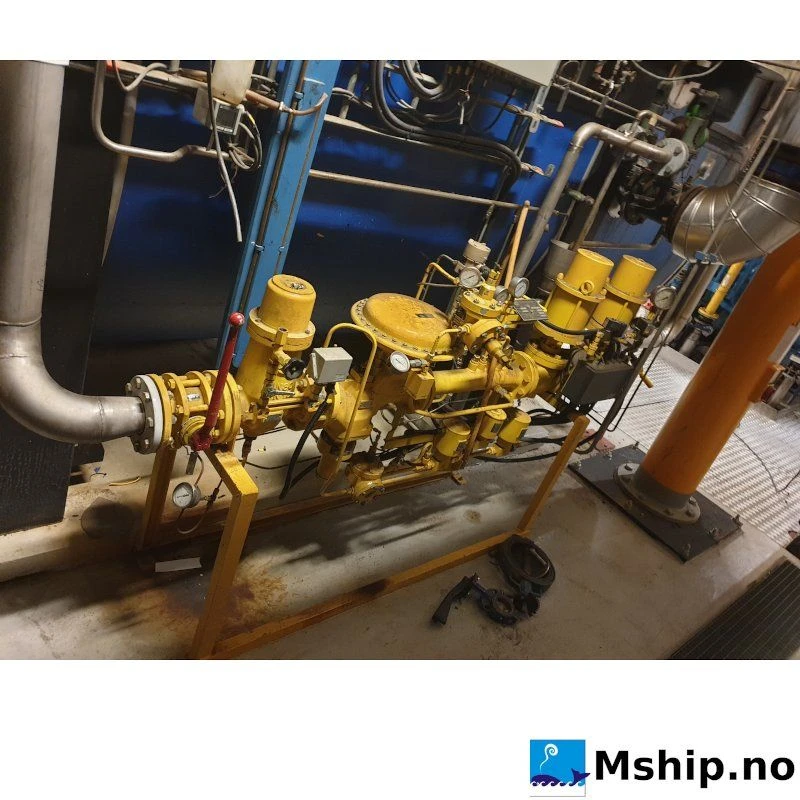

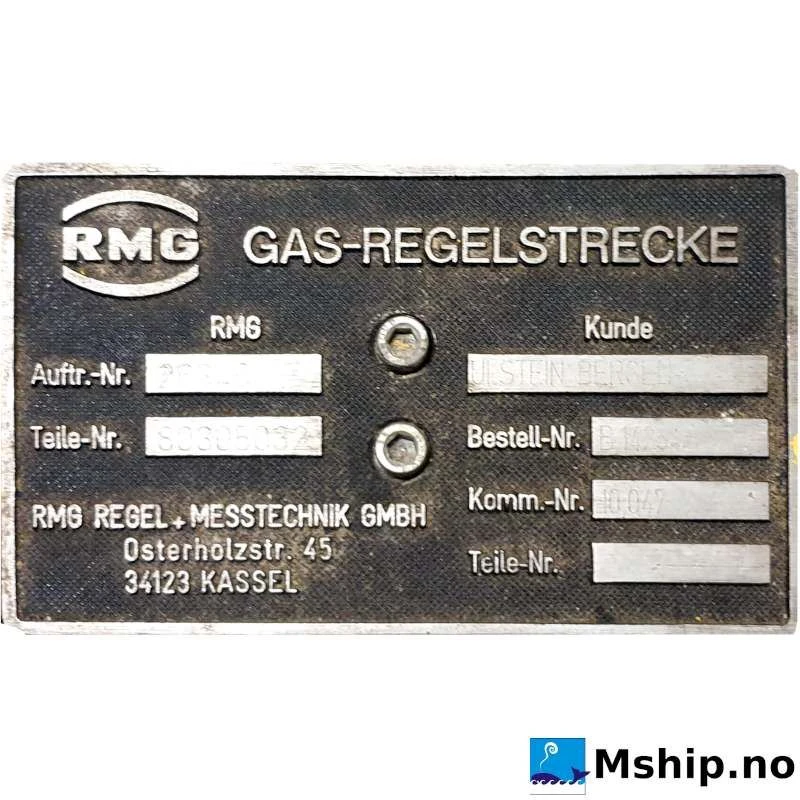

  • Gas regulators (RMG gas control line)
  • Ventilation fans for supply and exhaust air in the generator room
  • Plate heat exchangers for water cooling
  • Complete switchboard

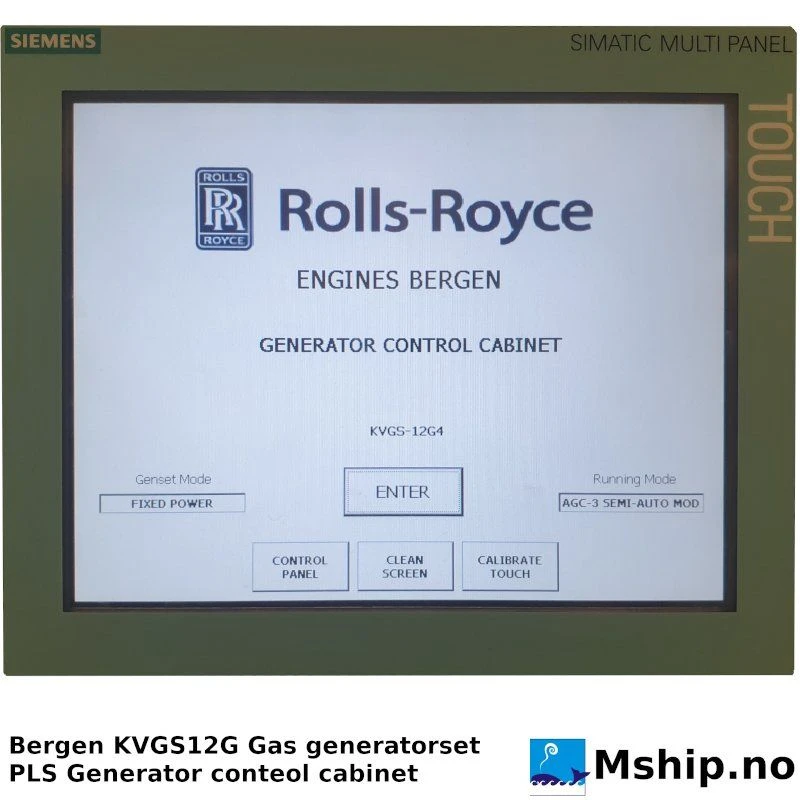

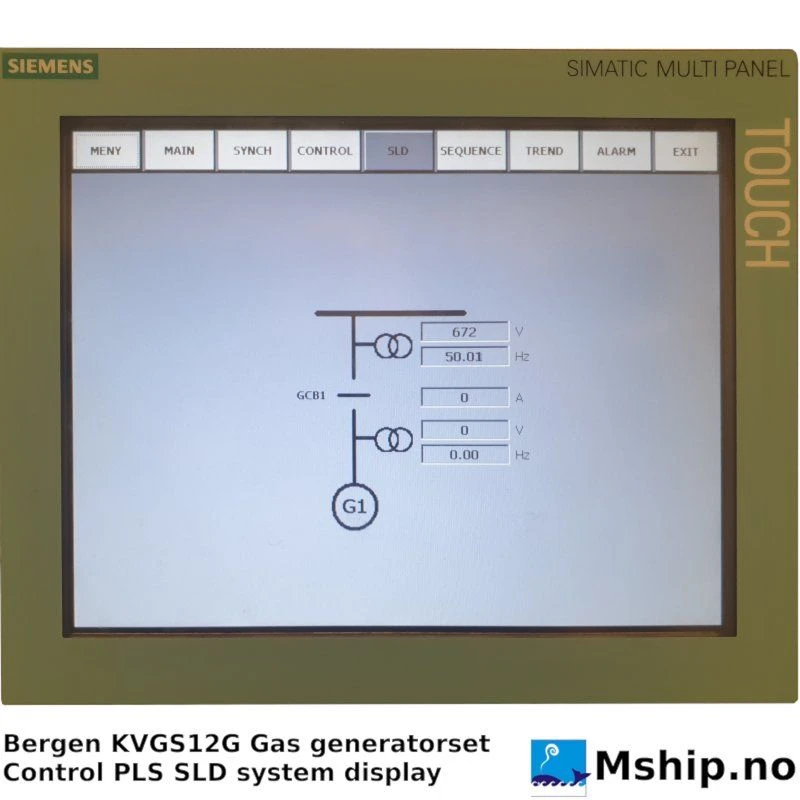

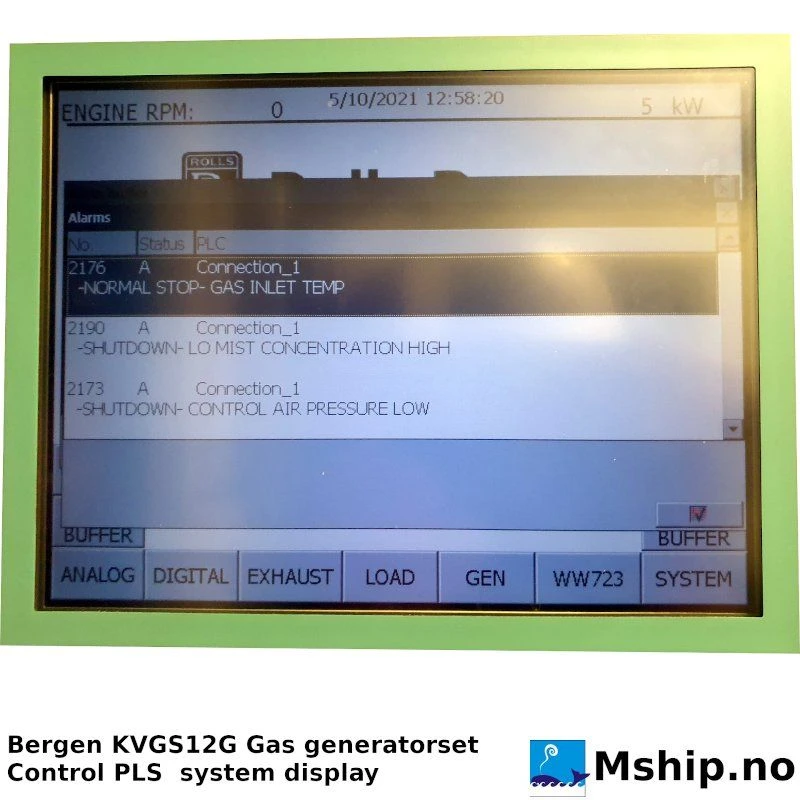

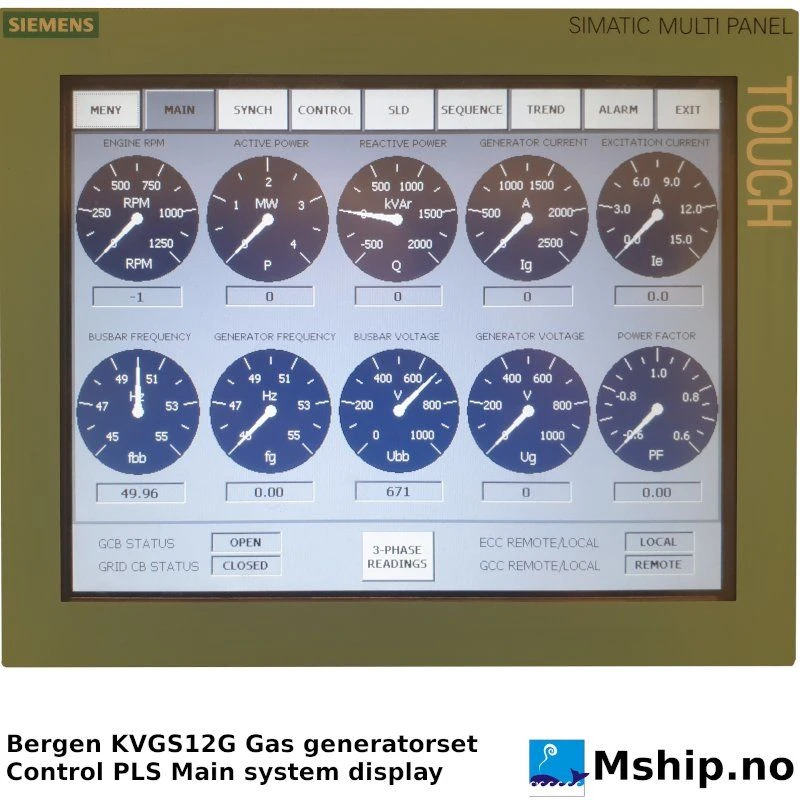

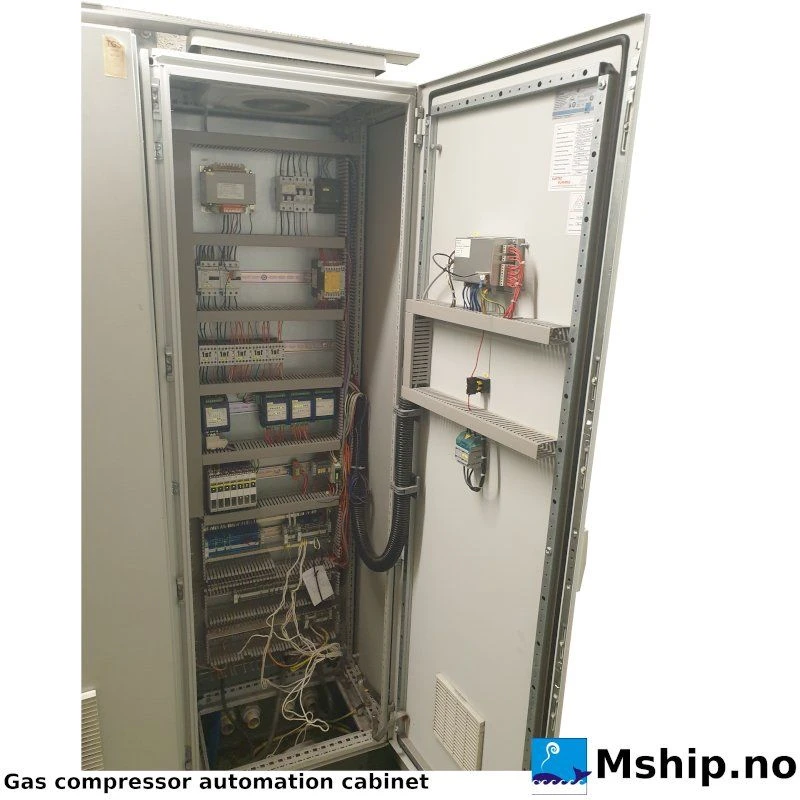

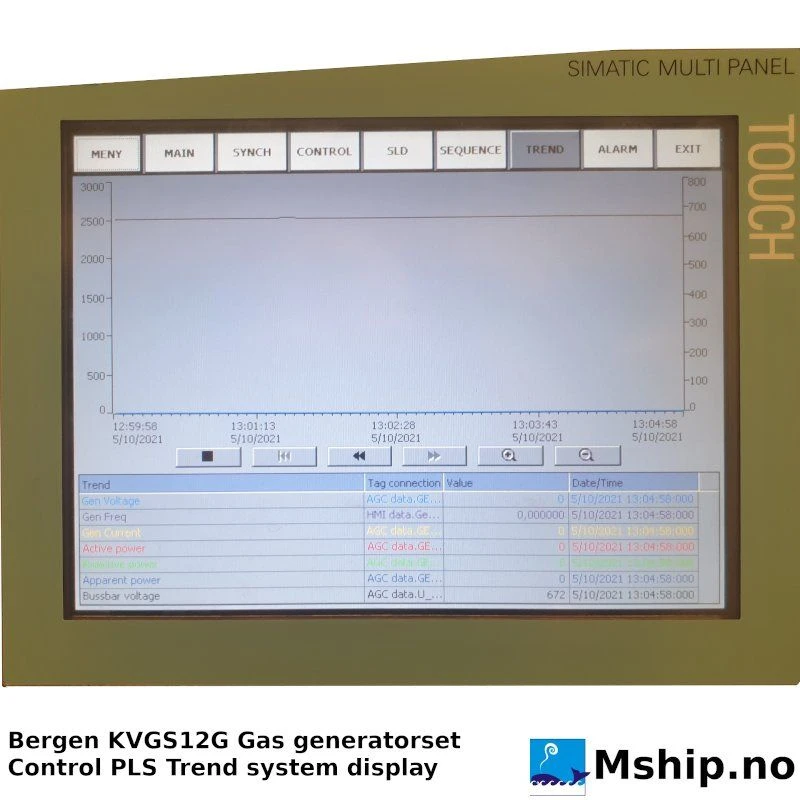

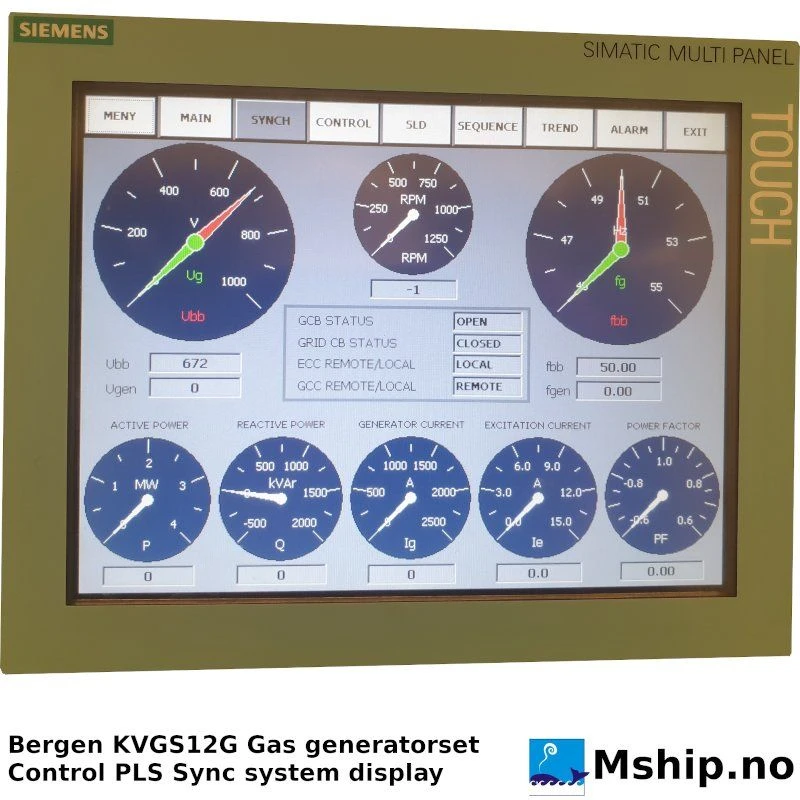

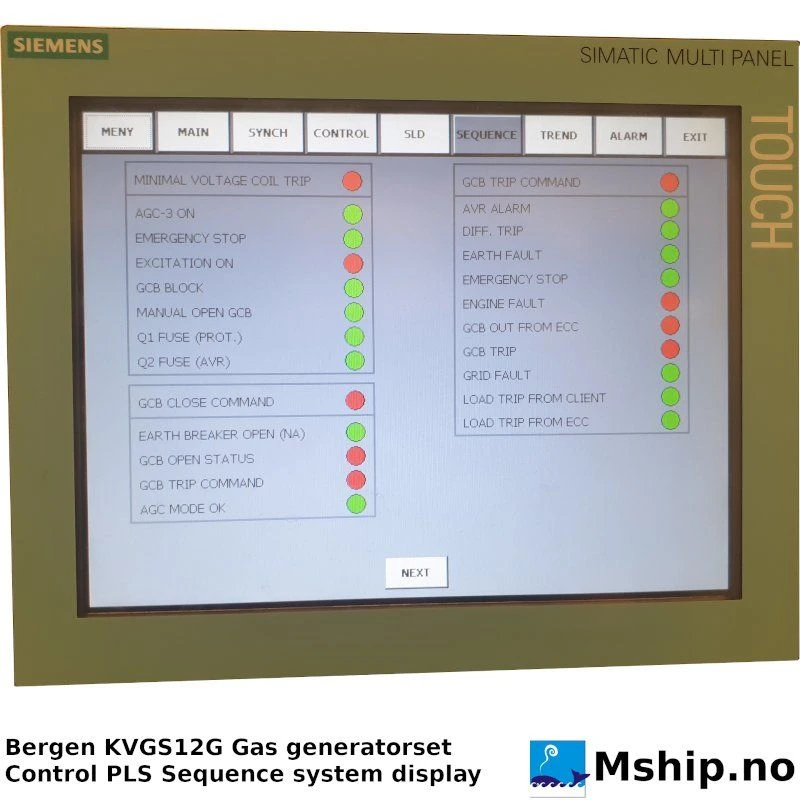

  • PLC automation cabinets with touchscreen control panel computers (Siemens Simatic multi panel)
  • Upgraded automation, monitoring and control system
  • Electric system drawings and full documentation for all electrical systems and cabinets

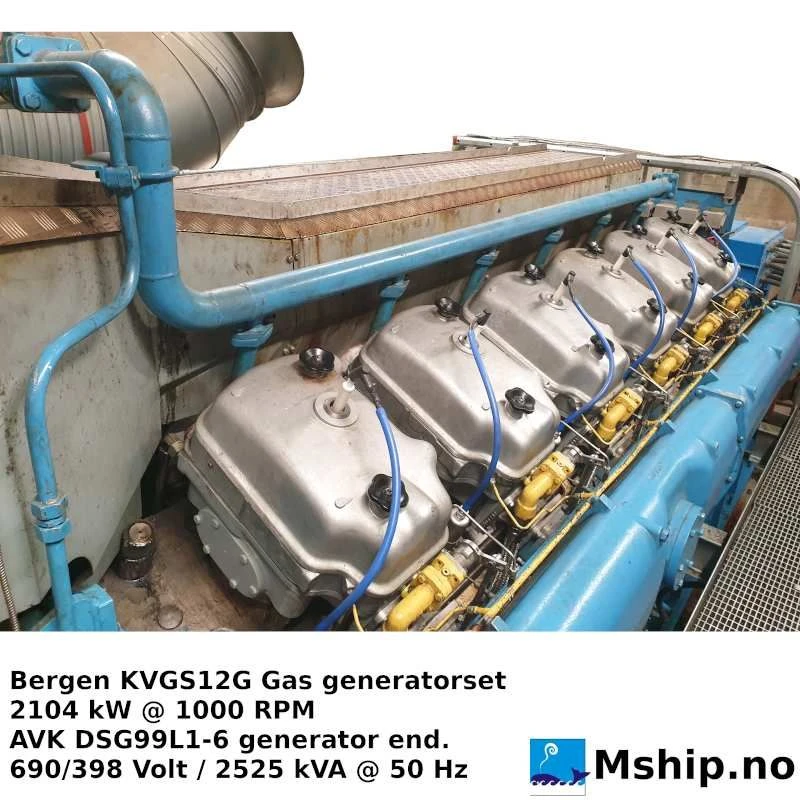

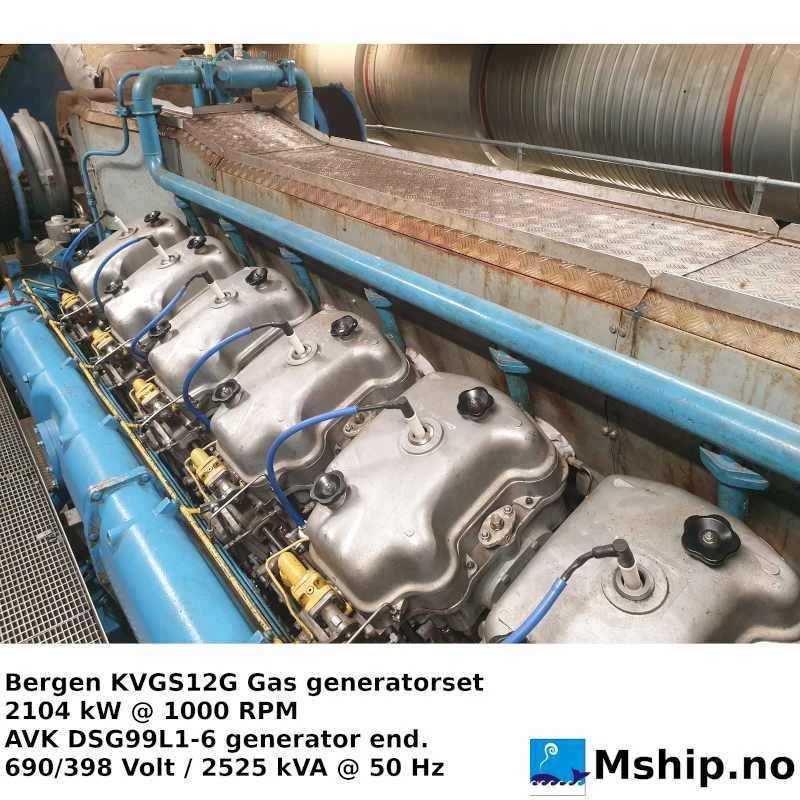

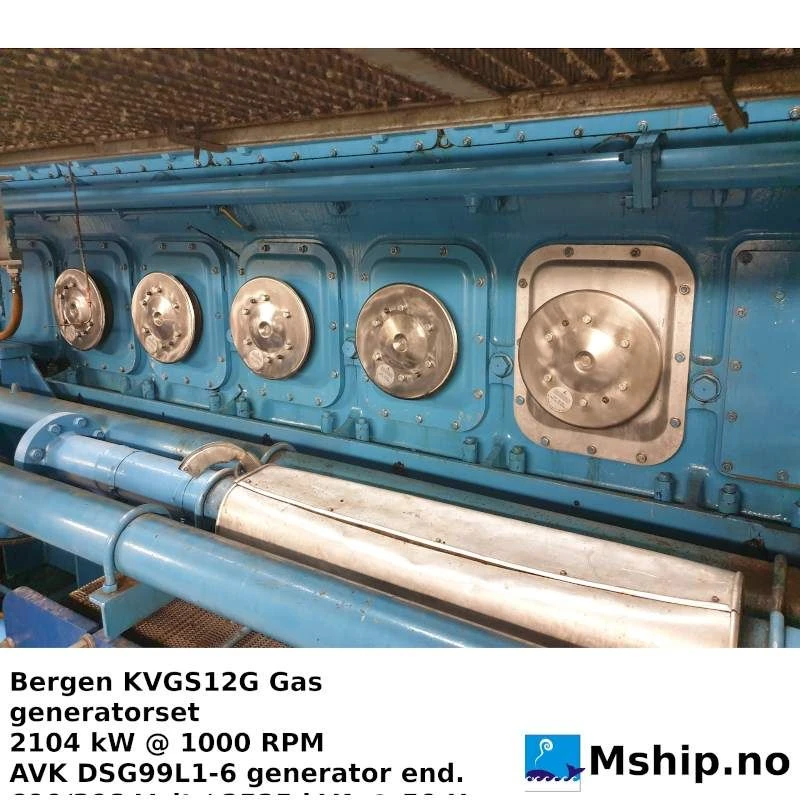

Engine

  • Bergen KVGS12 G4 lean burn, V12, bore 250 mm, stroke 300 mm, displacement 176.7 L
  • Output 2300 kW (3080 BHP) at 1000 rpm according to the engine nameplate, fuel: biogas
  • Built 1995, overhauled and upgraded to G4 in 2009

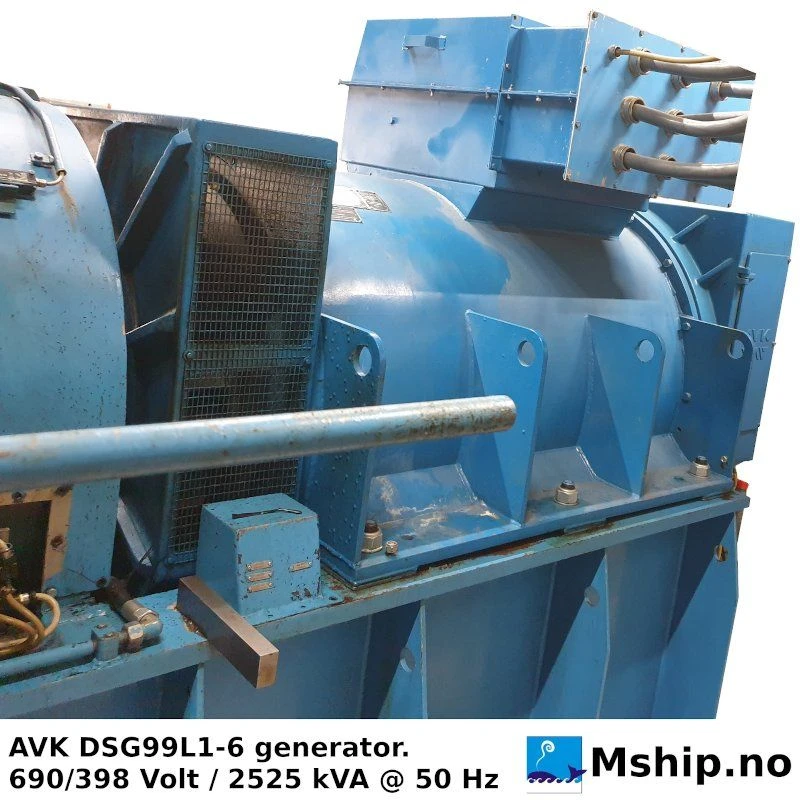

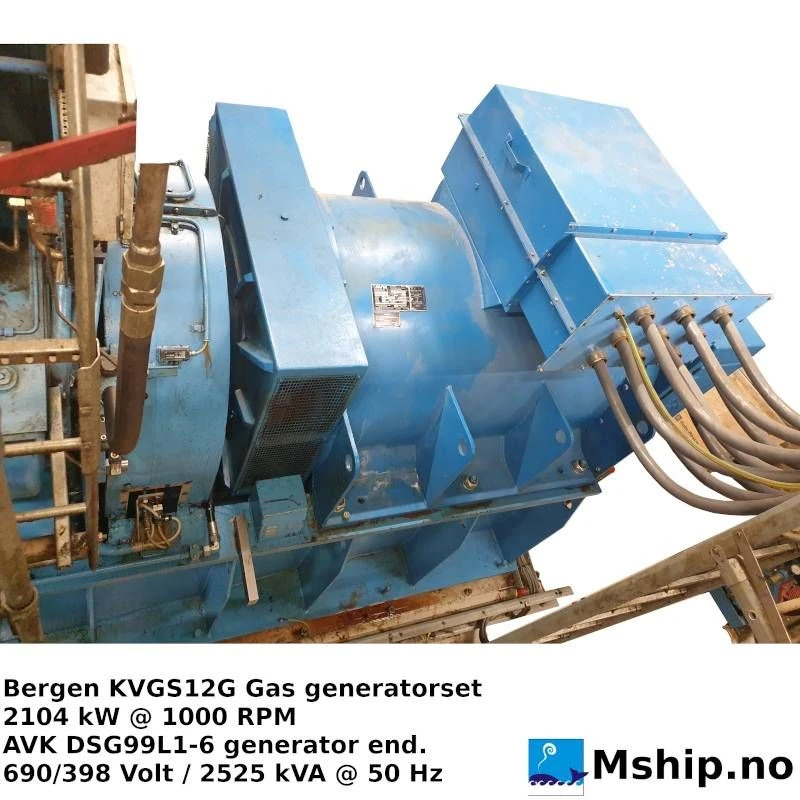

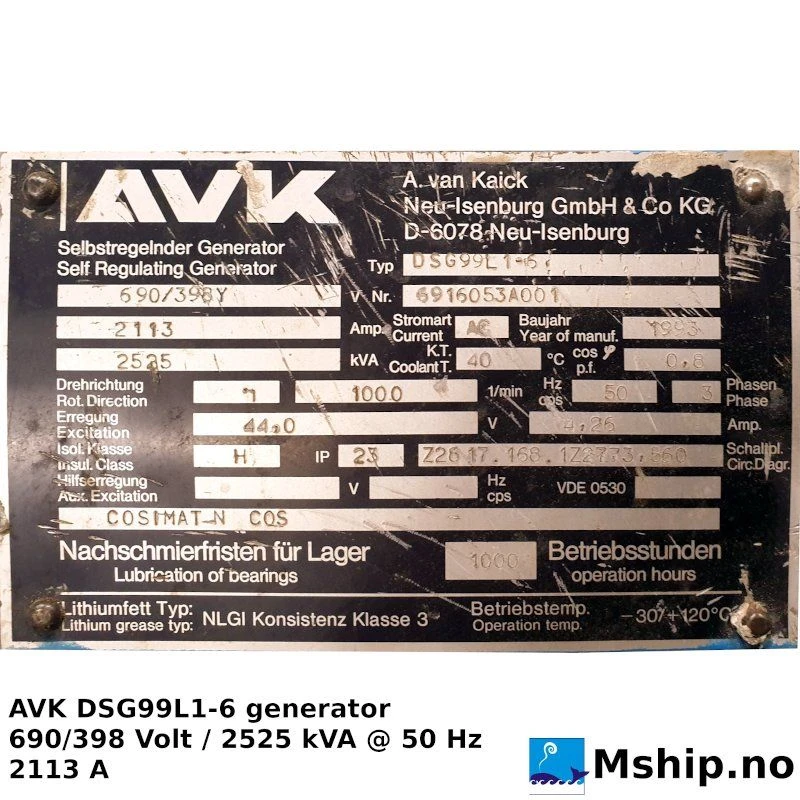

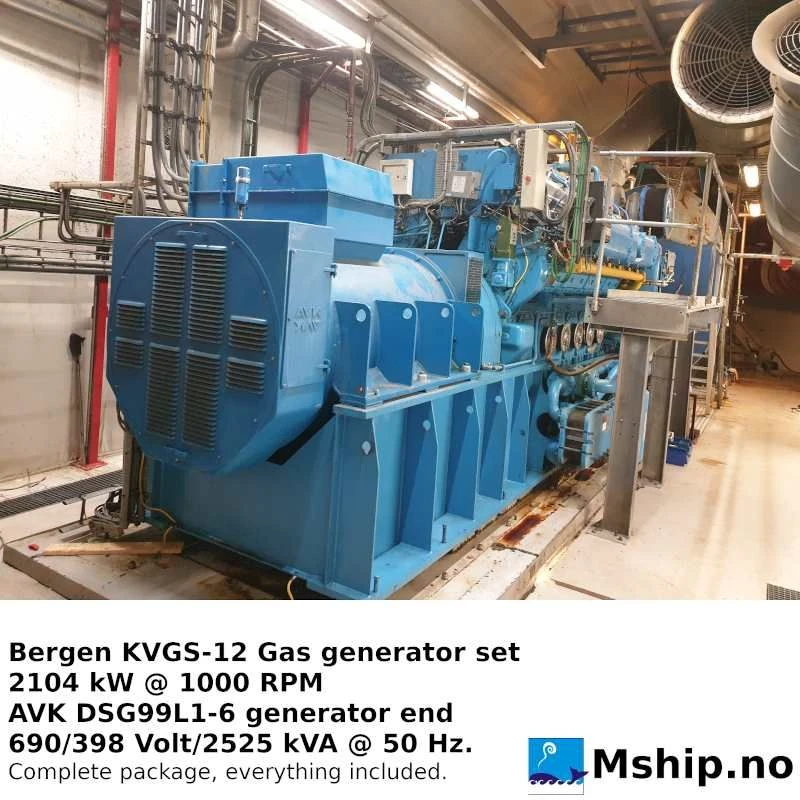

Generator – AvK DSG99L1-6 (A. van Kaick, Neu-Isenburg)

  • 2525 kVA, 690/398 V Y, 2113 A, cos φ 0.8, 50 Hz, 3 phase, 1000 rpm
  • Excitation 44 V / 4.26 A, Cosimat N voltage regulator
  • Insulation class H, IP23, coolant temperature 40 °C, serial no. 6916053A001, year 1993

Engine and generator can be sold separately. The AvK DSG99L1-6 generator (serial no. 6916053A001, 2525 kVA) is also listed on its own: AvK generator DSG99L1-6 2525 kVA.

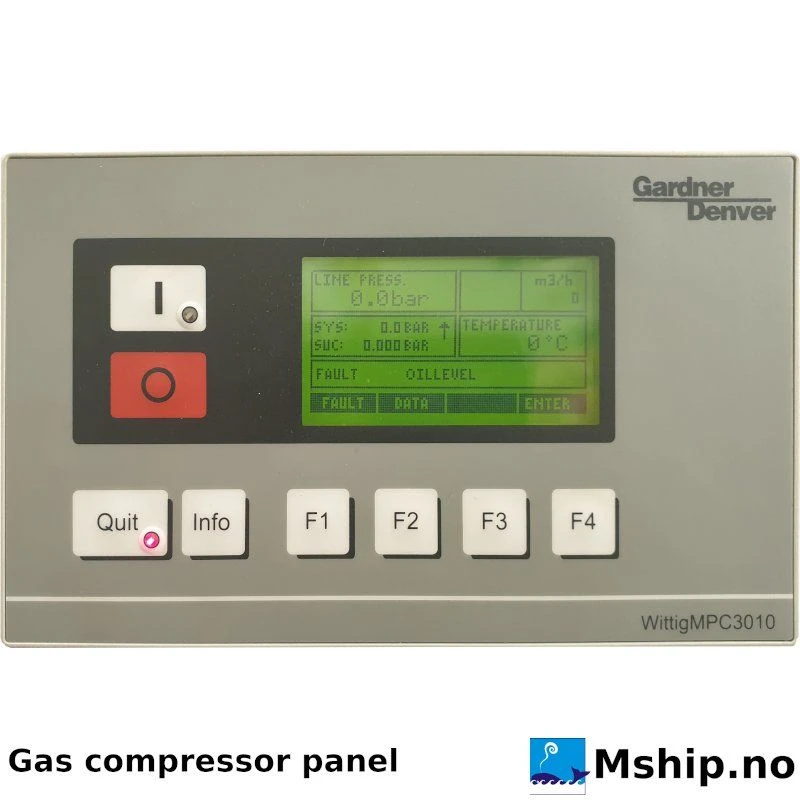

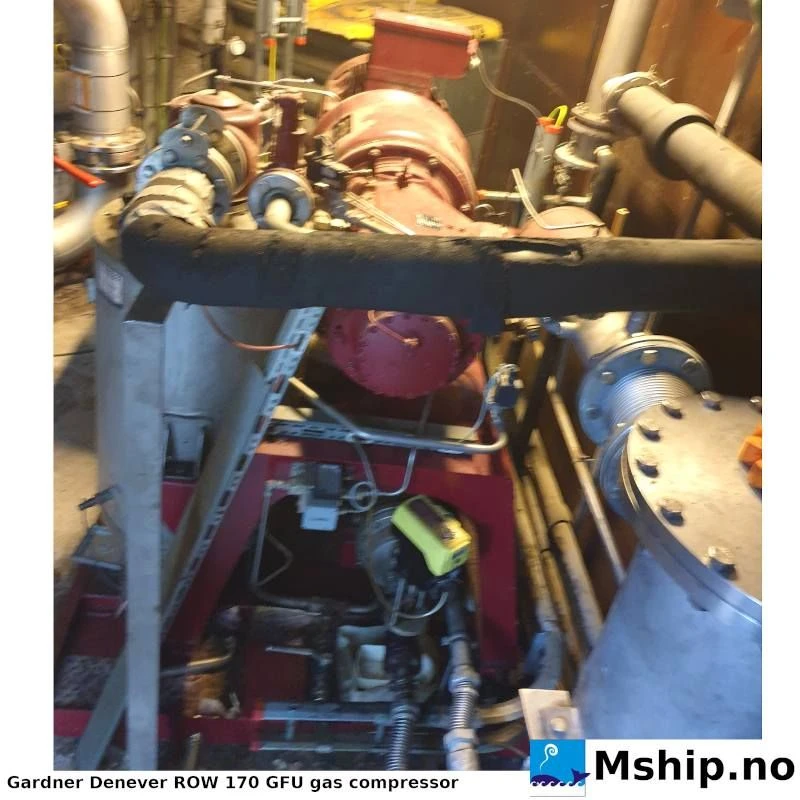

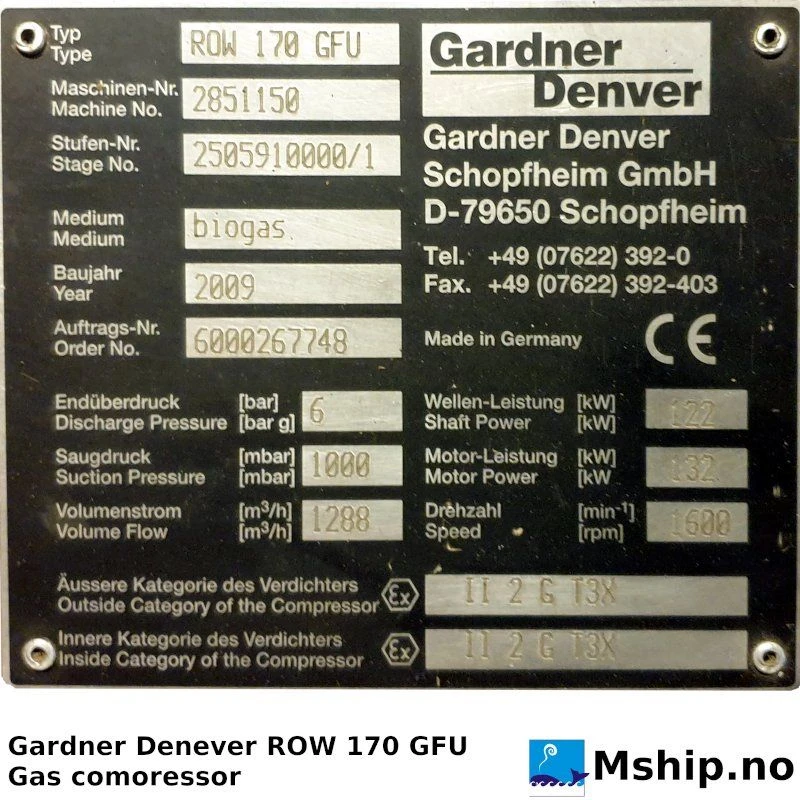

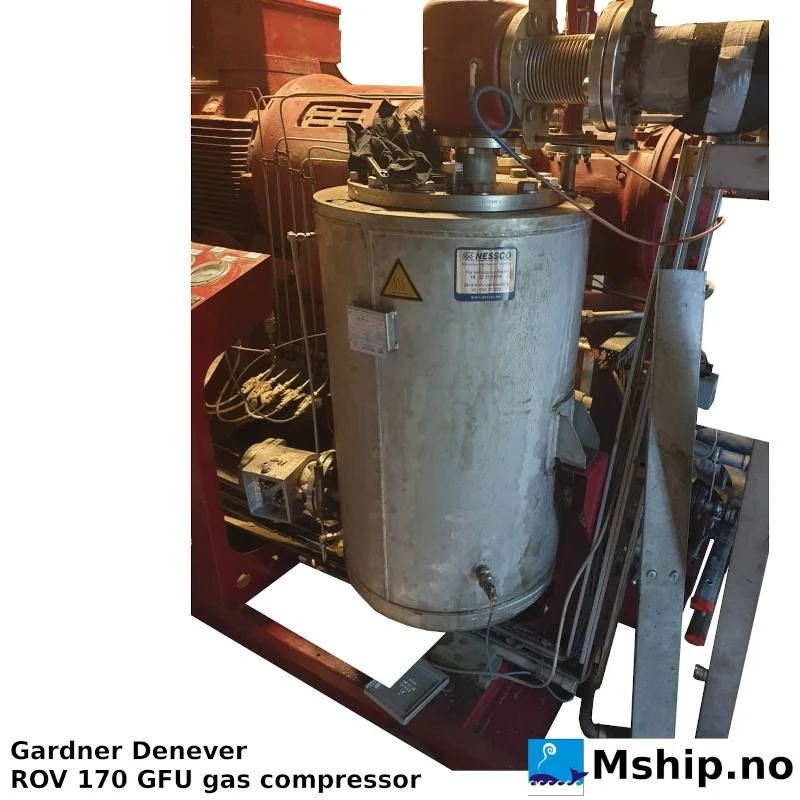

Gas compressor – Gardner Denver ROW 170 GFU (Schopfheim, made in Germany)

  • Medium: biogas, volume flow 1288 m³/h, suction pressure 1000 mbar, discharge pressure 6 bar g
  • Shaft power 122 kW, motor power 132 kW, speed 1600 rpm, Ex II 2 G T3X, CE, year 2009, machine no. 2851150

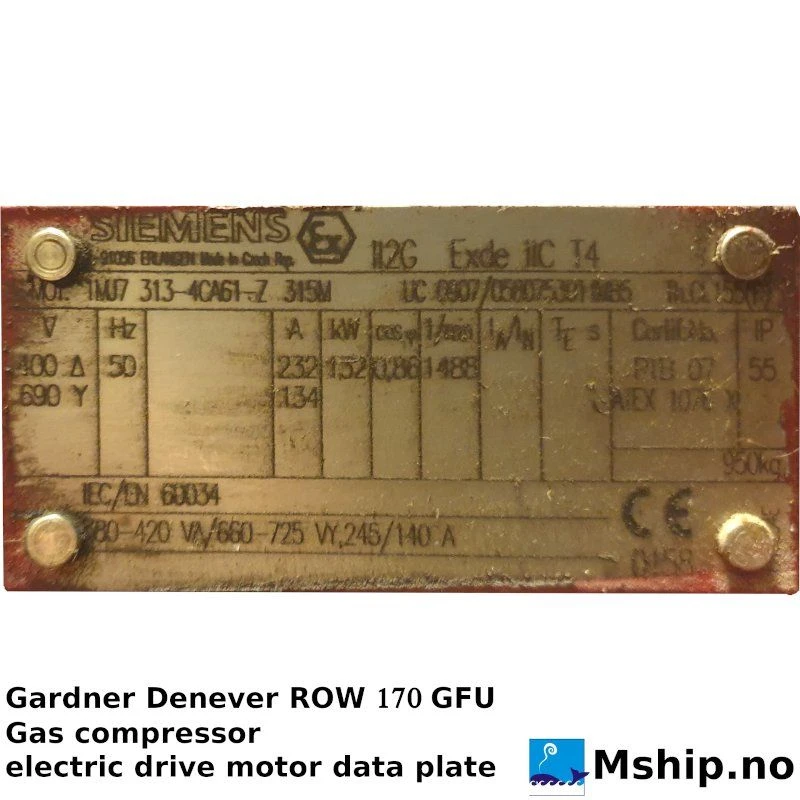

  • Drive motor: Siemens 1MU7 313-4CA61-Z 315M, 132 kW, 400 Δ / 690 Y V, 50 Hz, 1488 rpm, II 2G Ex de IIC T4, IP55
