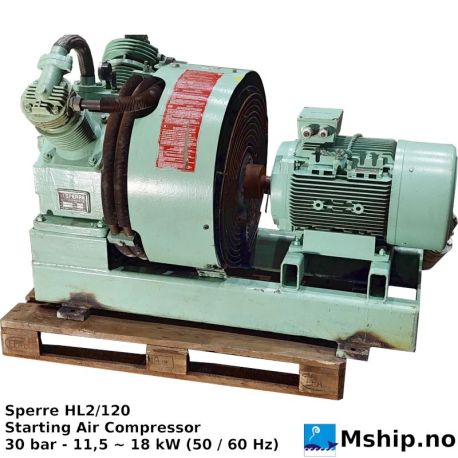

Sperre HL2/120 Starting Air Compressor — Manufacturer: Sperre, Model: HL2/120, Serial number: 120346, kW: 11,5 ~ 18, RPM: 1170, Running Hours: 11913, Number of cylinders: 2, Cylinder configuration: V, Class: DNV, HZ: 50 / 60, Working pressure BAR: 30, Test Pressure BAR: 45 View larger
Previous Next

Sperre HL2/120 Starting Air Compressor

sperre-120-120346

Used

Sperre HL2/120 Starting Air Compressor

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Sperre
Model HL2/120
Serial number 120346
kW 11,5 ~ 18
RPM 1170
Running Hours 11913
Number of cylinders 2
Cylinder configuration V
Class DNV
HZ 50 / 60
Working pressure BAR 30
Test Pressure BAR 45

More info

Model HL2/120 is a two stage 90º V-compressor.

Cylinders and compressed air coolers are air-cooled. Cooling air is supplied by a well-dimensioned fan.

Bearings and cylinders walls are splash lubricated.

Two units in stock. Ask us!

echnical Data
Performance50 Hz (30 bar)60 Hz (30 bar)
Speed (RPM) 975 1450 1175
Charging capacity (m³/h)* 50 74 59
Power requirement (kW) 11,5 19,3 14
Heat dissipation (kCal/h) 8901 14935 10836
*Charging capacity is from ambient pressure to final pressure. Tolerance +/-5%.
Design
No. of cylinders 2
Cylinder arrangement 90° V
No. of compression stages 2
Cooling Air
Cooling system Direct driven axial fan
Valve LP Concentric plate valve
Valve HP Concentric plate valve
Dimensions & weight
Cylinder diameter LP 120 mm
Cylinder diameter HP 77 mm
Stroke 100 mm
Weight (compressor/el.motor) 573 kg
Lubrication
Sump capacity 10 litres
Lubrication system Splash
Operating parameters
Maximum delivery pressure 40 bar
Ambient temperature 45°C
Normal working pressure LP 3–4 bar
Normal temperature outlet air Approx. 15°C above ambient temperature
Maximum speed 1500 RPM
Set point thermo switch air alarm/stop 75°C/80°C
Rotation Anti-clockwise (looking at the drive end)
Safety valves set point 10% above stage pressure
Max. noise level 91 dBA
Max. vibration level 30 mm/s-RMS
