View larger

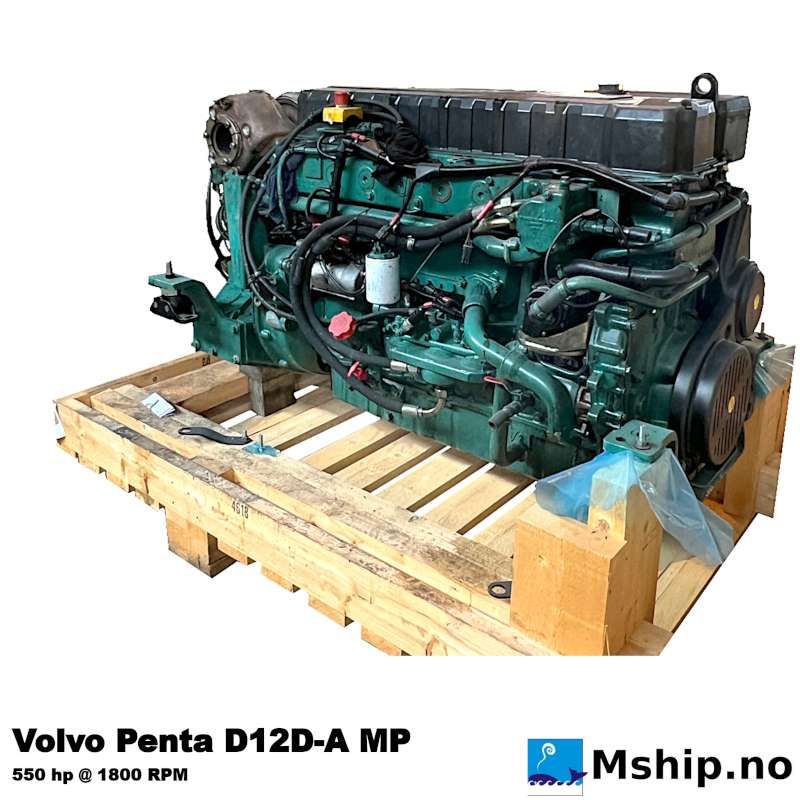

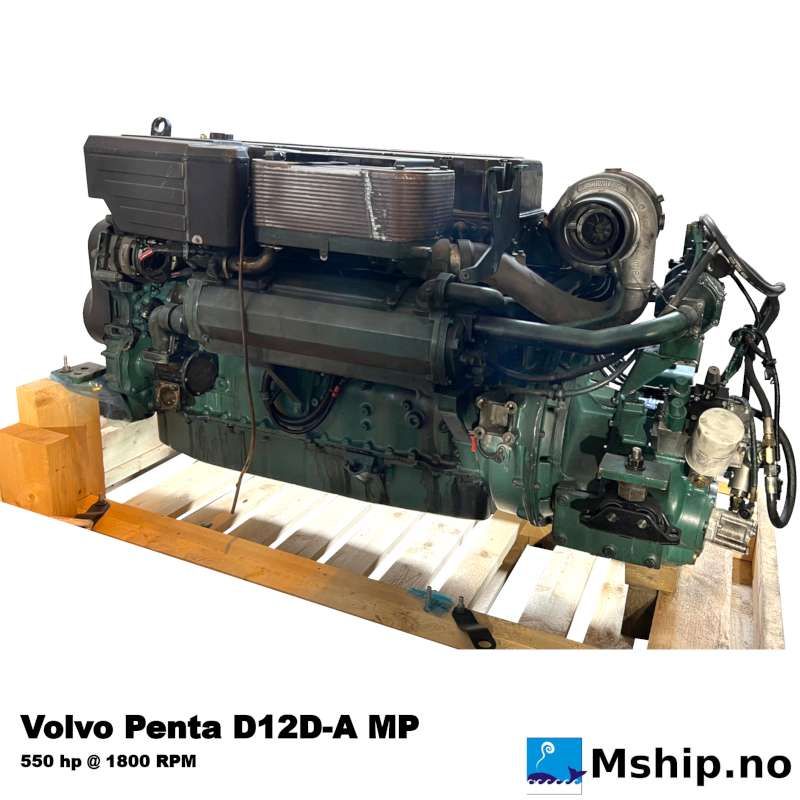

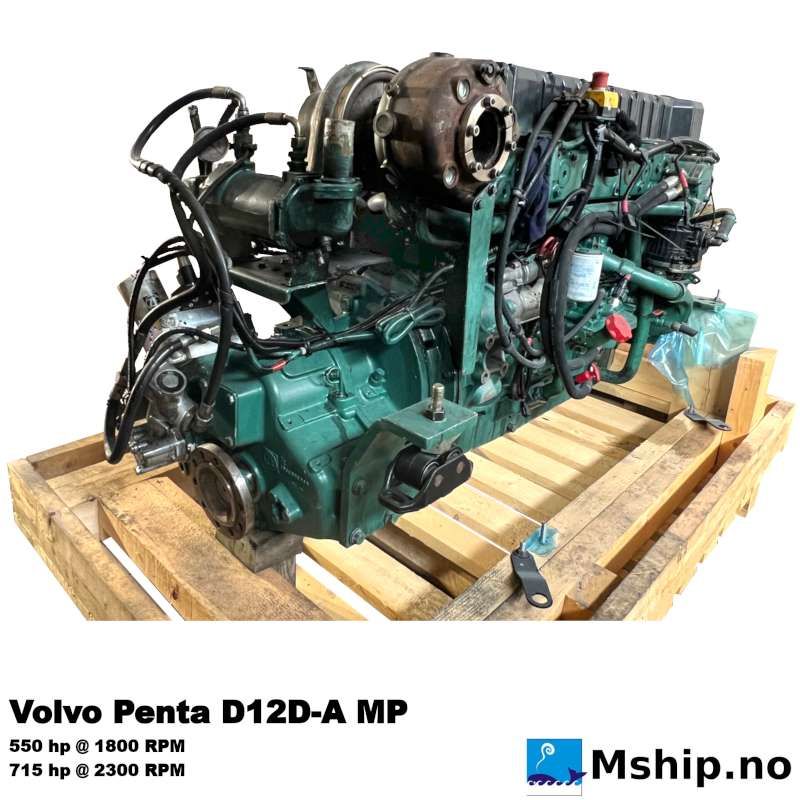

Volvo Penta D12D-A MP

Reference: D12D-AMP-1012454432

Condition: Used

Manufacturer	Volvo Penta
Model	D12D-A MP
Manufacturers part number	869186
Arrangement number	Bell housing SAE 2
Serial number	1012454370 and 1012454432
Year	Delivery date 26 April 2005
HP	550 @ 1800 rpm / 715 @ 2300 rpm.
kW	526 kW @ 715 rpm
RPM	1800 / 2300
Running Hours	About 4500 since full overhaul / about 19500 since new.
Cylinder bore	131 mm
Piston Stroke	150 mm
Number of cylinders	6
Displacement	12,13 Liter
Cylinder configuration	In line
Rotation direction	CCW - Counter clockwise seen from aft
Fuel Type	Diesel ASTM-D975 1-D & 2-D, EN 590 or JIS KK 2204
Class	The engine complies with IMO NOx, SAV, US EPA Tier 2, EU RCD and EU IWW
Other	EIAPP documentation for 550 HP rating included with each engine.
Weight	1400 kg without gear / Dry weight with reverse gear ZF325A-EB 1570 kg.
Gear type	ZF325 A-EB available - sold separately
Gear ratio	1.733:1

Two identical Volvo Penta D12D-A MP available in stock.

550 hp @ 1800 RPM
715 hp @ 2300 RPM

About 4500 running hour since full overhaul.

About 19500 running hours since new.

ZF 325-1A gears available for both engines but sold separately.
Gear ratio 1.733:1
