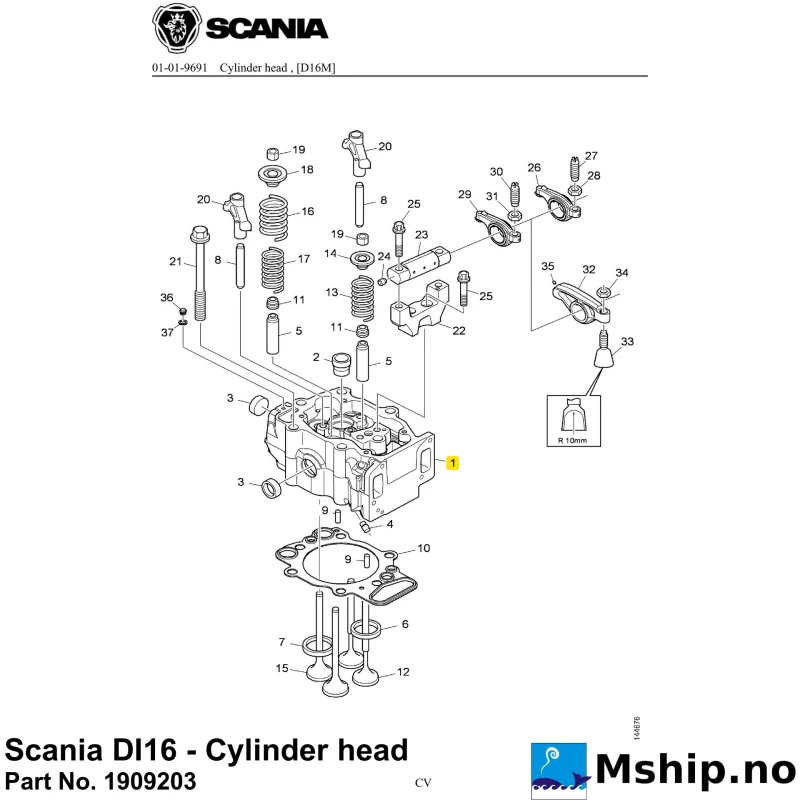

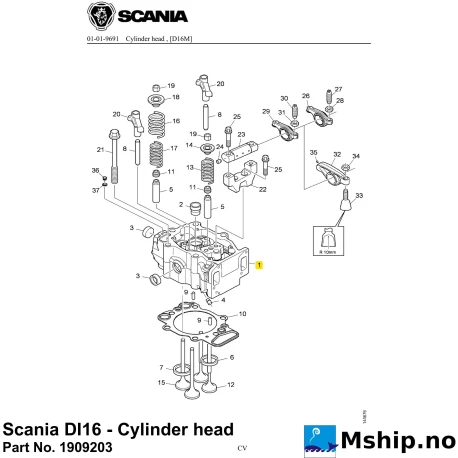

Scania DI16 - Cylinder head Part No. 1909203

Scania DI16 - Cylinder head
Part No. 1909203
Cylinder head, one per cylinder, with valve guides and valve seat inserts
Alternative part number (classed): 1727908

Related parts (not included):
pos 2 1857051 Sleeve
pos 3 1345683 Core plug ø 36 mm
pos 4 1436192 Rivet plug ø 6 mm (3 pcs)
pos 5 1940008 Valve guide (4 pcs)
pos 6 1510399 Valve seat insert, intake, std (2 pcs) / 1510400 osz
pos 7 2008345 Valve seat insert, exhaust, std (2 pcs) / 2008346 osz
pos 8 1798631 Pin (2 pcs)
pos 9 803466 Pin 8x20 (2 pcs)
pos 10 1892765 Gasket (cylinder head gasket)
pos 11 1328563 Seal (4 pcs)
pos 12 1886246 Repair kit (2 pcs)
pos 13 1519700 Valve spring, intake (2 pcs, separate product)
pos 14 1305723 Valve spring collar, intake (2 pcs)
pos 15 1886247 Repair kit (2 pcs)
pos 16 1519702 Valve spring, exhaust (2 pcs, separate product)
pos 17 1519701 Valve spring, exhaust (2 pcs, separate product)
pos 18 1305724 Valve spring collar, exhaust (2 pcs)
pos 19 377338 Split collet (8 pcs)
pos 20 1919609 Valve bridge (2 pcs, separate product)
pos 21 1852442 Screw (6 pcs)
pos 22 1487541 Bearing bracket, pos 23 1501092 Shaft, pos 24 1436192 Rivet plug ø 6 mm
pos 25 1487542 Tight-fit screw (2 pcs)
pos 26 1438752 Rocker arm, intake (separate product)
pos 29 1438755 Rocker arm, exhaust (separate product)
pos 32 1521889 Rocker arm, injector (separate product)
pos 36 812369 Screw plug M8x1x6, pos 37 1735681 Sealing washer ø 8 mm
