Scania DI16 - Cylinder block Part No. 1739462

Scania DI16 - Cylinder block
Part No. 1739462

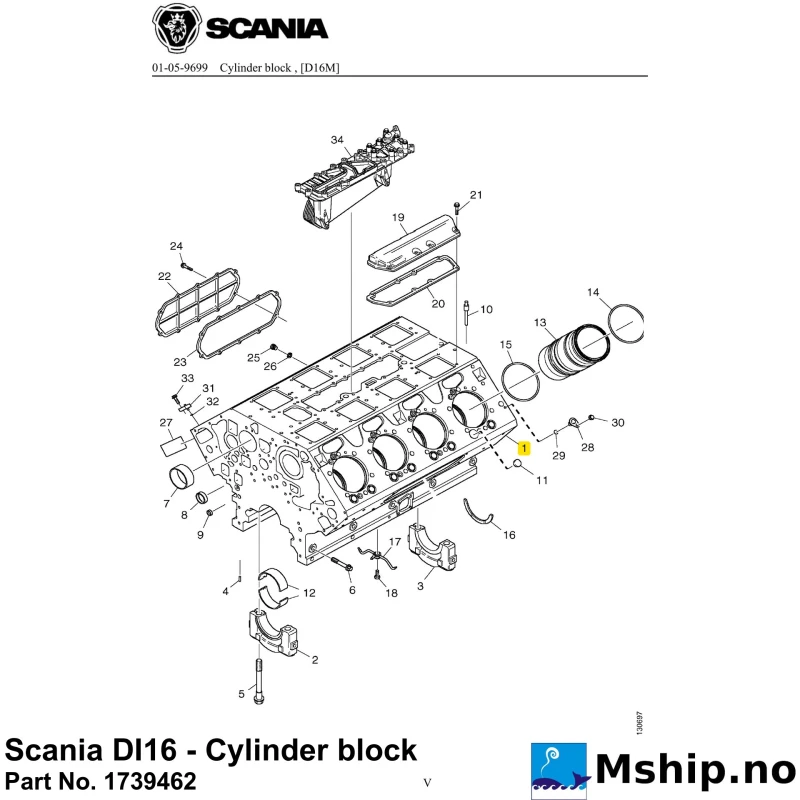

V8 cylinder block, with main bearing caps
Alternative part number (classed): 1727906

Related parts (not included):
pos 2 - Bearing cap (nss) (4 pcs), pos 3 - Bearing cap, rear (nss)
pos 4 803466 Pin 8x20 (5 pcs)
pos 5 1441698 Screw M20x170 (10 pcs, separate product), pos 6 1413557 Screw M14x80 (10 pcs)
pos 7 1423067 Bearing bush (10 pcs, separate product)
pos 8 1378301 Core plug ø 21 mm, pos 9 1424452 Core plug ø 45 mm (4 pcs), pos 10 1436193 Rivet plug
pos 11 1535167 Core plug (8 pcs)
pos 12 1779130 Bearing STD (alt. 1729990) (5 pcs); undersize -0.25/-0.50/-0.75/-1.00: 1777779/1777780/1777781/1777782
pos 13 1868157 Cylinder liner (alt. 1484492) (8 pcs, separate product); classed 1727919; oversize +0.5/+1/+1.5/+2: 1941991/1917107/1941992/1941993
pos 14 1862376 O-ring ø 144x2,5x149 (alt. 1433063) (8 pcs); for oversize liner: 2031033
pos 15 1328995 O-ring ø 147,5x4x155,5 (8 pcs)
pos 16 1531996 Thrust bearing (alt. 1350815) (4 pcs); oversize +0.16/+0.26/+0.52/+1.02: 1439892/1439893/1439894/1439895
pos 17 1444214 Piston cooling nozzle (4 pcs), pos 18 2107866 Banjo screw (alt. 339840) (4 pcs)
pos 19 1423521 Cover (4 pcs, separate product), pos 20 1745816 Gasket (alt. 1446214) (4 pcs), pos 21 812521 Flange screw M8x40 (32 pcs)
pos 22 1756130 Cover (2 pcs, separate product), pos 23 1375383 Gasket (2 pcs), pos 24 812521 Flange screw M8x40 (20 pcs)
pos 25 235804 Drain tap (3 pcs), pos 26 812414 Gasket ø 14,2x17,9x1,5 (3 pcs)
pos 27 2053677 Plate (alt. 1859198)
pos 28 1732602 Plug (alt. 1468513), pos 29 1413934 O-ring, pos 30 812515 Flange screw M8x16 (when there is no compressor)
pos 31 1467944 Cover, pos 32 1720693 O-ring ø 9,3x4x17,3, pos 33 812519 Flange screw M8x30
pos 34 1/20 Oil cooler, engine (see 1448933 / 1850702)
Repair kit piston and cylinder liner: 1/99/1699 (classed: 1/99/1701), Shim cylinder liner: 1/99/2526
