Terasaki XS1200NE – 600A — Manufacturer: Terasaki, Model: TemBreak XS1200NE, 3-pole moulded case circuit breaker (MCCB), Manufacturers part number: XS1200NE 3P 600A PM (order label), Class: Type approved: NK (89T209), AC 500 V 50 kA, Other: Breaking capacity IEC 947-2 / BS (Icu/Ics): 690 V 25/19 kA, 440 V 65/49 kA, 415 V 65/49 kA, 380 V 85/64 kA, 240 V 100/75 kA, category B. JIS: 550 V 50 kA, 460 V 65 kA, 220 V 100 kA, Amps: Rated current 600 A (frame 600-700-800-1000-1200 A); ICT 1250 A, Volt: Ui AC 690 V (rated insulation voltage), HZ: 50-60 Hz, Remarks: Short-time withstand 15 kA / 0.3 s. Electronic trip unit with long-time, short-time and instantaneous settings (sealed). Shunt trip (SHT) AC 200-480 V 50/60 Hz. Label options: PM, LTP. New in original packaging, made in Japan View larger
Previous Next

Terasaki XS1200NE – 600A

Terasaki-XS1200NE600A

New product

Terasaki XS1200NE – 600A
TemBreak Circuit Breaker 3 pole AC690V 50~60Hz

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Terasaki
Model TemBreak XS1200NE, 3-pole moulded case circuit breaker (MCCB)
Manufacturers part number XS1200NE 3P 600A PM (order label)
Serial number 97549B
Class Type approved: NK (89T209), AC 500 V 50 kA
Other Breaking capacity IEC 947-2 / BS (Icu/Ics): 690 V 25/19 kA, 440 V 65/49 kA, 415 V 65/49 kA, 380 V 85/64 kA, 240 V 100/75 kA, category B. JIS: 550 V 50 kA, 460 V 65 kA, 220 V 100 kA
Amps Rated current 600 A (frame 600-700-800-1000-1200 A); ICT 1250 A
Volt Ui AC 690 V (rated insulation voltage)
HZ 50-60 Hz
Remarks Short-time withstand 15 kA / 0.3 s. Electronic trip unit with long-time, short-time and instantaneous settings (sealed). Shunt trip (SHT) AC 200-480 V 50/60 Hz. Label options: PM, LTP. New in original packaging, made in Japan

More info

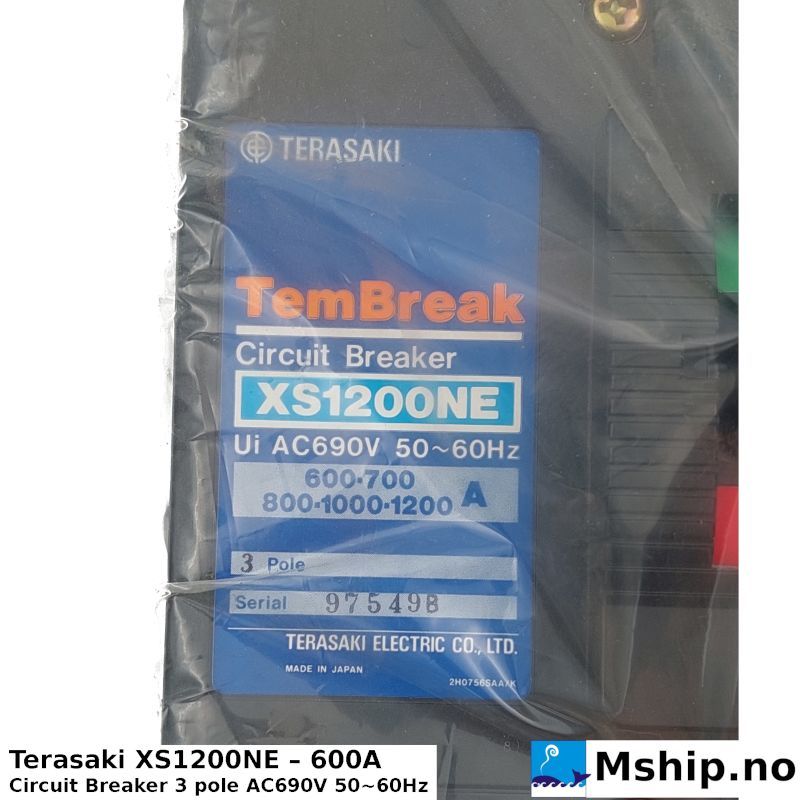

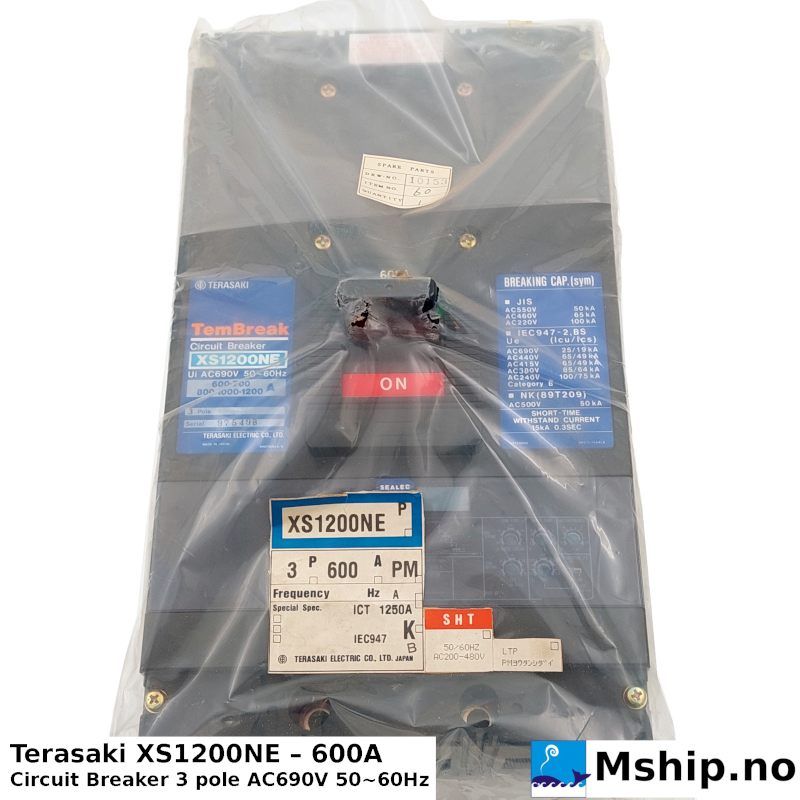

Terasaki TemBreak XS1200NE moulded case circuit breaker, 3-pole, 600 A, Ui AC 690 V 50-60 Hz. New and unused, still sealed in the original packaging.

General
Manufacturer: Terasaki Electric Co., Ltd., made in Japan
Model: TemBreak XS1200NE, 3-pole

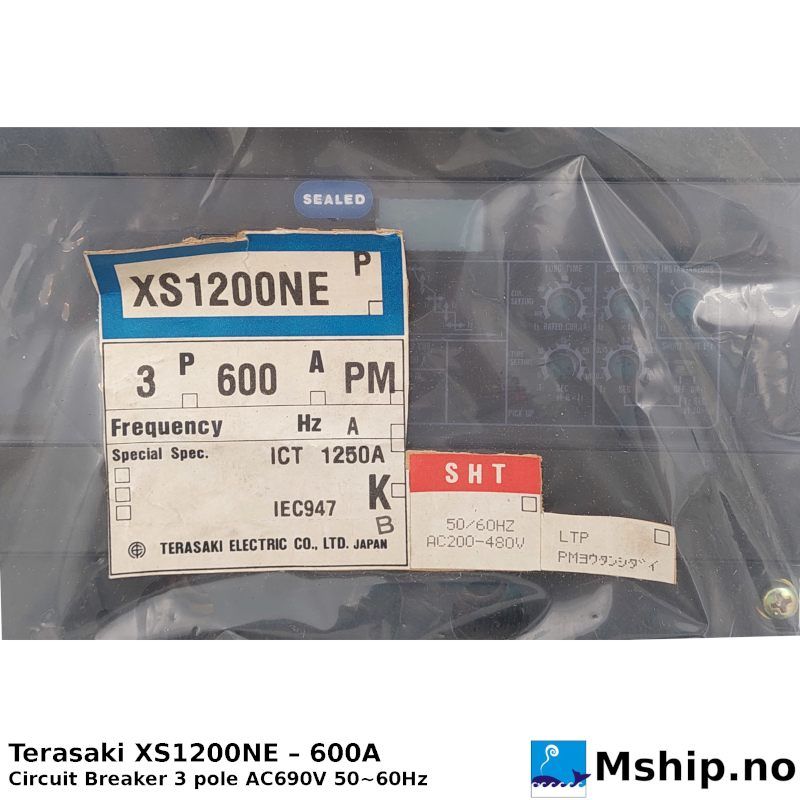

Order code (label): XS1200NE 3P 600A PM

Ratings

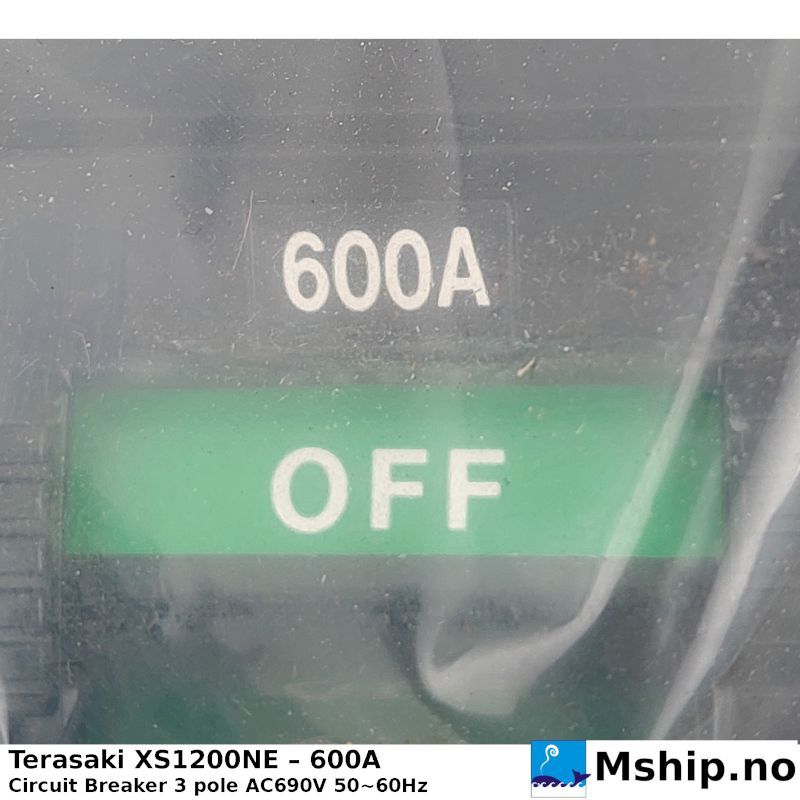

Rated current: 600 A
Frame ratings: 600-700-800-1000-1200 A
ICT: 1250 A
Rated insulation voltage Ui: AC 690 V
Frequency: 50-60 Hz
Short-time withstand current: 15 kA, 0.3 s

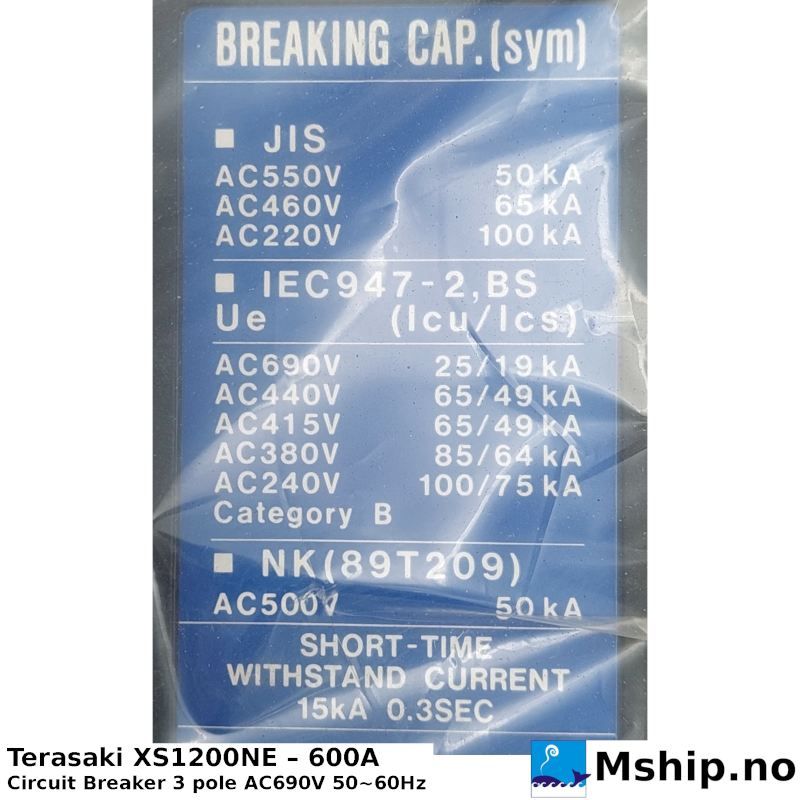

Breaking capacity (sym)VoltageIcu / Ics
IEC 947-2, BS (category B)AC 690 V25 / 19 kA
AC 440 V65 / 49 kA
AC 415 V65 / 49 kA
AC 380 V85 / 64 kA
AC 240 V100 / 75 kA
JISAC 550 V50 kA
AC 460 V65 kA
AC 220 V100 kA
NK (89T209)AC 500 V50 kA

Trip unit and accessories
Electronic trip unit with long-time, short-time and instantaneous settings (sealed)
Shunt trip (SHT): AC 200-480 V, 50/60 Hz
Label options: PM, LTP

Class
Type approved by NK (89T209)

Contact us for price and delivery.
