Pelco DD429-X Spectra® IV SE

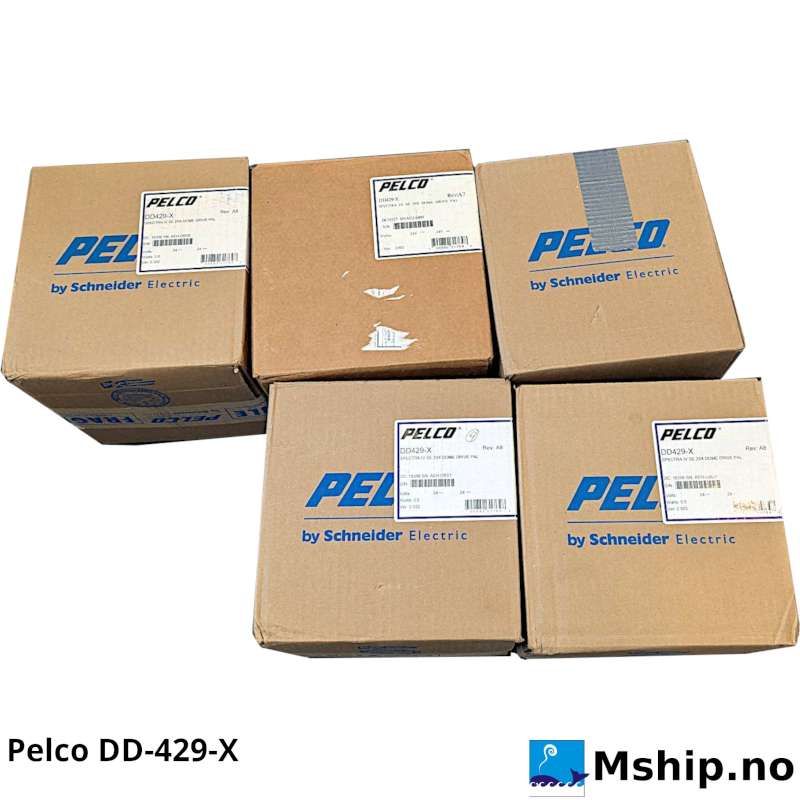

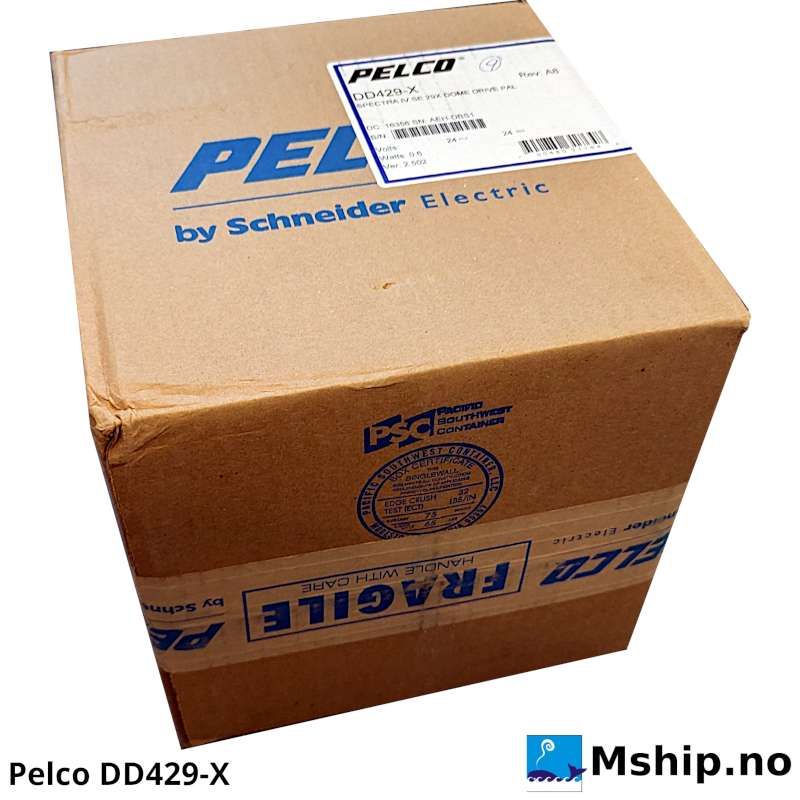

Pelco DD429-X is the Spectra® IV SE 29X day/night dome drive for PAL video systems. The units are factory refurbished and calibrated. One new unit is also available.

Replaces other Spectra IV dome drives

The model number tells you what the unit is: DD4 = Spectra IV series dome drive, 29 = 29X optical zoom, -X = PAL. Spectra IV dome drives are interchangeable with all Spectra IV back boxes. The DD429-X can therefore replace a Spectra IV dome drive with a different zoom, such as DD423-X, DD427-X, DD436-X, DD4CBW35-X, DD4CBW23-X, DD4CBW18-X, DD4C22-X or DD4TC16-X. The camera then has 29X zoom.

• Pelco replaced the DD427-X (27X) with the DD429-X in 2012 (addendum C2262M-A).
• Replace PAL with PAL. Models without -X are NTSC.

Features

• Autofocus, high-resolution integrated camera and optics, 29X optical and 12X digital zoom
• Day/night, >540 TVL, 128X wide dynamic range (WDR) and motion detection
• LowLight™ technology and low-lux noise reduction
• Auto tracking
• Window, horizontal and zone blanking
• Camera title overlay with 20 user-definable characters
• On-screen compass and tilt display
• Password protection
• Internal scheduling clock for presets and patterns
• Built-in surge and limited lightning protection
• Integrated passive unshielded twisted pair (UTP) circuit
• Autosensing protocol: Coaxitron®, RS-422 Pelco P and Pelco D

Technical data

• Signal format: PAL, 752 × 582 pixels, >540 TV lines
• Lens: 3.4–98.6 mm, horizontal angle of view 55.8° (wide) to 1.7° (tele)
• Sensitivity: 0.45 lux colour at 1/50 s, 0.015 lux colour at 1/1.5 s, 0.004 lux black-white at 1/1.5 s
• Pan: 360° continuous, 0.1–80°/s manual, 150°/s turbo, 400°/s preset
• Tilt: +2° to −92° unobstructed, 0.1–40°/s manual, 200°/s preset
• Input voltage: 18–32 VAC (24 VAC nominal) or 22–27 VDC (24 VDC nominal), 50/60 Hz
• Input power: 23 VA without heater, 73 VA with heater (24 VAC). Fuse 1.25 A
• 7 alarm inputs, 2 auxiliary outputs
• Construction: aluminium and thermoplastic
• Weight of the dome drive: 1.48 kg
• Certifications: CE Class B, FCC Class B, UL/cUL Listed, C-Tick

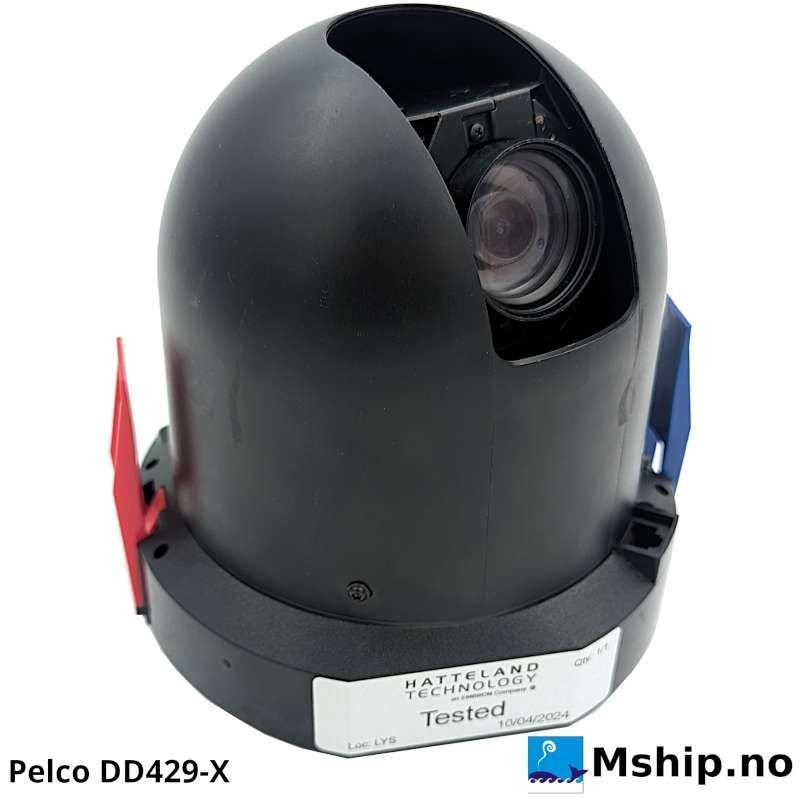

Dome drive only

This is the dome drive (camera module) only. A complete Spectra IV SE system also needs a back box (BB4 series: in-ceiling, surface, pendant, environmental or stainless steel) and a lower dome (LD series). The dome drive can be controlled from a Pelco keyboard such as the Pelco KBD300A, which we also have in stock.

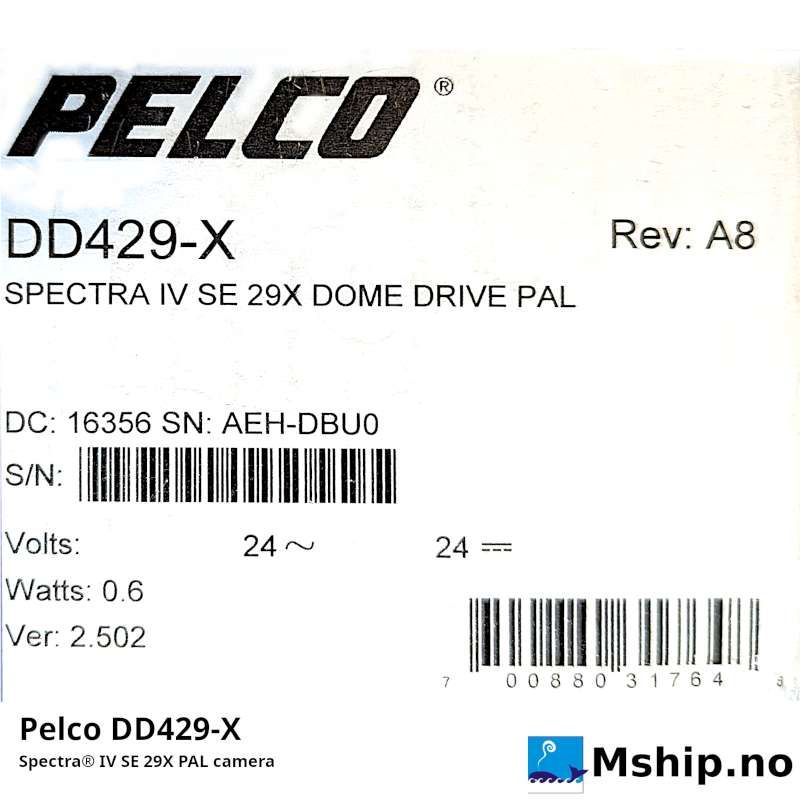

The units we have photographed show firmware version 2.502 on the label.
