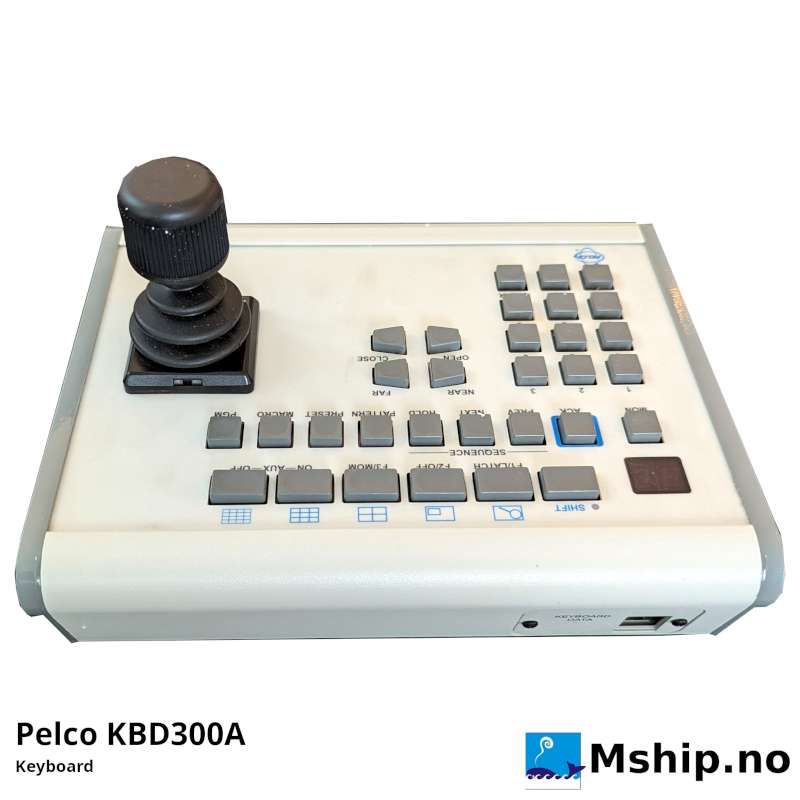

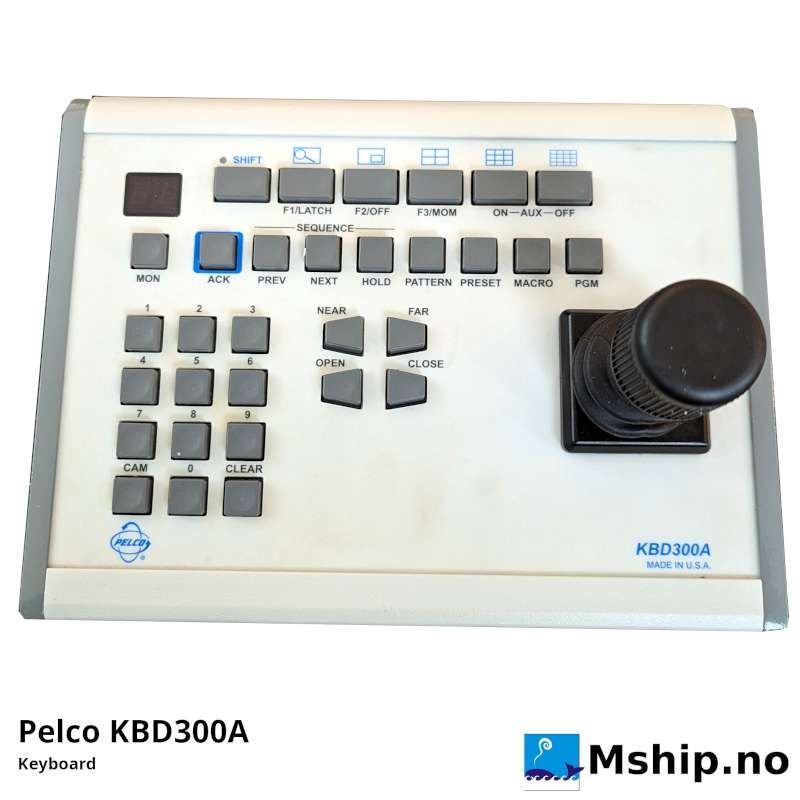

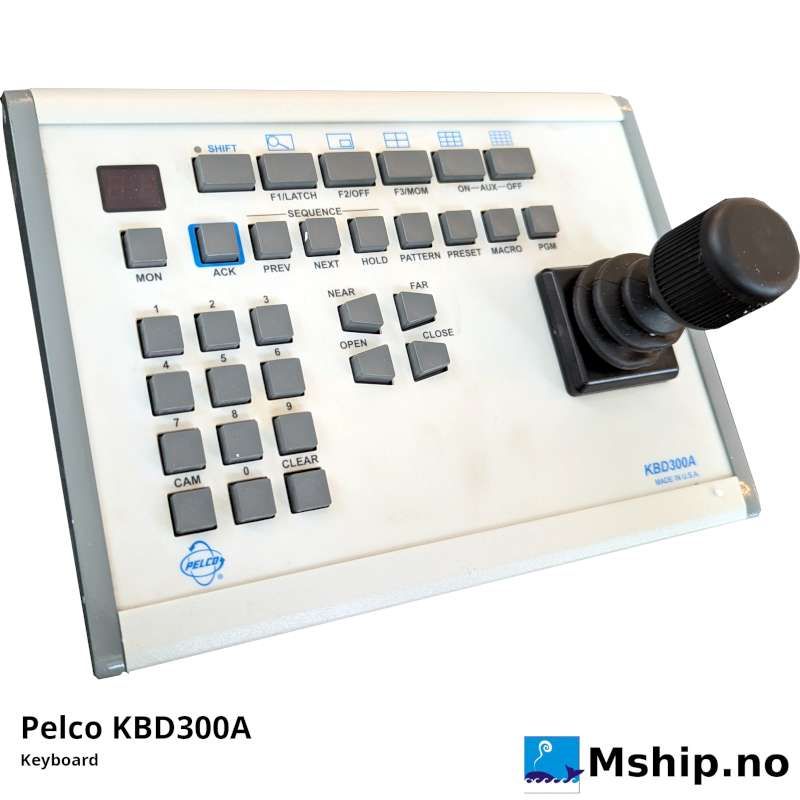

Pelco KBD300A Keyboard — Manufacturer: PELCO, Model: KBD300A, Performance specification: New keyboard - without box, Volt: 2v Volt AC and DC View larger
Previous Next

Pelco KBD300A Keyboard

kbd300a

New product

Pelco KBD300A Keyboard

More details

    • Data sheet

    Manufacturer PELCO
    Model KBD300A
    Performance specification New keyboard - without box
    Volt 2v Volt AC and DC

    More info

    KBD300A Keyboard
    FULL-FUNCTIONALITY, FIXED/VARIABLE SPEED, PTZ CONTROL

    Desktop keyboard with full switching and
    programming capabilities, plus joystick
    control of PTZ functions

    Product Features

    •  Keyboard to Control:

                  -CM6700/CM6800/CM9760-SAT Matrix Switchers
                  – Genex® Multiplexer When Used with CM6700 and CM6800
                   – Up to 16 Receivers Directly from Keyboard (such as Spectra ®,
                       Esprit®, and ExSiteTM)

    • Automatically Recognizes Modes of Operation
    • Joystick Control of PTZ Functions
    • Preset Position and Pattern Control
    • Auxiliary Operation
    • Auto/Random/Frame Scanning
    • Programming of CM6700/CM6800/CM9760-SAT/CM9760-MDA
    The KBD300A keyboard is a full-function, desktop keyboard control-
     ler that can be used in a variety of applications
    A barrel-type joystick provides precise pan and tilt control of fixed
    speed and variable speed receivers. Twisting the joystick clockwise
    or counterclockwise zooms the lens in or out.
    Keys select cameras and monitors; operate presets, patterns, auxil-
    iaries, and sequences; open and close the iris; zoom and focus the
    lens; and start and stop auto, frame, and random scanning.
    The keyboard can be used in three modes of operation: CM6700
    Mode, CM6800 Mode, and Direct Mode. The KBD300A keyboard
    automatically recognizes the mode.
    In the first two modes, the keyboard is plugged into a CM6700,
    CM6800, or CM9760-SAT switcher/controller unit (SCU) and is used
    to program and operate the SCU. The maximum number of keyboards
    per unit is eight (CM6700 and CM6800-32X6), sixteen (CM6800-
    48X8, CM6800E-48X8, and CM6800-96X16) or four (CM9760-SAT). In
    CM6700/CM6800 applications, the keyboard can control cameras
    connected directly to the SCU or through an MX4000 Series Genex
    multiplexer.
    If you do not need all the features of the CM6700/CM6800 SCU, but
    want the same keyboard functionality, then one keyboard can be
    wired directly to camera receivers in Direct Mode (KBDKIT required).

    Download

    pelco_kbd300a.pdf

    Pelco KBD300A specifications

    Download (135.22k)
