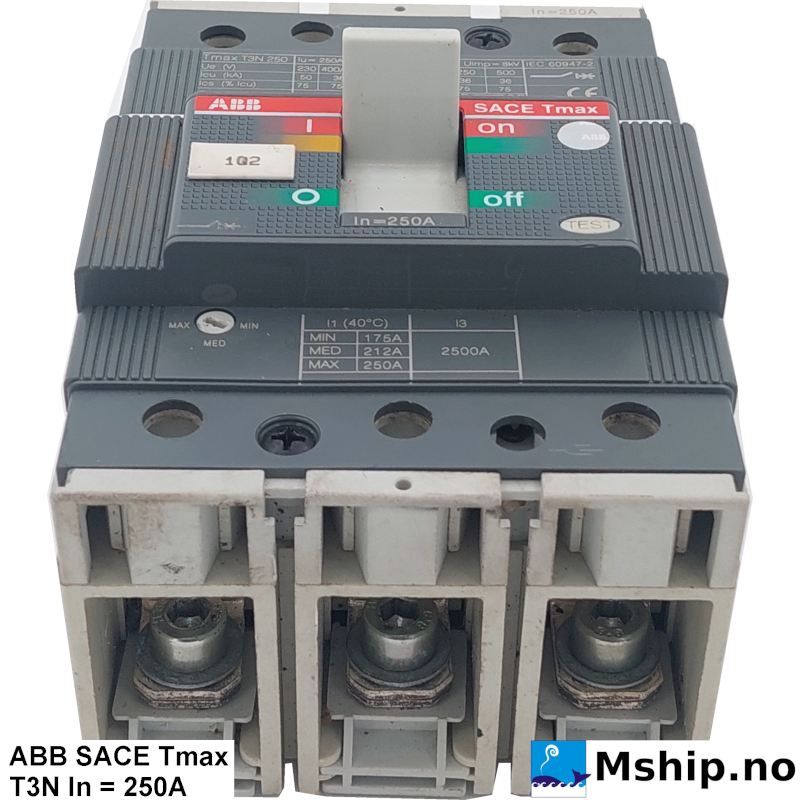

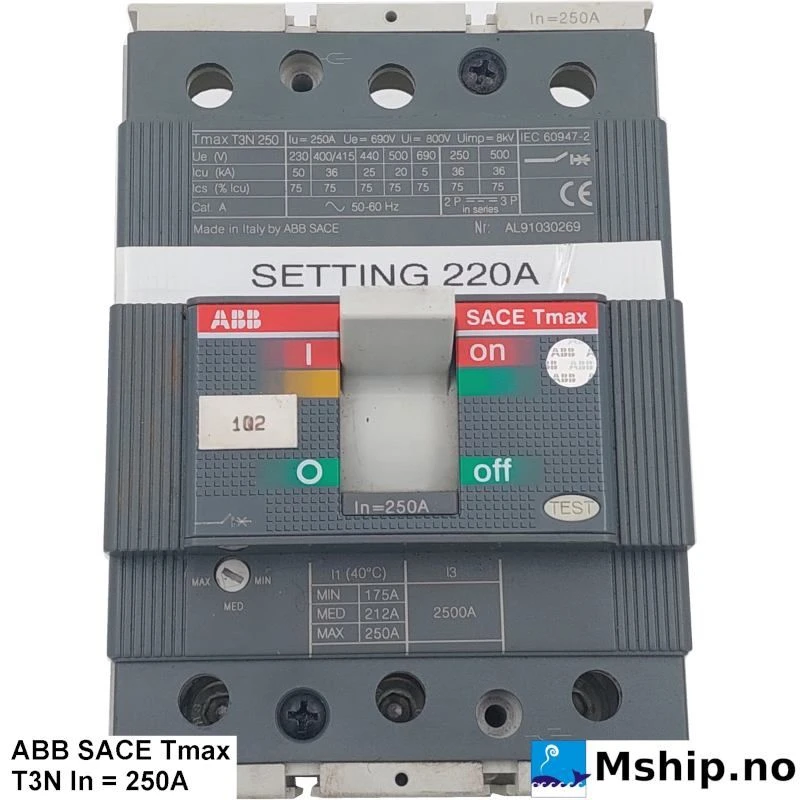

ABB SACE Tmax Circuit Breaker T3N 250A — Manufacturer: ABB, Model: SACE T3N, Alternative part number: SACE Tmax, Serial number: AL91030269, Amps: 250, Volt: See photo View larger
Previous Next

ABB SACE Tmax Circuit Breaker T3N 250A

abb-tmax-t3n250

Used

ABB SACE Tmax
T3N In = 250A

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer ABB
Model Tmax T3N 250
Manufacturers part number T3N 250 TMD250-2500 3p F F
Alternative part number 1SDX004558R1
Serial number AL91030269

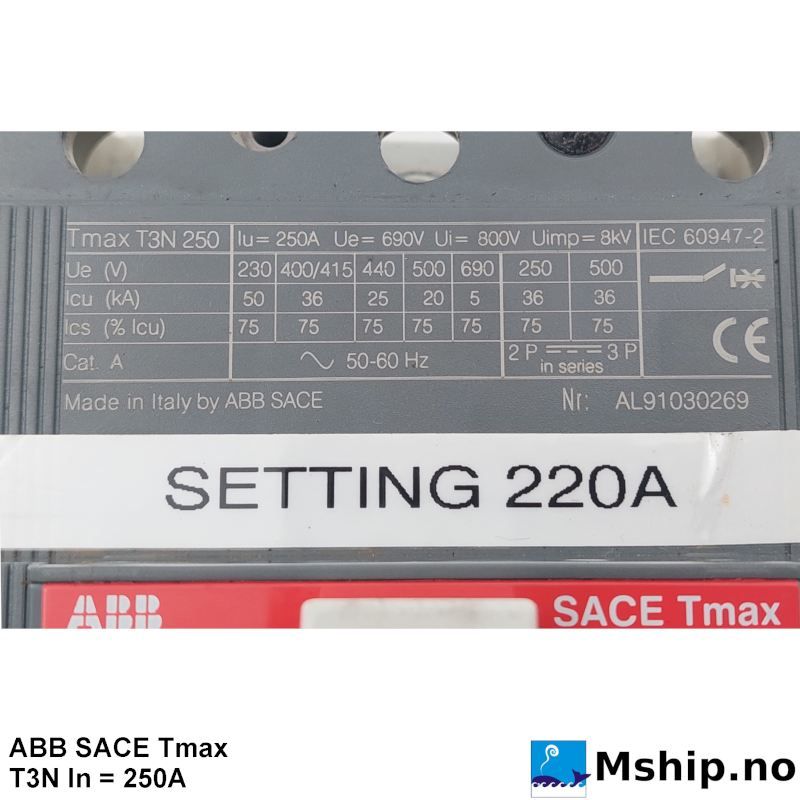

Other Icu 50 kA @ 230 V, 36 kA @ 400/415 V, 25 kA @ 440 V, 20 kA @ 500 V, 5 kA @ 690 V; Ics 75 % Icu; 3 poles, fixed, front terminals; IEC 60947-2, category A, CE; made in Italy by ABB SACE
Amps In 250 A, thermal trip I1 175 / 212 / 250 A (set to 220 A), magnetic trip I3 2500 A
Volt Ue 690 V AC / 250-500 V DC (2-3 poles in series), Ui 800 V, Uimp 8 kV
HZ 50-60 Hz

More info

ABB SACE Tmax Circuit Breaker T3N 250A

ABB marine electric and electronic spare part. Used, in stock.

  • Manufacturer: ABB
  • Model: Tmax T3N 250 TMD250-2500 3p F F (3 poles, fixed, front terminals)
  • Alternative part number: 1SDX004558R1
  • Serial number: AL91030269
  • Rated current: In = Iu = 250 A, thermomagnetic trip unit TMD, thermal I1 adjustable 175 / 212 / 250 A (set to 220 A), magnetic I3 2500 A
  • Voltage: Ue 690 V AC, 50-60 Hz; 250-500 V DC with 2-3 poles in series; Ui 800 V, Uimp 8 kV
  • Breaking capacity Icu: 50 kA @ 230 V, 36 kA @ 400/415 V, 25 kA @ 440 V, 20 kA @ 500 V, 5 kA @ 690 V; Ics 75 % Icu
  • IEC 60947-2, category A, CE, made in Italy by ABB SACE
