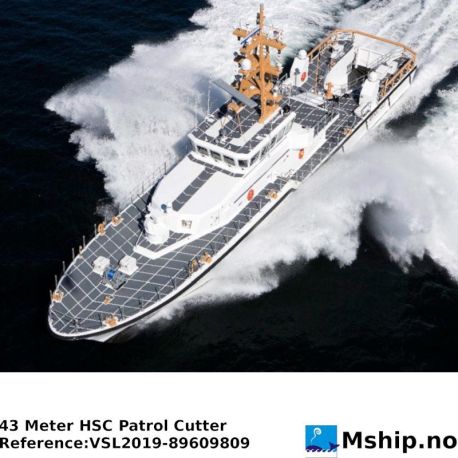

43 Meter HSC Patrol Cutter

VSL2019-89609809

Used

43 Meter HSC Patrol Cutter

See donloads at bottom of page.

More details

  • Data sheet

    ManufacturerWestport Shipyard, USA (WSY INC.)
    ModelGRC43m Global Response Cutter (GRC-4301)
    Year2011
    Fuel TypeDiesel
    ClassABS ✠A1, HSC, ✠AMS
    OtherBuild material: Carbon Fiber Reinforced Matrix Composite, Epoxy Resin, hull side and bottom: Fiberglass reinforced plastic, with foam core
    Generator end typeNorthern Lights.
    Length Overall LOA Meter43,59
    Length between Perpendicular Meter37.19
    Molded Breadth Meter7,92
    Molded Depth Meter3,79
    Gross tonnage ITC (registred)295
    Net Tonnage ITC (registred)94
    ACCOMMODATIONS:Berthing for 24 persons
    Main Engines:2 x MTU 16V4000 M73L, each 2880 kW @ 2050 RPM
    Total Propulsion HP:7831
    Propulsion:2 x ZF MARINE GMBH ZF 9000A, reduction 2.958 : 1. Direct axle driving Michigan Wheel ABS Grade Bronze propellers.
    Maximum speed 32.4 knots flank @ full load
    Range, Nautical miles4,000 nm @ 12 knots - 10% usable fuel remaining
    MOB boat / Work boatStern ramp with 8m RHIB-deployment/retrieval

    More info

    43 Meter HSC Patrol Cutter

    DIMENSIONS

    Length Overall (Molded)

    143' (43.6m)

    Length of Waterline

    124'5" (37.96m)

    Beam (Molded)

    26'0" (7.93m)

    Draft (Full Load)

    6'11" (2.11m)

    MAXIMUM SPEED

    Full Load

    32.4 knots

    Half Load

    32.8 knots

    RANGE

    10 knots

    4,500 NM

    14 knots

    3,000 NM

    Flank

    1,025

    10% usable fuel remaining

    TANK CAPACITIES

    Fuel

    13,535 USG / 51.27 m³

    Fresh Water

    1,500 USG / 5.68 m³

    Gray Water

    1,100 USG / 4.17 m³

    Black Water

    540 USG / 2.05 m³

    DISPLACEMENT

    Full Load

    475,000 lbs / 215 MT

    Half Load

    433,000 lbs / 196 MT

    Light Ship

    333,000 lbs / 151 MT

    OPERATIONAL ENVIRONMENT

    Coastal and Offshore Missions

    MISSION ELECTRONICS

    • Stabilized FLIR Camera

    • X and S Band Radars

    • Communication Suite

    ACCOMMODATIONS

    • Berthing for 24

    • Mess and Galley

    CLASSIFICATION

    • ABS HSC A1 AMS

    Download

    GRC43M-Drawings.pdf

    VSL2019-89609809-GRC43M-Drawings

    Download (665.85k)
