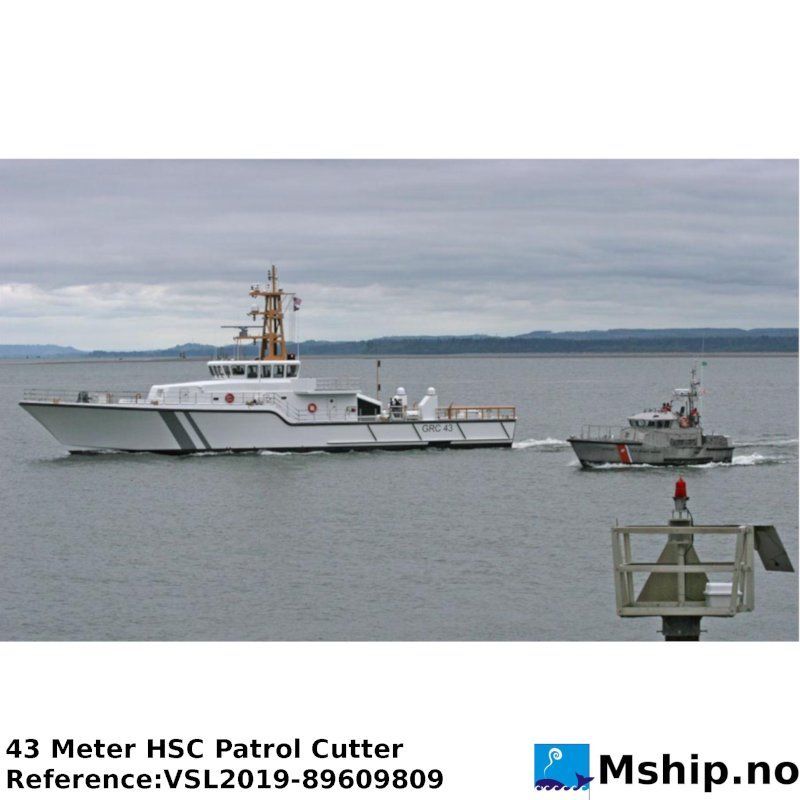

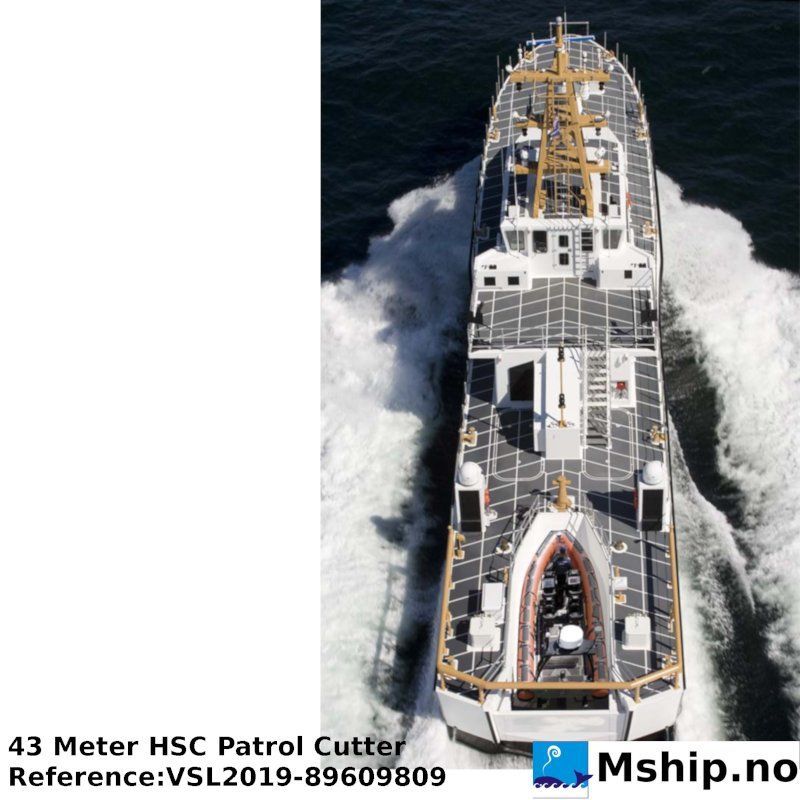

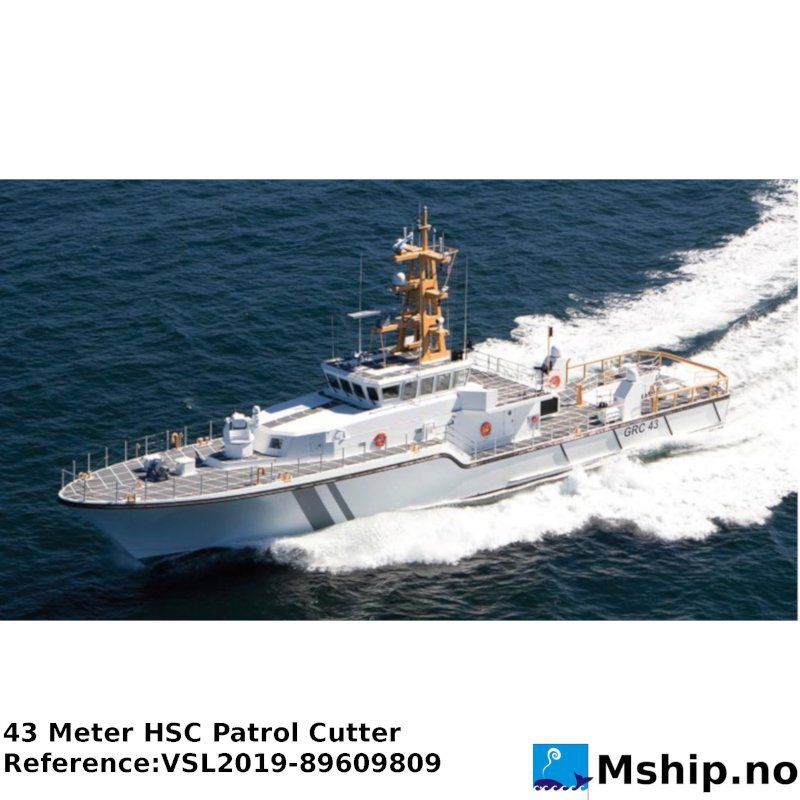

43 Meter HSC Patrol Cutter — Manufacturer: Westport Shipyard, USA (WSY INC.), Model: GRC43m Global Response Cutter (GRC-4301), Year: 2011, Fuel Type: Diesel, Class: ABS ✠A1, HSC, ✠AMS, Other: Build material: Carbon Fiber Reinforced Matrix Composite, Epoxy Resin, hull side and bottom: Fiberglass reinforced plastic, with foam core , Generator end type: Northern Lights., Length Overall LOA Meter: 43,59, Length between Perpendicular Meter: 37.19, Molded Breadth Meter: 7,92, Molded Depth Meter: 3,79, Gross tonnage ITC (registred): 295, Net Tonnage ITC (registred): 94, ACCOMMODATIONS:: Berthing for 24 persons, Main Engines:: 2 x MTU 16V4000 M73L, each 2880 kW @ 2050 RPM, Total Propulsion HP:: 7831, Propulsion:: 2 x ZF MARINE GMBH ZF 9000A, reduction 2.958 : 1. Direct axle driving Michigan Wheel ABS Grade Bronze propellers., Maximum speed: 32.4 knots flank @ full load, Range, Nautical miles: 4,000 nm @ 12 knots - 10% usable fuel remaining , MOB boat / Work boat: Stern ramp with 8m RHIB-deployment/retrieval View larger
Previous Next

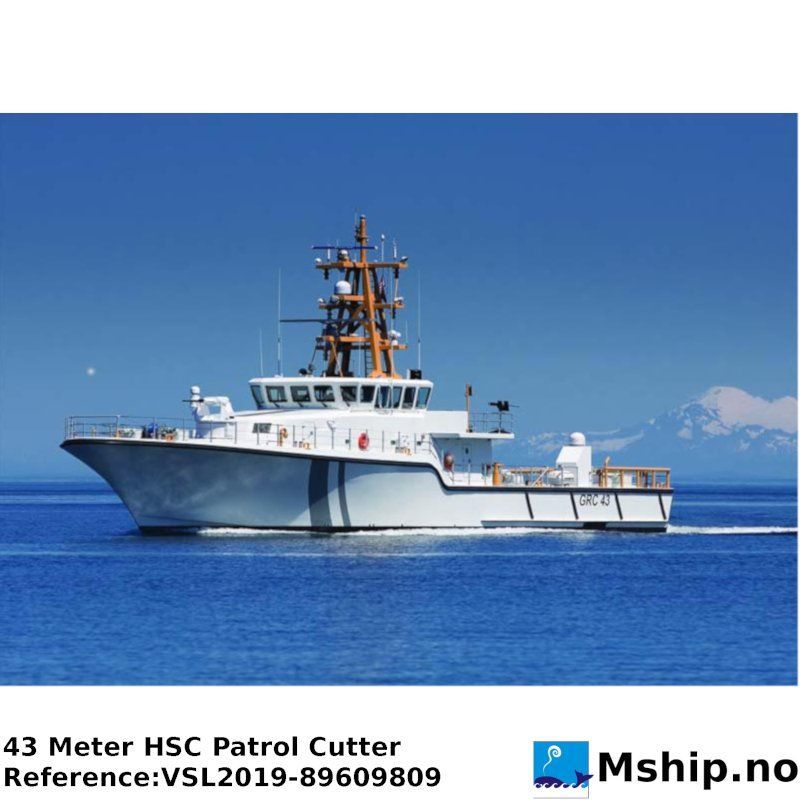

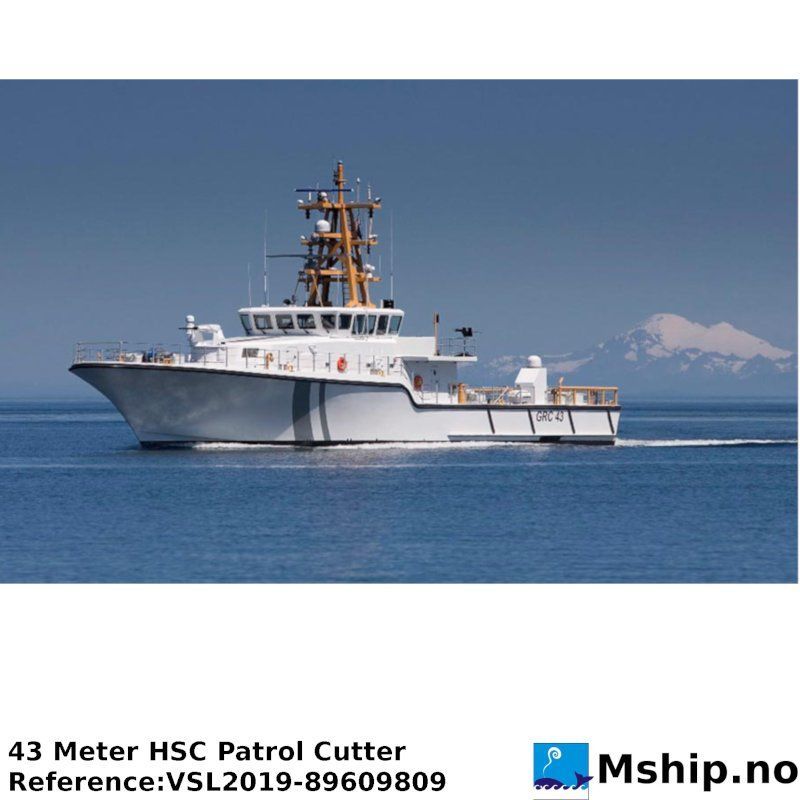

43 Meter HSC Patrol Cutter

VSL201989609809

Used

43 Meter HSC Patrol Cutter

See downloads at bottom of page.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Westport Shipyard, USA (WSY INC.)
Model GRC43m Global Response Cutter (GRC-4301)
Year 2011
Fuel Type Diesel
Class ABS ✠A1, HSC, ✠AMS
Other Build material: Carbon Fiber Reinforced Matrix Composite, Epoxy Resin, hull side and bottom: Fiberglass reinforced plastic, with foam core
Generator end type Northern Lights.
Length Overall LOA Meter 43,59
Length between Perpendicular Meter 37.19
Molded Breadth Meter 7,92
Molded Depth Meter 3,79
Gross tonnage ITC (registred) 295
Net Tonnage ITC (registred) 94
ACCOMMODATIONS: Berthing for 24 persons
Main Engines: 2 x MTU 16V4000 M73L, each 2880 kW @ 2050 RPM
Total Propulsion HP: 7831
Propulsion: 2 x ZF MARINE GMBH ZF 9000A, reduction 2.958 : 1. Direct axle driving Michigan Wheel ABS Grade Bronze propellers.
Maximum speed 32.4 knots flank @ full load
Range, Nautical miles 4,000 nm @ 12 knots - 10% usable fuel remaining
MOB boat / Work boat Stern ramp with 8m RHIB-deployment/retrieval

More info

This vessel is sold. We can often help you find a similar vessel. Contact us with your request.

43 Meter HSC Patrol Cutter

DIMENSIONS

Length Overall (Molded)

143' (43.6m)

Length of Waterline

124'5" (37.96m)

Beam (Molded)

26'0" (7.93m)

Draft (Full Load)

6'11" (2.11m)

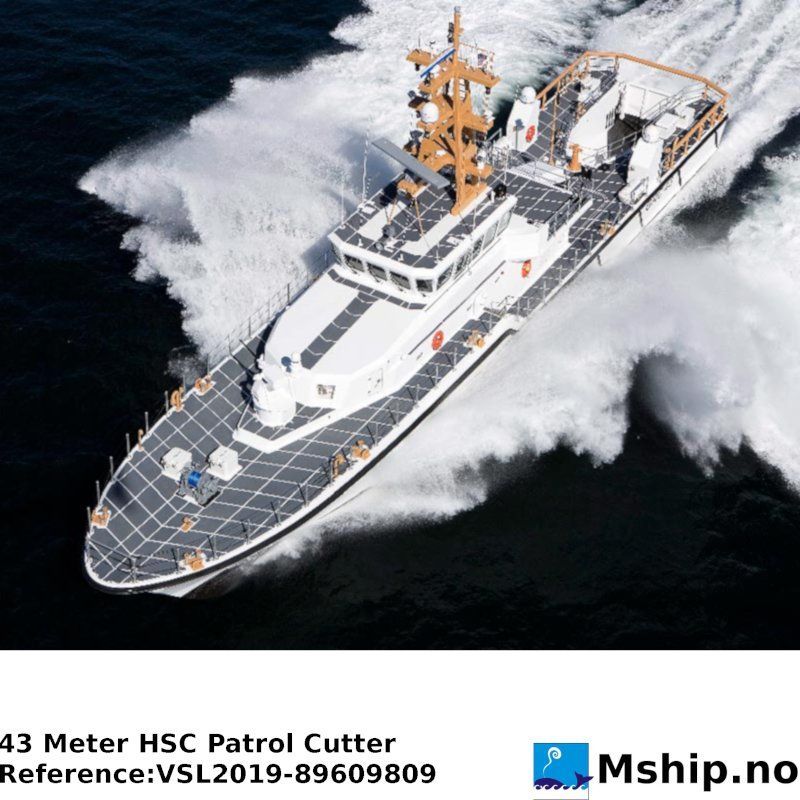

MAXIMUM SPEED

Full Load

32.4 knots

Half Load

32.8 knots

RANGE

10 knots

4,500 NM

14 knots

3,000 NM

Flank

1,025

10% usable fuel remaining

TANK CAPACITIES

Fuel

13,535 USG / 51.27 m³

Fresh Water

1,500 USG / 5.68 m³

Gray Water

1,100 USG / 4.17 m³

Black Water

540 USG / 2.05 m³

DISPLACEMENT

Full Load

475,000 lbs / 215 MT

Half Load

433,000 lbs / 196 MT

Light Ship

333,000 lbs / 151 MT

OPERATIONAL ENVIRONMENT

Coastal and Offshore Missions

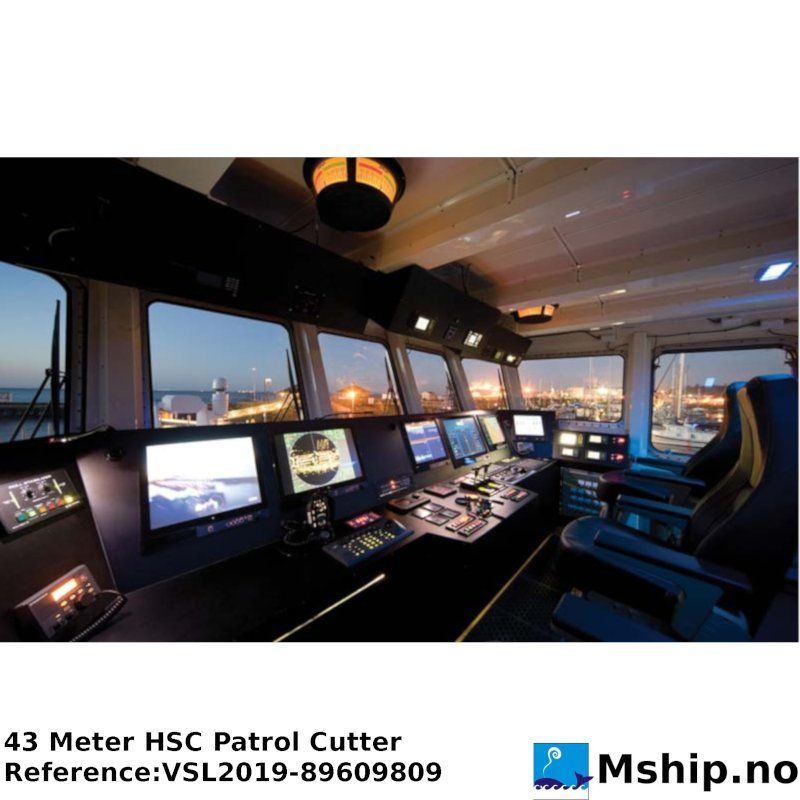

MISSION ELECTRONICS

  • Stabilized FLIR Camera

  • X and S Band Radars

  • Communication Suite

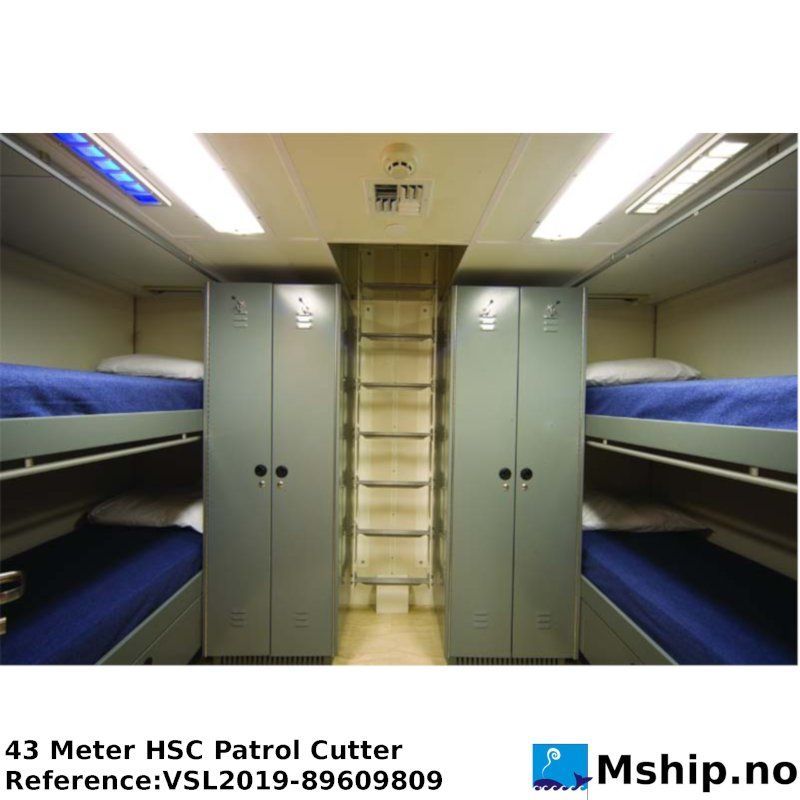

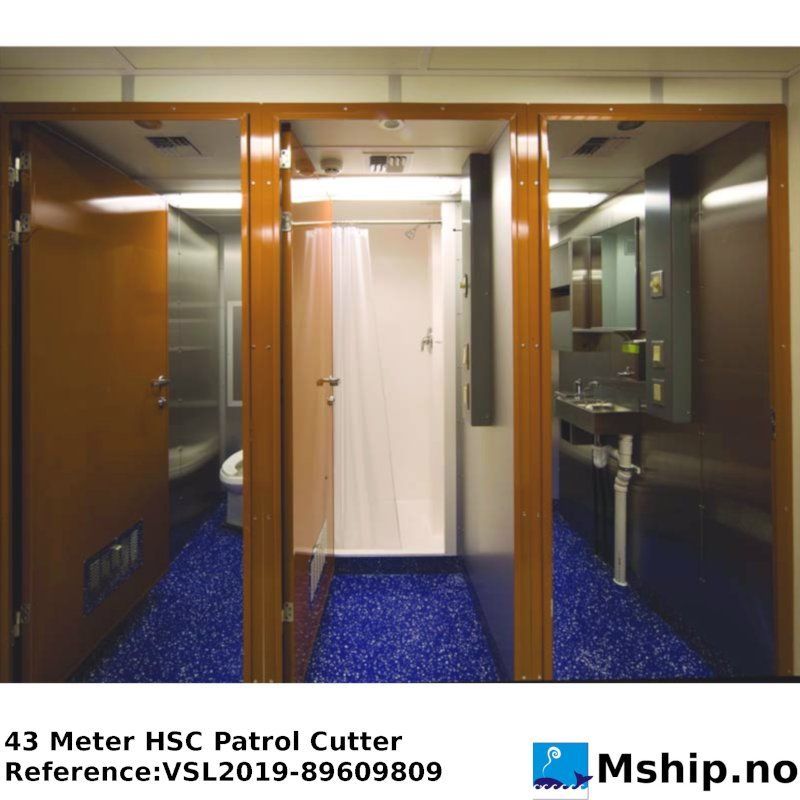

ACCOMMODATIONS

  • Berthing for 24

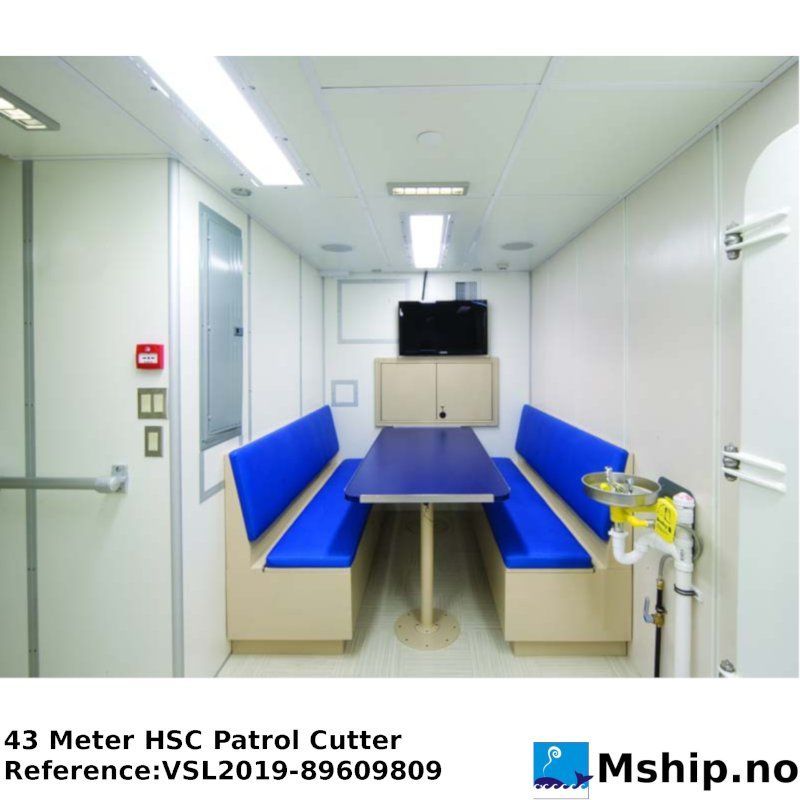

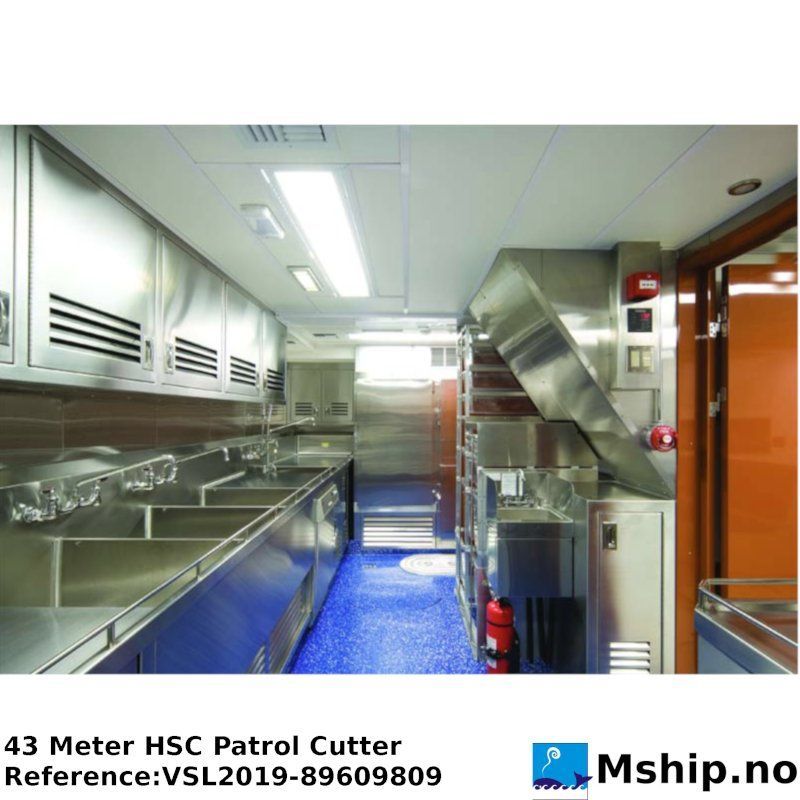

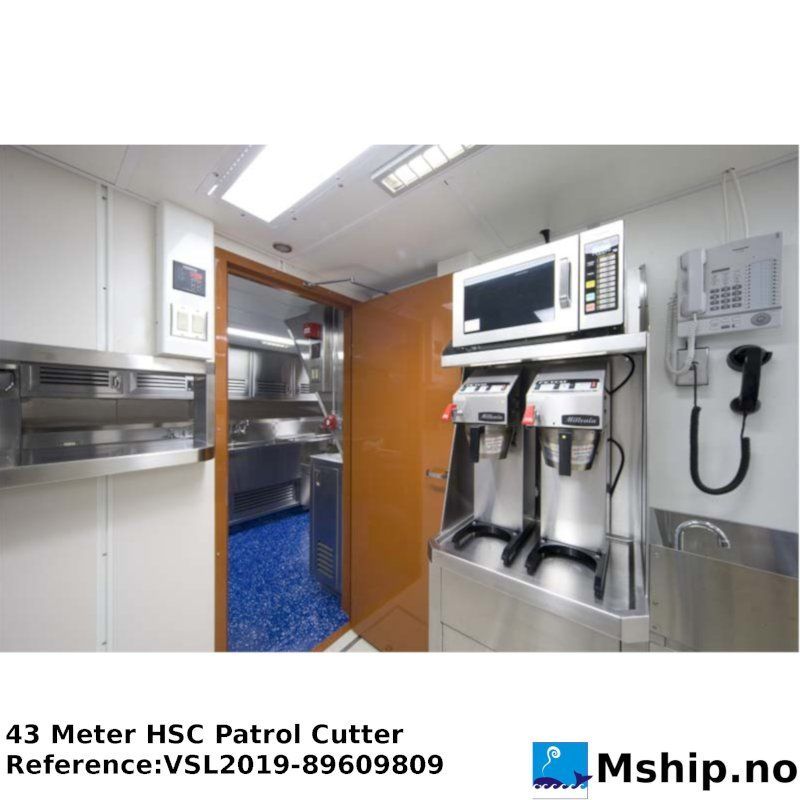

  • Mess and Galley

CLASSIFICATION

  • ABS HSC A1 AMS

Download

VSL2019-89609809.pdf

VSL2019-89609809-Brochure

Download (2.48M)

GRC43M-Drawings.pdf

VSL2019-89609809-GRC43M-Drawings

Download (665.85k)
