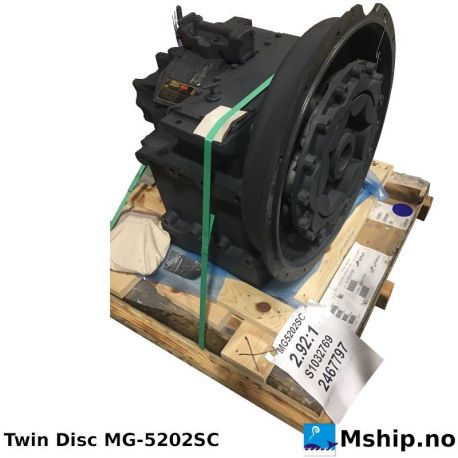

Twin Disc MG-5202SC https://mship.no View larger
Previous Next

MG(X)-5202SC

TD-5202SC

New product

Twin Disc MGX-5202SC (electric shift)

Twin Disc MG-5202SC (mechanic shift)

More details

    • Data sheet

    ManufacturerTwin Disc
    ModelTwin Disc MG-5202SC, mechanical shift and Twin Disc MGX-5202SC,electric shift
    YearNEW
    HP805
    kW600
    RPM1800
    Rotation directionFor use with standard right-hand rotation engines.
    ClassBUREAU VERITAS Type approved
    WeightDry weight incl. SAE #1 housing and SAE 355 flexible coupling: 580 kg
    Gear typeFP - normal reverse gear for fixed propeller blades
    Gear ratioAvailable gear rations: 1.17:1 // 1.33:1 // 1.53:1 // 1.76:1 // 2.03:1 // 2.48:1 // 2.92:1 // 3.48:1
    DIMENSIONsSe's specifications in photo above

    More info

    Twin Disc MGX-5202SC (electric shift version)

    Twin Disc MG-5202SC   (mechanic shift version)

    STANDARD EQUIPMENT

    • Vertical offset, cast iron housing
    • Electric GP-valve with manual override    *only MGX-5202SC electric shift version
    • EC050 Profile module - – interface for engagement signals    *only MGX-5202SC electric shift version
    • Oil strainer and oil filter
    • BV: BUREAU VERITAS Type approval certificate

    OPTIONS

    • SAE J617 housing no.1
    • SAE J617 housing no.0
    • Flexible coupling for 14” flywheel (SAE J620 size 355)
    • Flexible coupling for 18” flywheel (SAE J620 size 460)
    • Input hub for freestanding installation
    • EC050 E-Troll module – interface for engagement & trolling signals
    • Harness with single point interface to Twin Disc EC300 control system
    • Oil cooler for raw and fresh water cooling
    • Companion flange/ bolts set
    • Monitoring devices to customer’s specification
    • Live PTO
      • SAE J744 size 127-2/4, 32-4 (SAE “C”, 2/4-bolt) – max. 592 Nm
      • SAE J744 size 127-2/4, 38-4 (SAE “C-C”, 2/4-bolt) – max. 1187 Nm
    • Hydraulic Clutchable pump mount PTO
      • SAE J744 size 127-2/4, 32-4 (SAE “C”, 2/4-bolt) – max. 592 Nm
      • SAE J744 size 127-2/4, 38-4 (SAE “C-C”, 2/4-bolt) – max. 1186 Nm

    Dry weight incl. SAE #1 housing and SAE 355 flexible coupling: 580 kg

    Available gear ratios:

    • 1.17:1
    • 1.33:1
    • 1.53:1
    • 1.76:1
    • 2.03:1
    • 2.48:1
    • 2.92:1
    • 3.48:1

    Download

    TD-MGX-5202SC

    Twin Disc MGX-5202SC and MG-5202SC brochure.
