MG(X)-5202SC — Manufacturer: Twin Disc, Model: Twin Disc MG-5202SC, mechanical shift and Twin Disc MGX-5202SC,electric shift, Year: NEW, HP: 805, kW: 600, RPM: 1800, Rotation direction: For use with standard right-hand rotation engines., Class: BUREAU VERITAS Type approved, Weight: Dry weight incl. SAE #1 housing and SAE 355 flexible coupling: 580 kg, Gear type: FP - normal reverse gear for fixed propeller blades, Gear ratio: Available gear rations: 1.17:1 // 1.33:1 // 1.53:1 // 1.76:1 // 2.03:1 // 2.48:1 // 2.92:1 // 3.48:1, DIMENSIONs: Se's specifications in photo above, Flywheel housing: SAE 1 View larger
Previous Next

MG(X)-5202SC

TWINDISCMGX5202SC

New product

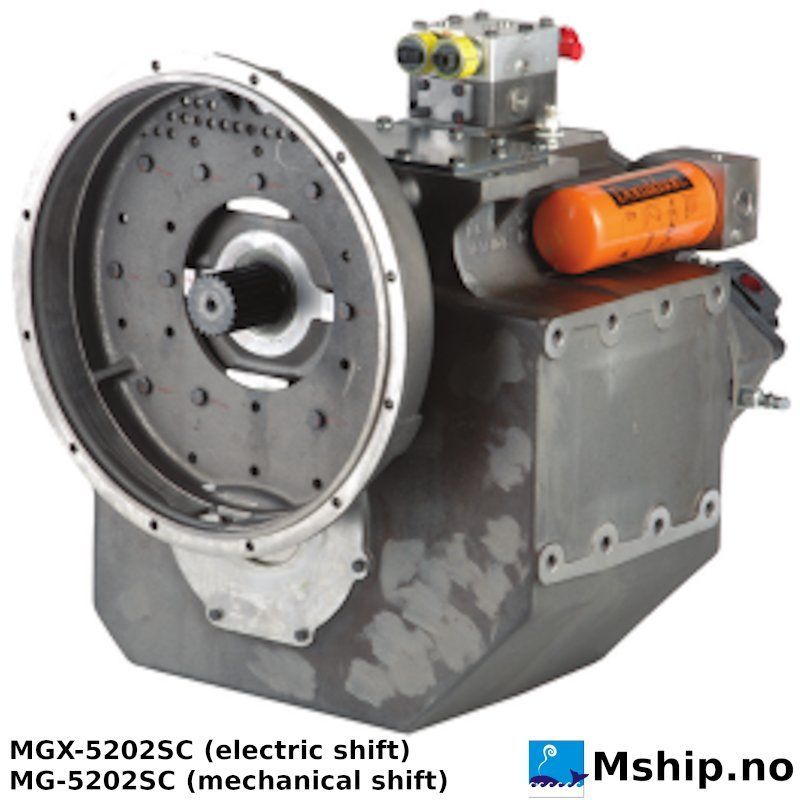

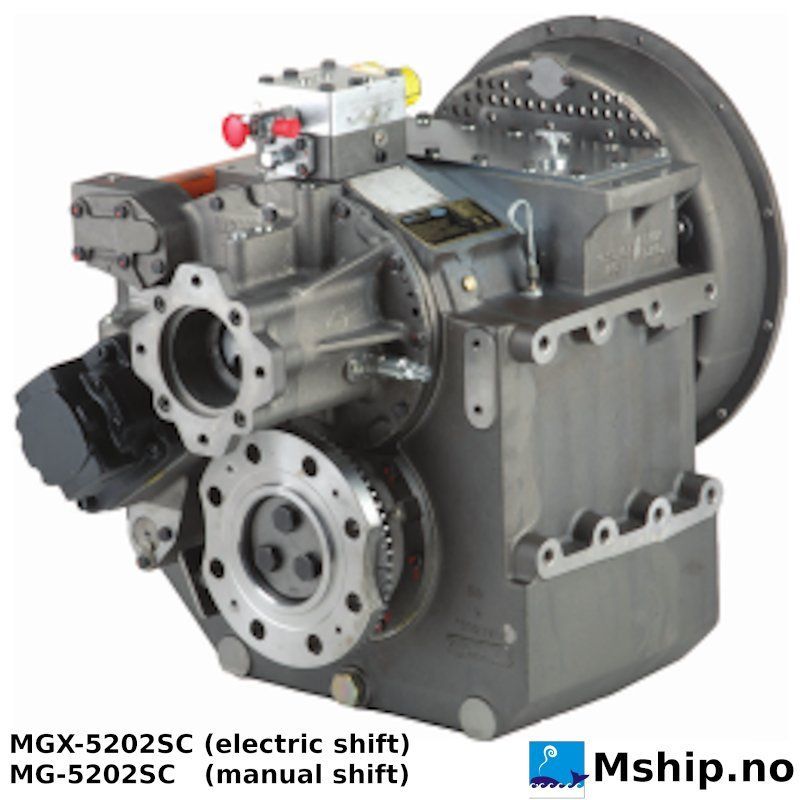

Twin Disc MGX-5202SC (electric shift)

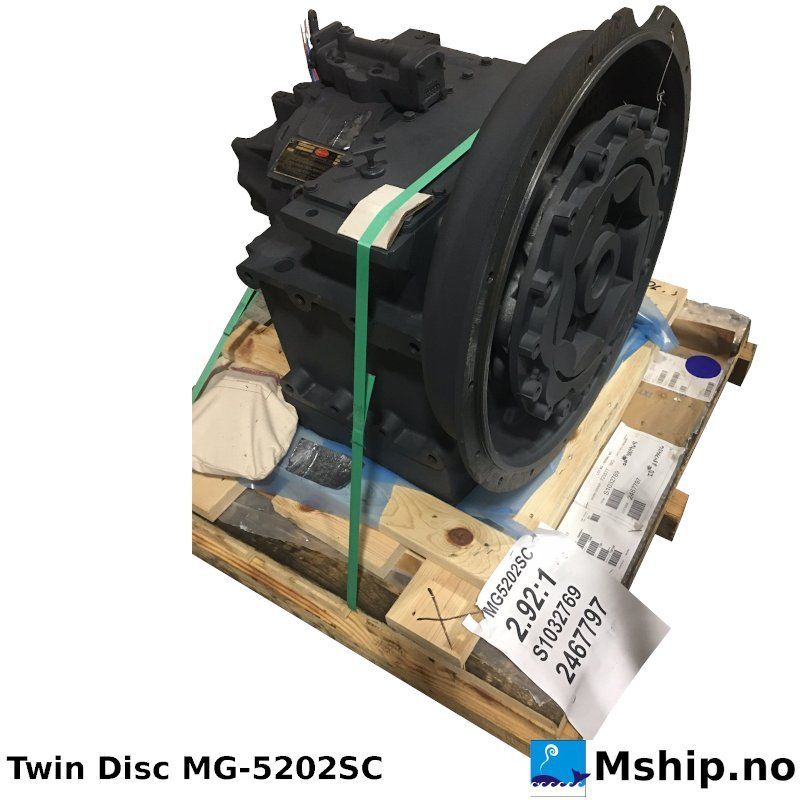

Twin Disc MG-5202SC (mechanic shift)

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Twin Disc
Model Twin Disc MG-5202SC, mechanical shift and Twin Disc MGX-5202SC,electric shift
Year NEW

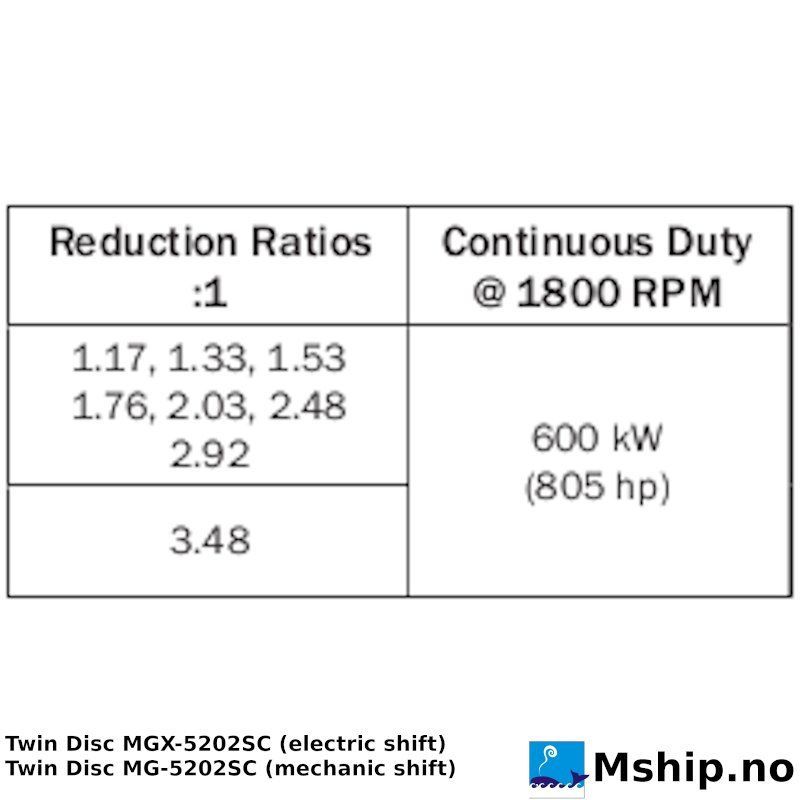

HP 805
kW 600
RPM 1800
Rotation direction For use with standard right-hand rotation engines.
Class BUREAU VERITAS Type approved
Weight Dry weight incl. SAE #1 housing and SAE 355 flexible coupling: 580 kg
Gear type FP - normal reverse gear for fixed propeller blades
Gear ratio Available gear rations: 1.17:1 // 1.33:1 // 1.53:1 // 1.76:1 // 2.03:1 // 2.48:1 // 2.92:1 // 3.48:1

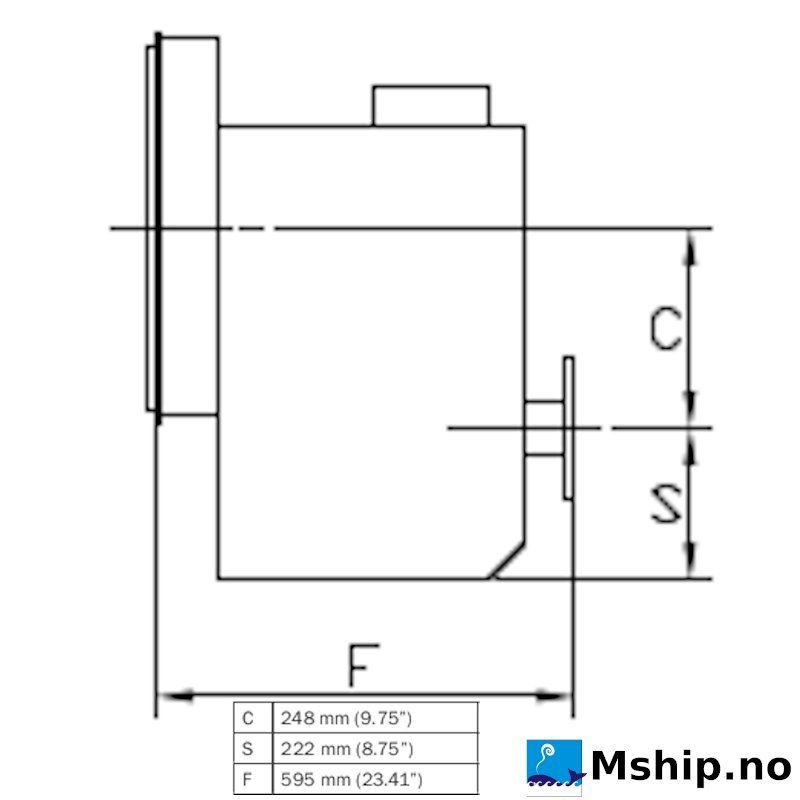

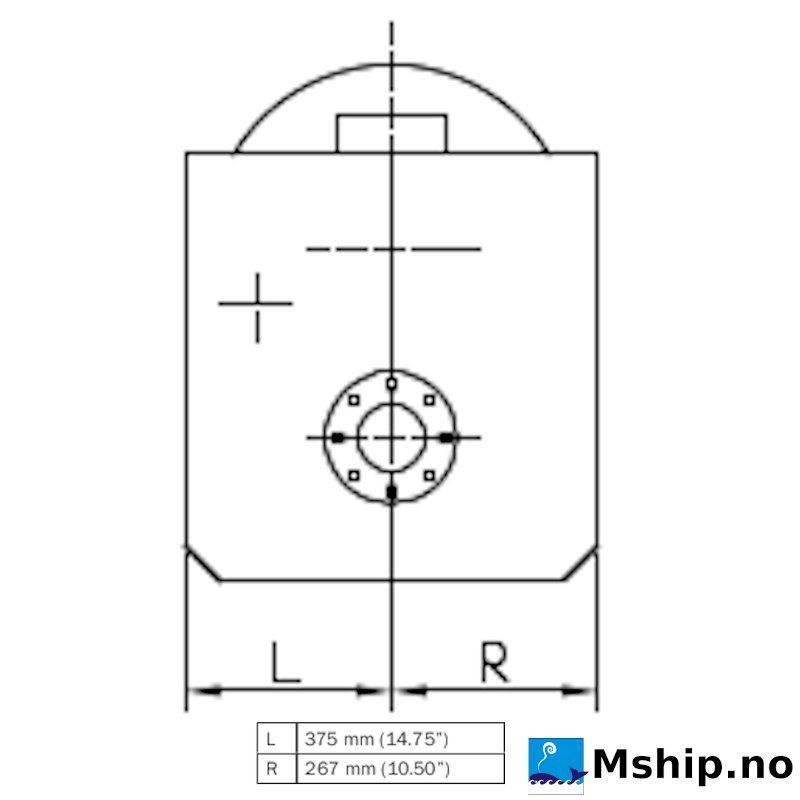

DIMENSIONs Se's specifications in photo above
Flywheel housing SAE 1

More info

Twin Disc MGX-5202SC (electric shift version)

Twin Disc MG-5202SC   (mechanic shift version)

STANDARD EQUIPMENT

  • Vertical offset, cast iron housing
  • Electric GP-valve with manual override    *only MGX-5202SC electric shift version
  • EC050 Profile module - – interface for engagement signals    *only MGX-5202SC electric shift version
  • Oil strainer and oil filter
  • BV: BUREAU VERITAS Type approval certificate

OPTIONS

  • SAE J617 housing no.1
  • SAE J617 housing no.0
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 18” flywheel (SAE J620 size 460)
  • Input hub for freestanding installation
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler for raw and fresh water cooling
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Live PTO
    • SAE J744 size 127-2/4, 32-4 (SAE “C”, 2/4-bolt) – max. 592 Nm
    • SAE J744 size 127-2/4, 38-4 (SAE “C-C”, 2/4-bolt) – max. 1187 Nm
  • Hydraulic Clutchable pump mount PTO
    • SAE J744 size 127-2/4, 32-4 (SAE “C”, 2/4-bolt) – max. 592 Nm
    • SAE J744 size 127-2/4, 38-4 (SAE “C-C”, 2/4-bolt) – max. 1186 Nm

Dry weight incl. SAE #1 housing and SAE 355 flexible coupling: 580 kg

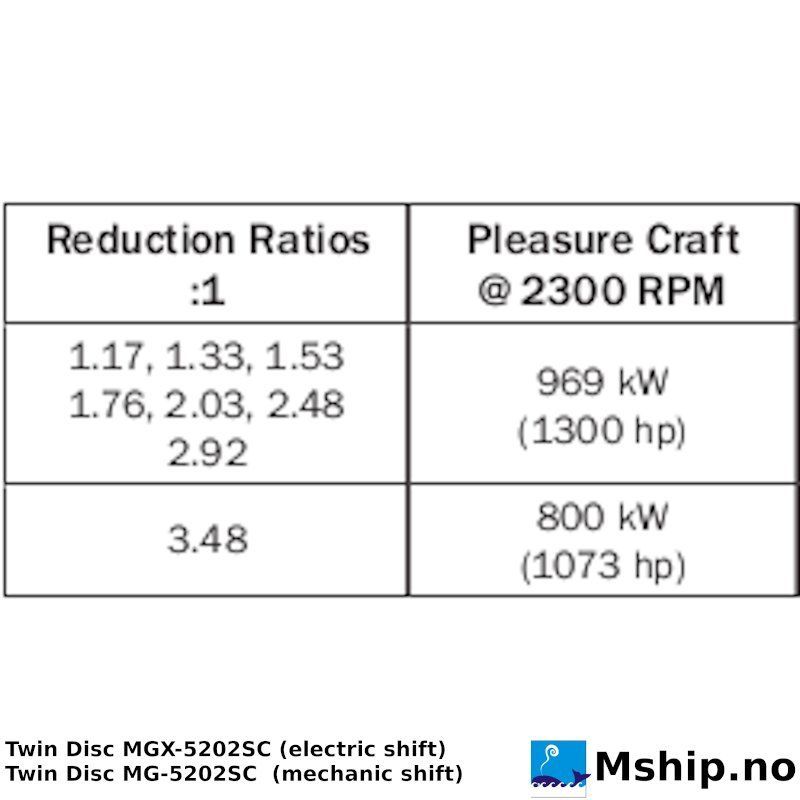

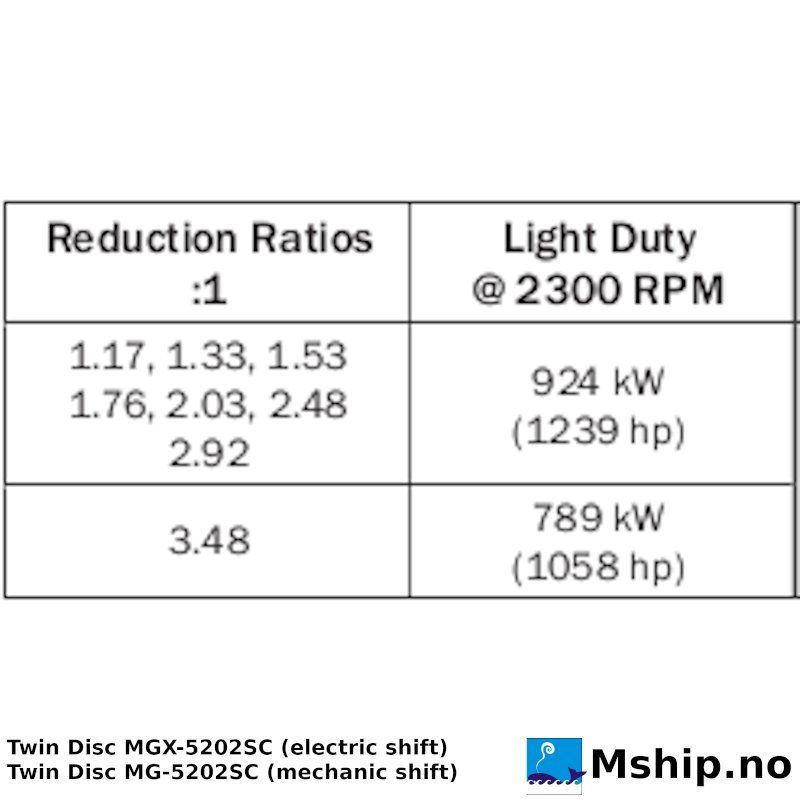

Available gear ratios:

  • 1.17:1
  • 1.33:1
  • 1.53:1
  • 1.76:1
  • 2.03:1
  • 2.48:1
  • 2.92:1
  • 3.48:1

Download

TD-MGX-5202SC

Twin Disc MGX-5202SC and MG-5202SC brochure.

Download (589.03k)
