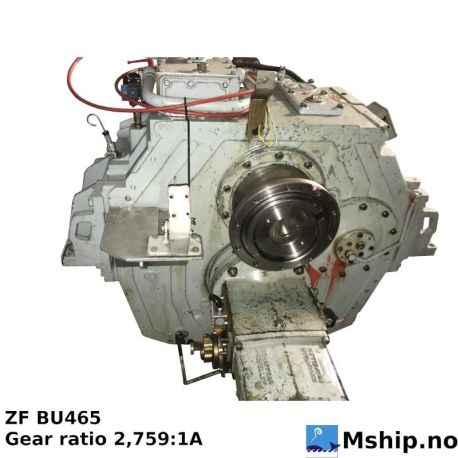

ZF BU465

54306-BU465

Used

Data sheet

ManufacturerZF
ModelBU465
Manufacturers part number3085 002 014
Serial number104 GGL
Year1987
HP1,582 hp/rpm
kW0,864 kW/rpm
RPM1800
ClassGermanischer Lloyd
Gear ratio2.759:1
Gear typeNon Reversing Gearbox CPP - to be used with controllable pitch propeller

More info

See video inspection of this gearbox:

Technical cover sheet for 3085.002.014    BU 465

001: Use case --------------------

002: Customer

003:

004:

005: Product description --------------------

006: COLOR HELLGRAU

009: CODING OUTER CONSERVATION KA2

010: CODING INNER CONSERVATION KI3

011: CONSERVATION SPECIFICATION ZFN 916

012: SCOPE OUTER CONSERVATION T

013: OIL GRADE PERMISSIBLE ACC. TO TE-ML04

015: DESIGN PUMP A

016: CLEANNESS SCALE NUMBER 1 18

017: CLEANNESS SCALE NUMBER 2 15

018: CLEANNESS SPECIFICATION ZFN5015

021: SSS DESIGN CONNEC. PITCH PROPELLER PREPARED

025: SSD DESIGN TRAILING PUMP WITH

026: SSD DESIGN VS PROPELLER WITH

032: SSS DESIGN SUSPENSION RIGID WITH

033: SSS DESIGN ACTUATION PNEUMATIC

034: SSS DESIGN 1 MONITORING TEMPERATURE-+PRESSUREGAUGE

036: SSS CODE SUSPENSION RIGID 47

043: CLUTCH PRESSURE 17.5 bar

044: OIL CAPACITY, GEARBOX 60 dm3

045: COLOUR CLASSIFICATION ACC. TO RAL 7001

047: TOTAL RATIO 2.759

048: POWER TORQUE FACTOR L MAX. .864 kW
