AvK DSG 86 L1-4 generator 3408 kVA, 480 V 60 Hz – serial 8124138 G108
8124138G108
Used
AvK DSG 86 L1-4 generator 3408 kVA, 480 V 60 Hz – serial 8124138 G108

Price on request
or call +47 908 92 500
Data sheet
| Manufacturer | AVK |
| Model | DSG 86 L1-4 |
| Alternative part number | DSG86L14 |
| Serial number | 8124138 G108 |
| Year | 2001 |
| RPM | 1800 rpm at 60 Hz / 1500 rpm at 50 Hz |
| Running Hours | 2785 |
| Other | Removed from Deutz TBD 620 V16 generator set, engine no. 2202614 (engine sold). Excitation 38 V / 3.2 A, aux. excitation 100 V 60 Hz, insulation class H, IP23, coolant 40 C, RIS degree N, circuit diagram K 821.0.11. |
| Weight | 6.0 t (6000 kg) |
| Generator end type | AvK DSG 86 L1-4 |
| Amps | 4099 |
| Volt | 480 V AC, star (Y) |
| HZ | 60 Hz (1800 rpm) / 50 Hz (1500 rpm) |
| kVA | 60 Hz: 3408 kVA (nameplate) / 50 Hz: 2990 kVA |
| cos φ | 0.80 |
| Generator serial number | 8124138 G108 |
| Generator year | 2001 |
More info
AvK DSG 86 L1-4 synchronous generator – 3408 kVA, 480 V, 60 Hz – serial no. 8124138 G108

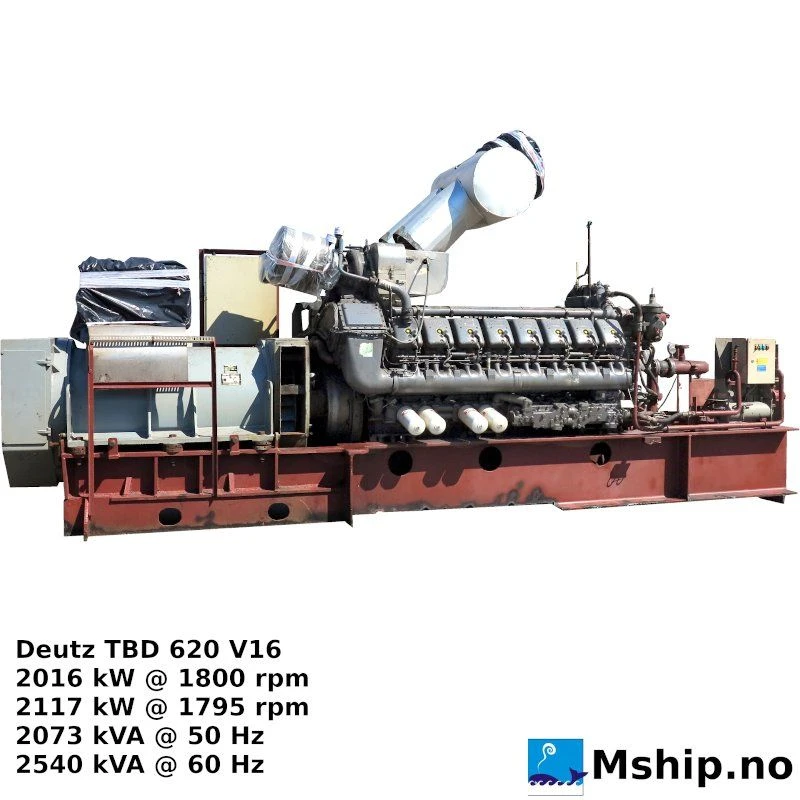

Removed from a Deutz TBD 620 V16 generator set (engine no. 2202614, engine sold). The AvK DSG 86 has a maximum continuous rating of 3,408 kVA at 60 Hz (2,990 kVA at 50 Hz) and a voltage output of 400–690 volts.
A second identical generator is also in stock: AvK DSG 86 L1-4, serial 8124138 G308 – the two can be sold separately or as a pair.

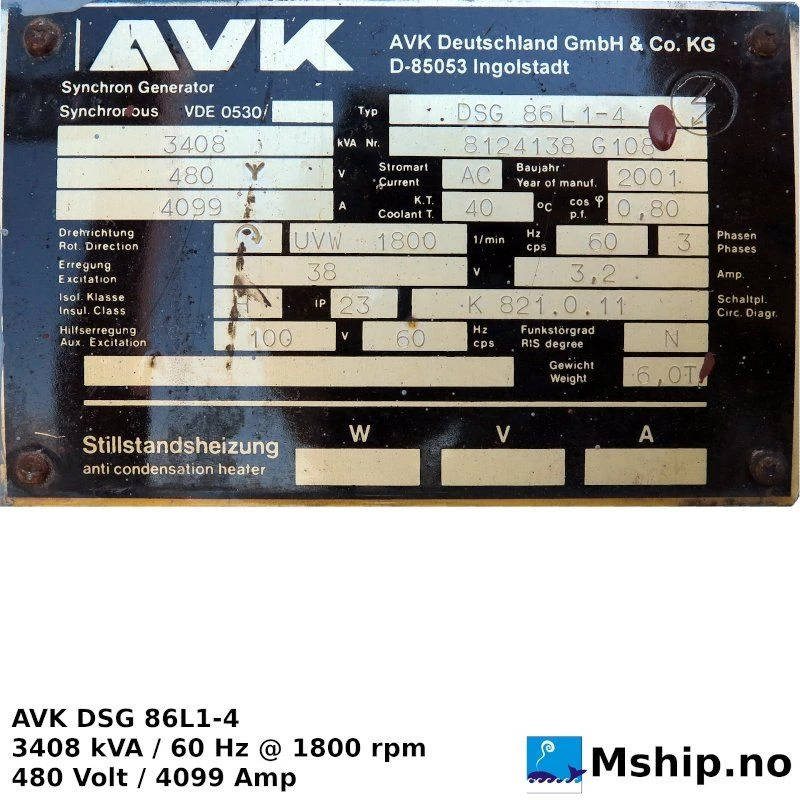

Nameplate data (AVK Deutschland GmbH & Co. KG, Ingolstadt)
- Type: DSG 86 L1-4, synchronous generator, VDE 0530
- Serial no.: 8124138 G108
- Output: 3408 kVA, 480 V (Y), 4099 A, cos φ 0.80
- Frequency / speed: 60 Hz, 1800 rpm (nameplate), 3 phases, rotation UVW
- Can also operate at 50 Hz / 1500 rpm (2990 kVA)
- Excitation: 38 V / 3.2 A; auxiliary excitation 100 V, 60 Hz
- Insulation class H, IP23, coolant temperature 40 °C, RIS degree N
- Circuit diagram: K 821.0.11
- Year of manufacture: 2001, weight 6.0 t

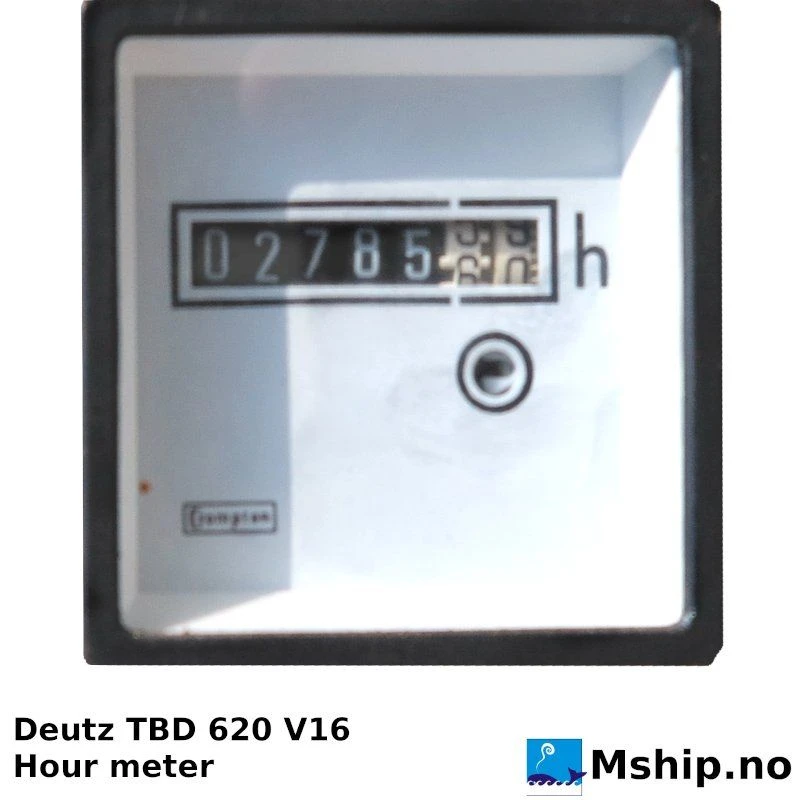

- Running hours: 2785 (hour meter on the generator set)
About the AvK DSG series (from the AvK DSG product brochure – series standard, not checked on this unit)
- Self-regulating, brushless synchronous alternator with damper cage, self-excitation via permanent magnets in the exciter
- Electronic voltage regulator COSIMAT N+ as standard from size DSG 74; static voltage tolerance ±0.5 to ±1 %
- Equipped as standard for parallel operation (voltage droop current transformer)
- Overload: 1.5 x rated current for 30 s, 1.1 x for 1 h within 6 h, approx. 1.8 x for approx. 10 s; sustained short-circuit current 2.5–4 x rated current for 3 s
- Overspeed 1.2 x rated speed for 2 minutes
- Relubricable antifriction bearings, calculated life at least 30,000 h; terminal box on top of the housing for DSG 86–99
- Marine classification derating for DSG 86–99 (insulation class H): DNV, ABS and RINA 0.93, LR, NKK and BV 0.90, GL 0.96
We ship worldwide at short notice from warehouse in NORWAY
