EMD 8-567-CR https://mship.no View larger
Previous Next

EMD 8-567-CR

8288-EMD 8-567-CR

Used

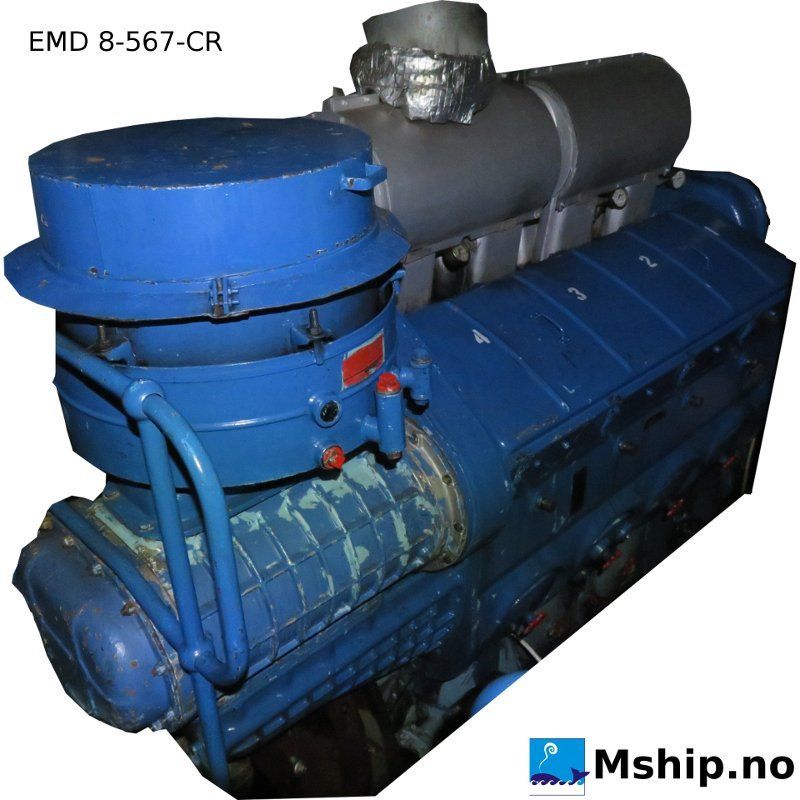

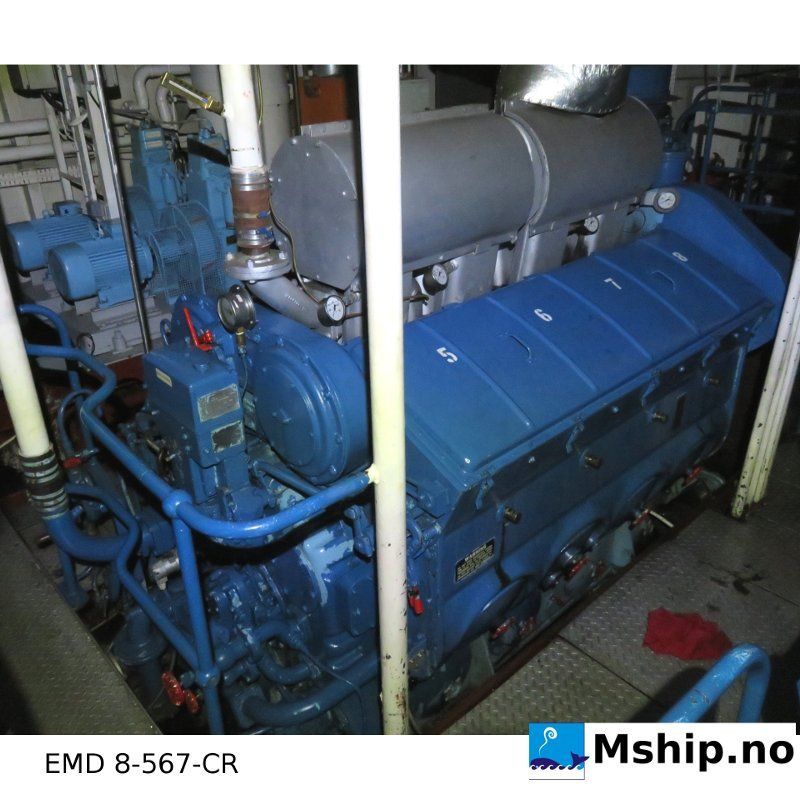

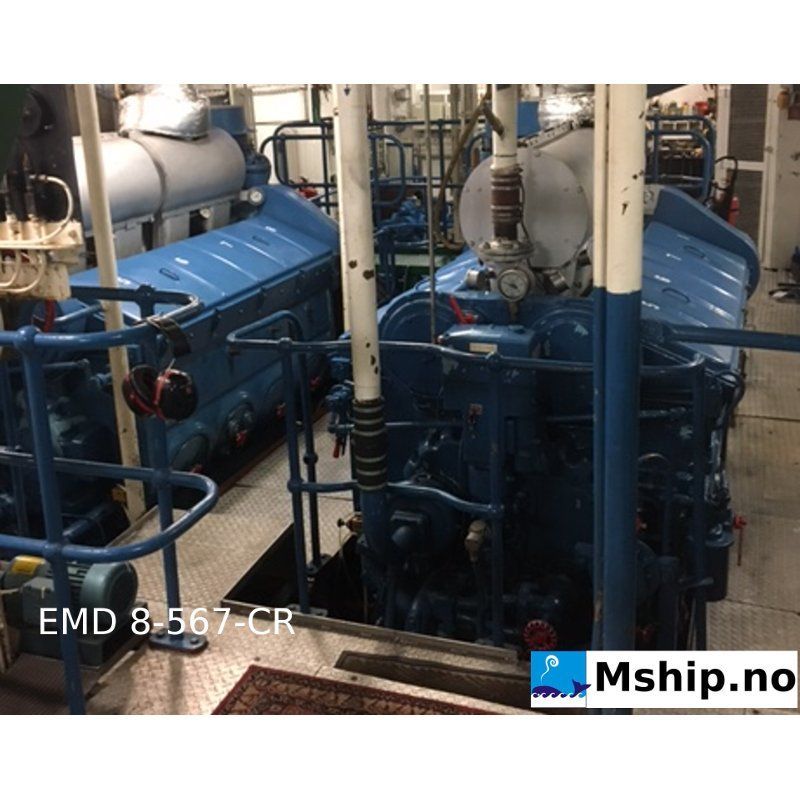

EMD 8-567-CR

EMD 8-567-CR

More details

    • Data sheet

    Manufacturer EMD
    Model 8-567-CR

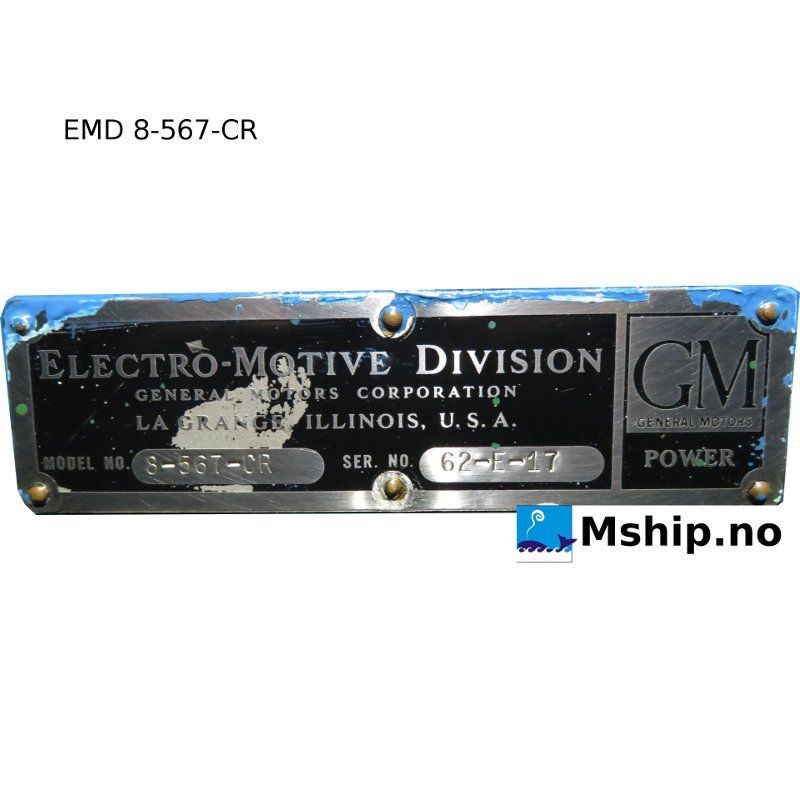

    Serial number 62-E-17
    Year 1962
    HP 825
    kW 600
    RPM 835 (uncertain)
    Cylinder bore 216 mm
    Piston Stroke 250 mm
    Number of cylinders 8
    Displacement 74,4 Liter /
    Cylinder configuration V-engine
    Fuel Type Diesel
    Class Lloyd’s Register
    Other Looking very nice.

    More info

    EMD 8-567-CR

    8-567CR ENGINE

    Configuration 45° Vee V8
    Displacement 4,540 cu in
    567.5 cu in (9.3 L) per cylinder
    Cylinder bore 8 1⁄2 in (216 mm)
    Piston stroke 10 in (250 mm)
    Valvetrain Overhead camshaft, one per bank
    Compression ratio
    • 16:1 (Roots-style blower)

    EMD Pointers publication, October 17, 1956, "NEW MODEL 8-567CR ENGINE" "Due to expanding usage in a wide variety of applications, the 8 cylinder 567C engine is now being manufactured with certain design changes to provide a better total balance. This "rebalanced" engine has the model designation 8-567CR and supersedes the previous standard 8-567C in all applications. The major change is in firing order, which requires a new design crankshaft #8235623 for the 8-567CR engine. This crankshaft has 2 relocated crankpin throws as well as larger counterweights." - reference: https://en.wikipedia.org/wiki/EMD_567
