RWO oily water separator type SKIT/S DEB 2.5 — Manufacturer: RWO Veolia, Model: SKIT/S-DEB 2.5, Serial number: 7521, Performance specification: 2-stage: coalescer with automatic backflushing + emulsion-breaking oil and hydrocarbon polisher with automatic bypass. Below 15 ppm to IMO MEPC.107(49); below 1 ppm under IMO conditions (RWO data), Year: 2005, kW: Approx. 3-3.7 kW total installed power (RWO data for SKIT/S-DEB 2.5), Injection pump type: Mono (eccentric screw) pump, suction type (RWO standard for SKIT/S-DEB). RWO data sheet as PDF at the bottom of this page, MED / Wheelmark: Yes – 0736/05 on ID plate (see photos), 15 ppm alarm: 15 ppm alarm monitor fitted (model not readable on the photos), Other: Typetested to IMO Res. MEPC.107(49). Wheelmark 0736/05 on ID plate. SBG approval 330212 (01.10.2004). Needs compressed air 6-8 bar and flushing water approx. 1 bar, m³ /h, cubic meter per hour capacity: 2.5, Working pressure BAR: (-0,8)-1 / 3,0, Test Pressure BAR: 1,5 / 4,5, Remarks: RWO order no. 9022165. RWO Water Technology, Leerkämpe 3, D-28259 Bremen, Germany, DIMENSIONs: Approx. 1190 x 1015 x 1663 mm (RWO data for SKIT/S-DEB 2.5) View larger
Previous Next

RWO oily water separator type SKIT/S DEB 2.5

d105625

Used

MED WheelmarkYes – 0736/05 on ID plate (see photos)

RWO oily water separator type SKIT/S DE B 2.5


Click HERE for alternative unit

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer RWO Veolia
Model SKIT/S-DEB 2.5
Serial number 7521
Year 2005
Performance specification 2-stage: coalescer with automatic backflushing + emulsion-breaking oil and hydrocarbon polisher with automatic bypass. Below 15 ppm to IMO MEPC.107(49); below 1 ppm under IMO conditions (RWO data)
m³ /h, cubic meter per hour capacity 2.5
Working pressure BAR (-0,8)-1 / 3,0
Test Pressure BAR 1,5 / 4,5
DIMENSIONs Approx. 1190 x 1015 x 1663 mm (RWO data for SKIT/S-DEB 2.5)
Other Typetested to IMO Res. MEPC.107(49). Wheelmark 0736/05 on ID plate. SBG approval 330212 (01.10.2004). Needs compressed air 6-8 bar and flushing water approx. 1 bar
Remarks RWO order no. 9022165. RWO Water Technology, Leerkämpe 3, D-28259 Bremen, Germany
kW Approx. 3-3.7 kW total installed power (RWO data for SKIT/S-DEB 2.5)
Injection pump type Mono (eccentric screw) pump, suction type (RWO standard for SKIT/S-DEB). RWO data sheet as PDF at the bottom of this page
MED / Wheelmark Yes – 0736/05 on ID plate (see photos)
15 ppm alarm 15 ppm alarm monitor fitted (model not readable on the photos)

More info

This item is sold. We can often source the same or a similar item. Contact us with your request.

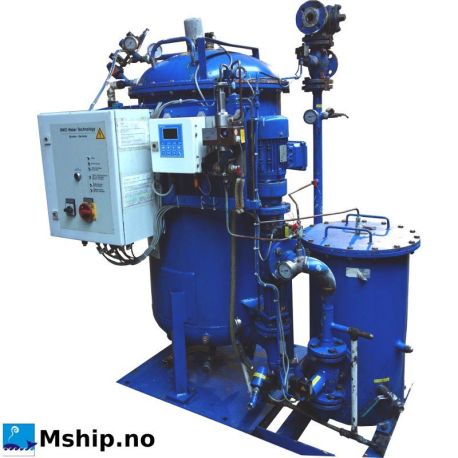

Reference unit: used RWO SKIT/S-DEB 2.5 oily water separator, 2.5 m³/h, serial no. 7521, built 2005.

  • Self-contained, skid mounted, with pump, automatic control box, 15 ppm alarm, valves and piping fitted and wired ex works
  • Two-stage process: open porous oleophilic coalescer with automatic backflushing, followed by an emulsion-breaking oil and hydrocarbon polisher
  • Automatic bypass: the 15 ppm monitor checks the water from the first stage and bypasses the polisher while the oil content is below the set value
  • Below 1 ppm oil content in the effluent under IMO conditions (RWO data)
  • Suction-type mono (eccentric screw) pump avoids emulsifying the bilge water
  • Requires compressed air 6–8 bar and backwash water approx. 1 bar
  • Worldwide service and support

MED approved (Wheelmark 0736/05 on ID plate), type tested to IMO Res. MEPC.107(49), SBG approval no. 330212 (01.10.2004).
