New RWO SKIT/S-DEB 1.0 oily water separator 1 m³/h View larger

RWO SKIT/S-DEB 1.0 oily water separator 1 m³/h

RWOSKITSDEB1011657

Used

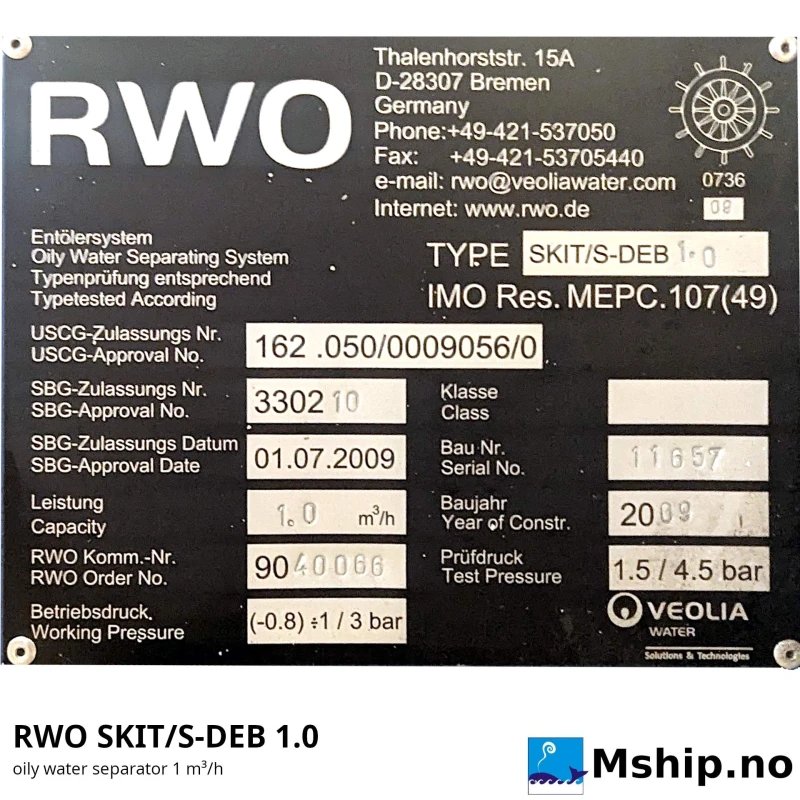

MED WheelmarkYes – 0736 on ID plate; OMD-24 alarm 0736/09 (see photos)

RWO SKIT/S-DEB 1.0 oily water separator, 1 m³/h, 15 ppm, IMO MEPC.107(49).

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer RWO Veolia
Model SKIT/S-DEB 1.0
Serial number 11657
Year 2009
Performance specification 2-stage: coalescer with automatic backflushing + emulsion-breaking oil and hydrocarbon polisher with automatic bypass. Below 15 ppm to IMO MEPC.107(49); below 1 ppm under IMO conditions (RWO data)
m³ /h, cubic meter per hour capacity 1,0
Working pressure BAR (-0.8) ±1 / 3 bar
Test Pressure BAR 1.5 / 4.5 bar
Weight Approx. 378 kg (marked on the unit)
Other Typetested to IMO Res. MEPC.107(49). Wheelmark 0736 on ID plate. USCG approval 162.050/0009056/0. SBG approval 330210 (01.07.2009). Needs compressed air 6-8 bar and flushing water 1 bar (max. 1.5 bar). Noise below 80 dB(A)
Remarks 15 ppm alarm: Deckma Hamburg OMD-24, 24 V AC/DC, ser. no. 2001092, art. no. 79100 / 0409, approved by See-BG 01.03.2009, Wheelmark 0736/09. RWO order no. 9040066. Made in Bremen, Germany
kW Approx. 3 kW total installed power (RWO data for SKIT/S-DEB 1.0: 2.7-3.2 kW)
Volt 230 V (control box power supply label)
HZ 50/60 Hz
Injection pump type Mono (eccentric screw) pump, suction type (RWO standard for SKIT/S-DEB)
MED / Wheelmark Yes – 0736 on ID plate; OMD-24 alarm 0736/09 (see photos)

More info

Used RWO (Veolia Water) bilge water separator for 15 ppm separation under MARPOL 73/78 Annex I. Serial no. 11657, built 2009, Wheelmark (MED) and USCG approved.

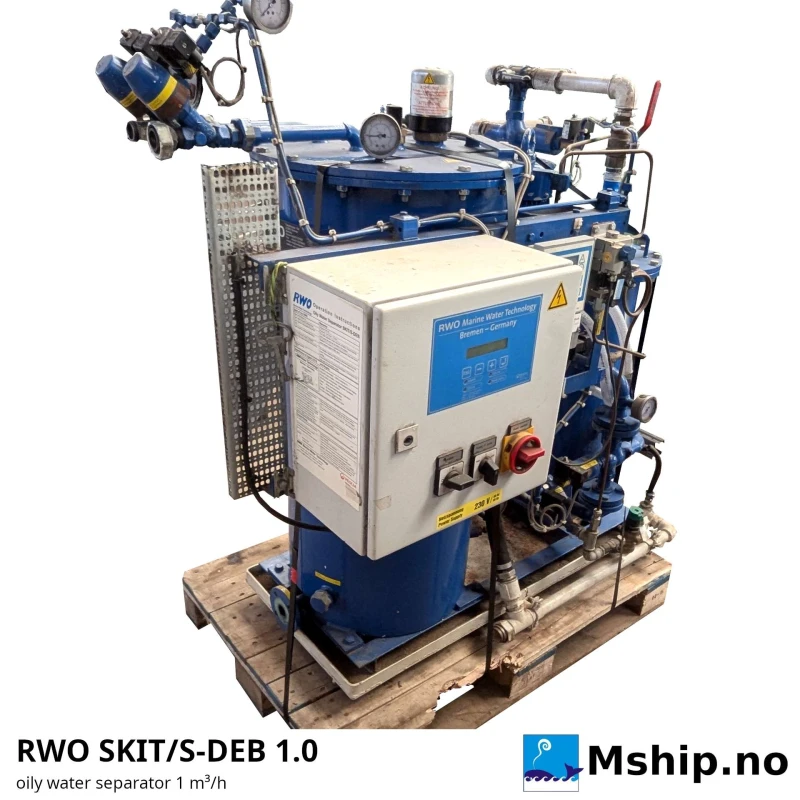

  • Self-contained, skid mounted, with pump, automatic control box, valves and piping fitted and wired ex works
  • Two-stage process: open porous oleophilic coalescer with automatic backflushing, followed by an emulsion-breaking oil and hydrocarbon polisher
  • Automatic bypass: the 15 ppm monitor checks the water from the first stage and bypasses the polisher while the oil content is below the set value, which extends the polisher life
  • Below 1 ppm oil content in the effluent under IMO conditions (RWO data)
  • Suction-type mono (eccentric screw) pump avoids emulsifying the bilge water
  • Automatic oil discharge and coalescer backwash, practically maintenance free
  • Electric heating of the oil collection zone
  • Fitted with Deckma Hamburg OMD-24 15 ppm bilge alarm monitor (2009, Wheelmark 0736/09), approved to MEPC.107(49)
  • Microprocessor control box with two-line LCD display, POWER / FAILURE / STATUS / BILGE LEVEL indicators, heater switch, hand-0-auto selector and main switch, 230 V 50/60 Hz
  • Requires compressed air 6–8 bar and backwash water approx. 1 bar
  • Weight approx. 378 kg (marked on the unit)
  • Worldwide service and support

The SKIT/S-DEB is the predecessor of the current RWO OWS-COM, which uses the same two-stage principle.

Type tested to IMO Res. MEPC.107(49), USCG approval no. 162.050/0009056/0, SBG approval no. 330210 (01.07.2009), as on the ID plate.

Contact us for price and condition.
