RWO oily water separator type SKIT/S 1.0 — Manufacturer: RWO Veolia, Model: SKIT/S 1.0, Serial number: 5241, Performance specification: Oil content in effluent below 15 ppm (MARPOL 73/78 Annex I); below 1 ppm achieved in type tests, Year: 1998, kW: Pump motor 0.55 kW; total installed power approx. 3.2 kW incl. 2 kW electric heater (RWO data), Injection pump type: Allweiler AEP 2 eccentric screw (mono) pump, suction side (RWO standard for SKIT/S 1.0), Other: ID plate: typetested according to IMO Res. MEPC.60(33), SBG approval no. 330064, SBG approval date 01.07.94. No Wheelmark on the plate. Needs compressed air 6-8 bar and flushing water approx. 1 bar, Weight: Approx. 165 kg dry (RWO data for SKIT/S 1.0), m³ /h, cubic meter per hour capacity: 1,0, Volume - Side 1/ Side 2 - Liter: Separator volume approx. 190 litre (0.19 m³, RWO data), Working pressure BAR: 1, Test Pressure BAR: 1,5, Working temperature max, celsius degrees: Water temperature +2 to +45 °C, Remarks: RWO order no. ...3465 (first digits not readable). RWO Water Technology, Leerkämpe 3, D-28259 Bremen, Germany, DIMENSIONs: Tank height approx. 1230 mm, tank footprint approx. 415 x 415 mm (RWO data); pump and control box extend beyond the tank, Suction / delivery flange: Recommended pipes: inlet DN25, oil outlet DN25, clean water outlet DN25, flushing water in/out DN20 View larger
Previous Next

RWO oily water separator type SKIT/S 1.0

d124609

Used

RWO oily water separator type SKIT/S 1.0

Click HERE for alternative

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer RWO Veolia
Model SKIT/S 1.0
Serial number 5241
Year 1998
Performance specification Oil content in effluent below 15 ppm (MARPOL 73/78 Annex I); below 1 ppm achieved in type tests
m³ /h, cubic meter per hour capacity 1,0
Volume - Side 1/ Side 2 - Liter Separator volume approx. 190 litre (0.19 m³, RWO data)
Working pressure BAR 1
Test Pressure BAR 1,5
Working temperature max, celsius degrees Water temperature +2 to +45 °C
Suction / delivery flange Recommended pipes: inlet DN25, oil outlet DN25, clean water outlet DN25, flushing water in/out DN20
Weight Approx. 165 kg dry (RWO data for SKIT/S 1.0)
DIMENSIONs Tank height approx. 1230 mm, tank footprint approx. 415 x 415 mm (RWO data); pump and control box extend beyond the tank
Other ID plate: typetested according to IMO Res. MEPC.60(33), SBG approval no. 330064, SBG approval date 01.07.94. No Wheelmark on the plate. Needs compressed air 6-8 bar and flushing water approx. 1 bar
Remarks RWO order no. ...3465 (first digits not readable). RWO Water Technology, Leerkämpe 3, D-28259 Bremen, Germany
kW Pump motor 0.55 kW; total installed power approx. 3.2 kW incl. 2 kW electric heater (RWO data)
Injection pump type Allweiler AEP 2 eccentric screw (mono) pump, suction side (RWO standard for SKIT/S 1.0)

More info

This item is sold. We can often source the same or a similar item. Contact us with your request.

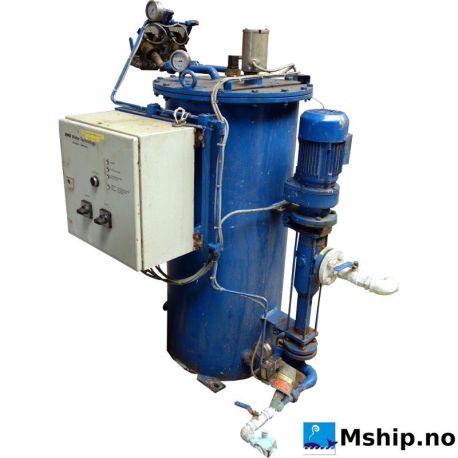

Reference unit: used RWO SKIT/S 1.0 oily water separator, 1 m³/h, serial no. 5241, built 1998.

  • Self-contained, skid mounted, with pump, automatic control box, valves and piping fitted and wired ex works
  • Gravity pre-separation and high-performance oleophilic coalescer: below 1 ppm oil content achieved in type approval tests
  • Suction-side Allweiler AEP 2 eccentric screw pump avoids emulsifying the bilge water
  • Automatic oil discharge and coalescer backwash, practically maintenance free
  • Electric heating of the oil collection zone
  • Requires compressed air 6–8 bar and backwash water approx. 1 bar
  • Dry weight approx. 165 kg, height approx. 1230 mm
  • Worldwide service and support

Built to IMO MEPC.60(33).
