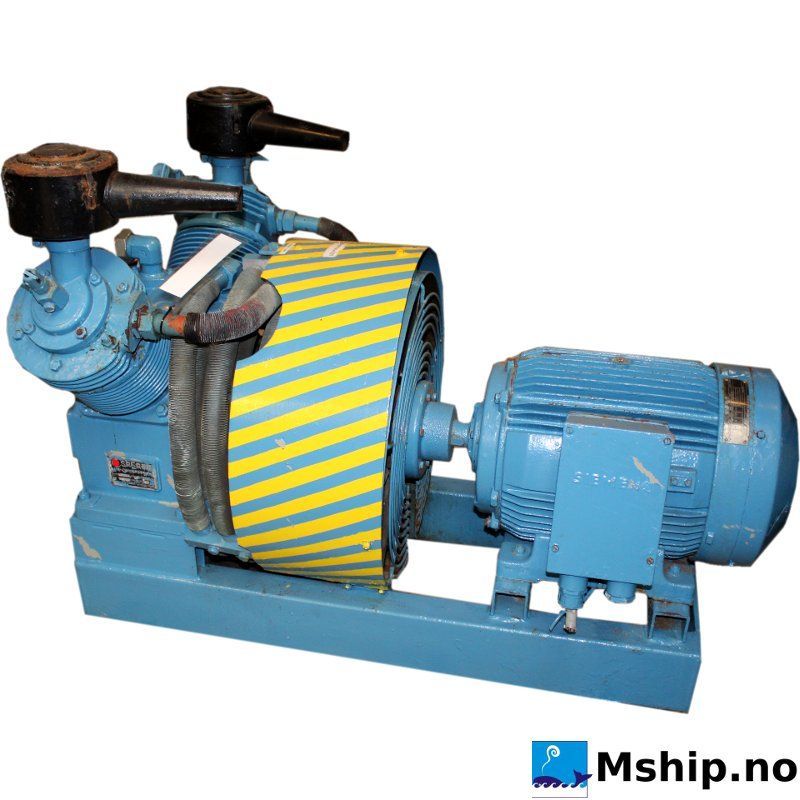

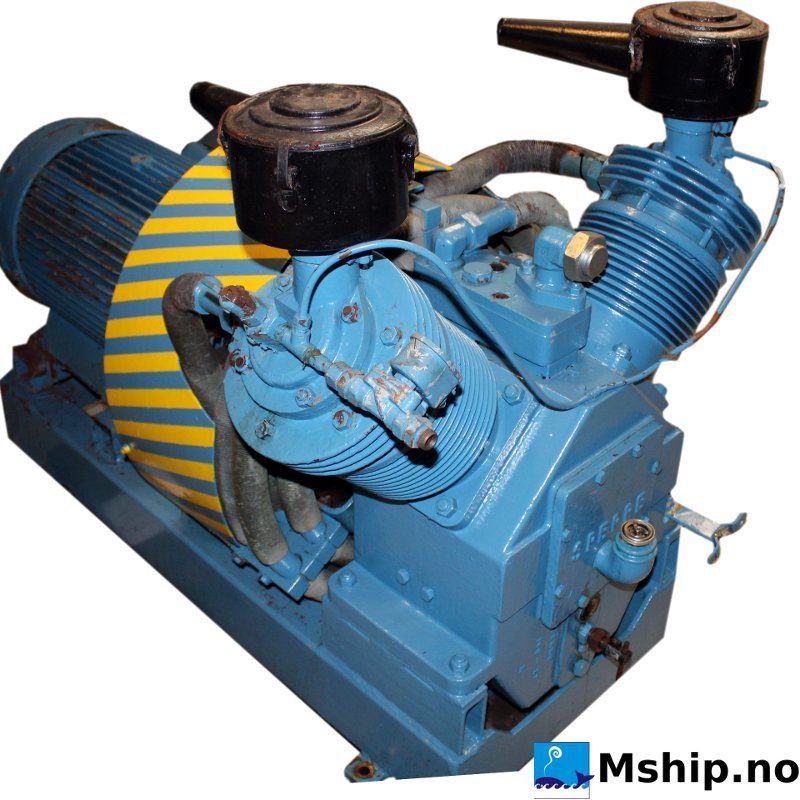

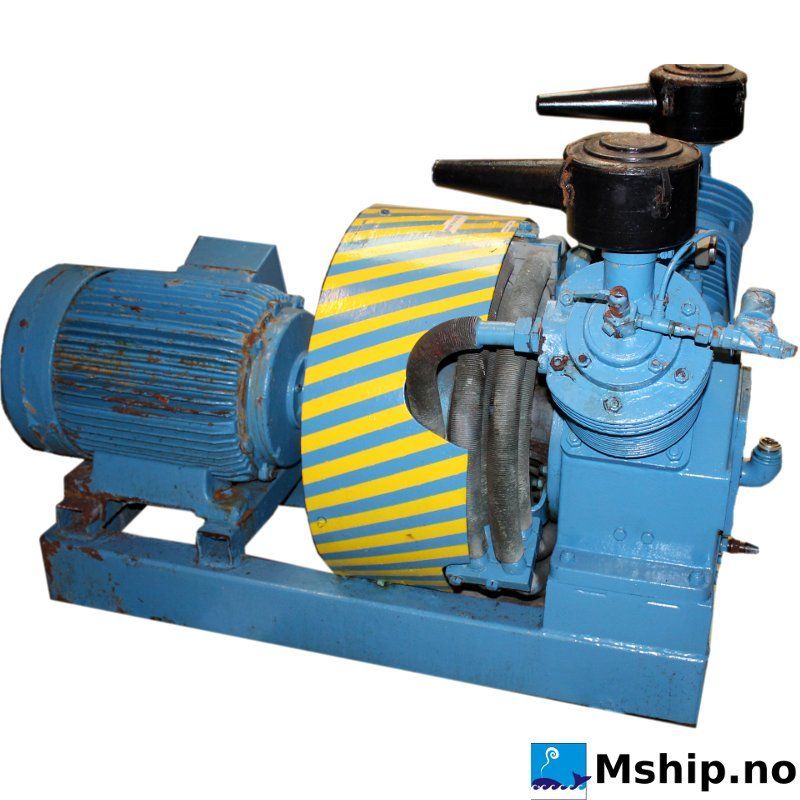

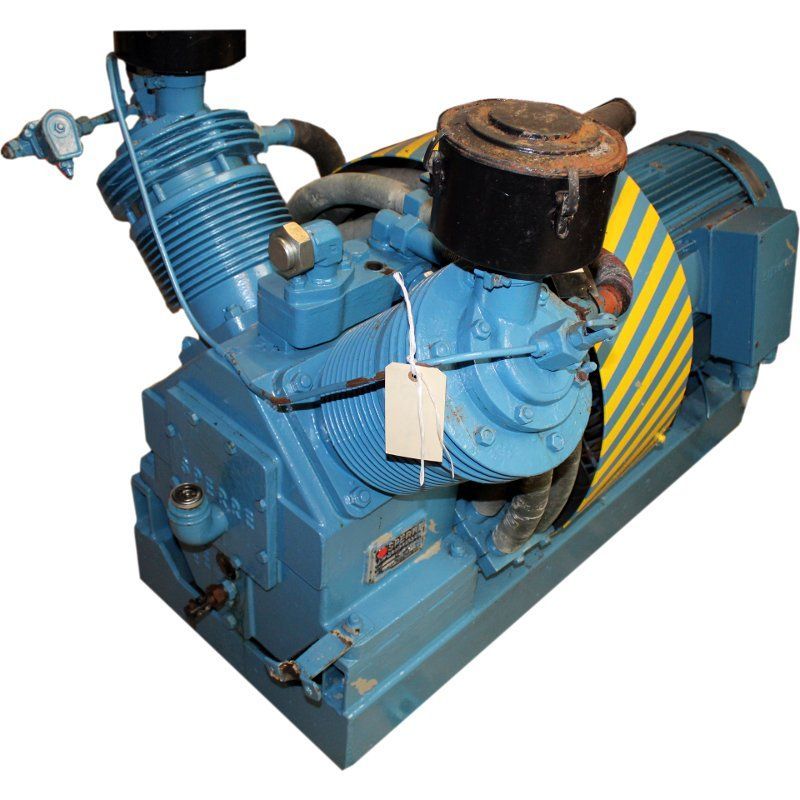

Sperre LL2/160 air Compressor — Manufacturer: Sperre, Model: LL2/160, Serial number: 165046, kW: 24, RPM: 1175, Volt: 440, m³ /h, cubic meter per hour capacity: 203, Electric motor type: Siemens 1LA4 207 B3 200 L, Working pressure BAR: 8 View larger
Previous Next

Sperre LL2/160 air Compressor

39601-sperre-ll2-160

Used

Sperre LL2/160 air Compressor

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Sperre
Model LL2/160
Serial number 165046
m³ /h, cubic meter per hour capacity 203 at 1175 rpm (60 Hz) / approx. 168 at 975 rpm (50 Hz)
Working pressure BAR 8

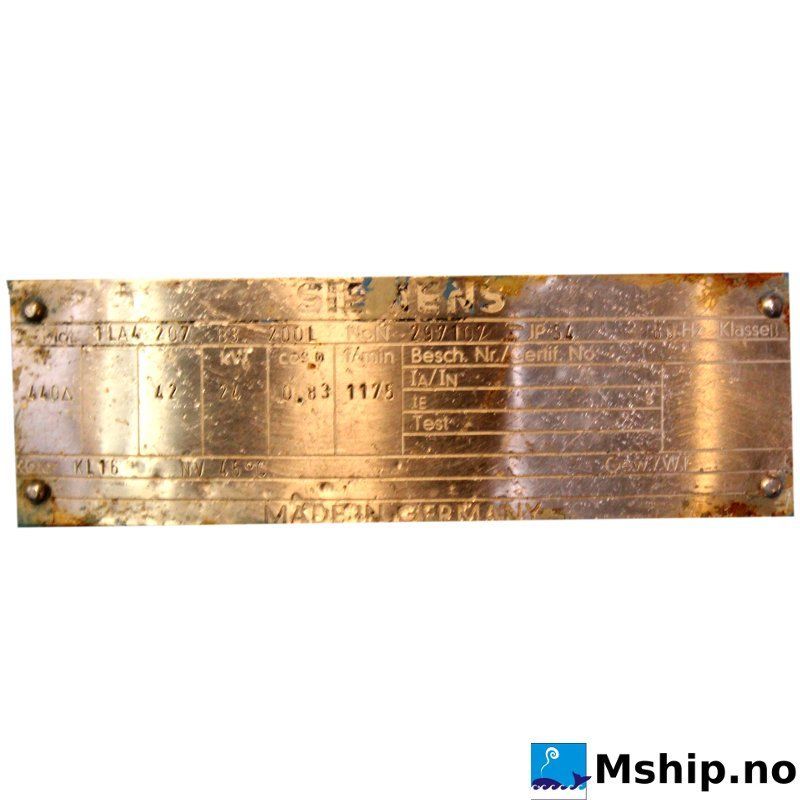

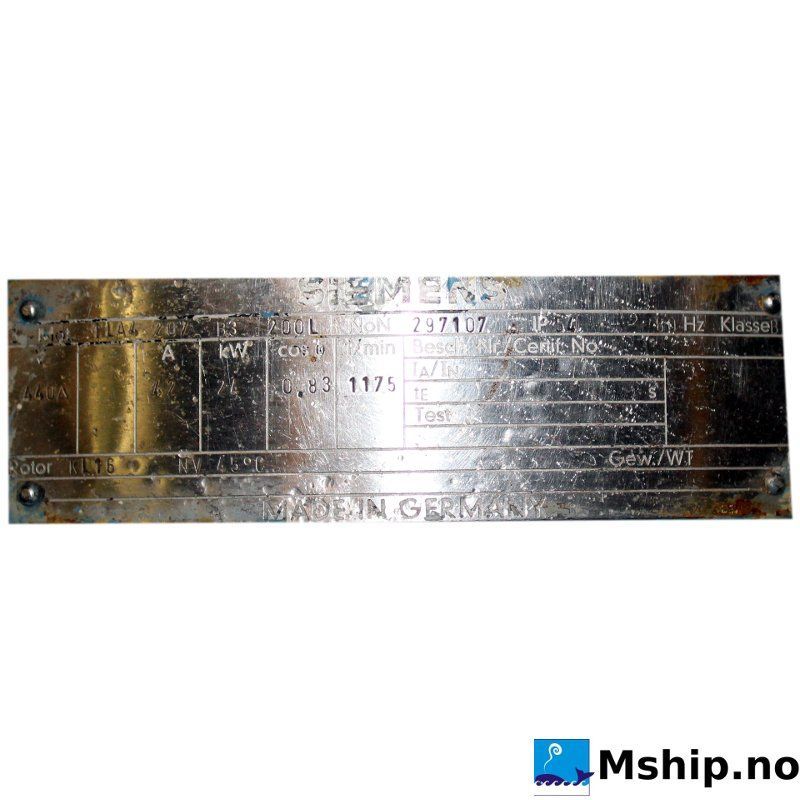

Electric motor type Siemens 1LA4 207 B3 200L, 24 kW, 440 V, 1175 rpm
kW 24
RPM 1175
Volt 440
Amps 42 A (440 V Δ)
HZ 60

More info

This item is sold. We can often source the same or a similar item. Contact us with your request.

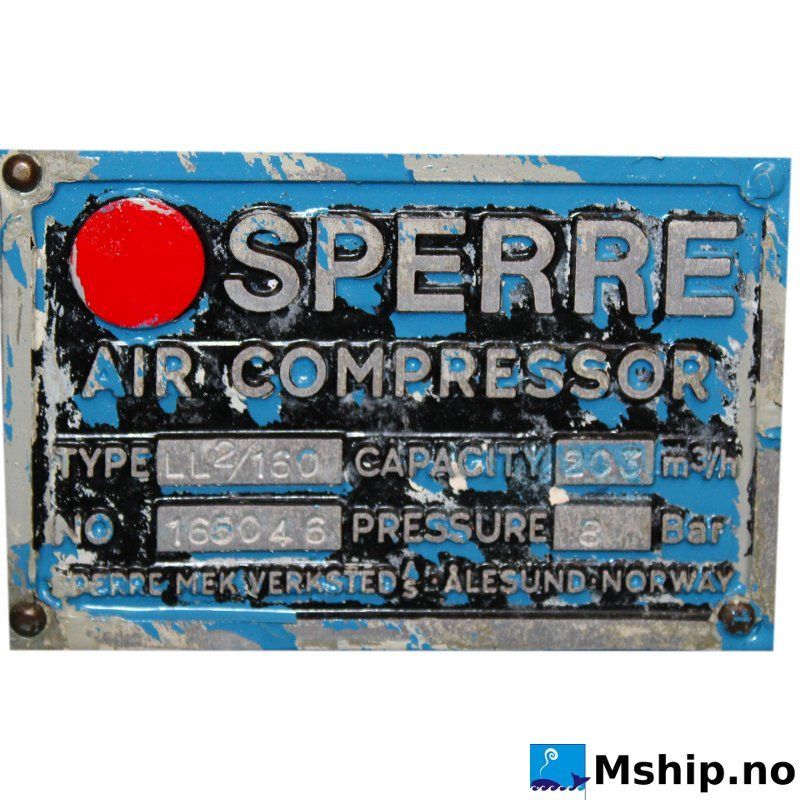

Capacity at 50 / 60 Hz: 203 m³/h at 1175 rpm (60 Hz) according to the nameplate. On 50 Hz the speed is approx. 975 rpm, which gives approx. 168 m³/h. 60 Hz gives 20 % higher speed than 50 Hz, and thus approx. 20 % more air (theoretical, capacity follows speed). The LL2/160 is rated for max. 1500 rpm and uses a 6-pole motor.

Model LL2/160 is a one stage 90º V-compressor.

Cylinders and compressed air coolers are air-cooled.

Bearings and cylinders walls are splash lubricated. The compressor and motor are normally supplied mounted together and connected by means of a heavy-duty flexible coupling.

Technical Data
Performance50 Hz (7-10 bar)60 Hz (7-10 bar)
Speed (RPM) 975 1475 1175
Charging capacity (m³/h)* 170 245 203
Power requirement (kW) 21,9 33,2 26,4
Heat dissipation (kCal/h) 16951 25697 20434
*Charging capacity is from ambient pressure to final pressure. Tolerance +/-5%.
Design
No. of cylinders 2
Cylinder arrangement 90° V
No. of compression stages 1
Cooling Air
Valve LP Concentric plate valves
Dimensions & weight
Cylinder diameter LP 160 mm
Stroke 100 mm
Weight (compressor/el.motor) 683 kg
Lubrication
Sump capacity 10 litres
Lubrication system Splash
Operating parameters
Maximum delivery pressure 10 bar
Ambient temperature 45°C
Normal temperature outlet air 10°C above ambient temperature
Maximum speed 1500 RPM
Set point thermo switch air alarm/stop 75°C/80°C
Rotation Anti-clockwise (looking at the drive end)
Safety valves set point 10% above stage pressure
Max. noise level 91 dBA
Max. vibration level 30 mm/s-RMS
