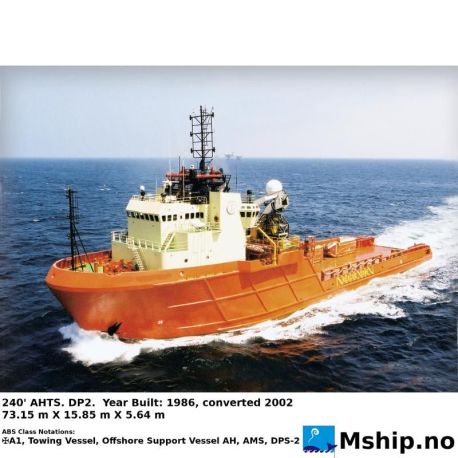

240' AHTS. DP2. Year Built: 1986, converted 2002

VSL2019-18701973

Used

240' AHTS. DP2.  Year Built: 1986, converted 2002

More details

  • Get a Quote NOW
  • Product Request:


    240' AHTS. DP2. Year Built: 1986, converted 2002

    240' AHTS. DP2. Year Built: 1986, converted 2002

    240' AHTS. DP2.  Year Built: 1986, converted 2002

    do not include special characters

    * Required fields

    Cancel

    Data sheet

    ManufacturerNORTH AMERICAN SHIPBUILDING INC.
    Model240' AHTS
    Year1986, converted 2002
    Fuel TypeMDO
    ClassABS ✠A1, Towing Vessel, Offshore Support Vessel AH, AMS, DPS-2
    DIMENSIONs73.15 m X 15.85 m X 5.64 m
    Design Draft Meter4.57 m
    Draft (Maximum) Meter4.88 m
    Loadline Displacement:3,830.68 MT
    Clear Deck M²41.15 m x 13.41 m
    Cargo Deck Area:551.82 m 2
    Storage Reels:Two (2) x 11,480’ (3,499.10 m) of 3” (7.62 cm) wire
    Deck Cargo Capacity:843.32 MT
    Deadweight Tonnage:1,551.50 MT
    Fuel Oil:675.98 m 3
    Tow Pins:One (1) x 350 MT
    Fresh Water M³87.32 m 3
    Chain Lockers:Two (2) x 6,000’ (1,828.8 m) of 3.5” (8.89 cm) chain each
    Stern Roller:One (1) x 8’ x 6’
    Ballast M³1,232.59 m 3
    Dry Bulk:144.98 m 3 @ 5.5 bars
    Liquid Mud:354.54 m 3
    Main Engines:Three (3) EMD 20-645 E7, 10,800 BHP
    Bow Thrusters:Two (2) 150TV-D Tunne
    Stern Thruster:One (1) 1,200 HP NASB/Ulstein 360° Jet Azimuthing
    Total Propulsion HP:13,200 HP
    Propulsion:Three (3) CPP
    Shaft Generators:Three (3) x 2,400 HP/1,800 kW
    Ship’s Service Generators:Two (2) x 500 kW
    Positioning:DP 2
    Tugger:One (1) x 12-Ton Forward Two (2) x 10-Ton Aft
    Cranes:Two (2) x 10 tons @ 30° radius
    Shark Jaws:One (1) x 350 MT
    AHTS Winch:Brattvaag BSL 350 W Double Drum with chain mouse, 350 MT or 926,100 lb line pull or 926 KIPS line pull per drum Two (2) x 9,800’ (2,987.04 m) of 3” (7.62 cm) wire per drum @ 350 MT
    ACCOMMODATIONS:41
    LIFESAVING EQUIPMENTFour (4) x 25-Man Life Rafts One (1) x Narwhal SV-400 SOLAS FRC
    Firefighting:Two (2) Monitors @ 12,500 GPM

    More info

    240' AHTS. DP2.  Year Built: 1986, converted 2002
    73.15 m X 15.85 m X 5.64 m

    ABS Class Notations: ✠A1, Towing Vessel, Offshore Support Vessel AH, AMS, DPS-2

    ELECTRONICS

    • Two (2) Furuno FR-2115 Radars
    • GMDSS
    • Iridium Satellite Phone
    • Marine Technologies Bridge Mate DP 2
    • Marine Technologies Bridge Mate Autopilot
    • Furuno Color-View Depth Sounder
    • Furuno VHF FM-8500 @ Winch Operator Panel
    • Seven (7) Color Monitors
    • JRC NO2-127C Inmarsat-C Telex (GMDSS)
    • SEA 222 Single Sideband Radio with Ringer
    • JRC NCH-802 Controller MF/HF Radio
    • JRC NCR-300A Navtex
    • Raytheon NAV 398 GPS
    • Furuno FAI50 AIS
