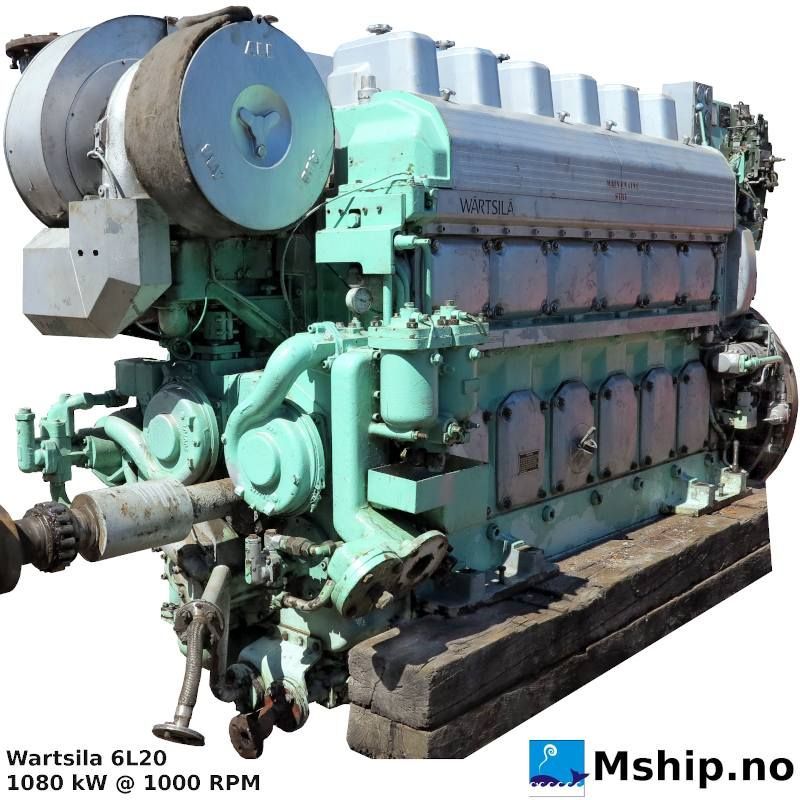

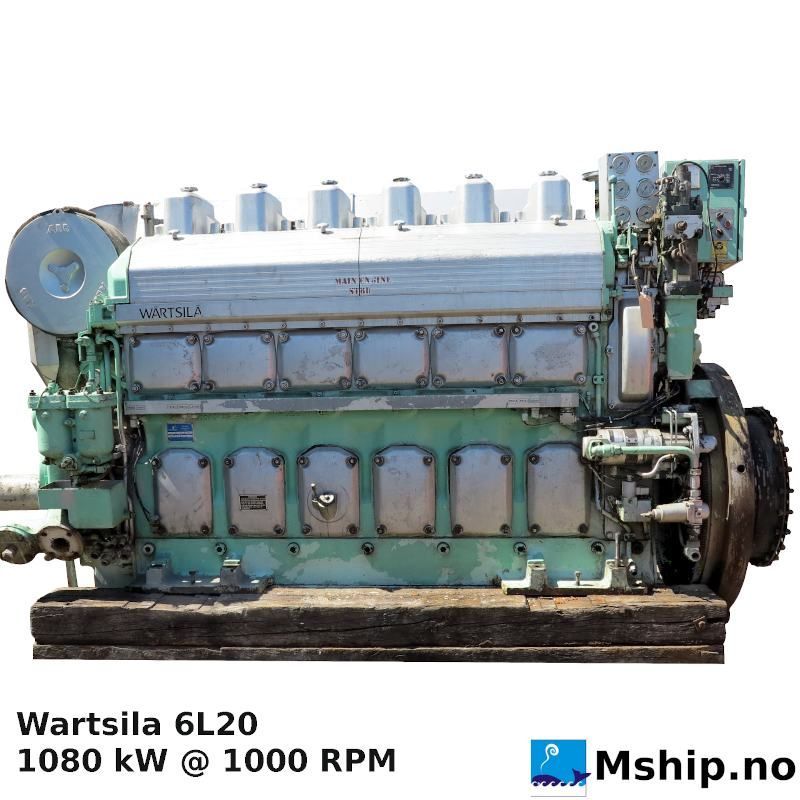

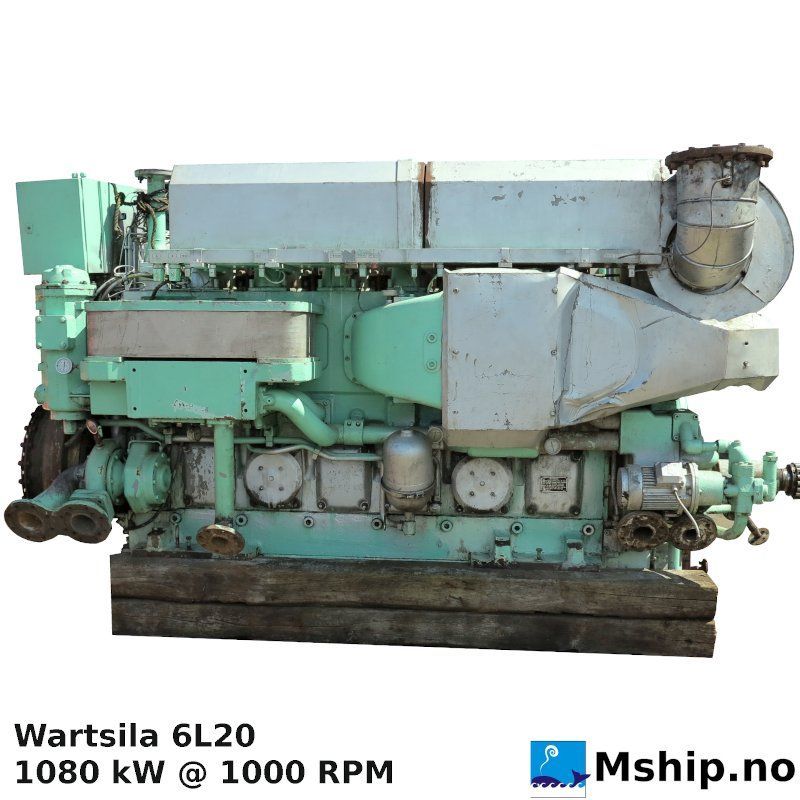

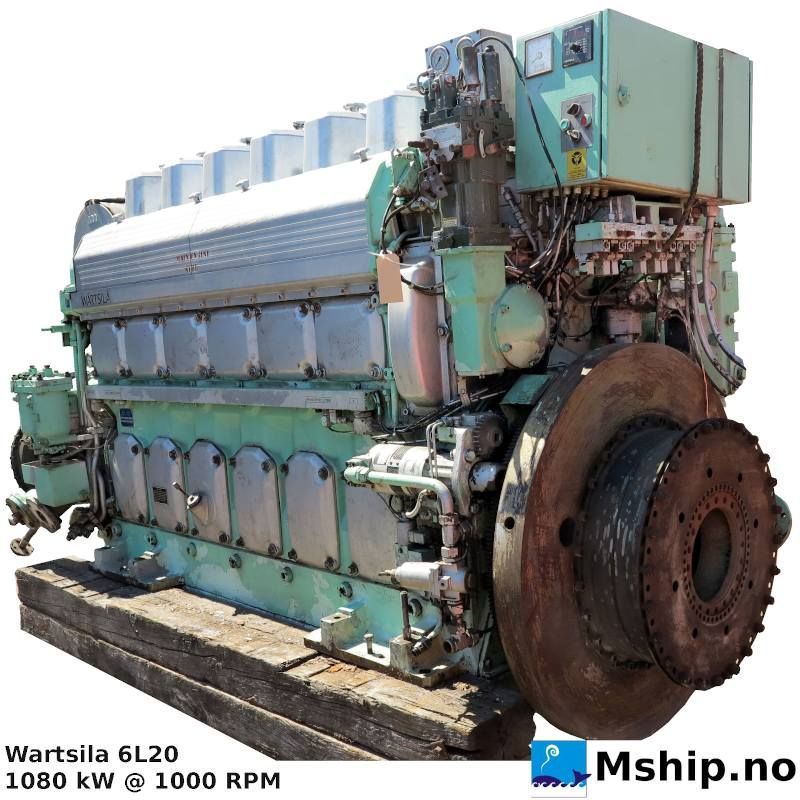

Wartsila 6L20 — Manufacturer: Wärtsilä, Model: 6L20, Serial number: 21757, Performance specification: 171198, Year: 2002, HP: 1448, kW: 1080, RPM: 1000, Cylinder bore: 200 mm, Piston Stroke: 280 mm, Number of cylinders: 6, Displacement: 52.8 Liter, Cylinder configuration: In line, Weight: 9300 kg View larger
Previous Next

Wartsila 6L20

5793649

Used

Wärtsilä 6L20

More details

Price on request

or call +47 908 92 500

Data sheet

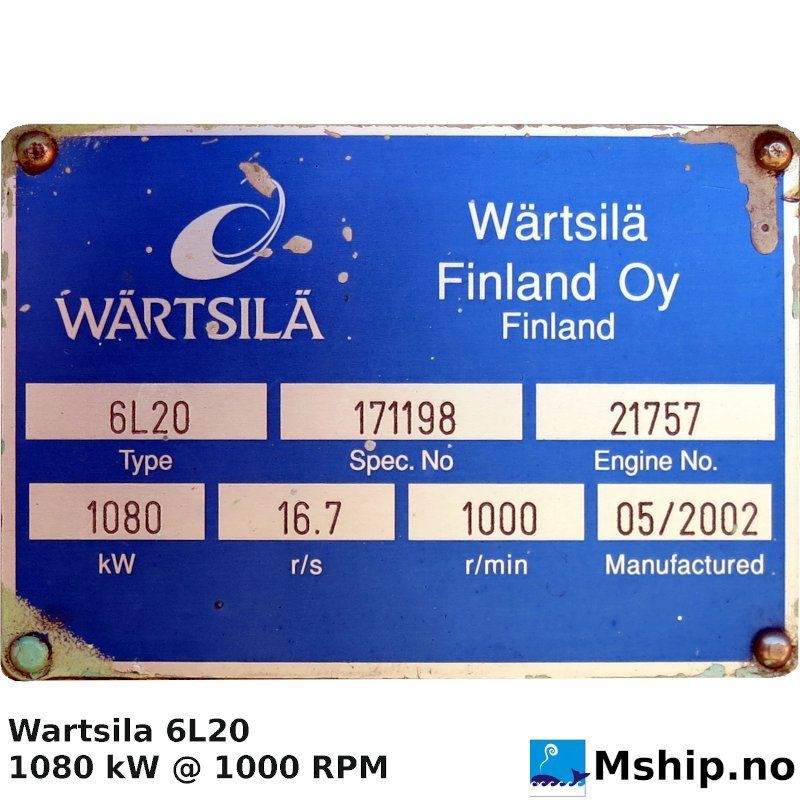

Manufacturer Wärtsilä
Model 6L20
Serial number 21757
Performance specification 171198
Year 2002
HP 1448
kW 1080
RPM 1000
Cylinder bore 200 mm
Piston Stroke 280 mm
Number of cylinders 6
Displacement 52.8 Liter
Cylinder configuration In line
Weight 9300 kg

More info

Wärtsilä 6L20

The Wärtsilä 20 is a 4-stroke, non-reversible, turbocharged and intercooled diesel engine with direct injection of fuel.

Cylinder bore             200 mm
Stroke                       280 mm
Piston displacement    8.8 l/cyl
Number of valves       2 inlet valves and 2 exhaust valves
Cylinder configuration  6 in-line
Mean piston speed       9,3  m/s

The Wärtsilä 20 is able to operate on different fuels, from the lowest viscosity of 1.8 cSt up to 730 cSt HFO (at 50 °C).

The engine is also able to use low sulphur fuel oils (<0.1% S) set as standard by emission control area authorities.
