Manufacturer | Volvo Penta |
Model | TAMD 75 P-A |
Arrangement number | Dateset 3819283 |
Serial number | 2071187518 |
Performance specification | Spec. No. 869196 |
Year | 2002 |
HP | 480 |
kW | 353 |
RPM | 2600 |
Cylinder bore | 107 mm |
Piston Stroke | 135 mm |
Number of cylinders | 6 |
Displacement | 7284 cm3 |
Cylinder configuration | In line |
Fuel Type | Diesel |
Weight | 860 kg without gear |
Fuel consumption | 233 g/kWh @ 2600 rpm |

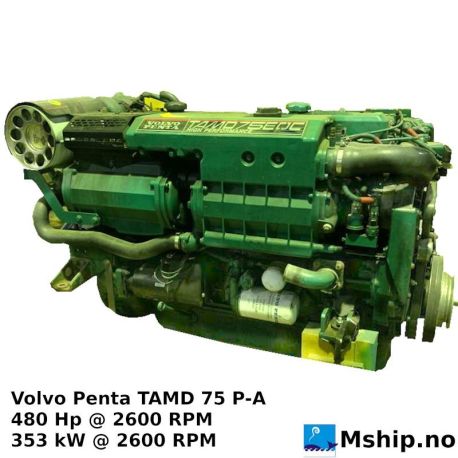

Volvo Penta TAMD 75P A
The TAMD75P EDC marine diesel is specially
developed for fast planing and semi-planing craft.
The engine’s high outputand low weight combined with a rich low
end torque curve ensures excellent acceleration and response.
Superior load carrying capability thanks to the wide engine
speed range with rated power.
EDC – optimizing engine
performance
performance
EDC (Electronic Diesel Control) – an
electronically controlled process ing sys-
tem that determines the prcise quantity
of fuel required at anygiv enmoment.
The EDC system takes full a count of
variation in operating temperature, air
pres sure and other contribut ing factors,
which optimizes engine performance and
efficiency, reduing fuel consumption and
emissions.
