Manufacturer | Volvo Penta |
Model | TAMD 165 AD |
Serial number | 1160052873 |
Performance specification | 869194 |
Year | 2004 |
kW | 229 |
RPM | 1800 |
Cylinder bore | 144 mm |
Piston Stroke | 165 mm |
Number of cylinders | 6 |
Displacement | 16,12 Liter |
Cylinder configuration | In line |
Rotation direction | CCW - Counter clockwise seen from aft |
Fuel Type | Diesel |
Weight | 1700 Kg, dry weight |

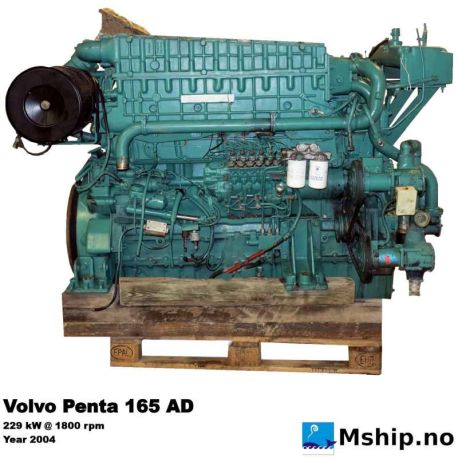

Volvo Penta TAMD 165 AD
Technical data:
TAMD 165 (A/C/P)
Engine: in-line 6-cylinder marine diesel
Cylinder volume: 16,12 Liter
output:* Rating 1: 510-550 hp/375-404 kW
Rating 2: 600 hp/441 kW
Rating 3: 680 hp/500 kW
Rating 4. 751 hp/552 kW
Generator output: 240-352 kWe depending on type of generator
Dry weight, excl.
reversing gear: Approx. 1700 kg
*Technical data according to ISO 3046 (fuel temperature 40°C). At a fuel temperature of 25°C
a 2-3 percent increase in output is obtained.
