20 meter SWATH survey vessel — Manufacturer: 20 meter SWATH survey vessel, Model: 20 meter Swath Catamaran, Year: 2014, Fuel Type: Diesel, Class: Norwegian maritime authority, Other: Yard: CTRUCK LTD, Essex, UK., Weight: 32 Tonnes, Passengers: 12, Length Overall LOA Meter: 20,2 meter, Molded Breadth Meter: 7,5 meter, Design Draft Meter: 1,47 meter, Draft (Maximum) Meter: 1,9 meter, Cargo Deck Area:: Fwd deck space 37m² max. Aft deck space 34m² max, Deck Cargo Capacity:: 16 ton, Fuel Oil:: 4000 liter, ACCOMMODATIONS:: Galley, shower, toilet., Main Engines:: 2 x 650 hp Cummins QSM 11, Total Propulsion HP:: 1300 hp, Propulsion:: 2 x Rolls-Royce 36 A3, LIFESAVING EQUIPMENT: According to requirement., Deck strenght m ²: 1t/m², Maximum speed: 19 knot, Economical speed: 15, Fuel consumption: abt 54 liter / hr @ survey speed 10 knot. abt 20 litre / hr @ survey speed 5 knot, ROV: Sperre SUB-fighter 10K ROV, Max depth 1000 m, 1000m tether, stabilizer system: Naiad Dynamics hydraulic stabilizers View larger
Previous Next

20 meter SWATH survey vessel

vsl2024021

Used

20 meter SWATH survey vessel

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer 20 meter SWATH survey vessel
Model 20 meter Swath Catamaran
Year 2014
Fuel Type Diesel
Class Norwegian maritime authority
Other Yard: CTRUCK LTD, Essex, UK.
Weight 32 Tonnes
Passengers 12
Length Overall LOA Meter 20,2 meter
Molded Breadth Meter 7,5 meter
Design Draft Meter 1,47 meter
Draft (Maximum) Meter 1,9 meter
Cargo Deck Area: Fwd deck space 37m² max. Aft deck space 34m² max
Deck Cargo Capacity: 16 ton
Fuel Oil: 4000 liter
ACCOMMODATIONS: Galley, shower, toilet.
Main Engines: 2 x 650 hp Cummins QSM 11
Total Propulsion HP: 1300 hp
Propulsion: 2 x Rolls-Royce 36 A3
LIFESAVING EQUIPMENT According to requirement.
Deck strenght m ² 1t/m²
Maximum speed 19 knot
Economical speed 15
Fuel consumption abt 54 liter / hr @ survey speed 10 knot. abt 20 litre / hr @ survey speed 5 knot

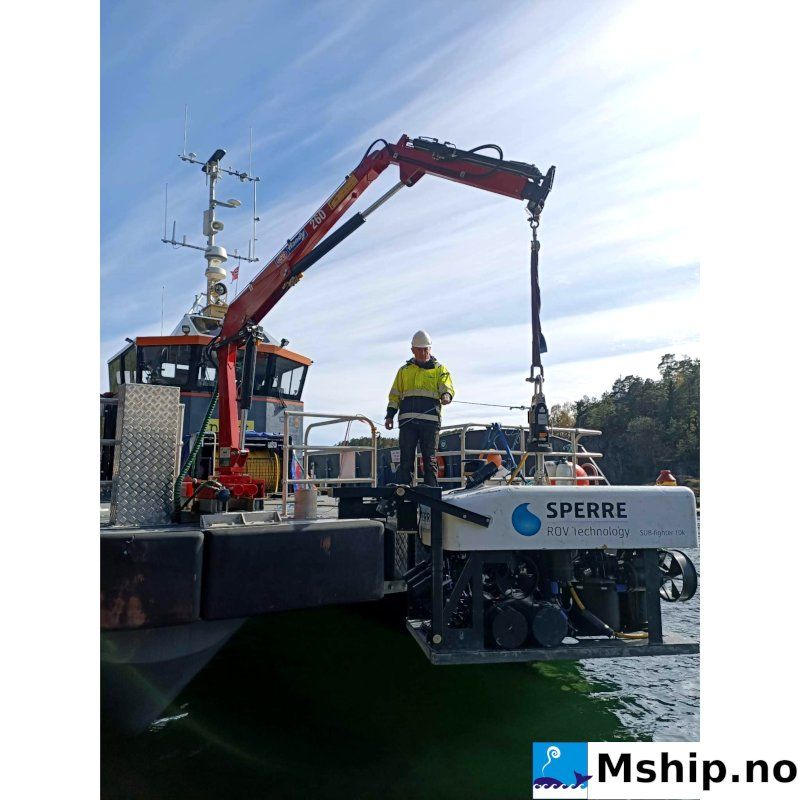

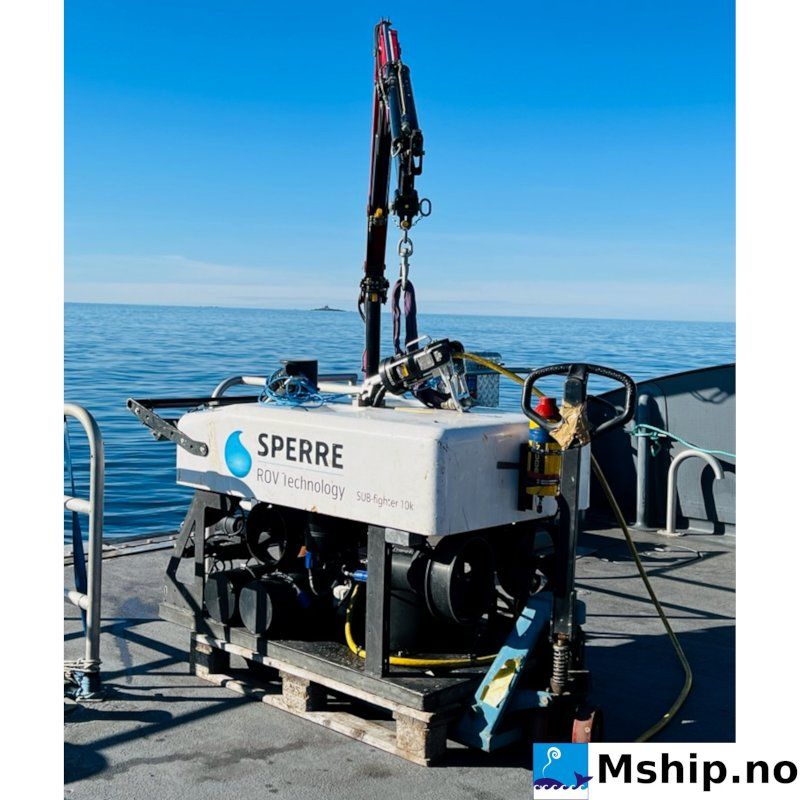

ROV Sperre SUB-fighter 10K ROV, Max depth 1000 m, 1000m tether
stabilizer system Naiad Dynamics hydraulic stabilizers

More info

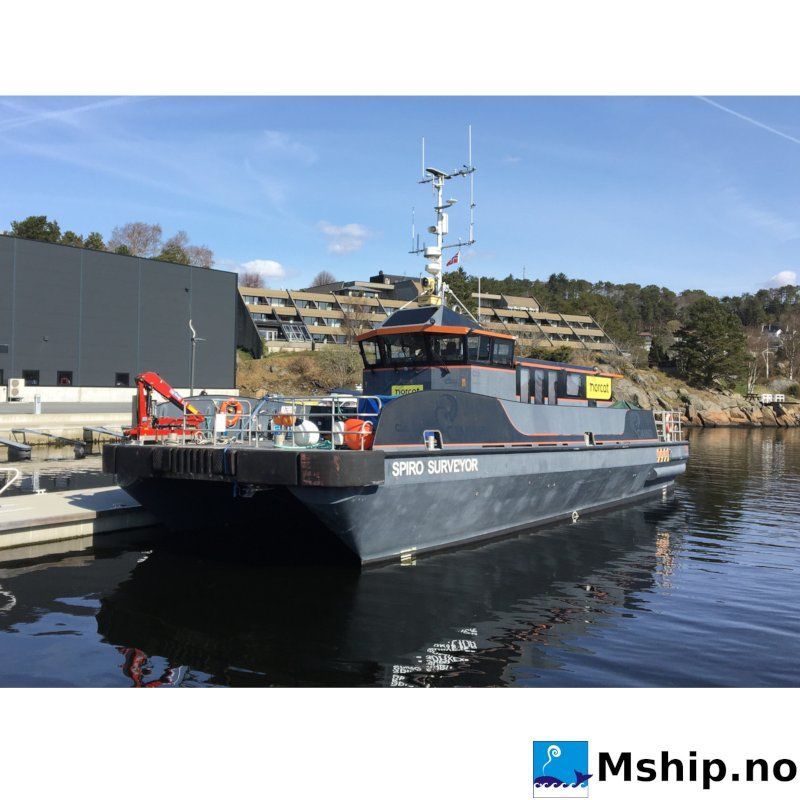

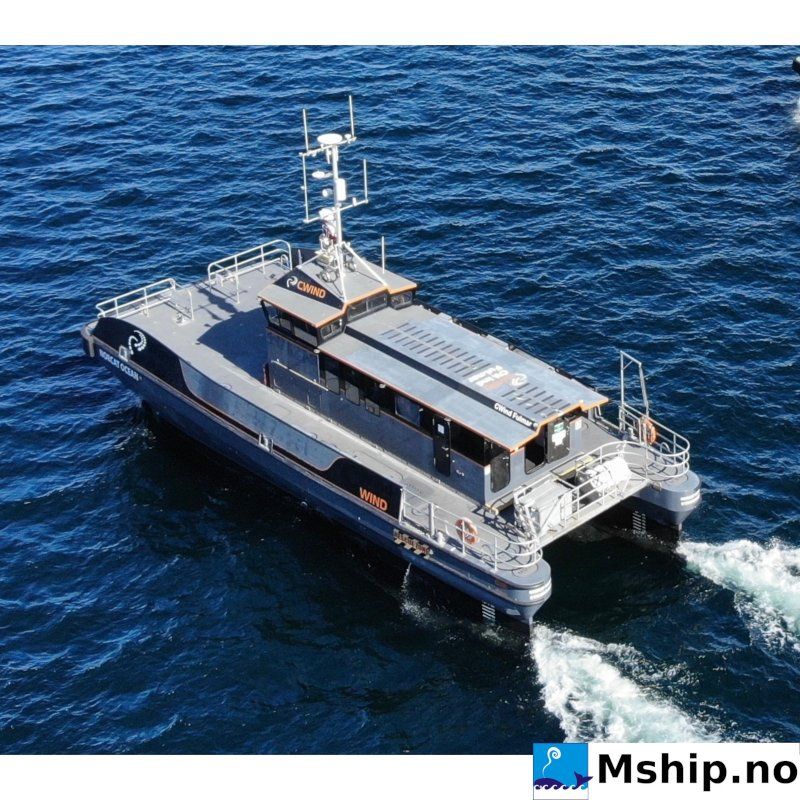

20 meter SWATH survey vessel with ROV, Multibeam and Sub bottom profiler.

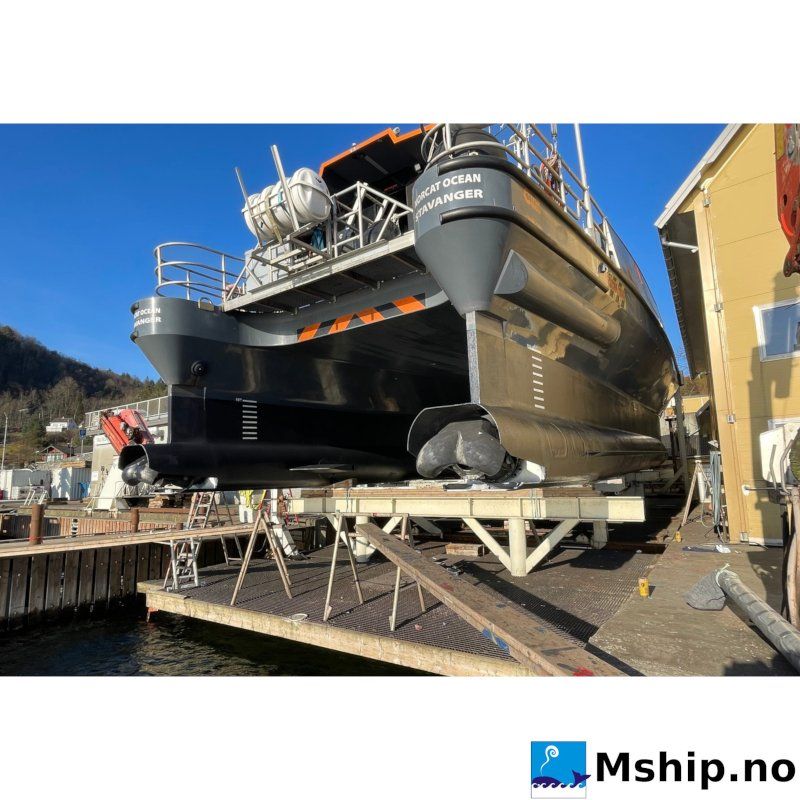

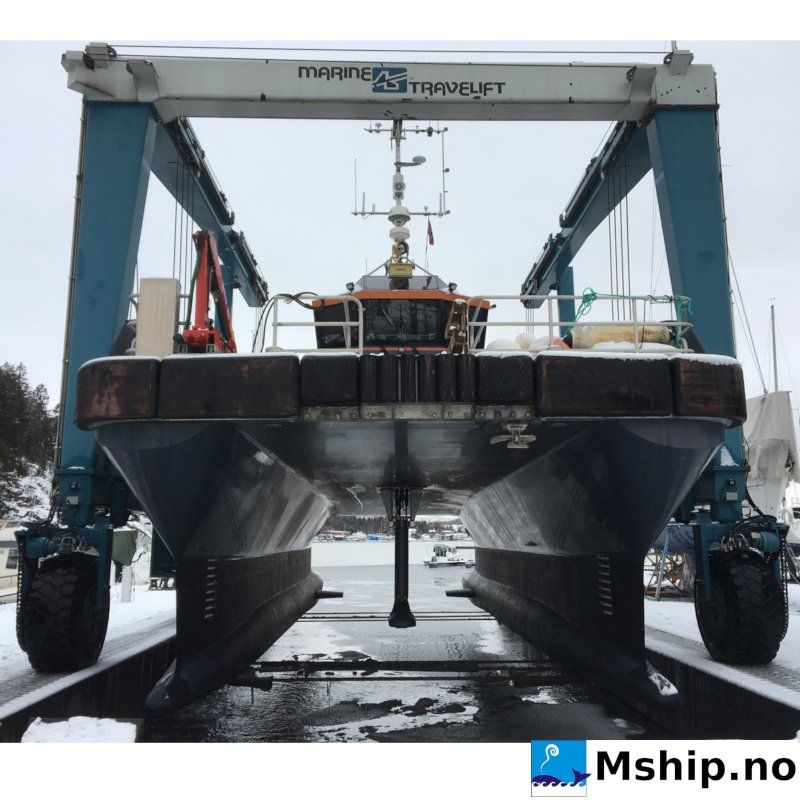

The SWATH hull form is designed to cut through the waves rather than ride over them, improves data accusation and transit comfort.

The Naiad Dynamics hydraulic stabilizers are the industry standard for superior performance and reduce the pitch, roll, yaw motions.

KEY CAPABILITIES

INTERNAL EQUIPMENT

Year Built

2014

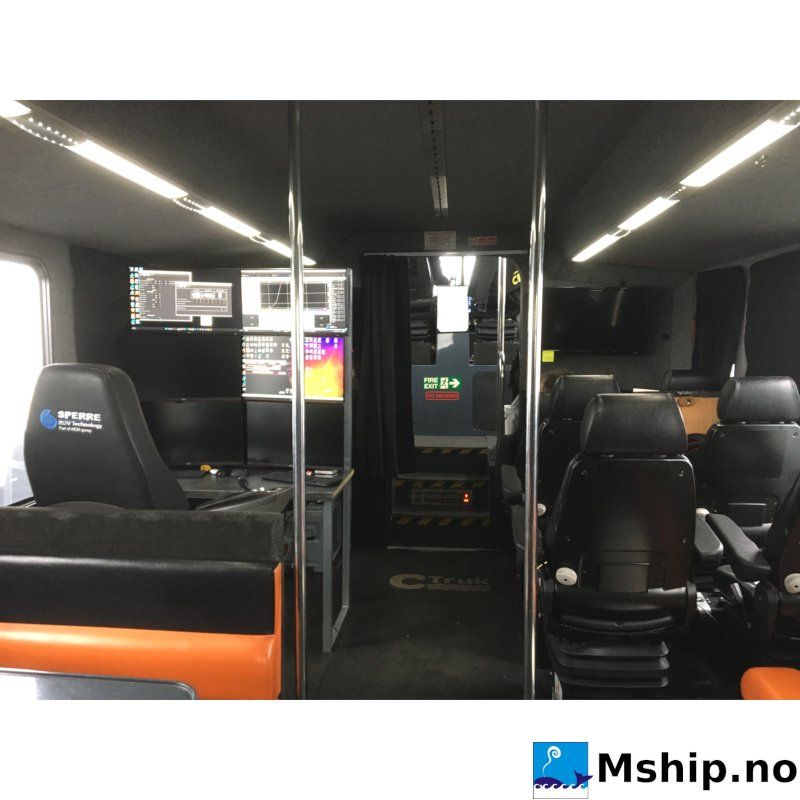

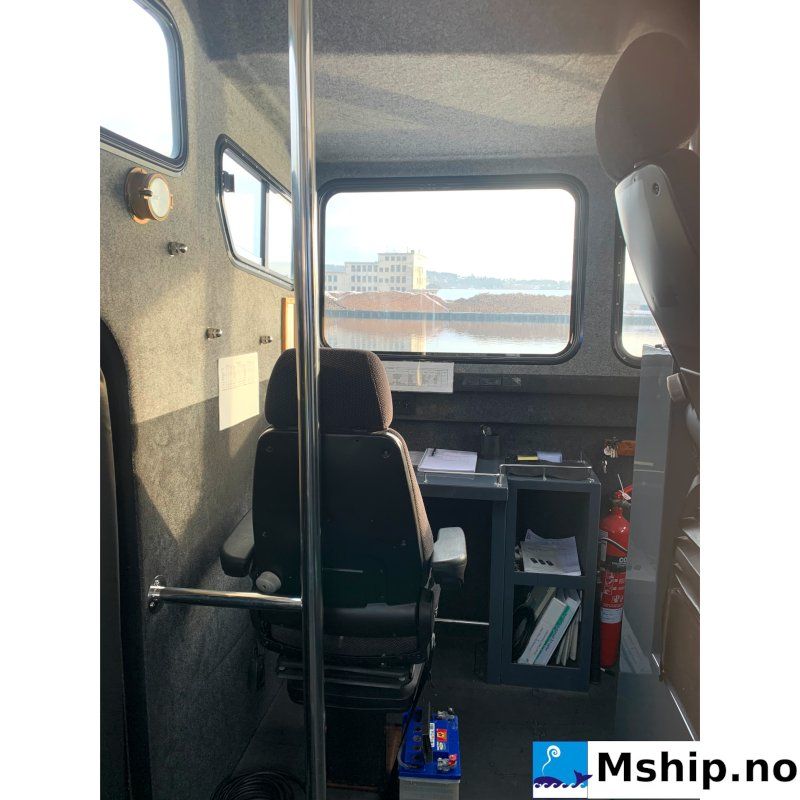

ACCOMMODATION Fully air-conditioned, personalized suspension seating for all passengers and crew., lookers shelving for surveyors bags, microwave, fridge, hot water, charging area.

Class

MCA Category 2

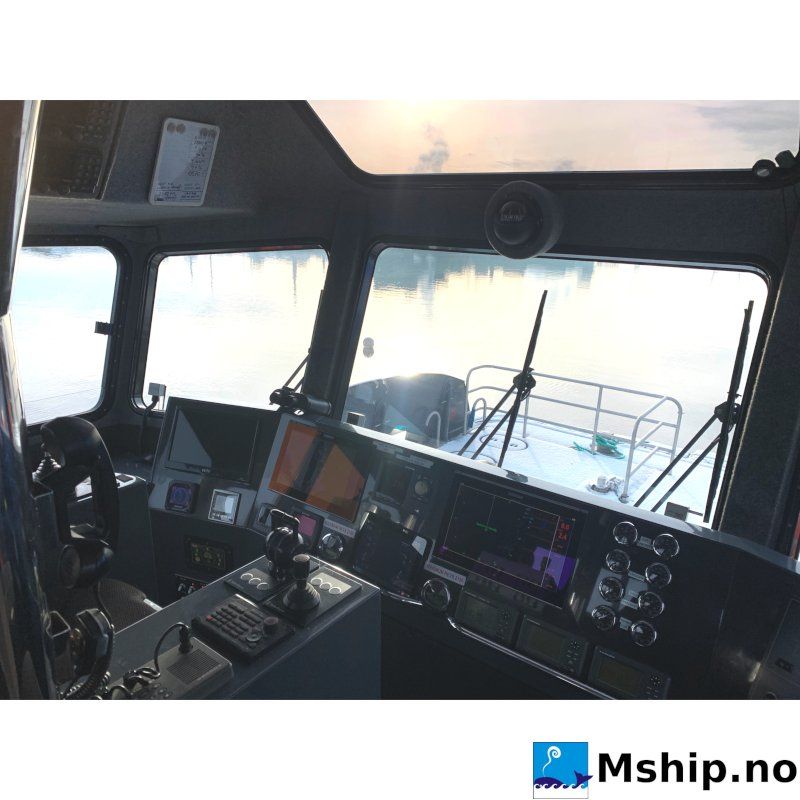

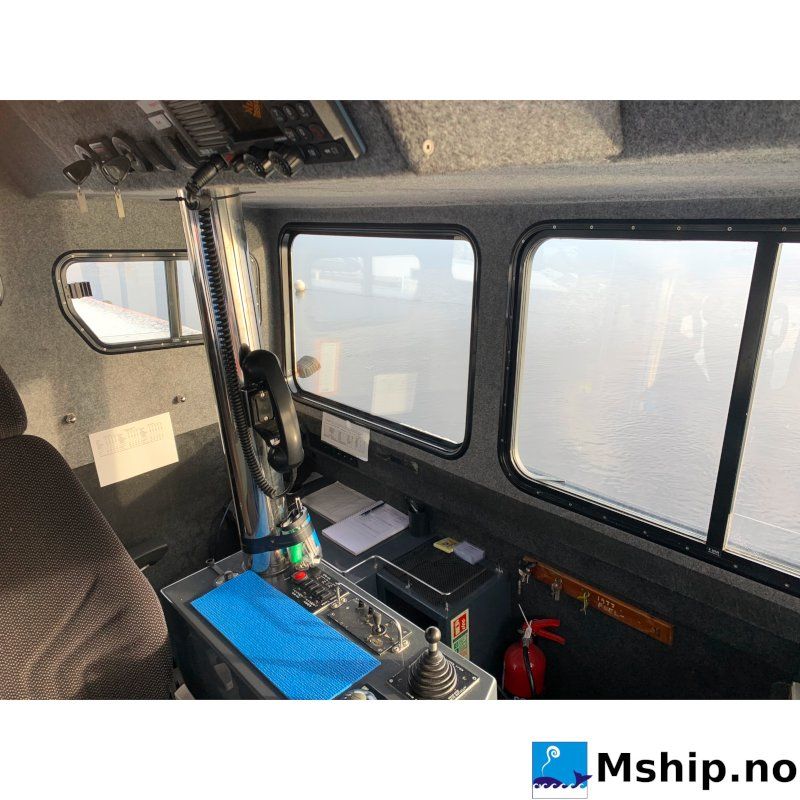

NAVIGATION/COMMUNICATION EQUIPMENT

Hull Material

Resin inf. Composite

Radar

SIMRAD x 2 Broadband

Passengers 12

Crew 2-4

Electronic chart

SIMRAD x 2 NSS12

DIMENSIONS

AIS

Length overall 20m

Fwd deck space 40m2

Compass Simrad HS70 Sat + SilvaMagnetic

Beam 7.8 m

Aft deck space 12m2

Depth sounder Simrad x1BSM-1

Draft 1.49 – 2.06m

Crew finder Sea Marshall SAR finder

VHF Sailor 6222 DSC VHF x 2

MACHINERRY

Main engines

Cummins QSM 11

DECK EQUIPMENT

Rolls Royce 36 A3

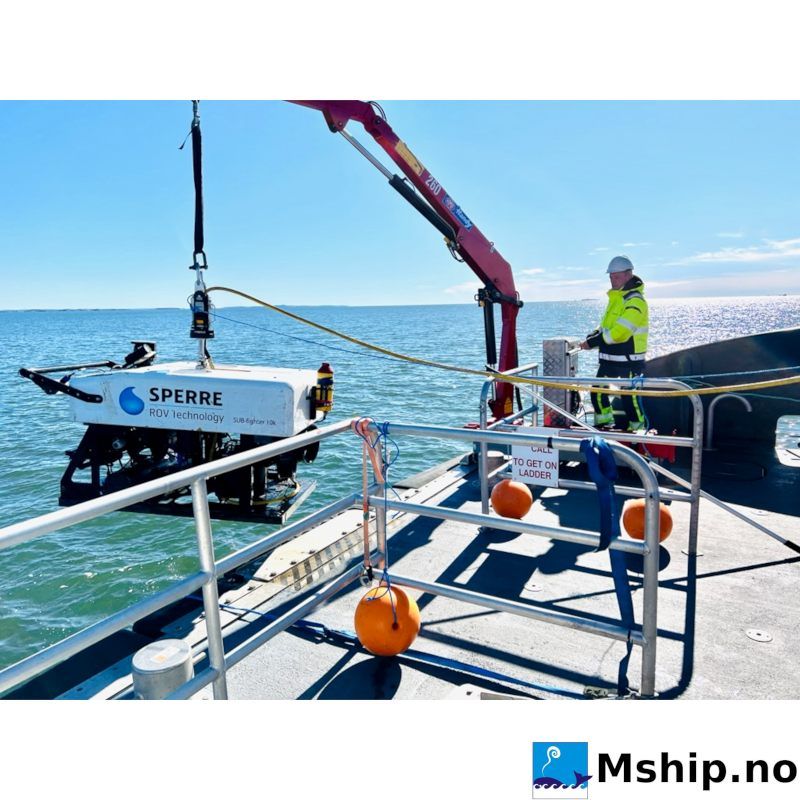

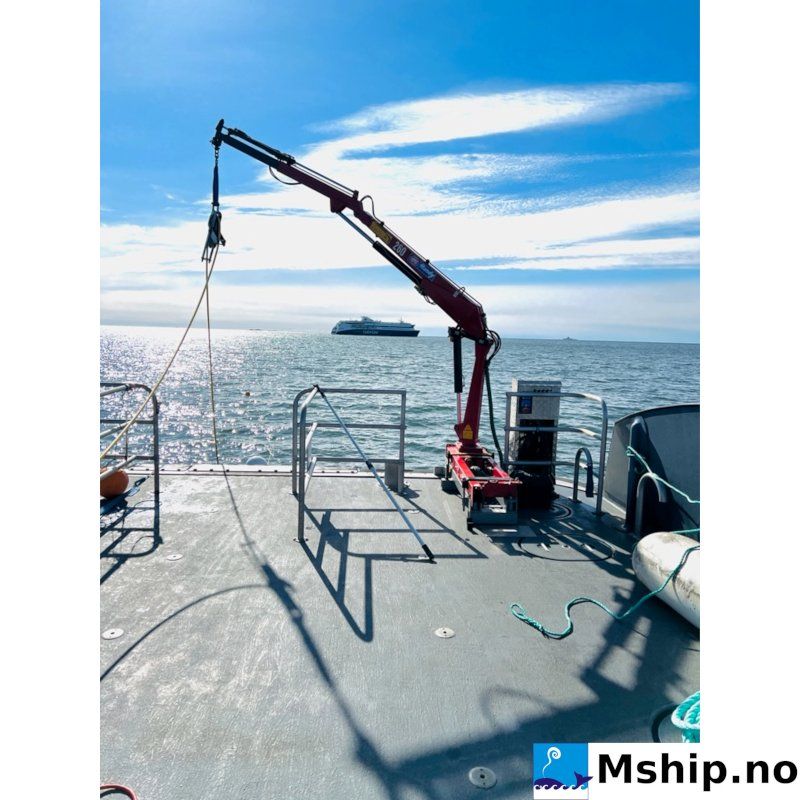

Crane front deck HMF Handy 260

Auxiliary

Cummins Onan

A-frame aft deck Towing

PREFORMANCE DATA

WAVE HIGHT LIMITATION

Max speed

22kts

Transit Significant 1.75m Max 2m

Service speed

19kts

Survey speed

5kts

TANK CAPACITIES

WIND SPEED LIMITATION

Fuel 4.000l

Fresh water 340l

TotalFuel use/service speed

220l/h

Total Fuel use/survey speed

30l/h

Survey equipment:

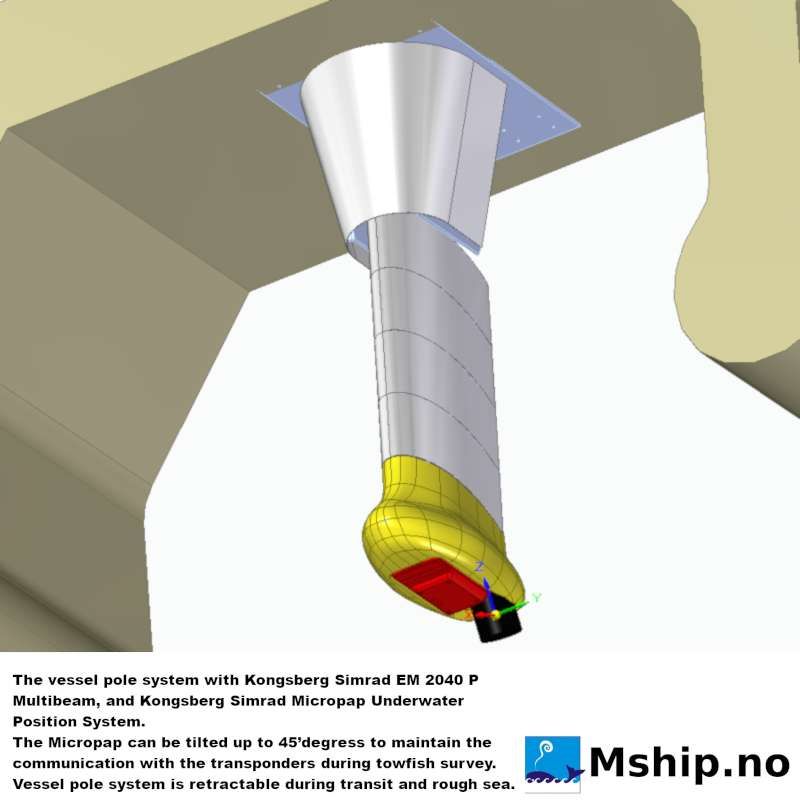

  • Kongsberg EM 2040P Dual Swat
  • Kongsberg Side Scan Sonar
  • Kongsberg Seapath 130 m
  • Kongsberg MRU 5
  • Eiva Navi Pack
  • Eiva Naviscan
  • Eiva Navimodel
  • Sperre 10K ROV, m.1000m tether.
