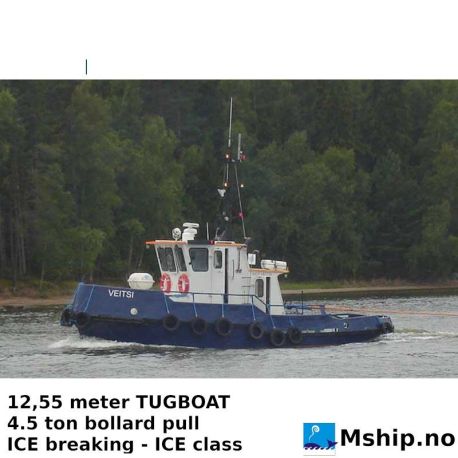

12,55 meter TUGBOAT - ICE class

veitsi

Used

12,55 meter TUGBOAT with 4.5 ton bollard pull


More details

  • Data sheet

    ManufacturerYard: Enso-Gutzeit OY, Nyslott, Finland
    ModelIcebreking Tug 12,5 meter
    Serial numberYard number 410
    Year1978, Rebuilt and fitted rudder propeller in 1999
    HP310
    kW231
    RPM1800
    Running Hours4557
    Number of cylinders8
    Cylinder configurationV-engine
    Fuel TypeDiesel
    Gear typeTwin Disc MG-514 Spec No s.3282
    IMO NumbersN/A
    Gear ratio3:1
    Length Overall LOA Meter12,54
    Length between Perpendicular Meter11.36
    Molded Breadth Meter4,45
    Molded Depth Meter2,24
    Draft (Maximum) Meter1,8
    ACCOMMODATIONS:Heated and air-conditioned living spaces for 2 persons, consisting of one double- crew cabins, a combined mess/galley and sanitary facilities’
    Main Engines:1
    Total Propulsion HP:Scania DS 14, 310 HP
    Propulsion:CAP rudder propeller system type CAP 33N/4 fitted with 1100 mm propeller in Nozzle.
    Ship’s Service Generators:1 x VALMET 310DG / 23 kVA, 50 Hz 230/400 Volt - 6714 running hours-
    Positioning:GPS
    LIFESAVING EQUIPMENTAccording to Swedish Maritime administration requirements.
    Rudders / steering gearCAP rudder propeller system
    Firefighting:According to Swedish maritime authority requirements
    Maximum speed9 Knot
    Economical speed8 Knot
    Bollard pull4,5 Ton
    MOB boat / Work boat1 MOB boat

    More info

    12,55 meter TUG BOAT with 4.5 ton bollard pull equipped  with CAP propulsion steerable propeller and propeller nozzle.

    The CAP steerable propulsion system gives similar maneuvering characteristics as a schottel  rudder propeller.

    She is well suited for ice breaking up to about 30 centimeter ice thickness.

    • Built 1978
    • Yard: Enzo-Gutzeit OY, Nyslott, FINLAND, yard number 410
    • Rebuilt by AB Motola verkstad AB, Sweden in 1999 with new CAP rudder propeller system
    • Propeller system - CAP propulsion CAP 33N/4
    • Propeller diameter 1100 mm - NiAL
    • Steel propeller nozzle
    • Towing hook
    • 4,5 ton bollard pull
    • Classification: Swedish Maritime administration - expired.
    • Speed, about 9 knots.

    BASIC FUNCTIONS

    • Towing work, ICE breaking, construction work, dredger service,
      Supply, rope handling, hose handling and Survey

    DIMENSIONS

    • LENGTH O.A  12,54 meter
    • Freeboard length 11,36 meter
    • Overall breadth 4,45 meters
    • Molded depth amidships to upper deck 2,24 meter
    • Draft aft 1,8 meter
    • Gross tonnage 23 Ton
    • Net Tonnage 6 Ton
    • Displacement 43 Ton
    • Air draft 6,5 meter
    • Deck strength 5.0 Ton/M2

    TANK CAPACITIES

    AUXILIARY SYSTEMS

    • GENERATOR SET 1 x VALMET 310DG   23 Kva, / 18,4 kW 50 Hz 230/400 Volt
    • HYDRAULIC SET Combined with main engine
      1x90 ltr/min @ 1000 rpm
    • TRANSFER PUMPS 240 volt pump 80 ltr/min

    DECK LAY-OUT

    • ANCHOR 1 X 70 KG Halls pat. Anchor.
    • TOWNING HOOK Mampaey 7.5 tonne SWL

    FACILITIES

    • Heated and air-conditioned living spaces for 2 persons, consisting of one double-
      crew cabins, a combined mess/galley and separate room with sanitary facilities’

    NAUTICAL AND COMMUNICATION EQUIPMENT

    • RADAR 1x Furuno Navnet vx2 radar
    • CHARTPLOTTER 1x Transas Navigator
    • GPD 1x Furuno GP/320B GPS
    • COMPASS 1x Azimuth 1000 electronic compass
    • ECHOSOUNDER 1x Furuno FCV- 581L
    • VHF/DSC 1 x Sailor RT4822 VHF - DSC
    • PORTABLE VHF 1x Sailor Handheld VHF SP 3520 B
    • AIS  1 x Jotron AIS
    • Rudder indicator   1 x Simrad rudder indicator
    • SEARCHLIGHT 1x Remote control searchlight

    Download

    Trace-cert-vetsi.pdf

    Trade Certificate MT Veitsi

    Download (2.69M)

    Tonnage-cert-VEITSI-pdf

    Tonnage Certificate for MT Veitsi

    Download (1.86M)

    Radio-cert-Veitsi.pdf

    Radio Certificate for MT Veitsi

    Download (1.78M)

    compass-cert-veitsi.pdf

    Compass Certificate for MT Veitsi

    Download (1.08M)

    Stability-Veitsi.pdf

    Trim and Stability booklet for MT Veitsi

    Download (3.6M)

    cap:news1-1996.pdf

    CAP Propulsion system News 1 1996

    Download (2.63M)

    cap_news2-1996.pdf

    CAP propulsion systems News 2-1996

    Download (1.8M)

    Cap-propultionDNC.pdf

    DNV design review of CAP PROPULSION SYSTEM

    Download (891.75k)

    Swedish_MA-CAP_Evaluation.pdf

    Swedish Maritime administration - Evaluation of CAP propulsion system

    Download (335.21k)

    CAP_Propultion-flyer.pdf

    CAP Propulsion system, rudder propeller fitted on Tugboat Veitsi

    Download (1.17M)
