61,4 Meter Purse seiner / pelagic trawler / RSW

20218505434

Used

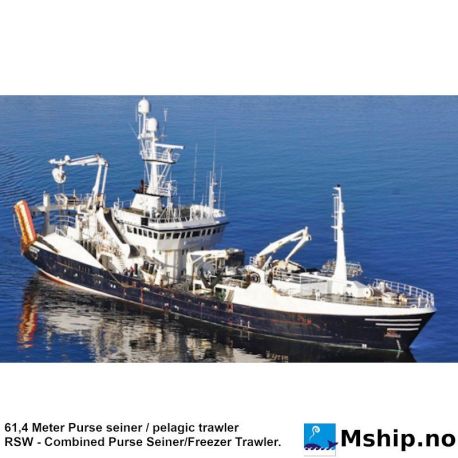

61.4 Meter Purse seiner / pelagic trawler / RSW

RSW - Combined Purse Seiner/Trawler.

More details

  • Data sheet

    ManufacturerSimek Yard AS, Flekkefjord, Norway
    Model61,4 Meter RSW Purse seiner / pelagic trawler
    Arrangement numberYard No: 85
    Year1986, Rebuilt 1988 and 2013
    HP3060
    kW2252
    RPM750
    Number of cylinders6
    Cylinder configurationIn line
    Fuel TypeDiesel
    ClassDNVGL +1A1 Fishing vessel Stern trawler(S) Ice(C)
    Gear typeVOLDA ACG 750 gear Liaaen 4-bladed C/P prop. in nozzle, 126 rpm.
    Length Overall LOA Meter61,4 Meter
    Length between Perpendicular Meter56,04 Meter
    Molded Breadth Meter12.00 Meter
    Design Draft Meter6,50 Meter
    Molded Depth Meter8,00 Meter
    Loadline Displacement:2287 @ Draft 6,50 Meter
    Deadweight Tonnage:1757
    Gross tonnage ITC (registred)1481
    Net Tonnage ITC (registred)701
    ACCOMMODATIONS:22 persons, 6 x 1 man, 8 x 2 men
    Rudders / steering gearBecker rudder
    Maximum speed14,5 Knot
    Economical speed11 Knot
    Fuel consumptionSpeed / fuel Consumption: 14,5/11 kn 450/242 l/t

    More info

    Norwegian 1986 built / 2013 upgraded trawler located in West Africa

    • Built 1986 Simek yard,Flekkefjord , Norway
    • Lengthened with bulbous bow and  stern 1988
    • Upgraded 2013 RSW ++
    • Class: DNVGL +1A1 ICE-C Fishing Vessel Stern Trawler
    • Tonnages: GT:1481. NT: 701.  MDWT: 1757. Displ. t: 2887 at draft 6.5 meters

    Dimensions

    • Length o.a      61.40 Meter
    • Length p.p      56.04 Meter
    • Breath(mld)    12.00 Meter
    • Depth(mld)       8.00 Meter
    • Draugth            6.00 Meter

    Engines

    Total BHP: 3060  Total kW 2252   Knots 11

    Speed / Consumption: 14,5/11 kn  450/242 l/t

    • Main Engine: 1 x Wärtsilä Vasa 6R32D, 3060 hp/2252 kW @ 750 rpm
    • Aux engine:   2 x Mercedes OM424A, 539 hp/397 kW @ 1800 rpm

    Propulsion

    • Bow thruster  495 HP, Type Brunvoll UF45-TC 1375-495  - electric driven
    • Stern Thruster 495 HP, Type UF45-TC 1375-495 - electric driven
    • Gear:  Volda ACG 750
    • Propeller, controllable pitch, Type : Liaaen CP85

    Capacities

    • 8 RSW tanks, total 1360 mᶟ
    • Diesel oil        320 mᶟ
    • Water                27 Ton

    COOLING EQUIP

    • 2 x Oyangen Kulde RSW plants, Ammonia, 2 x 885 000 kcal/hr, 1030 kw (2014)

    Tank types:

    • 3 x RSW tanks -1 degree Celsius, 555 mᶟ
    • 3 x RSW/Freezer tanks -25 degree Celsius, 565 mᶟ
    • 2 x RSW Tanks 380 mᶟ

    AUX equipment

    • Evaporator, type Alfa laval Zeta
    • Generator , 2 x 420 kVA, Type Stamford
    • Shaft generator, 1500 kVA, Type Stamford
    • Plate freezers, 7 vert, 50 ton/day

    Cargo handling

    • Crane, 1 x 2 ton/ 12 meter, Type TICO
    • Crane 1 x 3 ton / 12 meter, Type TICO

    Fishing

    • Trawl Winch 2 x abt 45 Ton, Type Rapp Hydrema
    • Seine Winch 2 x abt 40 Ton, Seine winch Type Rapp Hydrema

    Navigation

    • AutoPilot, Type Anschutz
    • Echo sounder: simrad ES 380, Simrad ET 102, Skipper 815
    • GPS Satellite navigator, Type Furuno FSN-70
    • Gyro Compass, Type Anschutz
    • Log, Type Simrad NL
    • Lorn C, type Furuno LC-80
    • Navigator, Type Shipmate RS 4000CC
    • Radar, type 1 x Atlas 7600 AC/RM, 1 x Furuno FR-805D
    • Sonar, Type: 1 x Furuno CH-12, 1 x Simrad SM 600

    Certificates

    CodeCertificateTypeTermIssuedExpires
    SPP-ICInternational Sewage Pollution Prevention CertificateStatutoryFull2020-03-202025-05-31
    OPP-A-ICInternational Oil Pollution Prevention Certificate, Type AStatutoryFull2020-03-202025-05-31
    EEC-ICInternational Energy Efficiency CertificateStatutoryFull2018-10-22
    AFS-ICInternational Anti-Fouling System CertificateStatutoryFull2018-10-22
    IAPP-ICInternational Air Pollution Prevention CertificateStatutoryFull2020-03-202025-05-31
    CLCEClassification CertificateClassFull2021-01-292025-05-31

    REMARKS: Class is suspended at the moment. Main class was done 03/2020. Can be rebuilt into snow crab catcher !
