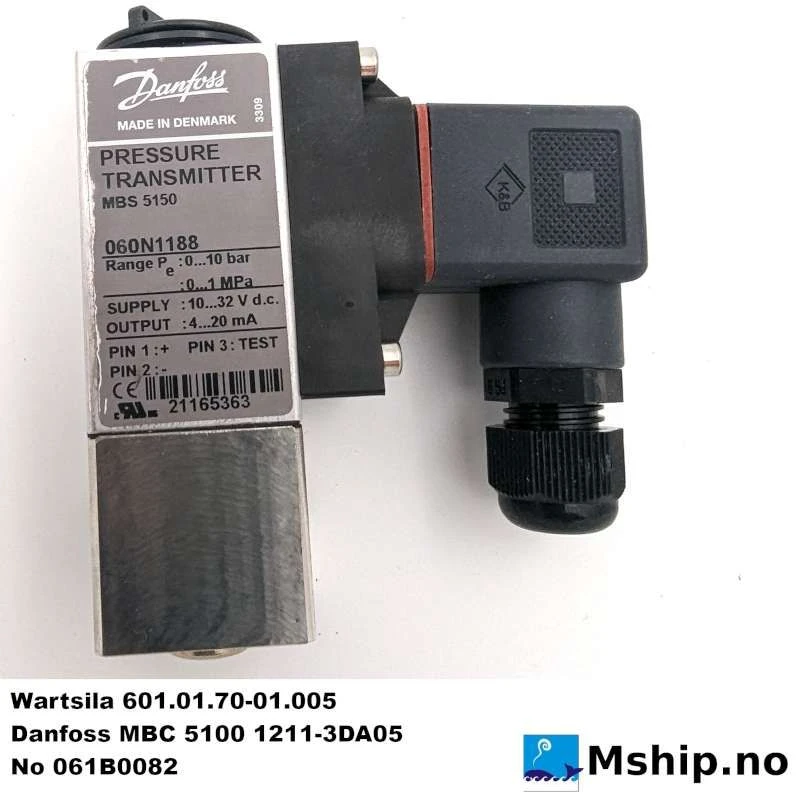

Wartsila pressure transmitter 601.01.70-01.005 — Manufacturer: Wartsila / Danfoss, Model: Danfoss MBS 5150 / MBS 5153 View larger
Previous Next

Wartsila pressure transmitter 0051F000602

wartsila-0051F000602

New product

Wartsila pressure transmitter  0051F000602

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Wartsila / Danfoss
Model Danfoss MBS 5150 / MBS 5153
Manufacturers part number Wartsila 0051F000602 / 601.01.70-01.005, Danfoss 060N1188 (MBS 5150) / 060N1201 (MBS 5153)
Alternative part number 0051F000602 / 601017001005 / 060N1188 / 060N1201
Class DNV TAA000013G rev. 2, LR LR2584360TA. Approvals (Danfoss MBS 51XX): ABS, BV, CCS, DNV, KR, LR, NKK, RINA

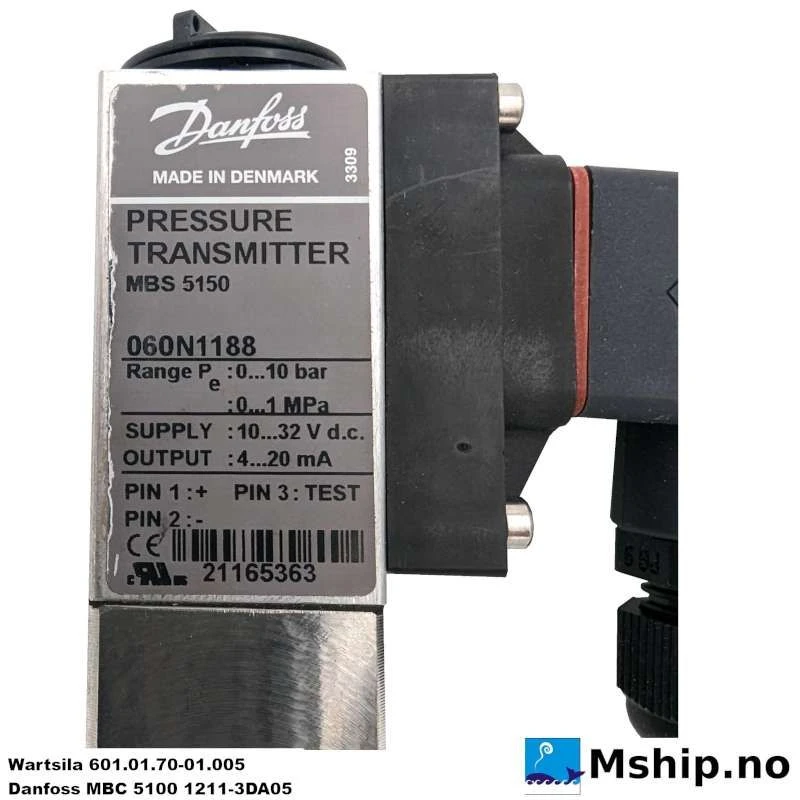

Other Wärtsilä code PT201: lube oil pressure, engine inlet. Two Danfoss variants: MBS 5150 (060N1188) and MBS 5153 (060N1201). Pressure range 0-10 bar (0-1 MPa), pin 1 +, pin 2 -, pin 3 test, made in Denmark, CE, UL
Amps Output 4-20 mA
Volt Supply 10-32 VDC

More info

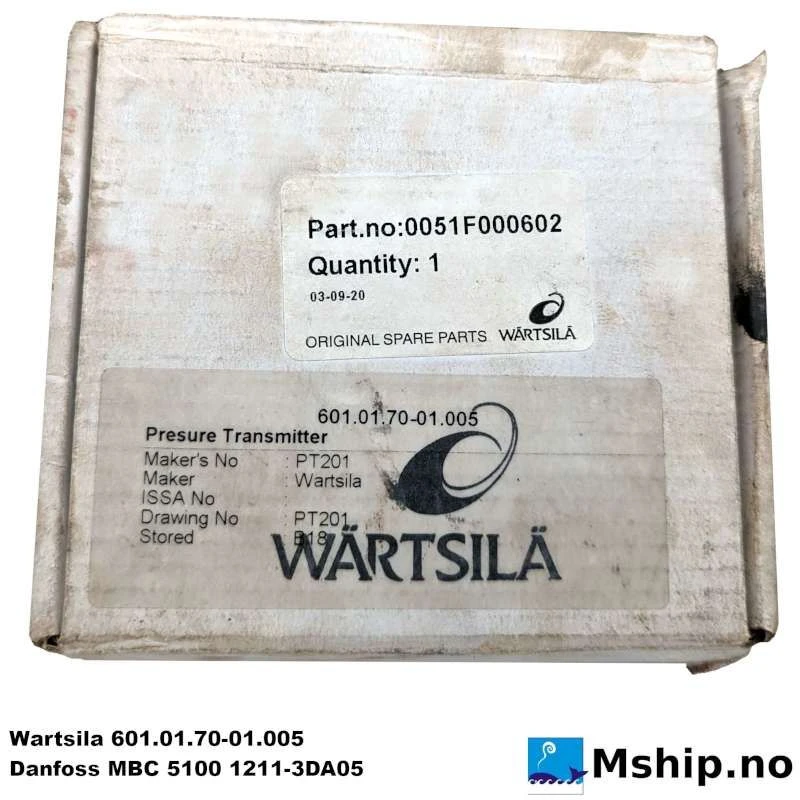

Wärtsilä 0051F000602 – lube oil pressure transmitter, PT201

Wärtsilä sensor code PT201: pressure transducer for lube oil pressure at engine inlet. Danfoss MBS 5150 (060N1188) and MBS 5153 (060N1201), 0-10 bar, supply 10-32 VDC, output 4-20 mA.

Electrical connection (EN 175301-803-A / DIN plug): pin 1 = + supply, pin 2 = - supply, pin 3 = function test 40-200 mV, earth connected to the transmitter housing.

Approvals (Danfoss MBS 5100 / MBS 5150 series): DNV type approval TAA000013G rev. 2 (valid until 2027-06-30) and Lloyd's Register LR2584360TA (valid until 2030-06-17) – see downloads. Danfoss also lists ABS, BV, CCS, KR, NKK and RINA approvals.

Download

DNV type approval TAA000013G rev. 2

DNV type approval certificate TAA000013G rev. 2 - Danfoss MBS 51XX pressure transmitters (MBS 5100, 5103, 5150, 5153), valid until 2027-06-30

Download (237.57k)

Lloyds Register type approval LR2584360TA

Lloyd's Register type approval certificate LR2584360TA - Danfoss MBS 5100, MBS 5150, MBS 5153 pressure transmitters, valid until 2030-06-17

Download (990.55k)
