Scania DI16 - Timing gear casing, front Part No. 1498204

DI16-1498204

Used

Scania DI16 - Timing gear casing, front Part No. 1498204

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Scania
Model Front timing gear casing
Manufacturers part number 1498204

More info

Scania DI16 - Timing gear casing, front
Part No. 1498204

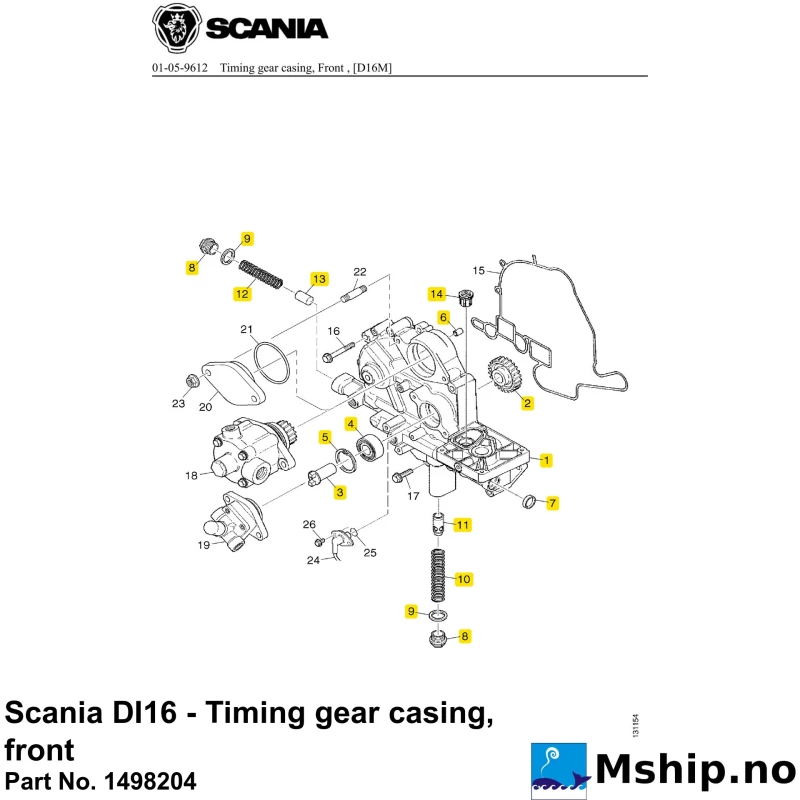

Front timing gear casing, with gear, valve pistons and overflow valve

Included in 1498204:
pos 2 1380962 Gear
pos 3 1365856 Shaft
pos 4 1314088 Ball bearing
pos 5 804829 Retaining ring ø 47 1,75x50,5x33,5
pos 6 1331933 Guide sleeve (2 pcs)
pos 7 812321 Plug ø 28x9 mm (2 pcs)
pos 8 812376 Screw plug M22x1.5x9 (2 pcs)
pos 9 812418 Gasket ø 22,2x26,9x1,5 (2 pcs)
pos 10 1327064 Spring, pos 11 300271 Piston
pos 12 302473 Spring, pos 13 259102 Piston
pos 14 1420963 Overflow valve

Related parts (not included):
pos 15 1412878 Gasket
pos 16/17 812519 / 812525 Flange screw M8x30 (7 pcs) / M8x60 (8 pcs)
pos 18 13/15 Hydraulic pump
pos 19 3/1/9613 Feed pump, fuel
pos 20 2076746 Core plug ø 70 (formerly 1468517), pos 21 368035 O-ring
pos 22 800610 Stud M10x50 (2 pcs), pos 23 815133 Flange nut M10 (2 pcs)
pos 24 16/45 Oil pressure sensor, pos 25 393187 O-ring, pos 26 812502 Flange screw M6x16 (2 pcs)
