Scania DI16 - Exhaust manifold RH assy Part No. 1430106

Scania DI16 - Exhaust manifold RH assy
Part No. 1430106
Exhaust manifold, right-hand side, complete assembly
Alternative part number (classed): 1727923

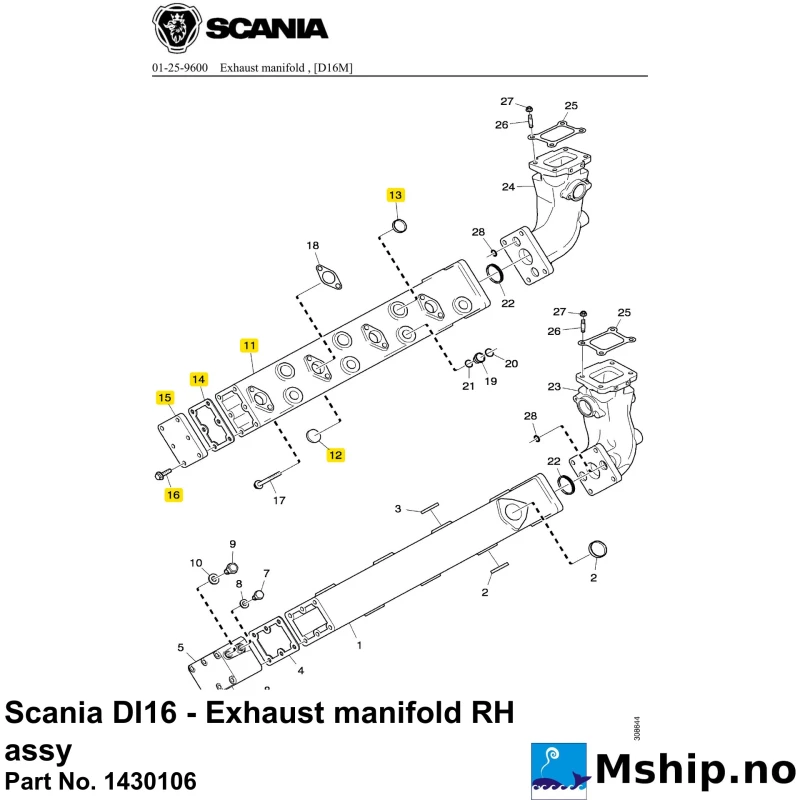

Included in 1430106:
pos 11 - Exhaust manifold RH, nss
pos 12 812325 Core plug ø 45x14 mm (6 pcs)
pos 13 812322 Core plug ø 32x10 mm (4 pcs)
pos 14 1506211 Gasket
pos 15 1506209 Cover
pos 16 812518 Flange screw M8x25 (6 pcs)

Related parts (not included):
pos 17 815733 Flange screw M10x130 (16 pcs)
pos 17 815733 Flange screw M10x130 (14 pcs)
pos 17 1442568 Screw M10x140 (2 pcs)
pos 18 1309051 Gasket (8 pcs)
pos 18 2086029 Gasket (alt. 1936370) (8 pcs)
pos 18 2086029 Gasket (8 pcs)
pos 19 1506213 Holder (8 pcs)
pos 20 368502 O-ring ø 35x5x45 (8 pcs)
pos 21 1352803 O-ring ø 39,2x3x45,2 (8 pcs)
pos 22 1485241 Gasket CE (2 pcs)
pos 23 1519922 Exhaust manifold LH assy
pos 24 1519919 Exhaust manifold RH assy
pos 25 1364940 Gasket (2 pcs)
pos 26 248769 Stud M10x45 (8 pcs)
pos 27 1509365 Lock nut (8 pcs)
pos 28 810970 O-ring ø 32,2x3x38,2 (4 pcs)
pos 29 815050 Flange screw M12x40 Cylinder head (8 pcs)
