Terasaki TemBreak XS225NS – 125A

Name: Terasaki TemBreak XS225NS – 125A
Brand: Terasaki
SKU: Terasaki-XS225NS125A

Reference: Terasaki-XS225NS125A

Condition: New product

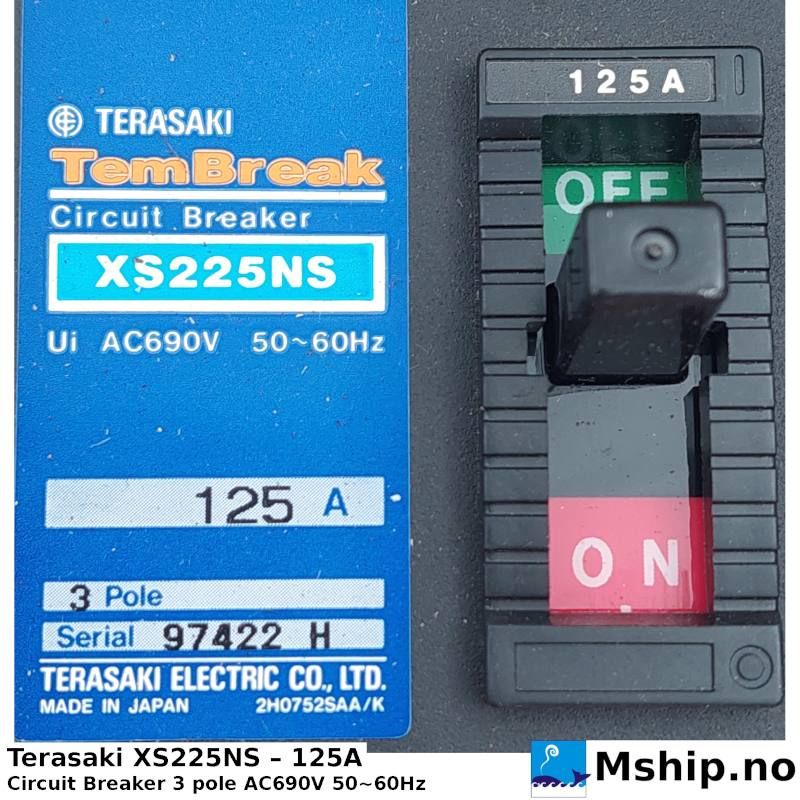

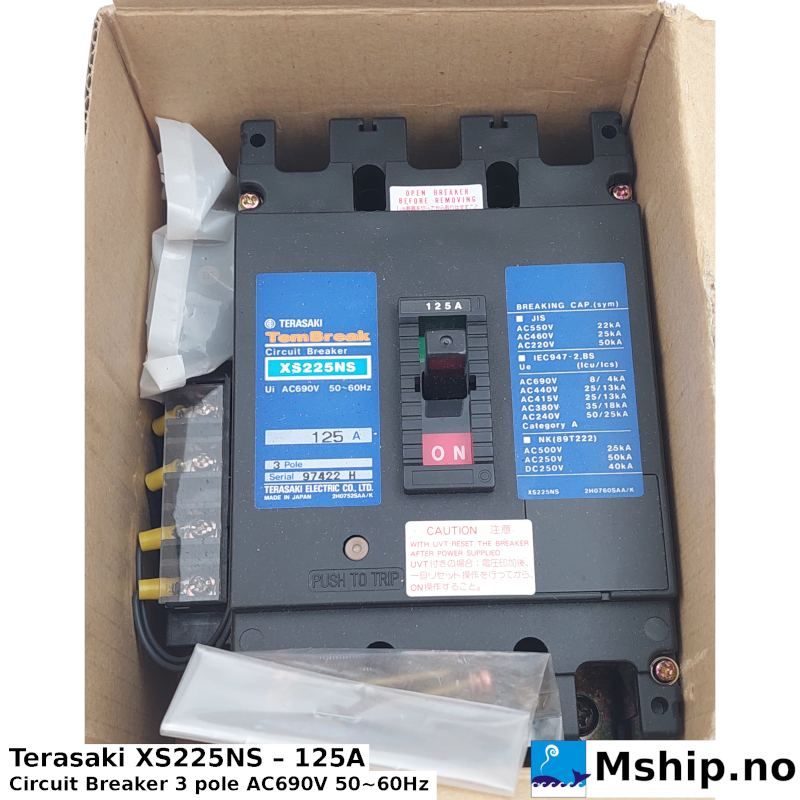

Terasaki TemBreak XS225NS – 125A
Circuit Breaker 3 pole AC690V 50~60Hz

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Terasaki
Model	TemBreak XS225NS
Serial number	97422 H
Class	Type approved: NK (89T222)

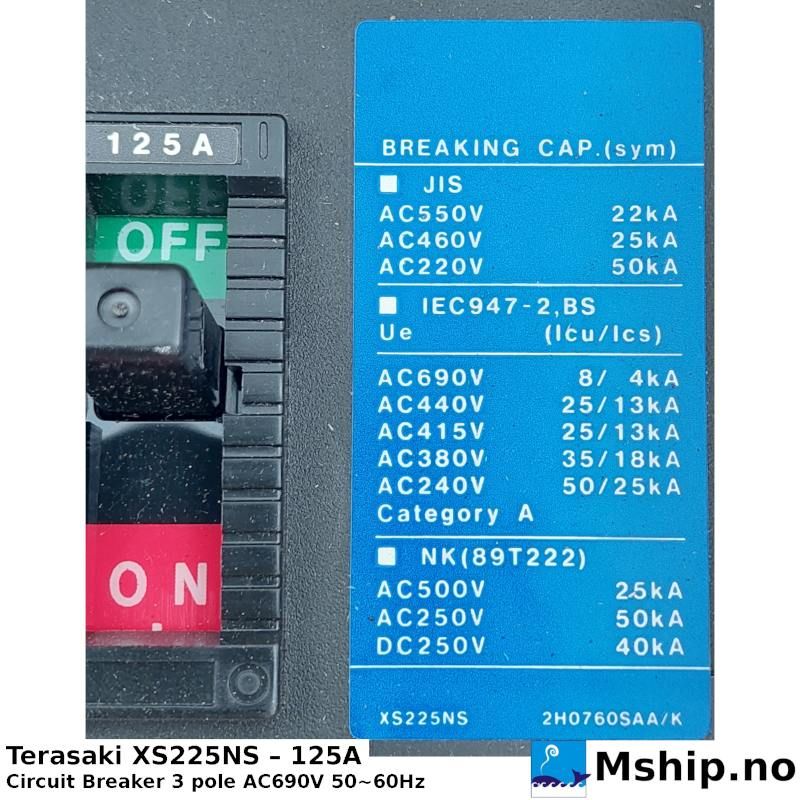

Other	Breaking capacity IEC 947-2 / BS (Icu/Ics): 690 V 8/4 kA, 440 V 25/13 kA, 415 V 25/13 kA, 380 V 35/18 kA, 240 V 50/25 kA, category A. JIS: 550 V 22 kA, 460 V 25 kA, 220 V 50 kA. 3 pole, made in Japan
Amps	125
Volt	Ui AC 690 V
HZ	50 / 60

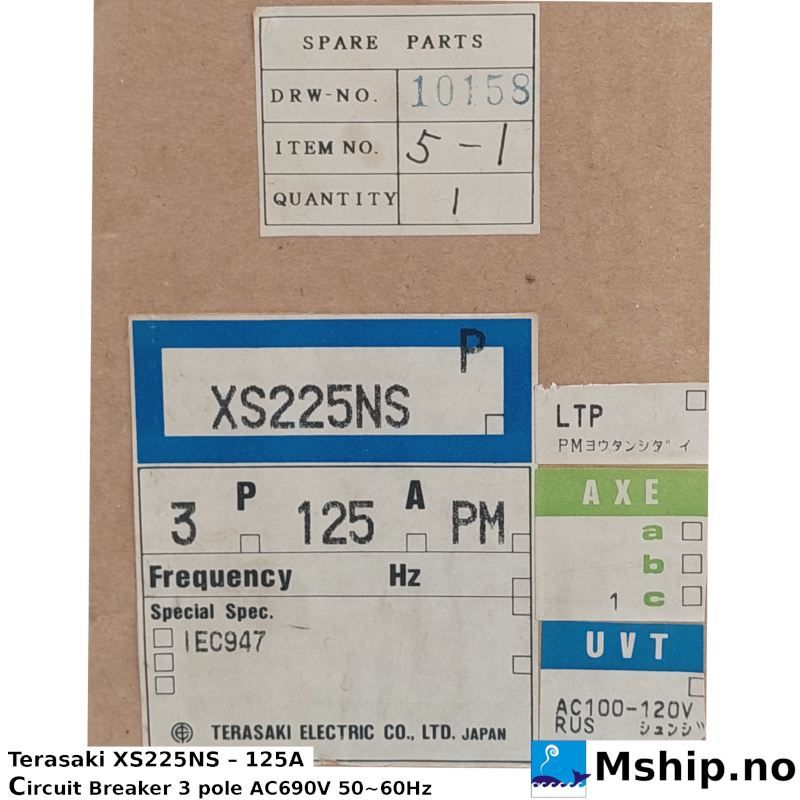

Remarks	Undervoltage trip (UVT) AC 100-120 V and auxiliary switch (AXE) (box label)

More info

Terasaki TemBreak XS225NS – 125A
Circuit Breaker 3 pole

New and used in stock.
