Smart Automation / Bjørge STI-PAN-1 operator display (panel module) for the SMARTChief® system – STI-PAN-1_3 683A, part No. 3001921

New, in stock.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Smart Automation / Bjørge
Model STI-PAN-1 683A
Manufacturers part number 3001921
Alternative part number STIPAN1
Performance specification New, in stock
Other Panel module for SMARTChief® / STI-2000, graphic display 240 × 64, RS-485 ring communication 9600–115200 baud, internal buzzer 80 dB, IP65 flush mounted, 0–70 °C, DNV vibration class A, EN 60945
Amps 350 mA (+250 mA external buzzer)
Volt 22-32 VDC (main + backup supply)
DIMENSIONs 220 × 170 × 42 mm (L × H × D)

More info

Smart Automation - Bjørge - Operator Display
STI-PAN-1_3 683A

Availability: new STI-PAN-1 panels (part No. 3001921) in stock. Stocked in Norway and in our warehouse within 24 hours.

SMART Automation is formerly known as Blueday Technology,Halvorsen Power System, Bjørge Marine Automation, Bjorge Steinco Moland, Bjørge Steinco Technology and Steinco

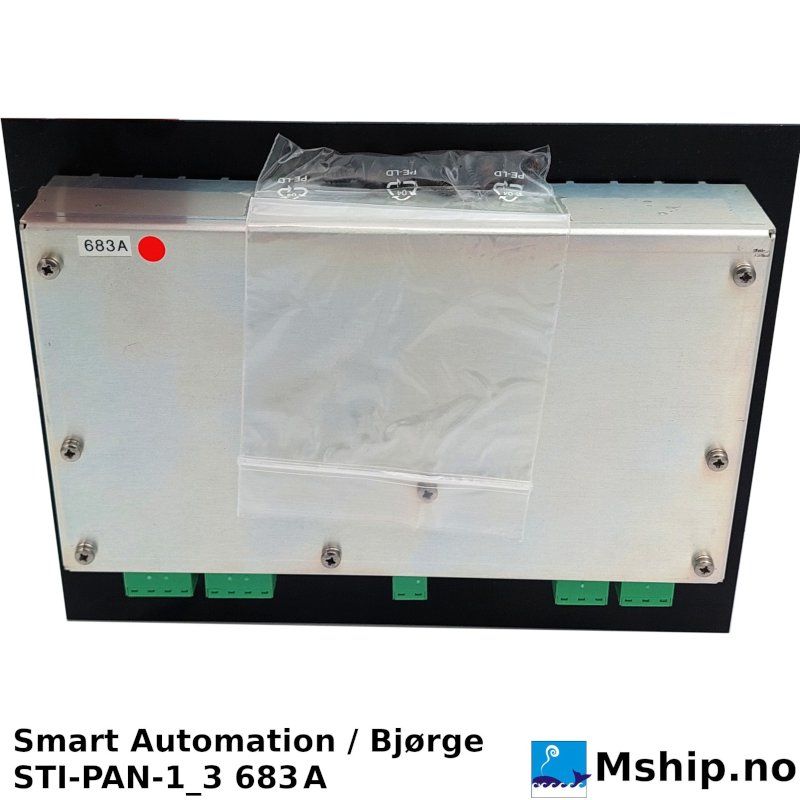

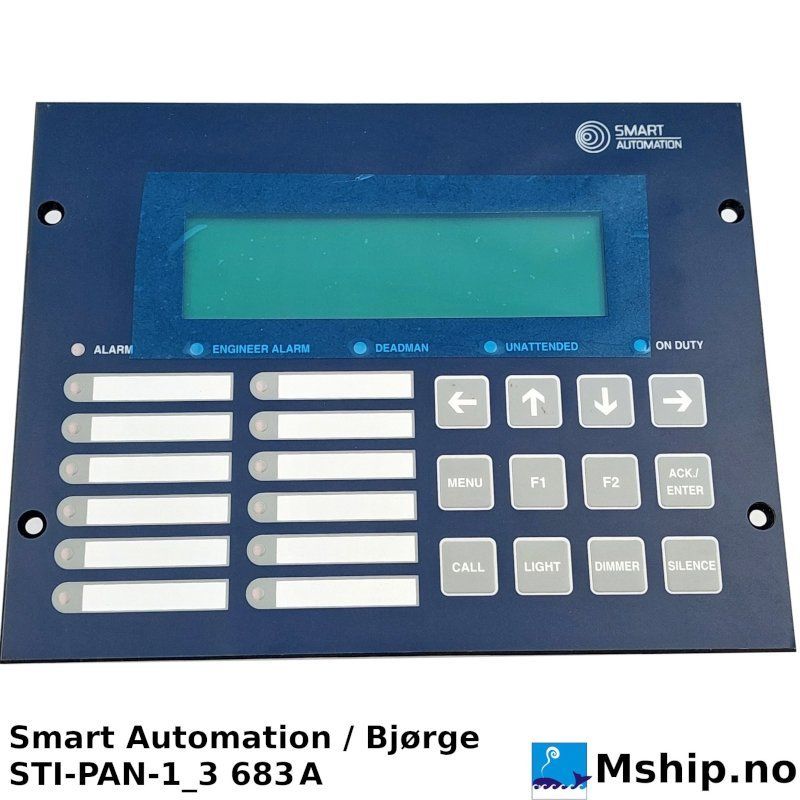

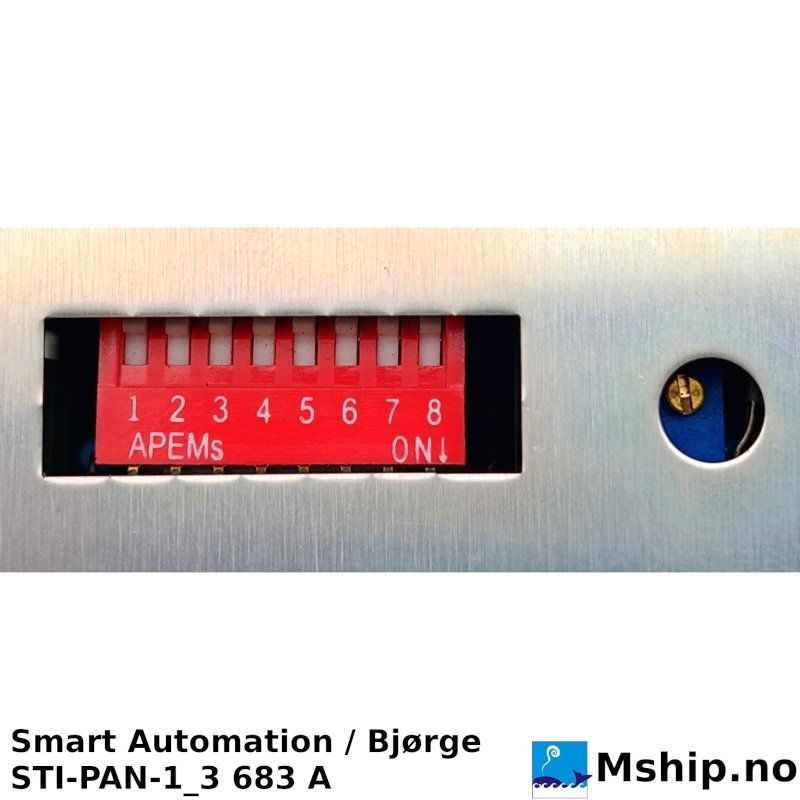

STI-PAN-1 panel module – local operator unit for the SMARTChief® system. The communication is compatible with the STI-2000 protocol, so the panel can be placed in the same loop as ordinary I/O modules. Used as an extended alarm system, alarms are displayed in plain text and lamps are lit for easy identification of alarm groups.

  • Graphic display 240 × 64 and keyboard, both with adjustable backlight; alarm group lamps with backlit texts
  • Status lamps: Alarm, Engineer alarm, Deadman, Unattended, On duty
  • RS-485 ring communication (left/right), galvanically isolated, 9600–115200 baud
  • Redundant main power supply (main + backup) 22–32 VDC, 350 mA (+250 mA for external buzzer)
  • Internal buzzer 80 dB, output for external buzzer 24 V max 250 mA
  • Surge and EMI protection on power supply and communication lines
  • IP65 flush mounted with sealing, dimensions 220 × 170 × 42 mm (L × H × D)
  • Temperature 0 to +70 °C, 90 % RH non-condensing, vibration class A (DNV), EMC EN 60945 4th edition

Download

STI-PAN-1 datasheet (rev. 5)

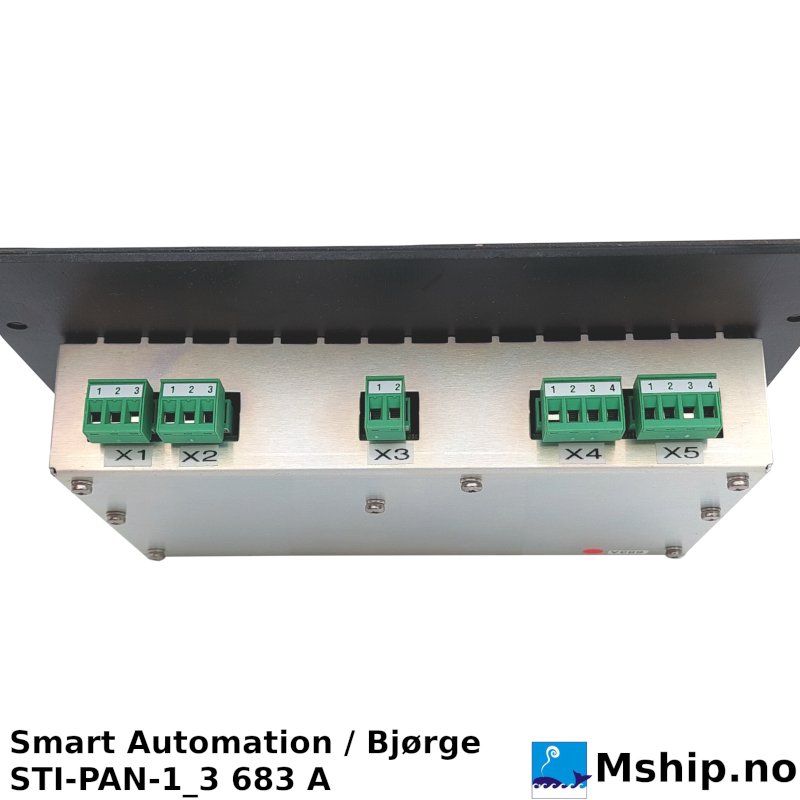

SMART Automation STI-PAN-1 panel module: terminals, technical data

Download (238.12k)
