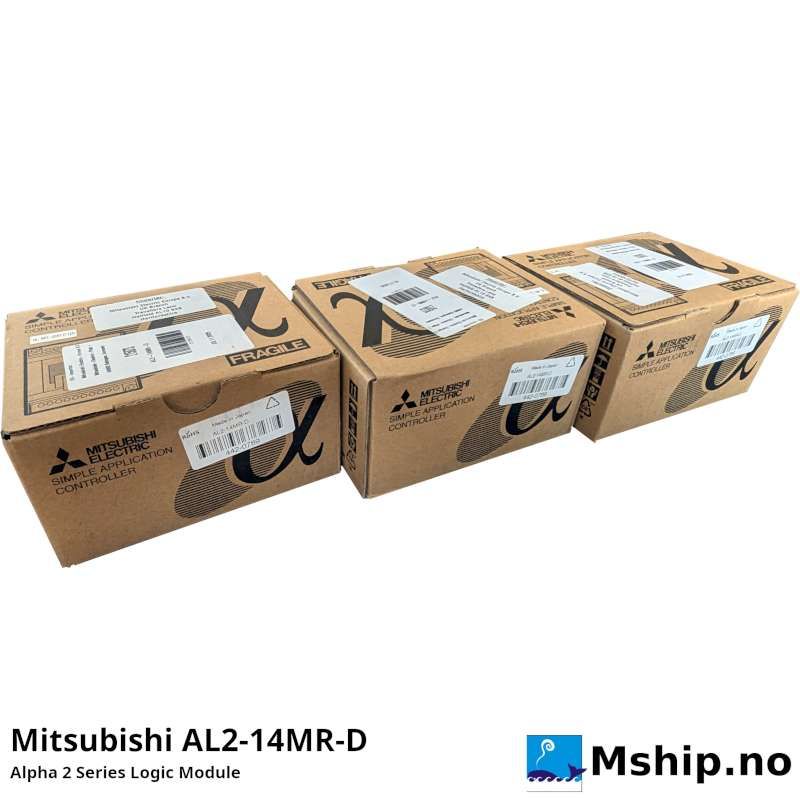

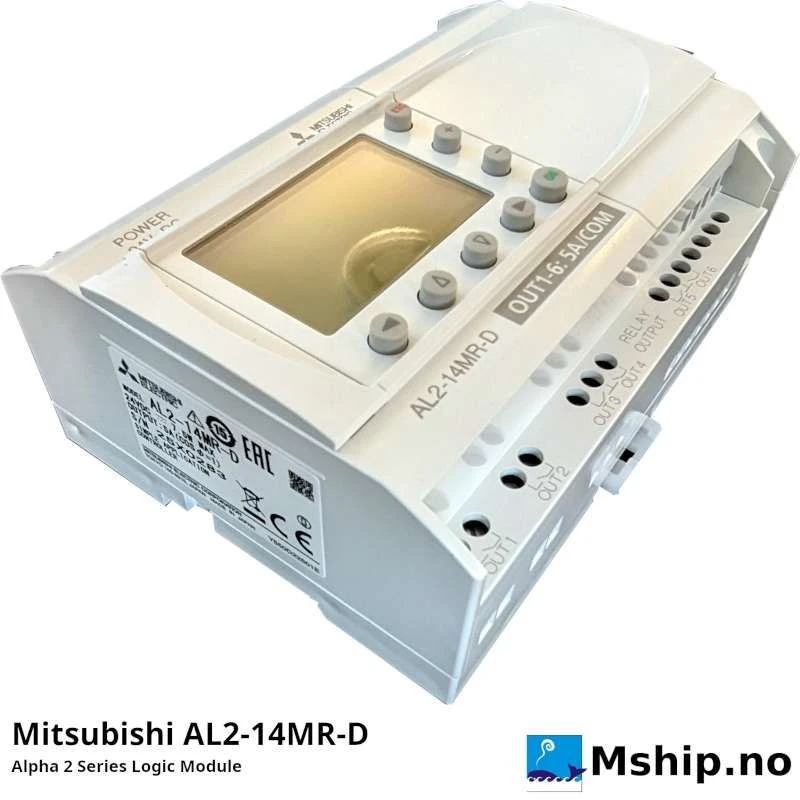

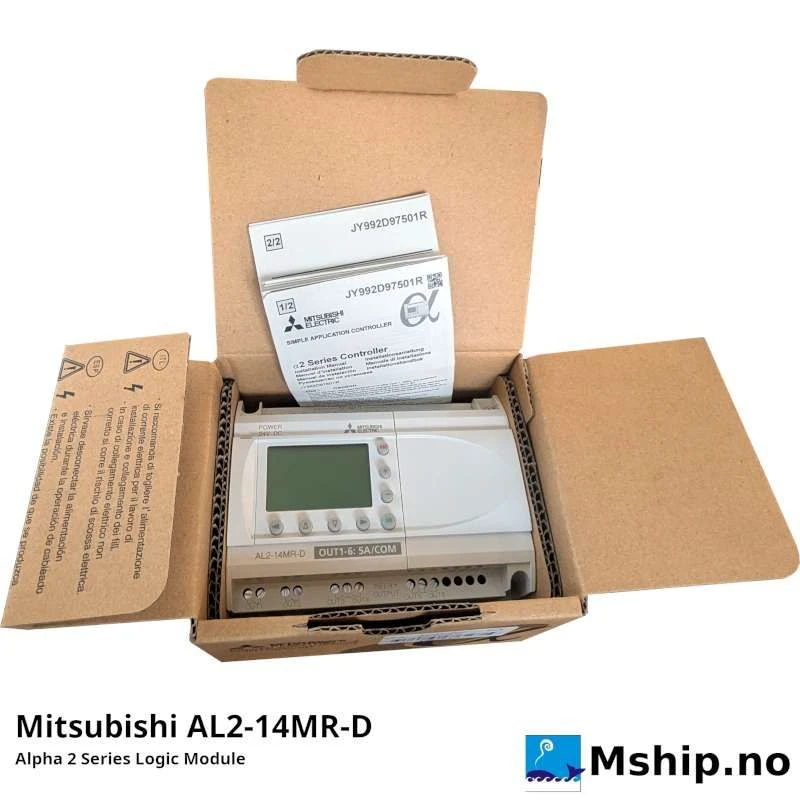

Mitsubishi AL2-14MR-D

Name: Mitsubishi AL2-14MR-D
Brand: Mitsubishi
SKU: MitsubishiAL214MRD

Reference: MitsubishiAL214MRD

Condition: New product

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Mitsubishi
Model	Alpha 2 Series Logic Module
Manufacturers part number	AL2-14MR-D
Alternative part number	AL214MRD
Class	Type approved: DNV
Weight	50 gram
Volt	24 Volt input

More info

Mitsubishi AL2-14MR-D
Alpha 2 Series Logic Module

Manufacturer Series Alpha 2
Number of Inputs 8
Output Type :Relay
Supply Voltage 24 V dc
Input Type Analogue
Number of Outputs 6
Program Capacity 200 Blocks
Depth 52mm
Width 90mm
Length 124.6mm
Mounting Type DIN Rail
Maximum Operating Temperature +55°C
Minimum Operating Temperature -25°C
Dimensions 124.6 x 90 x 52 mm
Output Current 8 A
Programming Interface AS-I
Display Included Yes

Specifications

Primary brand Mitsubishi Electric

Main function CPU unit

Product series / family name

Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC-F (FX) series > Controllers (CPUs)

Sub-range name MELSEC-F - a2 Alpha2 series

Functions

Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os
Program execution type -- cyclical / Refresh mode processing

Supply voltage (DC) 24Vdc

Programming languages

Function Block Diagram (FBD)

Memory capacity 200 function blocks (5KBytes) (EEPROM; Program)

Connection type screw-clamp connections (I.O's)

Digital inputs 8 x digital inputs (24Vdc; Sink / source; 10-20ms)

Digital outputs 6 x digital outputs (Rly. NO contacts; 250Vac / 30Vdc; 10ms)

Analog inputs 8 x analog inputs (0-10Vdc; 9-bit conversion)

Ambient air temperature for operation

+14°F...+136°F / -10°C...+55 °C

Processing time 1ms + 20μs/logic instruction (simple instruction) / 1 ms

Order code / Manufacturer SKU AL2-14MR-D

Manufacturer product status

Commercialized

Equivalent to AL214MRD

Compliant with standard(s)

CE (EMC directive)
CE (LVD - Low Voltage Directive)
UL / cUL
DNV approval
