Merlin Gerin NS250N Compact

Name: Merlin Gerin NS250N Compact
Brand: Merlin Gerin
SKU: MGNS250N

Reference: MGNS250N

Condition: Used

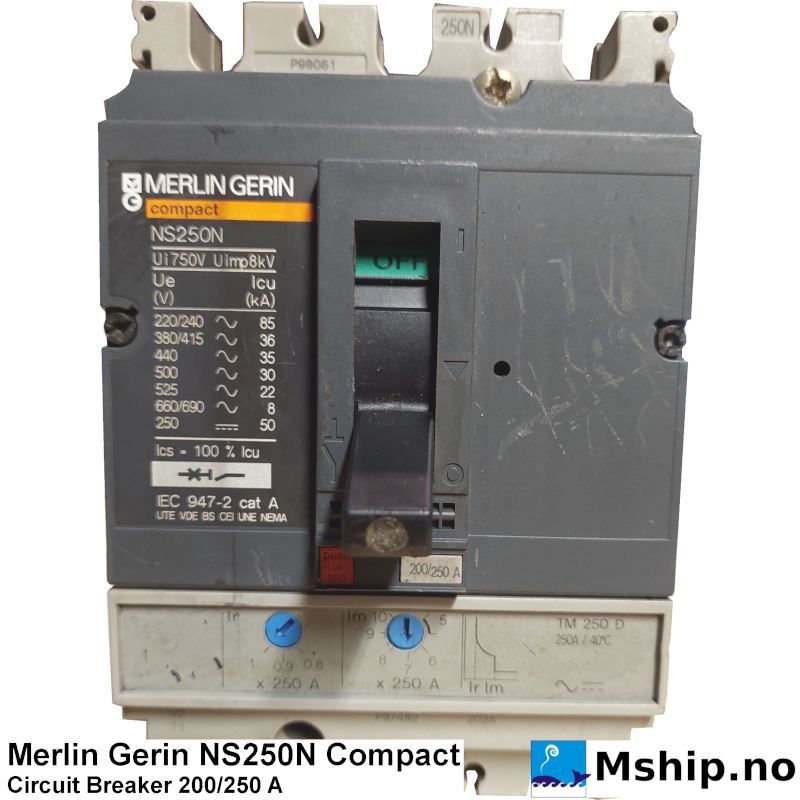

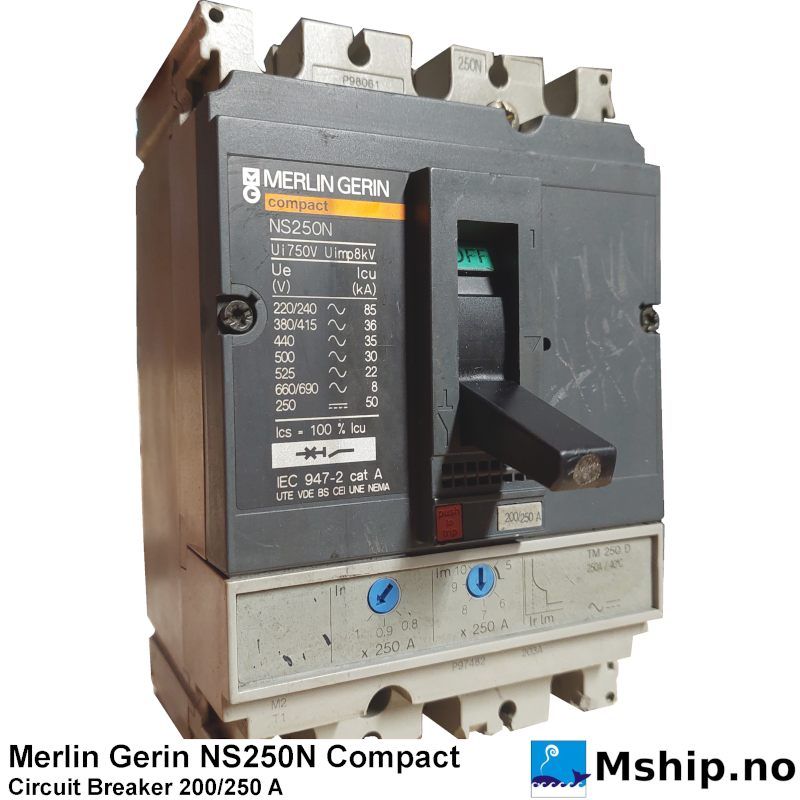

Merlin Gerin Compact NS250N moulded case circuit breaker 250 A, 3-pole, TM 250 D thermal-magnetic

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Merlin Gerin / Schneider Electric
Model	Compact NS250N, 3-pole moulded case circuit breaker (MCCB)
Other	Icu (IEC 947-2): 85 kA 220/240 V, 36 kA 380/415 V, 35 kA 440 V, 30 kA 500 V, 22 kA 525 V, 8 kA 660/690 V, 50 kA 250 V DC; category A, Ics = 100 % Icu; IEC 947-2, UTE, VDE, BS, CEI, UNE, NEMA
Amps	In 250 A
Trip unit	TM 250 D thermal-magnetic, In = 250 A (Ir 0.8–1 × In, Im 5–10 × In)
Volt	Ui 750 V, Uimp 8 kV, Ue up to 690 V AC / 250 V DC
HZ	50/60

More info

Merlin Gerin Compact NS250N moulded case circuit breaker (MCCB), 3-pole, with TM 250 D thermal-magnetic trip unit, In = 250 A. Used, in stock.

General
Manufacturer: Merlin Gerin (Groupe Schneider), now Schneider Electric
Model: Compact NS250N, 3-pole

Ratings
Rated current In: 250 A
Rated insulation voltage Ui: 750 V
Rated impulse withstand voltage Uimp: 8 kV
Utilisation category A, Ics = 100 % Icu
Standards: IEC 947-2, UTE, VDE, BS, CEI, UNE, NEMA

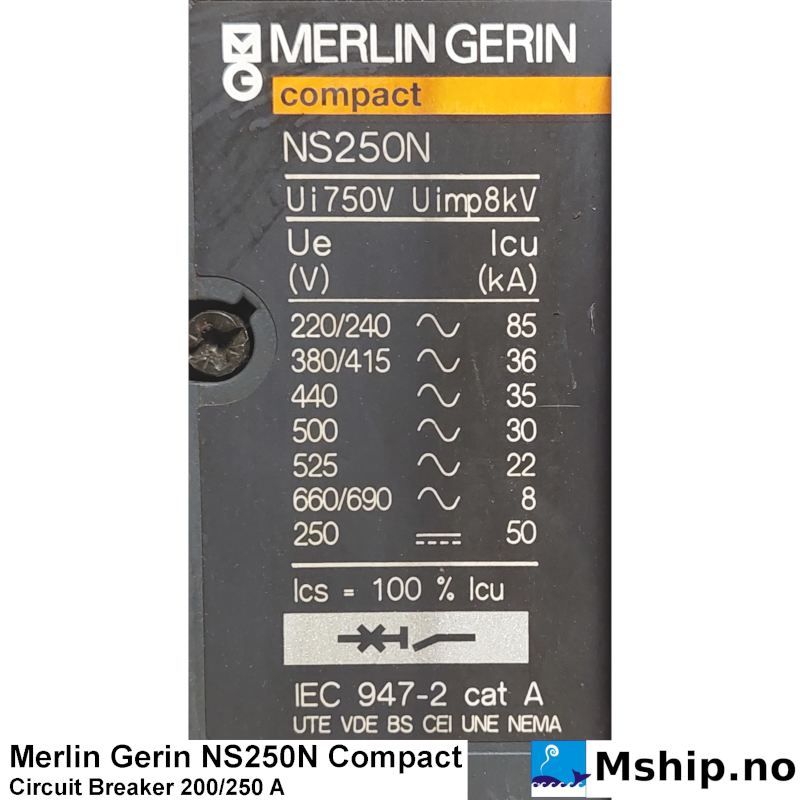

Ue	Icu (IEC 947-2)
220/240 V	85 kA
380/415 V	36 kA
440 V	35 kA
500 V	30 kA
525 V	22 kA
660/690 V	8 kA
250 V DC	50 kA

Trip unit
TM 250 D thermal-magnetic, In = 250 A (Ir 0.8–1 × In, Im 5–10 × In)
