Merlin Gerin M32 H1 - 3200A

MGM32H1

Used

Merlin Gerin Masterpact M32 H1 air circuit breaker 3200 A, 3-pole, STR 38 S, motor operated

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Merlin Gerin / Schneider Electric
Model Masterpact M32 H1, 3-pole air circuit breaker (ACB), drawout version
Other Breaking capacity IEC 947-2: Icu 75 kA / Ics 75 kA at 380/440 V and at 480/690 V; Icw 75 kA 1 s
Amps In 3200 A
Trip unit STR 38 S electronic, In = 3200 A (settings Io, Ir, Im, tm)
Volt Ui 1000 V, Ue 380/440 V – 480/690 V
HZ 50/60
Remarks Fitted accessories (switchboard label): spring charging motor MCH, closing coil XF, shunt trip MX, delayed undervoltage release MNR, 4 OF aux. contacts; control voltage 230 V 50 Hz. Tested and checked by CWO Semco Maritime

More info

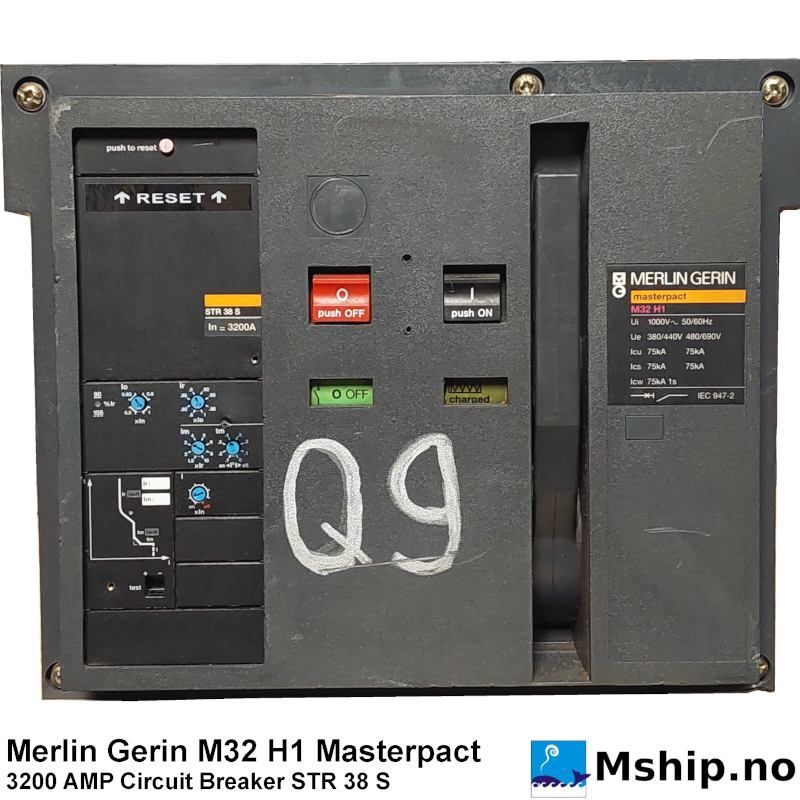

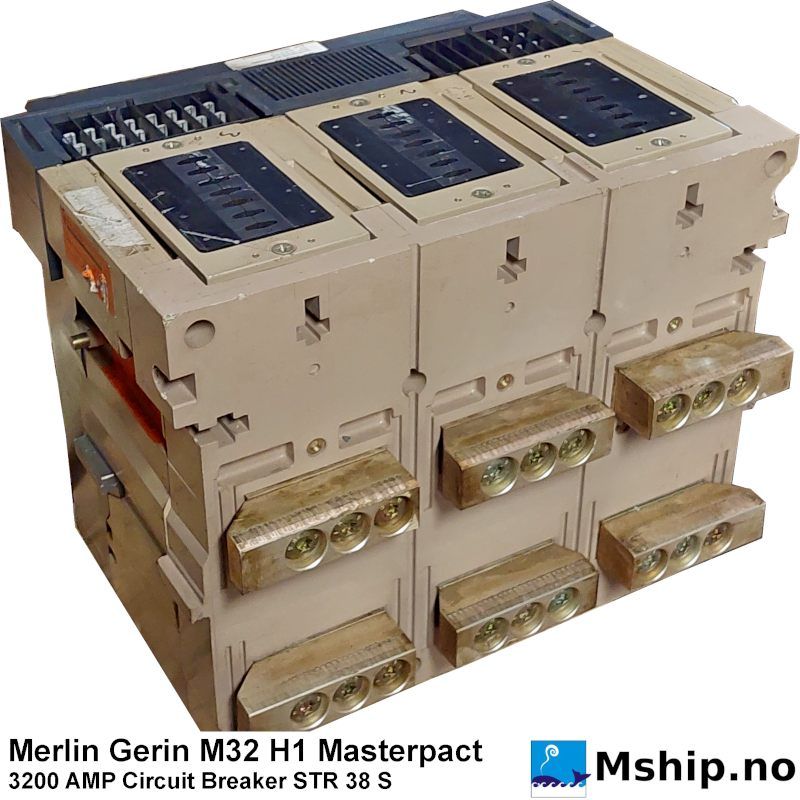

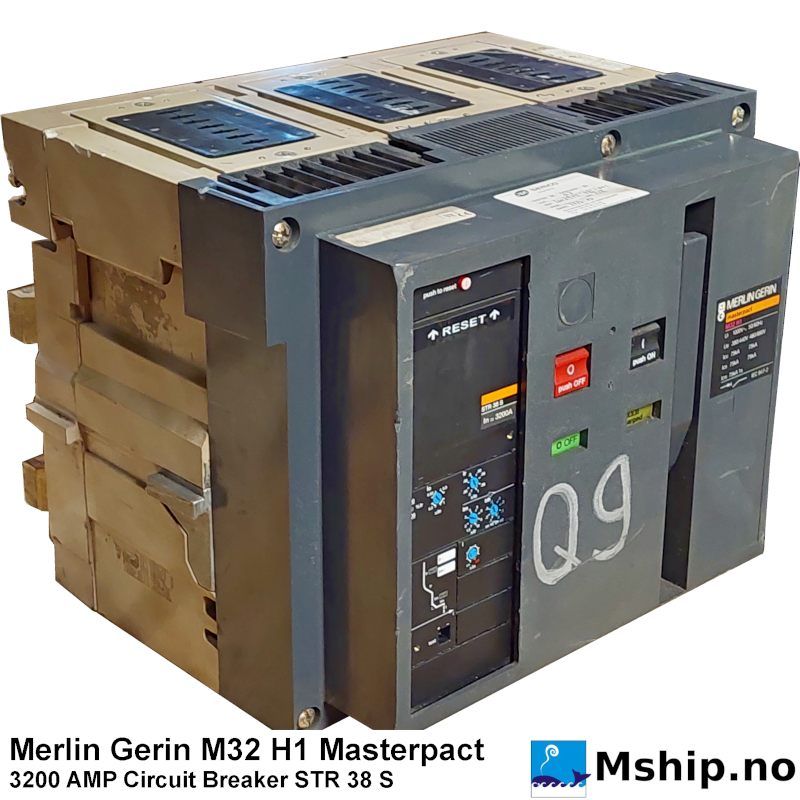

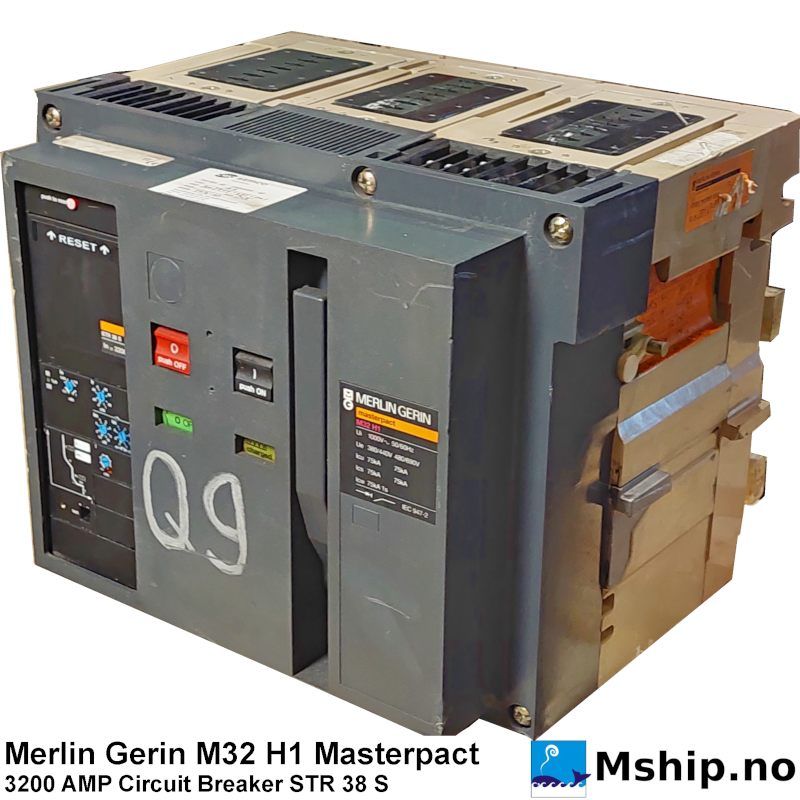

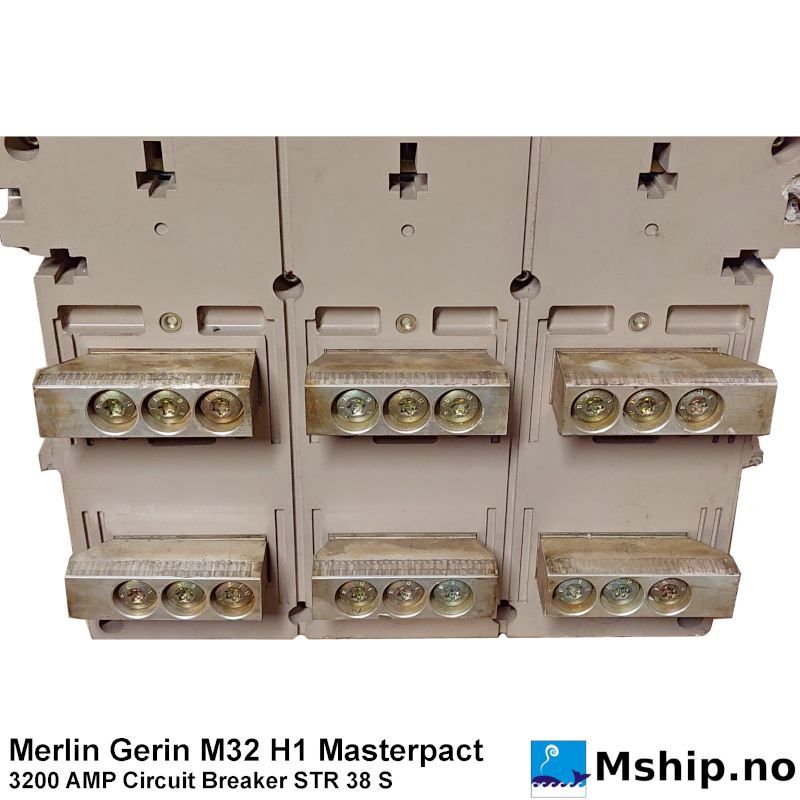

Merlin Gerin Masterpact M32 H1 air circuit breaker, 3-pole, drawout version, with STR 38 S electronic trip unit, In = 3200 A. Motor operated. Used, in stock.

General
Manufacturer: Merlin Gerin (Groupe Schneider), now Schneider Electric
Model: Masterpact M32 H1, 3-pole, drawout

Ratings
Rated current In: 3200 A

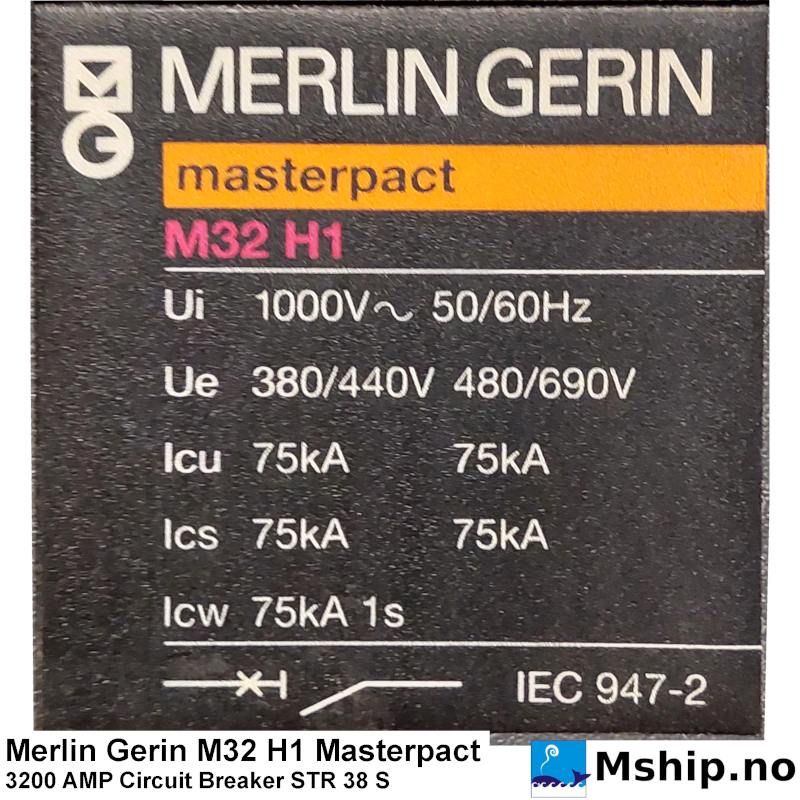

Rated insulation voltage Ui: 1000 V AC, 50/60 Hz
Rated operational voltage Ue: 380/440 V and 480/690 V
Standard: IEC 947-2

Breaking capacity (IEC 947-2)380/440 V480/690 V
Icu75 kA75 kA
Ics75 kA75 kA
Icw75 kA 1 s

Trip unit

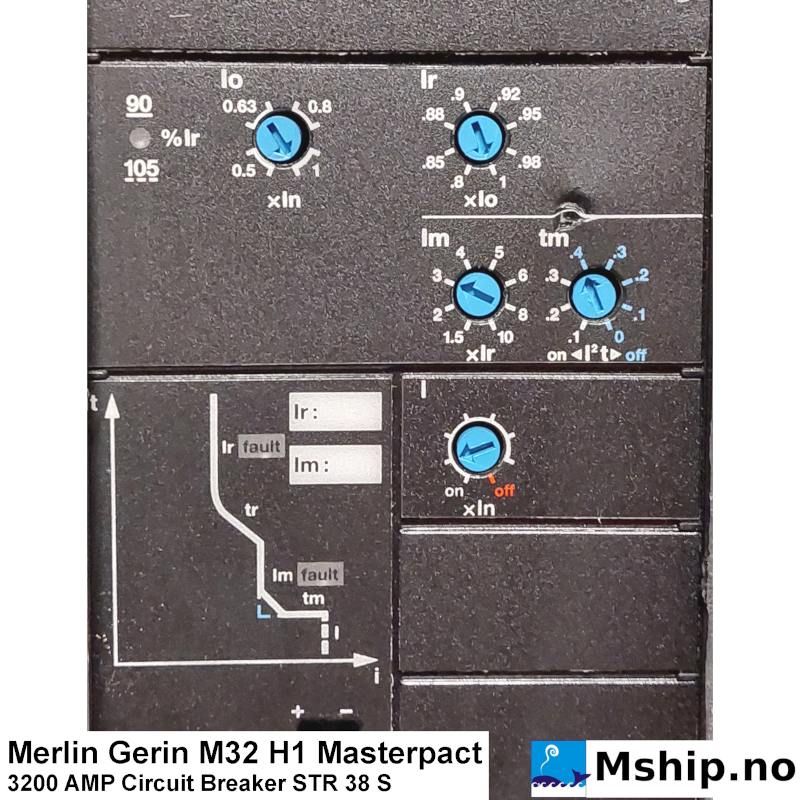

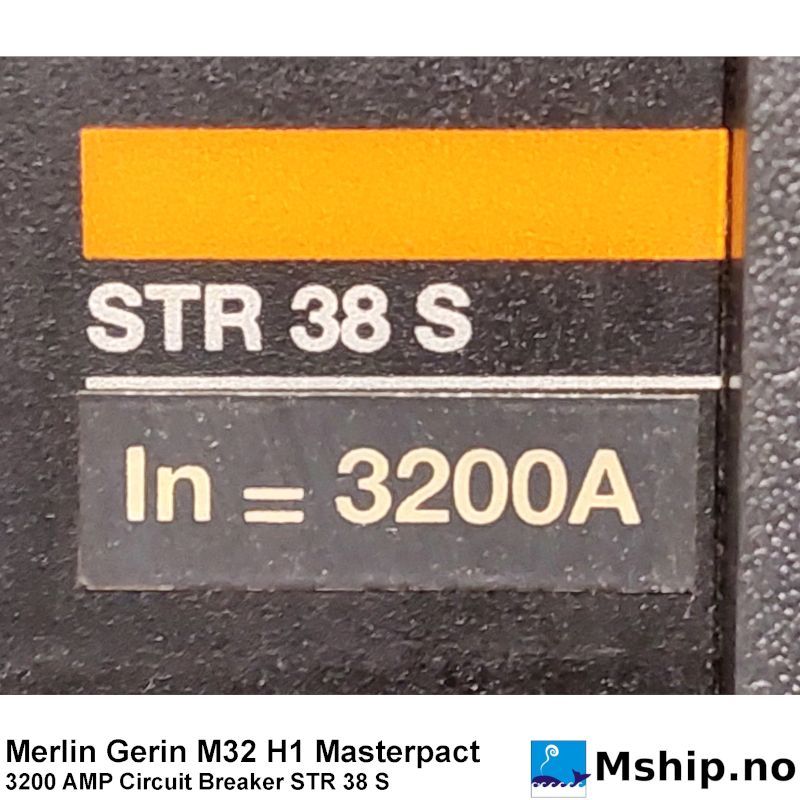

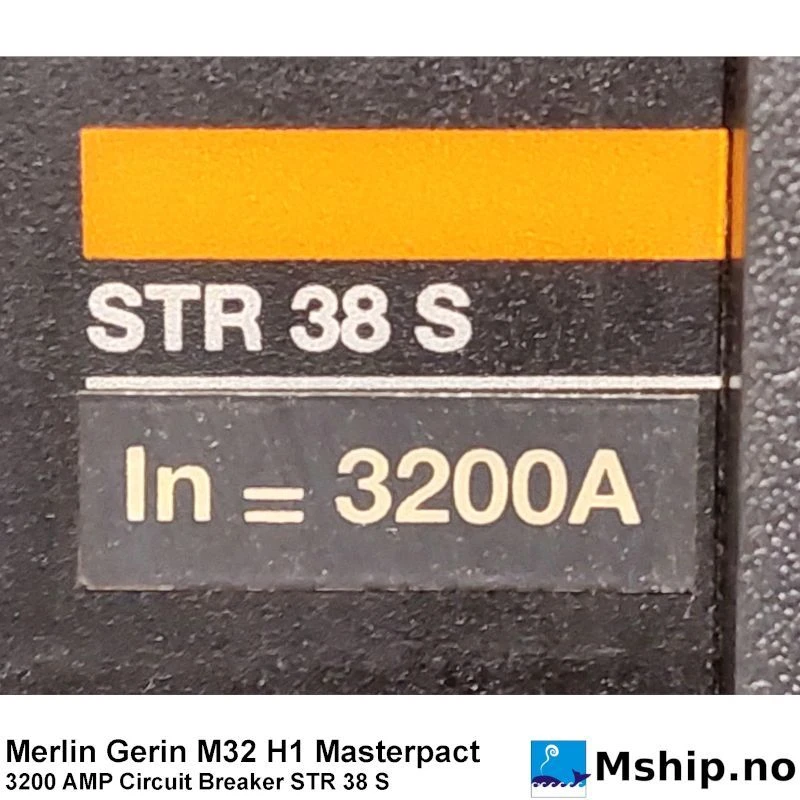

STR 38 S electronic trip unit, In = 3200 A, settings Io, Ir, Im, tm and instantaneous on/off

Accessories (switchboard label on the breaker in the photos)
MCH spring charging motor
XF closing coil
MX shunt trip
MNR delayed undervoltage release
4 OF auxiliary contacts
Control voltage: 230 V 50 Hz

Tested and checked by CWO Semco Maritime (label on the breaker).

Contact us for price and delivery.
