Merlin Gerin M12 H1 - 1250A

Name: Merlin Gerin M12 H1 - 1250A
Brand: Merlin Gerin
SKU: MGM12H1

Reference: MGM12H1

Condition: Used

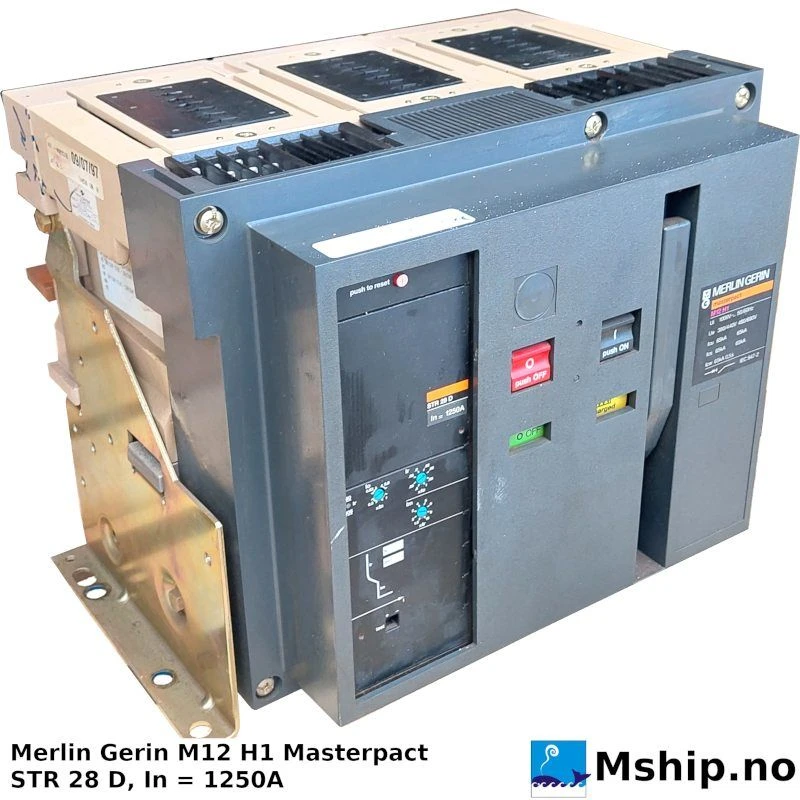

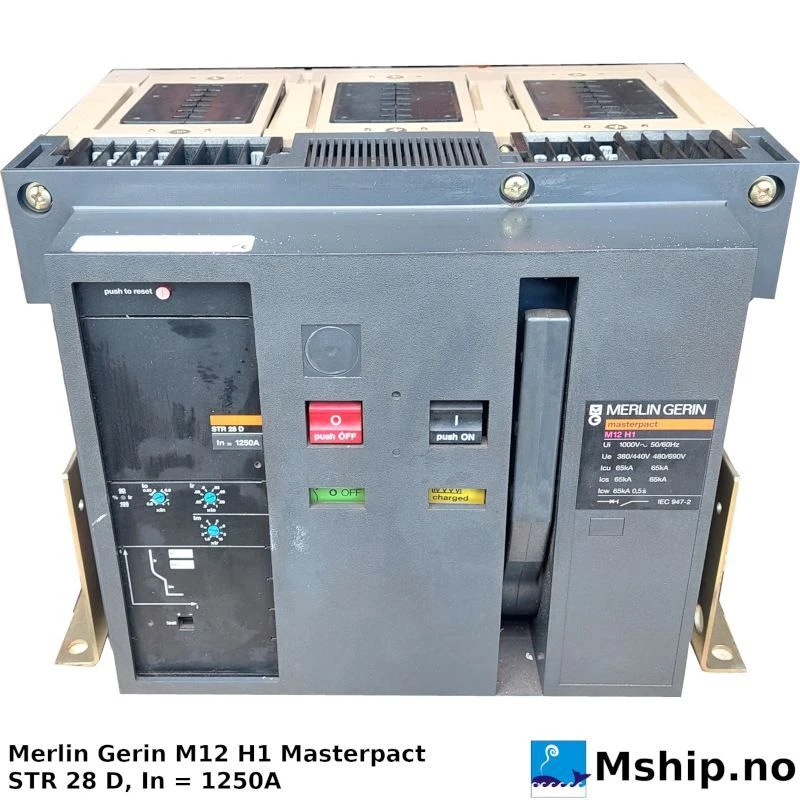

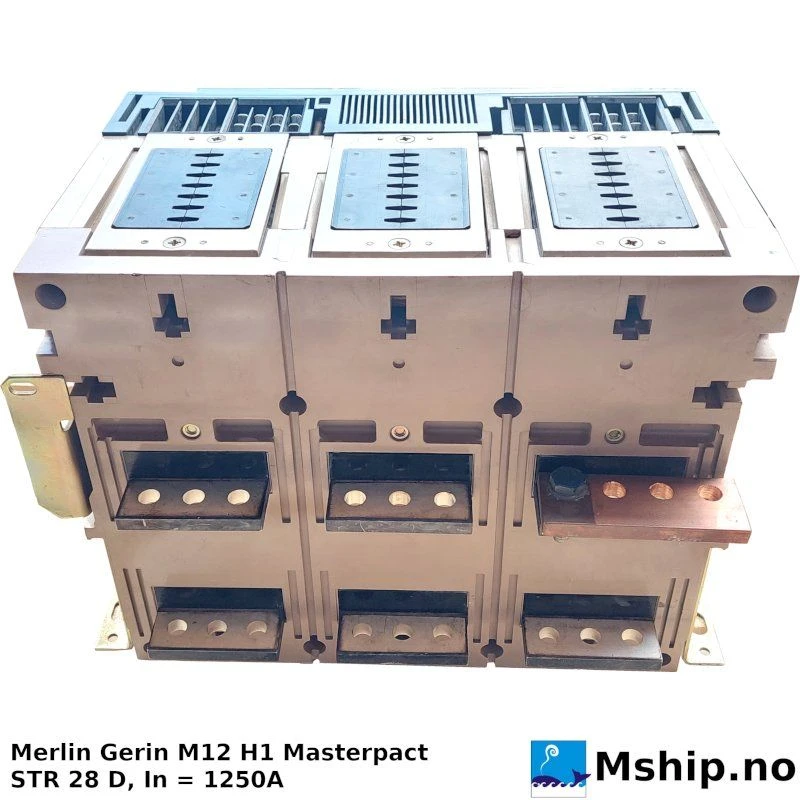

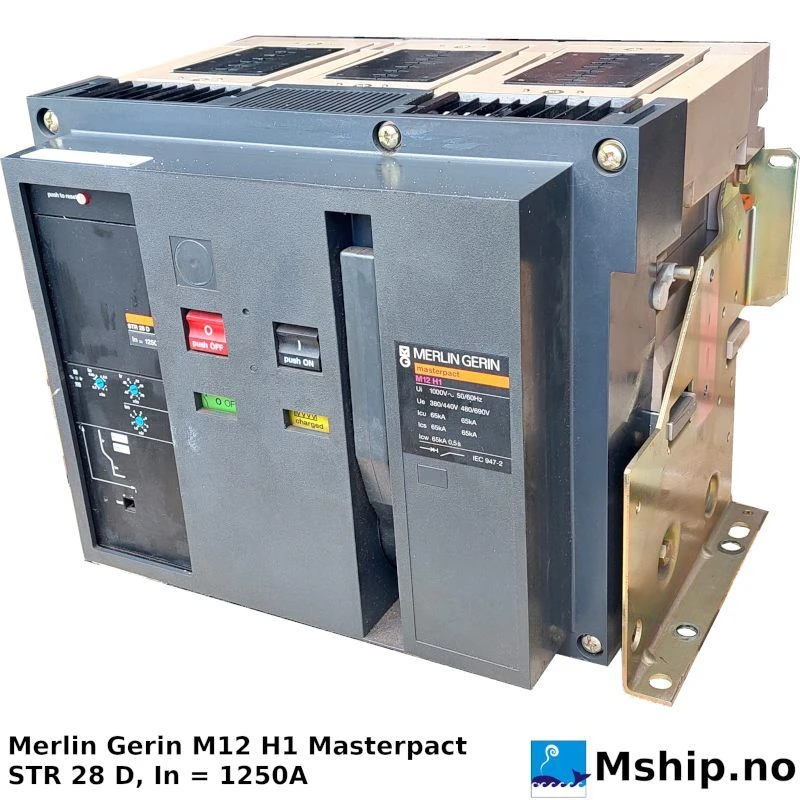

Merlin Gerin Masterpact M12 H1 air circuit breaker 1250 A, 3-pole, STR 28 D, motor operated

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Merlin Gerin / Schneider Electric
Model	Masterpact M12 H1, 3-pole air circuit breaker (ACB)
Year	1997
Other	Breaking capacity IEC 947-2: Icu 65 kA / Ics 65 kA at 380/440 V and at 480/690 V; Icw 65 kA 0.5 s
Amps	In 1250 A
Trip unit	STR 28 D electronic, In = 1250 A (settings Io, Ir, Im)
Volt	Ui 1000 V, Ue 380/440 V – 480/690 V
HZ	50/60

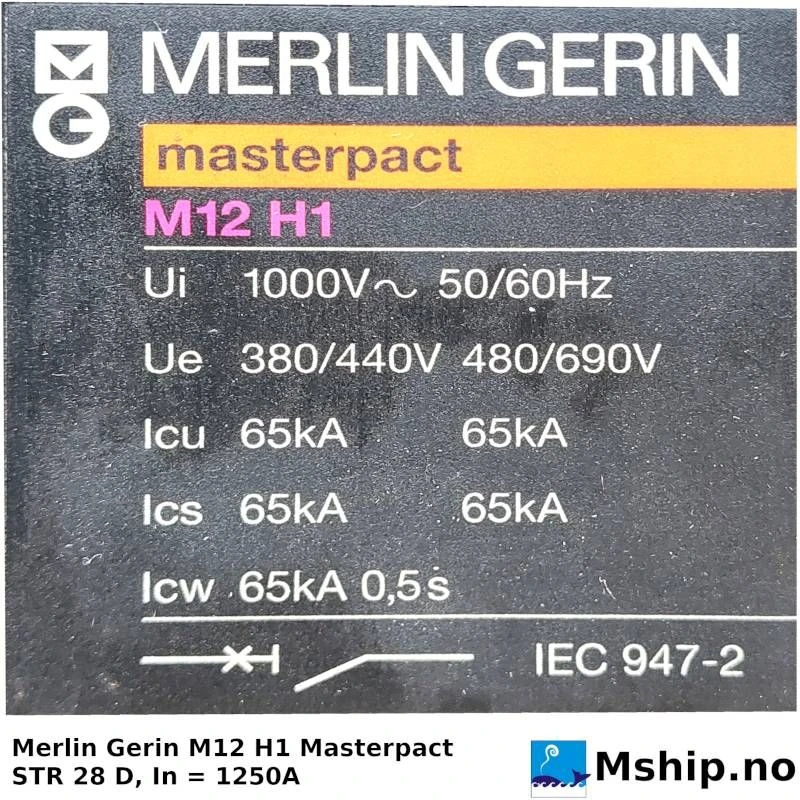

Remarks	Motor operated: spring charging motor MCH 200/240 V AC, closing coil XF 200/220 V DC – 220/250 V AC, SDE fault-trip contact 10 A/240 V AC (accessory label partly visible, see photos)

More info

Merlin Gerin Masterpact M12 H1 air circuit breaker, 3-pole, with STR 28 D electronic trip unit, In = 1250 A. Motor operated. Used, in stock.

General
Manufacturer: Merlin Gerin (Groupe Schneider), now Schneider Electric
Model: Masterpact M12 H1, 3-pole
Year: 1997

Ratings
Rated current In: 1250 A
Rated insulation voltage Ui: 1000 V AC, 50/60 Hz
Rated operational voltage Ue: 380/440 V and 480/690 V
Standard: IEC 947-2

Breaking capacity (IEC 947-2)	380/440 V	480/690 V
Icu	65 kA	65 kA
Ics	65 kA	65 kA
Icw	65 kA 0.5 s

Trip unit

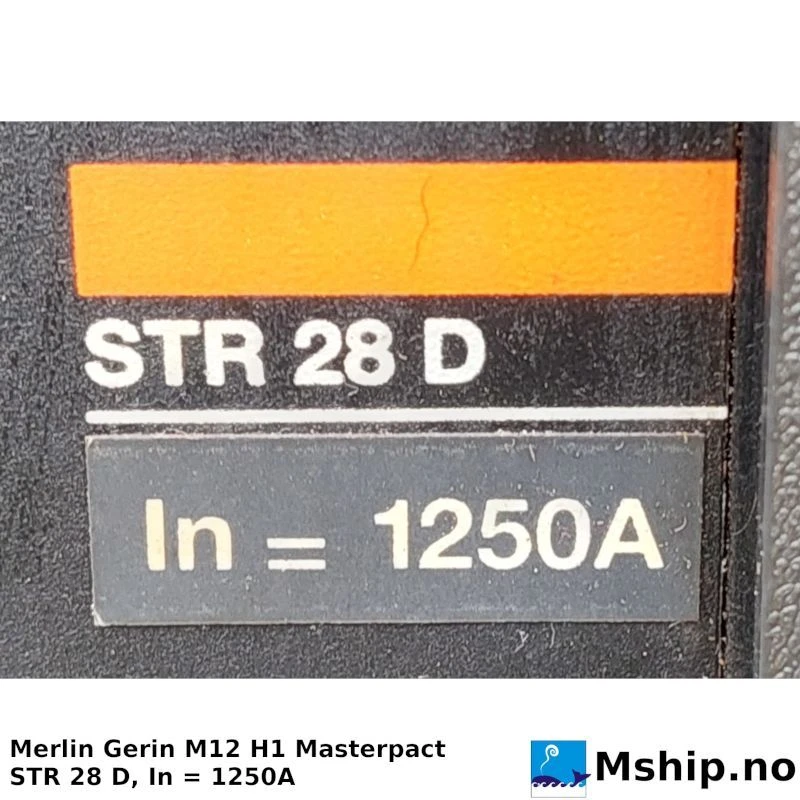

STR 28 D electronic trip unit, In = 1250 A, settings Io, Ir, Im

Accessories (label partly visible, see photos)
MCH spring charging motor: 200/240 V AC
XF closing coil: 200/220 V DC – 220/250 V AC
SDE fault-trip indication contact: 10 A/240 V AC
