Merlin Gerin M08 N1 - 800A — Manufacturer: Merlin Gerin / Schneider Electric, Model: Masterpact M08 N1, 3-pole air circuit breaker (ACB), Other: Breaking capacity IEC 947-2: Icu 40 kA / Ics 40 kA at 380/440 V and at 480/690 V; Icw 40 kA 0.5 s, Amps: In 800 A, Trip unit: STR 38 S electronic, In = 800 A (settings Io, Ir, Im, tm), Volt: Ui 1000 V, Ue 380/440 V – 480/690 V, HZ: 50/60, Remarks: Fitted accessories (switchboard label): spring charging motor MCH, closing coil XF, shunt trip MX, delayed undervoltage release MNR, 4 OF aux. contacts; control voltage 220 V 50/60 Hz. Tested and checked by CWO Semco Maritime View larger
Previous Next

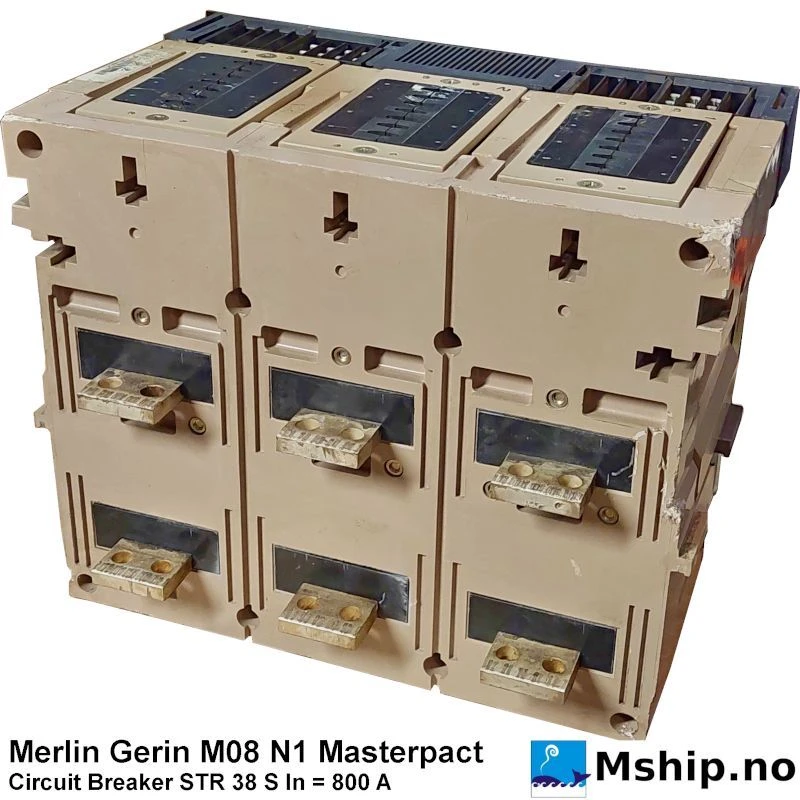

Merlin Gerin M08 N1 - 800A

MGM08N1

Used

Merlin Gerin Masterpact M08 N1 air circuit breaker 800 A, 3-pole, STR 38 S, motor operated

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Merlin Gerin / Schneider Electric
Model Masterpact M08 N1, 3-pole air circuit breaker (ACB)
Other Breaking capacity IEC 947-2: Icu 40 kA / Ics 40 kA at 380/440 V and at 480/690 V; Icw 40 kA 0.5 s
Amps In 800 A
Trip unit STR 38 S electronic, In = 800 A (settings Io, Ir, Im, tm)
Volt Ui 1000 V, Ue 380/440 V – 480/690 V
HZ 50/60
Remarks Fitted accessories (switchboard label): spring charging motor MCH, closing coil XF, shunt trip MX, delayed undervoltage release MNR, 4 OF aux. contacts; control voltage 220 V 50/60 Hz. Tested and checked by CWO Semco Maritime

More info

Merlin Gerin Masterpact M08 N1 air circuit breaker, 3-pole, with STR 38 S electronic trip unit, In = 800 A. Motor operated. Used, in stock.

General
Manufacturer: Merlin Gerin (Groupe Schneider), now Schneider Electric
Model: Masterpact M08 N1, 3-pole

Ratings
Rated current In: 800 A

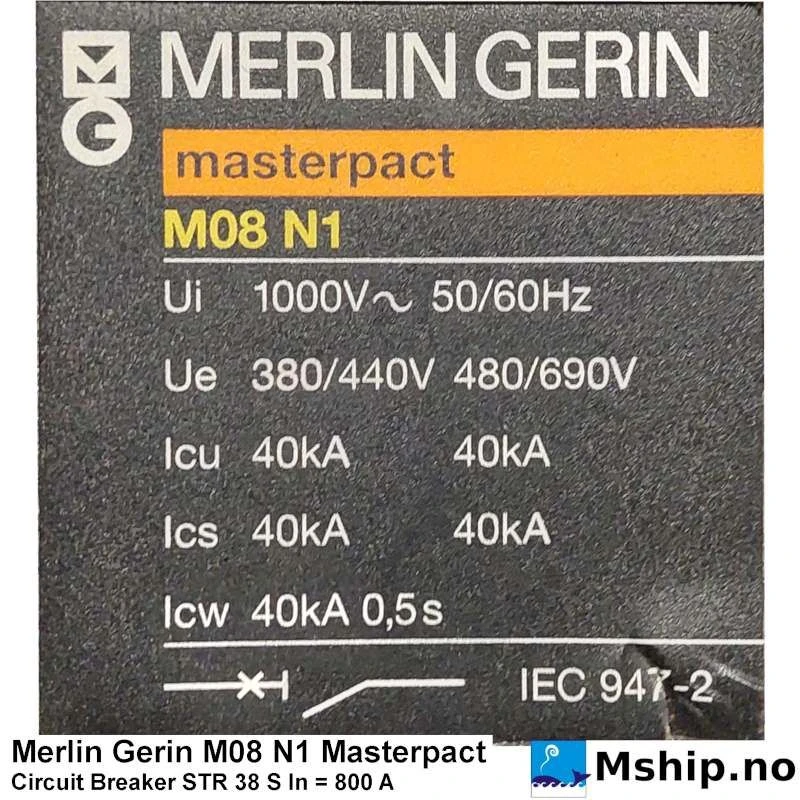

Rated insulation voltage Ui: 1000 V AC, 50/60 Hz
Rated operational voltage Ue: 380/440 V and 480/690 V
Standard: IEC 947-2

Breaking capacity (IEC 947-2)380/440 V480/690 V
Icu40 kA40 kA
Ics40 kA40 kA
Icw40 kA 0.5 s

Trip unit
STR 38 S electronic trip unit, In = 800 A, settings Io, Ir, Im, tm and instantaneous on/off

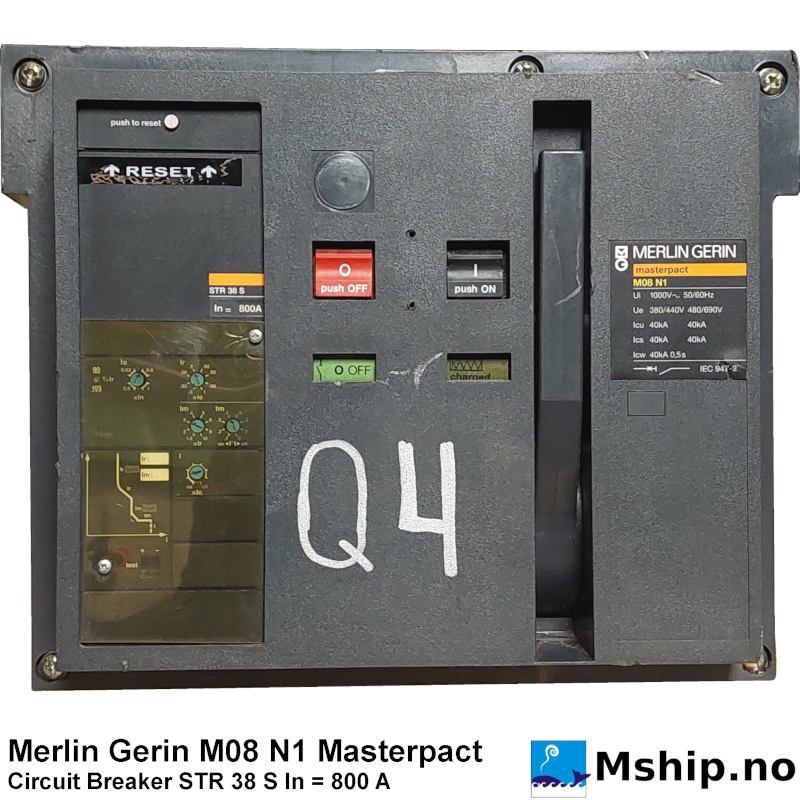

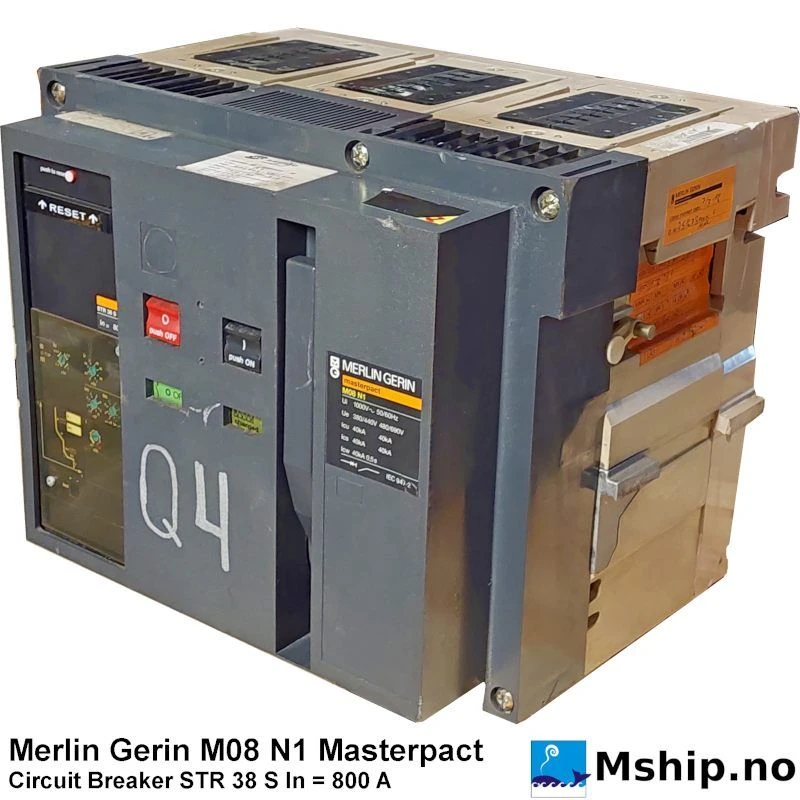

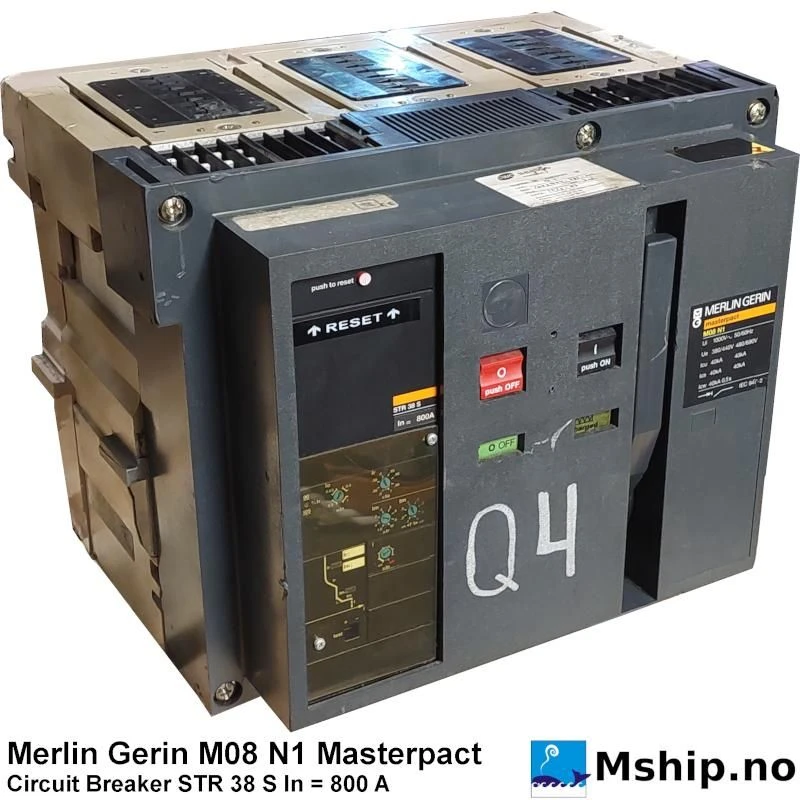

Accessories (switchboard label on the breaker in the photos)
MCH spring charging motor
XF closing coil
MX shunt trip
MNR delayed undervoltage release
4 OF auxiliary contacts
Control voltage: 220 V 50/60 Hz

Tested and checked by CWO Semco Maritime (label on the breaker).

Contact us for price and delivery.
