Merlin Gerin M08 H2 - 800A

MGM08H2TF9144174

Used

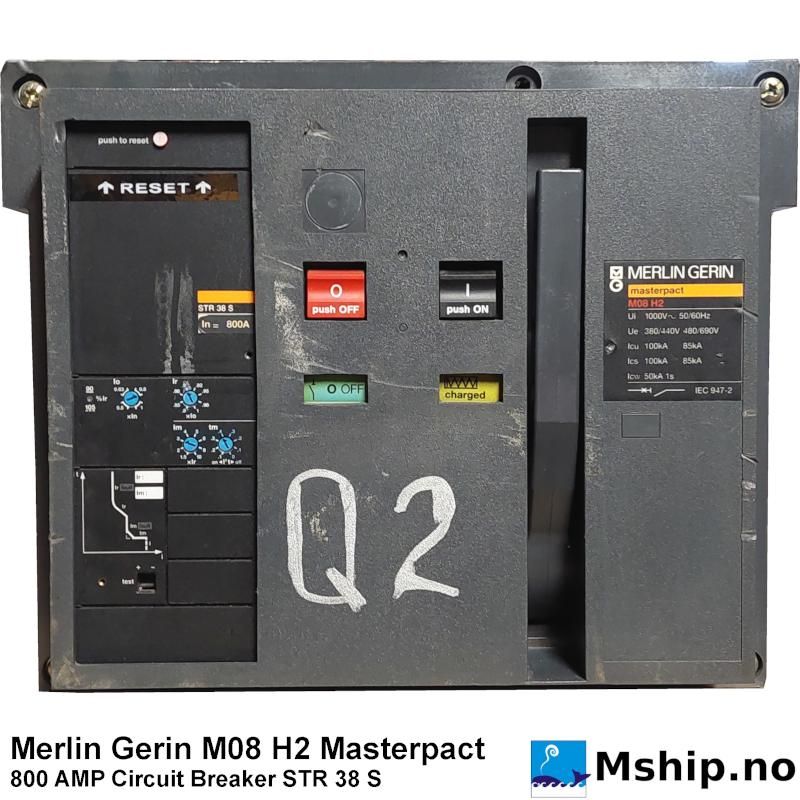

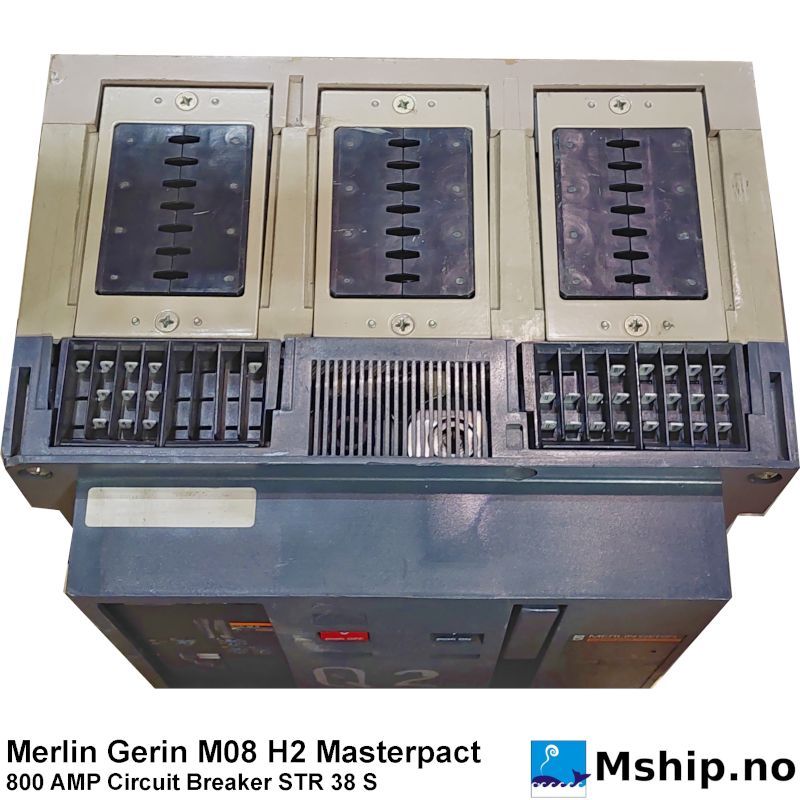

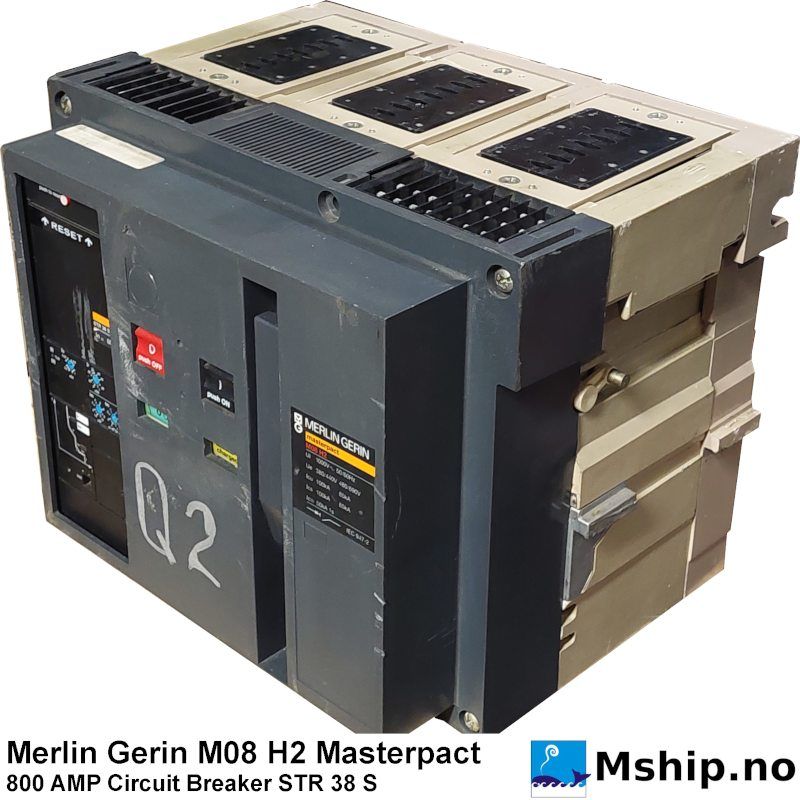

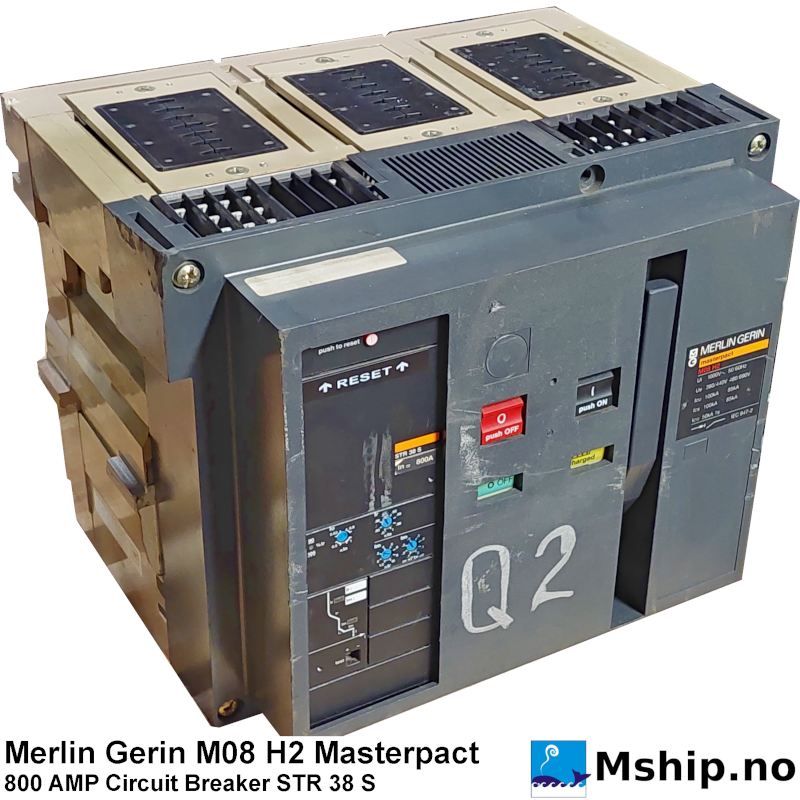

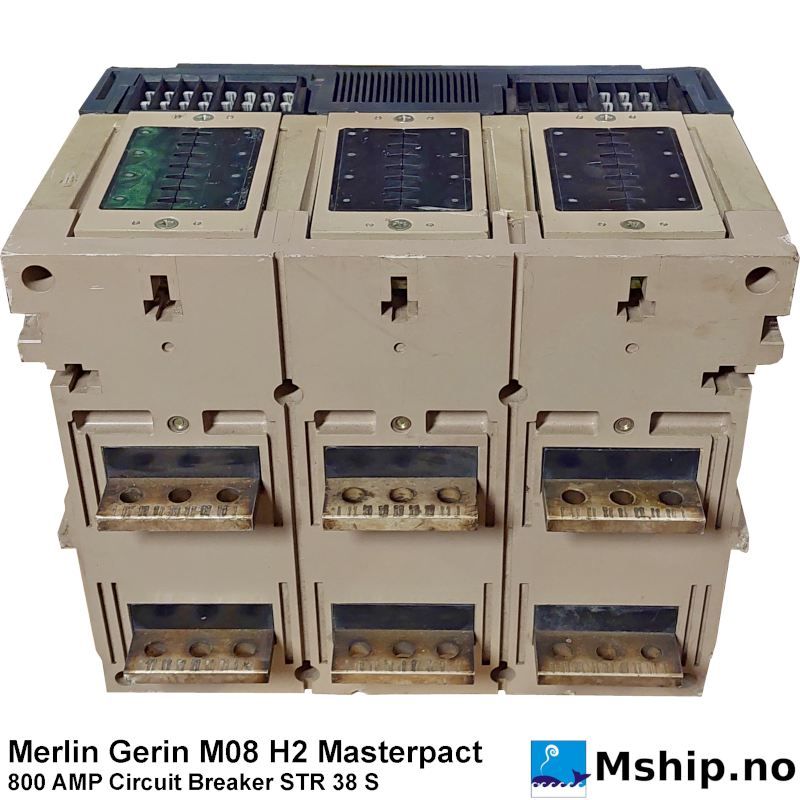

Merlin Gerin Masterpact M08 H2 air circuit breaker 800 A, 3-pole, STR 38 S

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Merlin Gerin / Schneider Electric
Model Masterpact M08 H2, 3-pole air circuit breaker (ACB), drawout version
Year 1995
Other Breaking capacity IEC 947-2: Icu = Ics 100 kA at 380/440 V, 85 kA at 480/690 V; Icw 50 kA 1 s; category B
Amps In 800 A
Trip unit STR 38 S electronic, In = 800 A (settings Io, Ir, Im, tm)
Volt Ui 1000 V, Ue 380/440 V – 480/690 V
HZ 50/60

More info

Merlin Gerin Masterpact M08 H2 air circuit breaker, 3-pole, drawout version, with STR 38 S electronic trip unit, In = 800 A. Used, in stock.

General
Manufacturer: Merlin Gerin (Groupe Schneider), now Schneider Electric
Model: Masterpact M08 H2, 3-pole, drawout

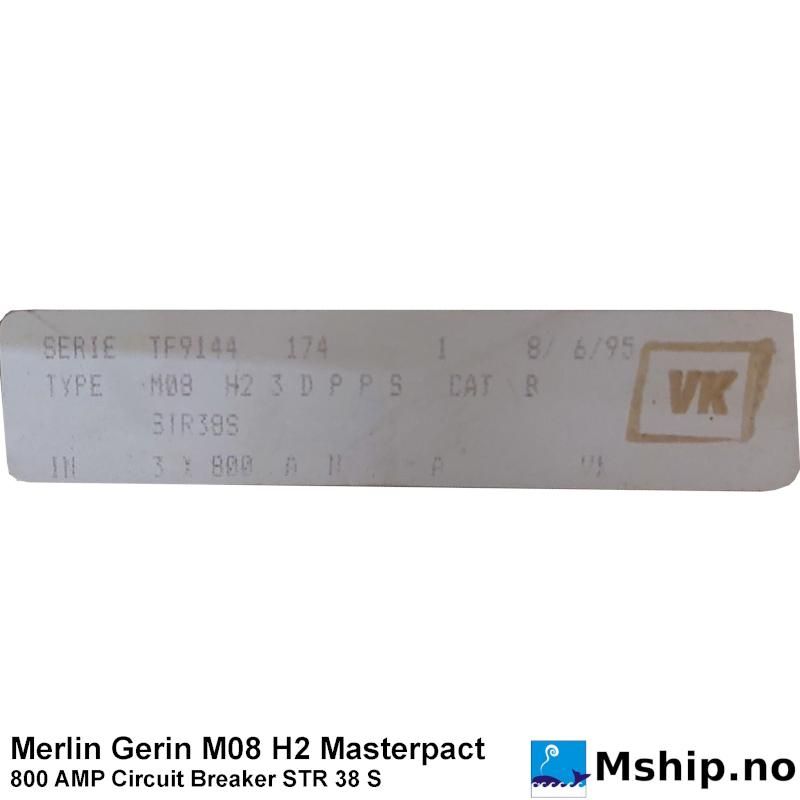

Type (ID plate): M08 H2 3 D P P S, cat. B
Year: 1995

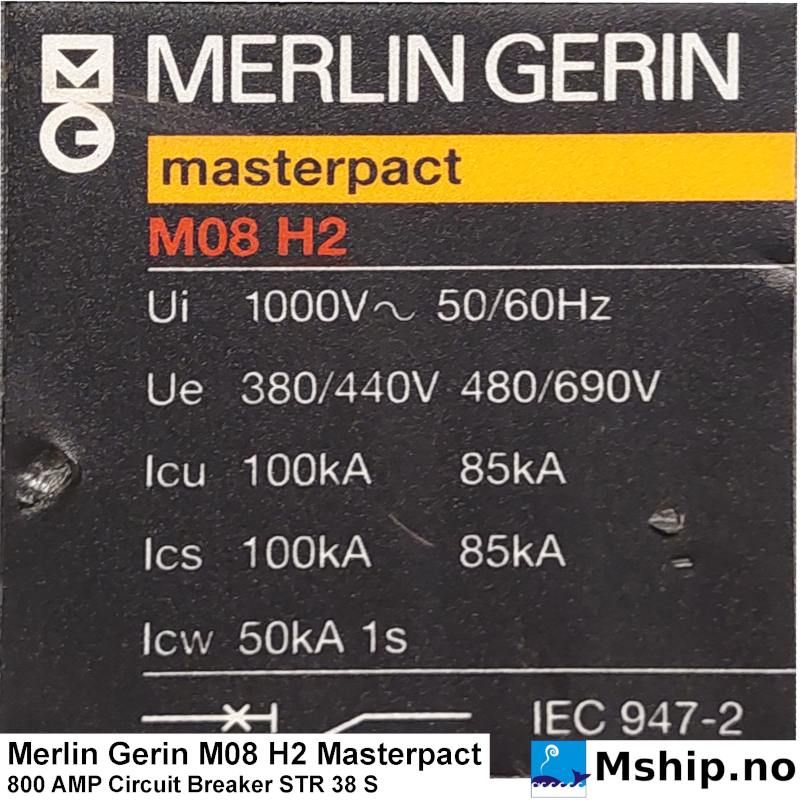

Ratings
Rated current In: 800 A
Rated insulation voltage Ui: 1000 V AC, 50/60 Hz
Rated operational voltage Ue: 380/440 V and 480/690 V
Standard: IEC 947-2

Breaking capacity (IEC 947-2)380/440 V480/690 V
Icu100 kA85 kA
Ics100 kA85 kA
Icw50 kA 1 s

Trip unit

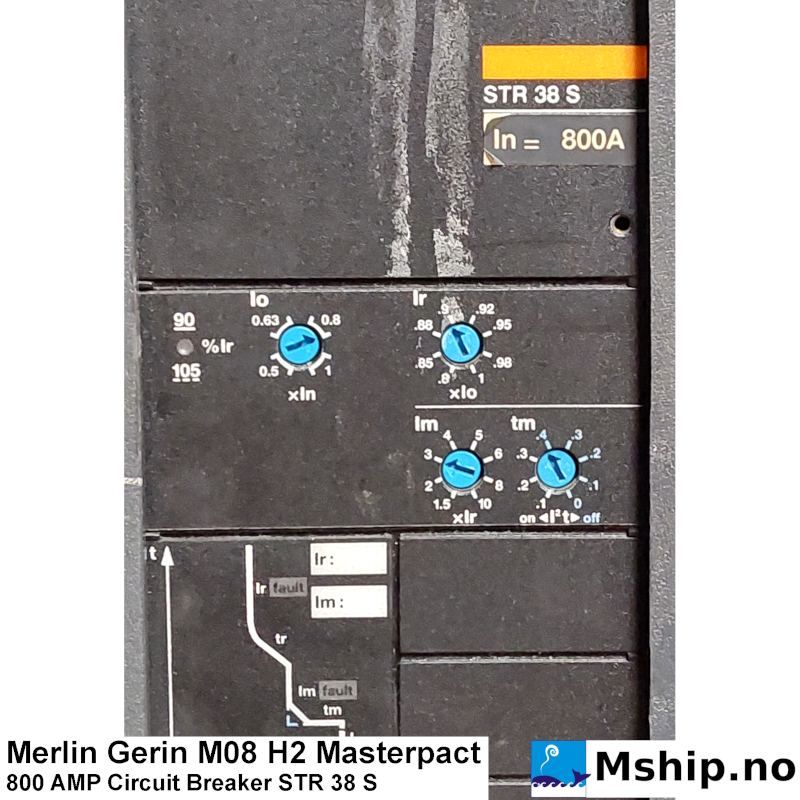

STR 38 S electronic trip unit, In = 800 A, settings Io, Ir, Im, tm and instantaneous on/off

Contact us for price and delivery.
