Merlin Gerin NS160H - 125A

Name: Merlin Gerin NS160H - 125A
Brand: Merlin Gerin
SKU: MGNS160H

Reference: MGNS160H

Condition: Used

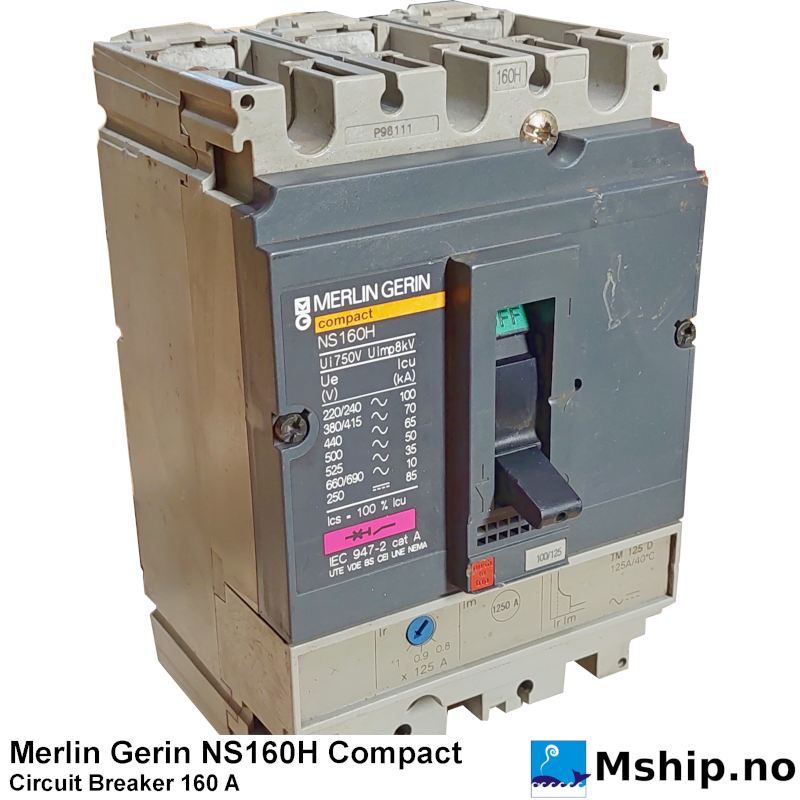

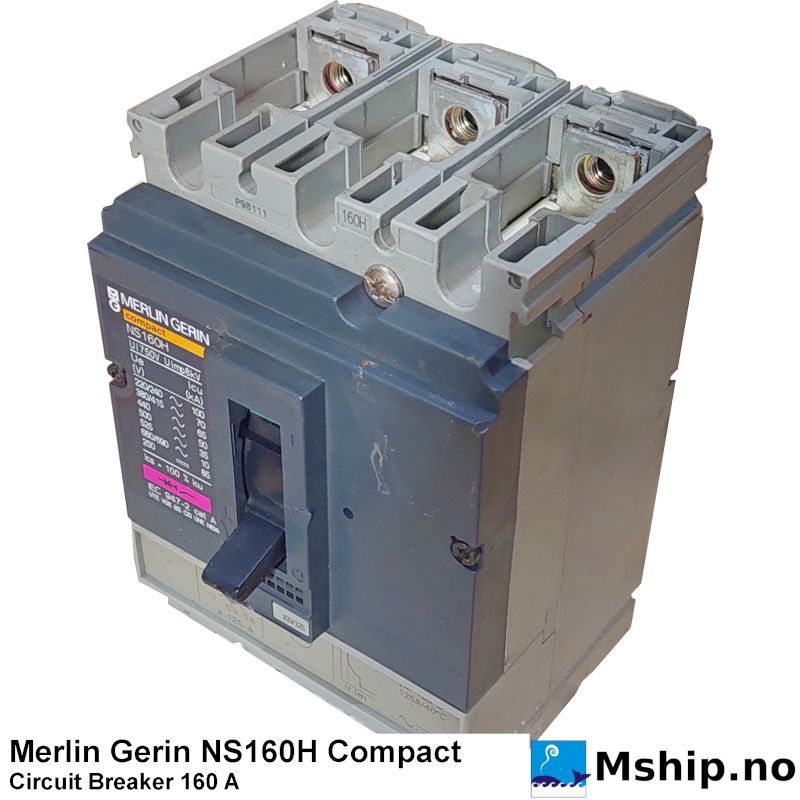

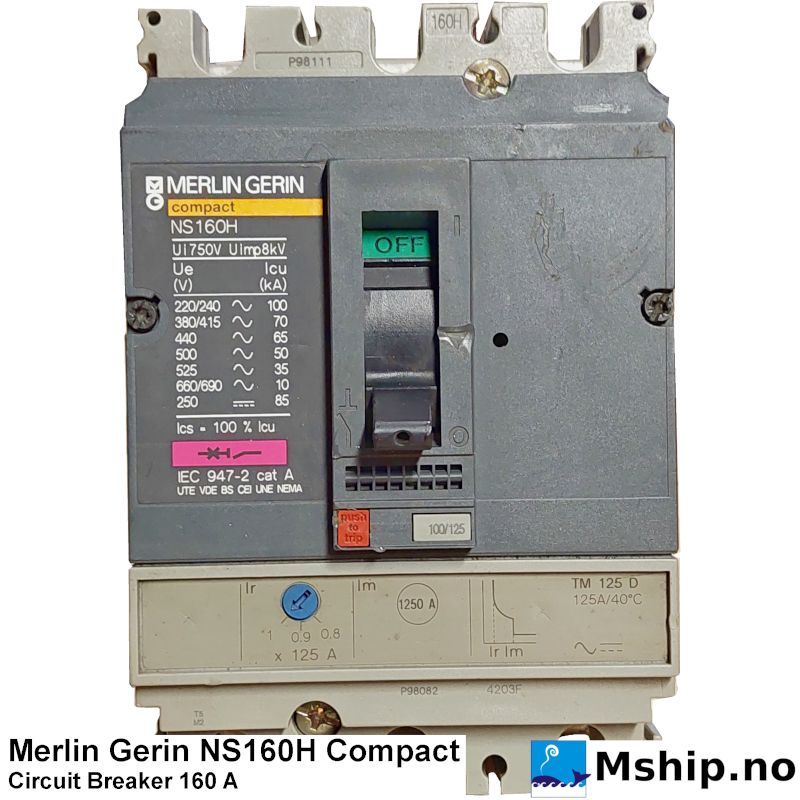

Merlin Gerin Compact NS160H moulded case circuit breaker 125 A, 3-pole, TM 125 D thermal-magnetic

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Merlin Gerin / Schneider Electric
Model	Compact NS160H, 3-pole moulded case circuit breaker (MCCB)
Other	Icu (IEC 947-2): 100 kA 220/240 V, 70 kA 380/415 V, 65 kA 440 V, 50 kA 500 V, 35 kA 525 V, 10 kA 660/690 V, 85 kA 250 V DC; category A, Ics = 100 % Icu; IEC 947-2, UTE, VDE, BS, CEI, UNE, NEMA
Amps	In 125 A
Trip unit	TM 125 D thermal-magnetic, In = 125 A (Ir 0.8–1 × In, Im 1250 A fixed)
Volt	Ui 750 V, Uimp 8 kV, Ue up to 690 V AC / 250 V DC
HZ	50/60

More info

Merlin Gerin Compact NS160H moulded case circuit breaker (MCCB), 3-pole, with TM 125 D thermal-magnetic trip unit, In = 125 A. Used, in stock. Several units in stock – other trip unit ratings may be available, please ask.

General
Manufacturer: Merlin Gerin (Groupe Schneider), now Schneider Electric
Model: Compact NS160H, 3-pole

Ratings
Rated current In: 125 A (unit in the photos)
Rated insulation voltage Ui: 750 V
Rated impulse withstand voltage Uimp: 8 kV
Utilisation category A, Ics = 100 % Icu
Standards: IEC 947-2, UTE, VDE, BS, CEI, UNE, NEMA

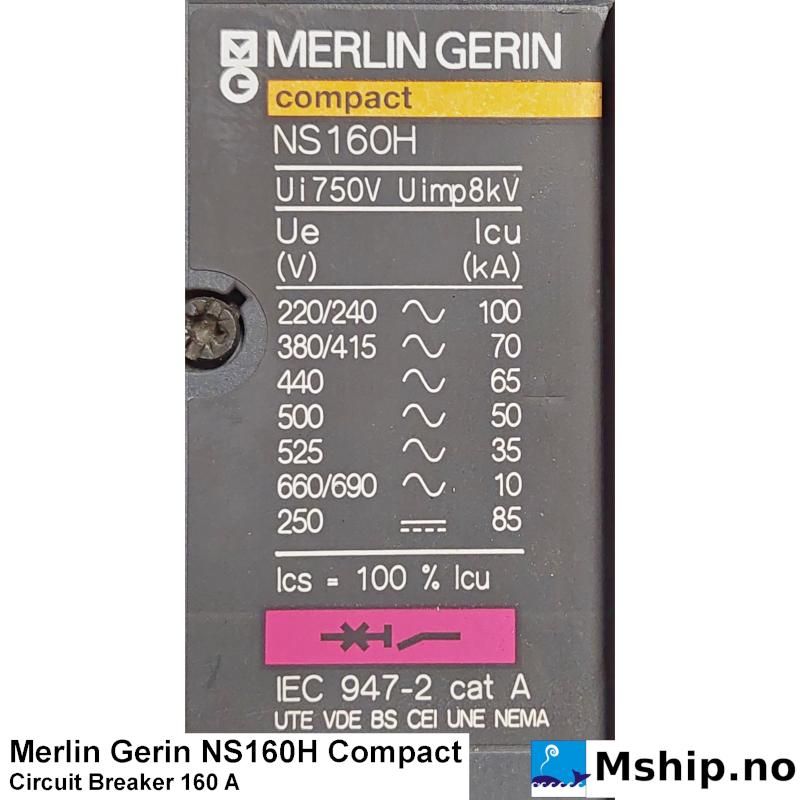

Ue	Icu (IEC 947-2)
220/240 V	100 kA
380/415 V	70 kA
440 V	65 kA
500 V	50 kA
525 V	35 kA
660/690 V	10 kA
250 V DC	85 kA

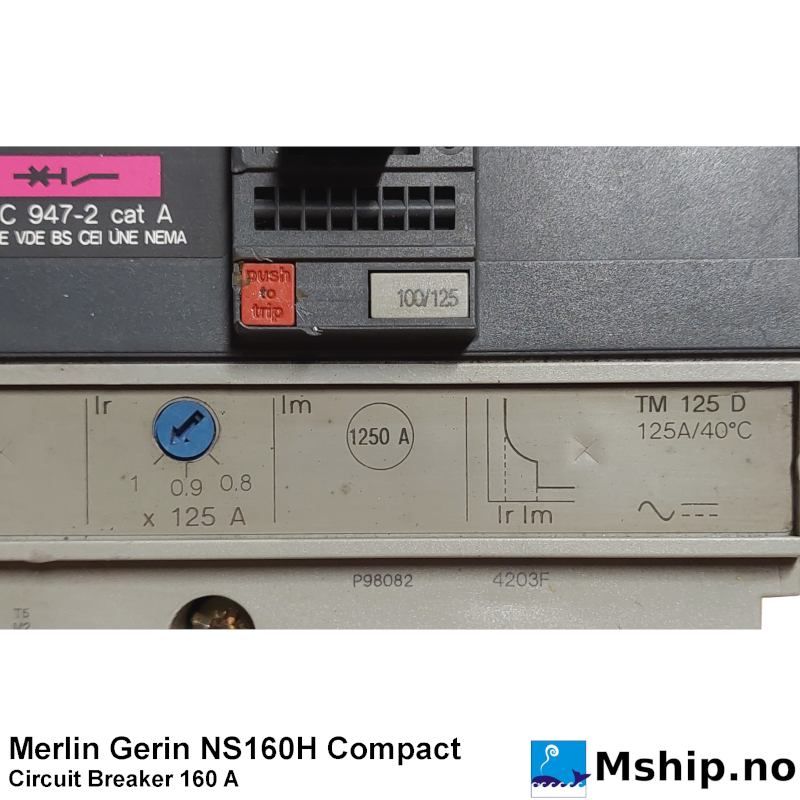

Trip unit
TM 125 D thermal-magnetic, In = 125 A (Ir 0.8–1 × In, Im 1250 A fixed)
