Merlin Gerin M10 H1 - 1000A — Manufacturer: Merlin Gerin / Schneider Electric, Model: Masterpact M10 H1, 3-pole air circuit breaker (ACB), fixed version, Year: 1997, Other: Breaking capacity IEC 947-2: Icu 65 kA / Ics 65 kA at 380/440 V and at 480/690 V; Icw 65 kA 0.5 s, Amps: In 1000 A, Trip unit: STR 28 D electronic, In = 1000 A (settings Io, Ir, Im), Volt: Ui 1000 V, Ue 380/440 V – 480/690 V, HZ: 50/60, Remarks: Motor operated: spring charging motor MCH 200/240 V AC; closing coil XF, shunt trip MX and undervoltage release MN 200/220 V DC – 220/250 V AC; aux. contacts F 2 / O 2 and SDE 1, 10 A/240 V AC; diagram 689905A View larger
Previous Next

Merlin Gerin M10 H1 - 1000A

MGM10H1680941

Used

Merlin Gerin Masterpact M10 H1 air circuit breaker 1000 A, 3-pole, STR 28 D, motor operated

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Merlin Gerin / Schneider Electric
Model Masterpact M10 H1, 3-pole air circuit breaker (ACB), fixed version
Year 1997
Other Breaking capacity IEC 947-2: Icu 65 kA / Ics 65 kA at 380/440 V and at 480/690 V; Icw 65 kA 0.5 s
Amps In 1000 A
Trip unit STR 28 D electronic, In = 1000 A (settings Io, Ir, Im)
Volt Ui 1000 V, Ue 380/440 V – 480/690 V
HZ 50/60
Remarks Motor operated: spring charging motor MCH 200/240 V AC; closing coil XF, shunt trip MX and undervoltage release MN 200/220 V DC – 220/250 V AC; aux. contacts F 2 / O 2 and SDE 1, 10 A/240 V AC; diagram 689905A

More info

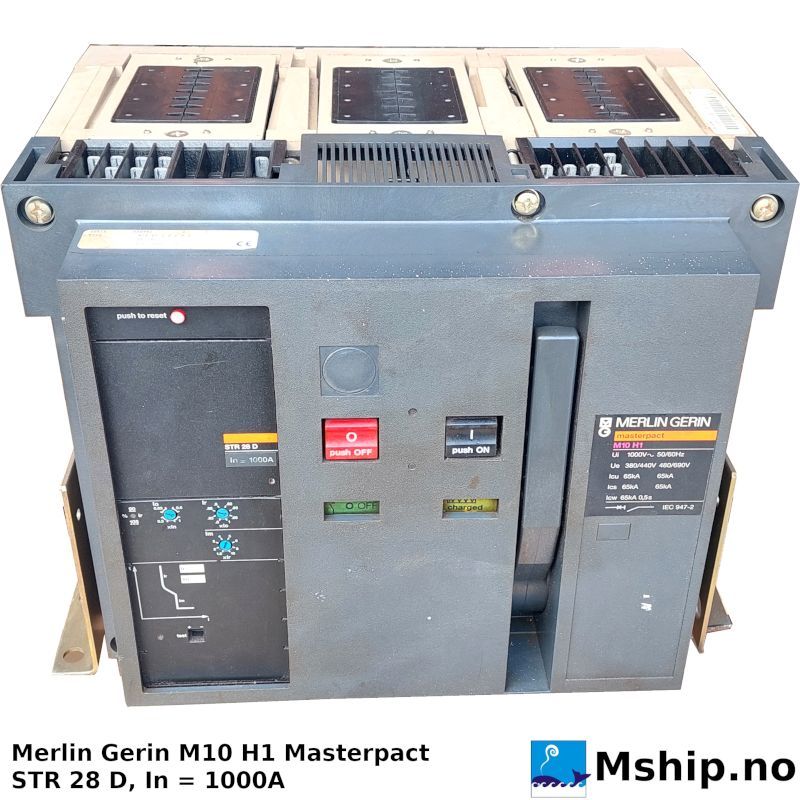

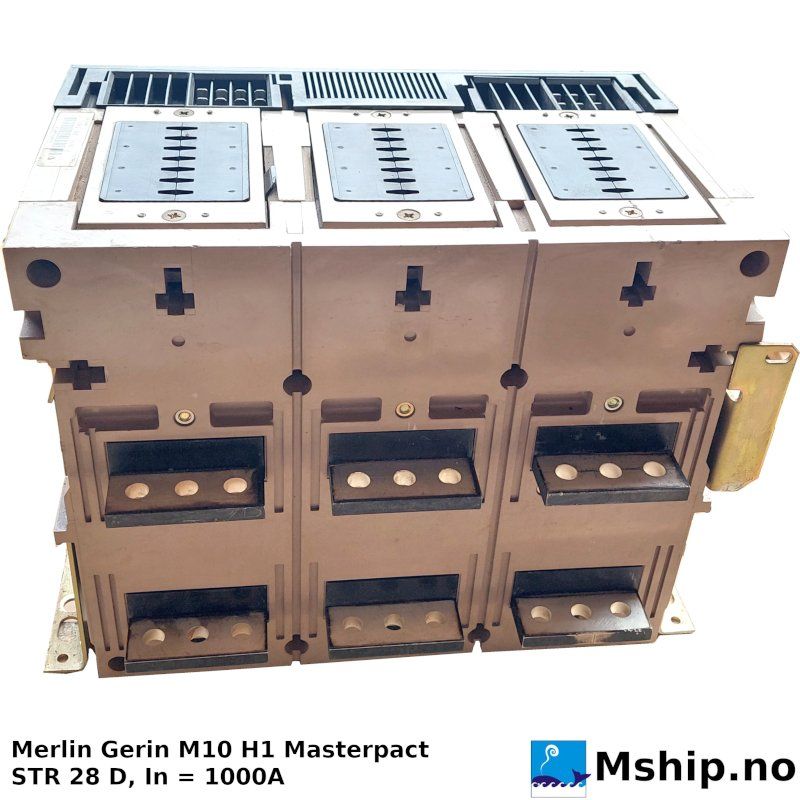

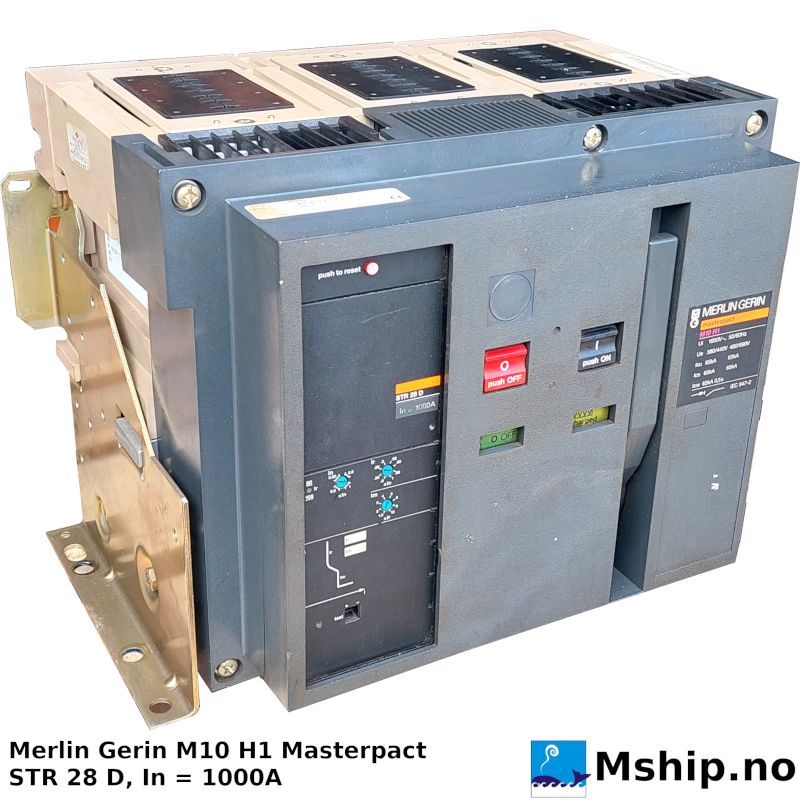

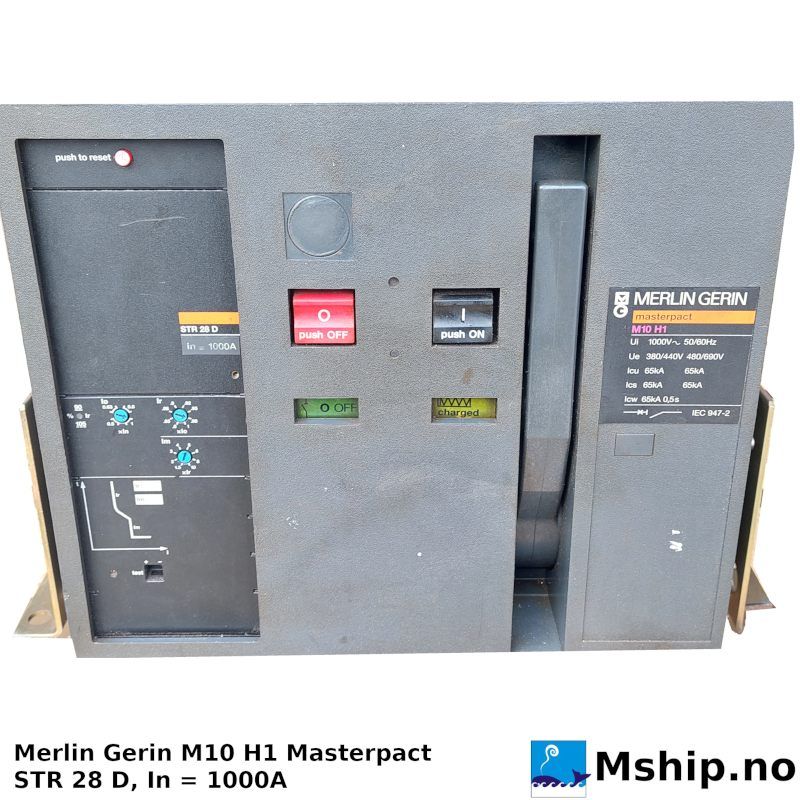

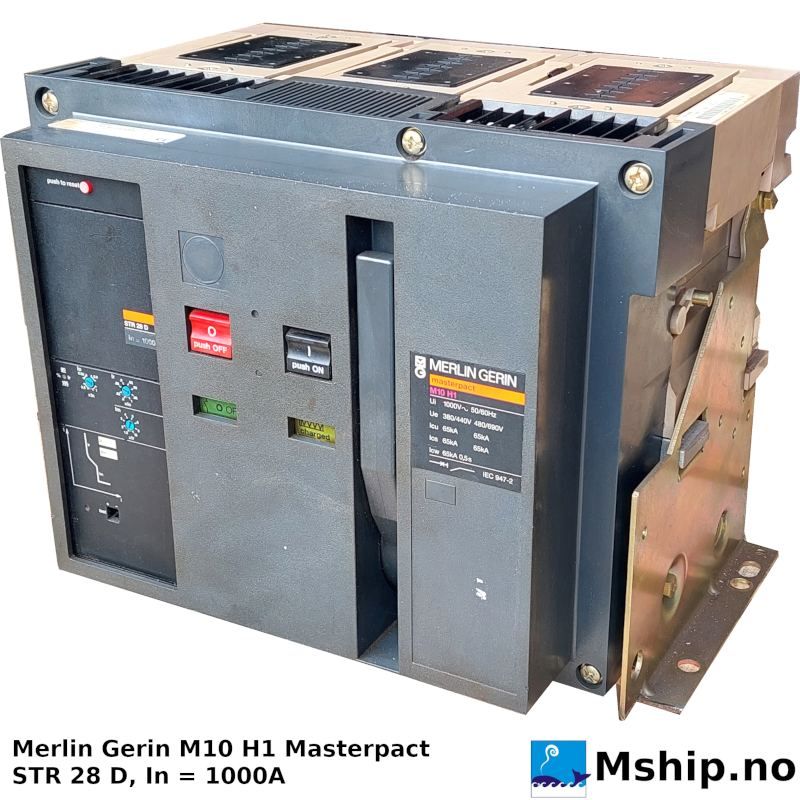

Merlin Gerin Masterpact M10 H1 air circuit breaker, 3-pole, fixed version, with STR 28 D electronic trip unit, In = 1000 A. Motor operated. Used, in stock.

General
Manufacturer: Merlin Gerin (Groupe Schneider), now Schneider Electric
Model: Masterpact M10 H1, 3-pole, fixed

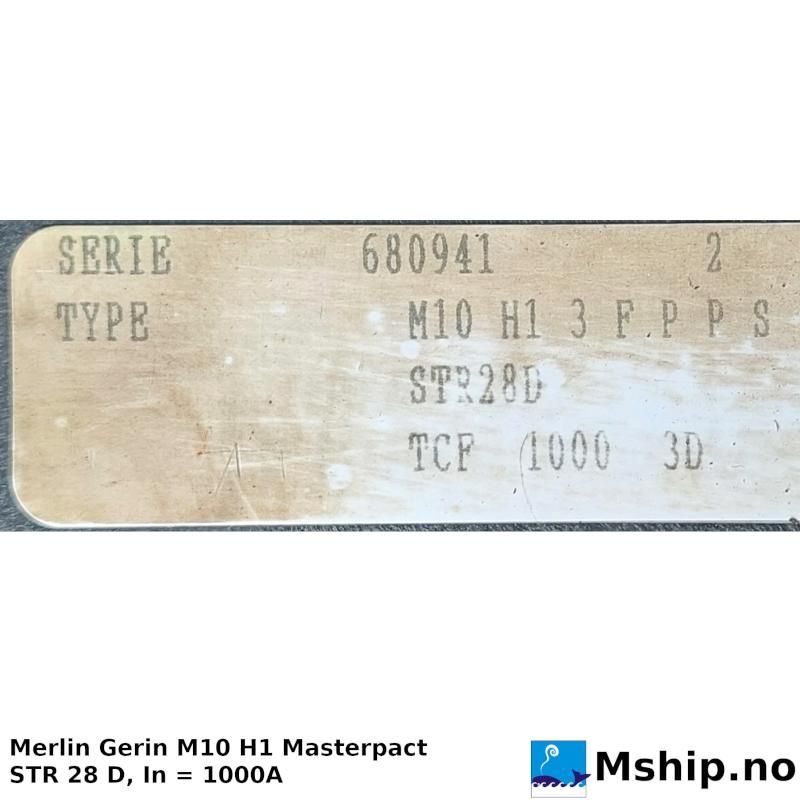

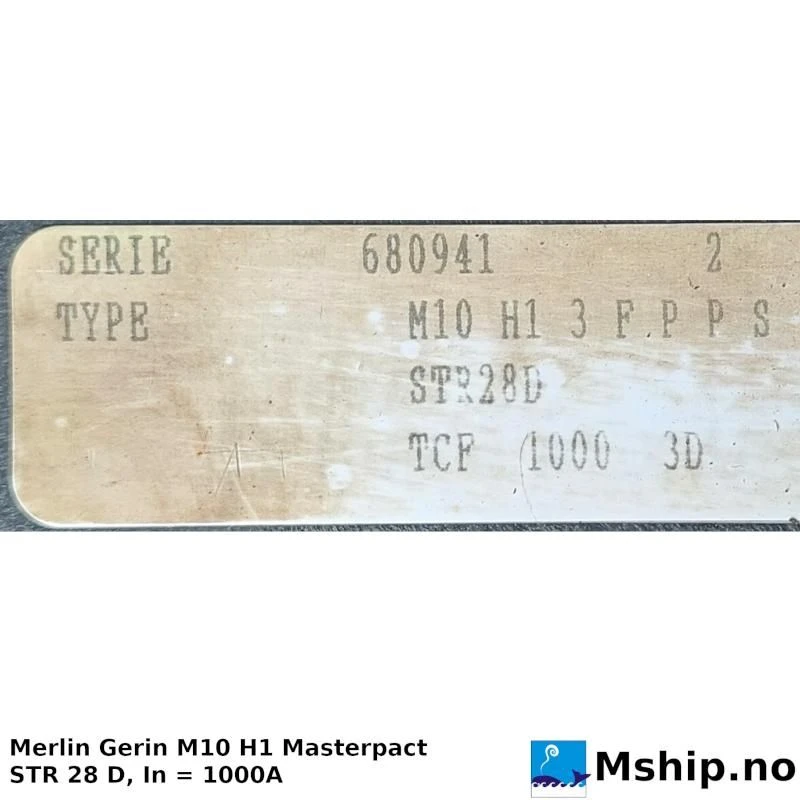

Type (ID plate): M10 H1 3 F P P S
Year: 1997

Ratings
Rated current In: 1000 A
Rated insulation voltage Ui: 1000 V AC, 50/60 Hz
Rated operational voltage Ue: 380/440 V and 480/690 V
Standard: IEC 947-2

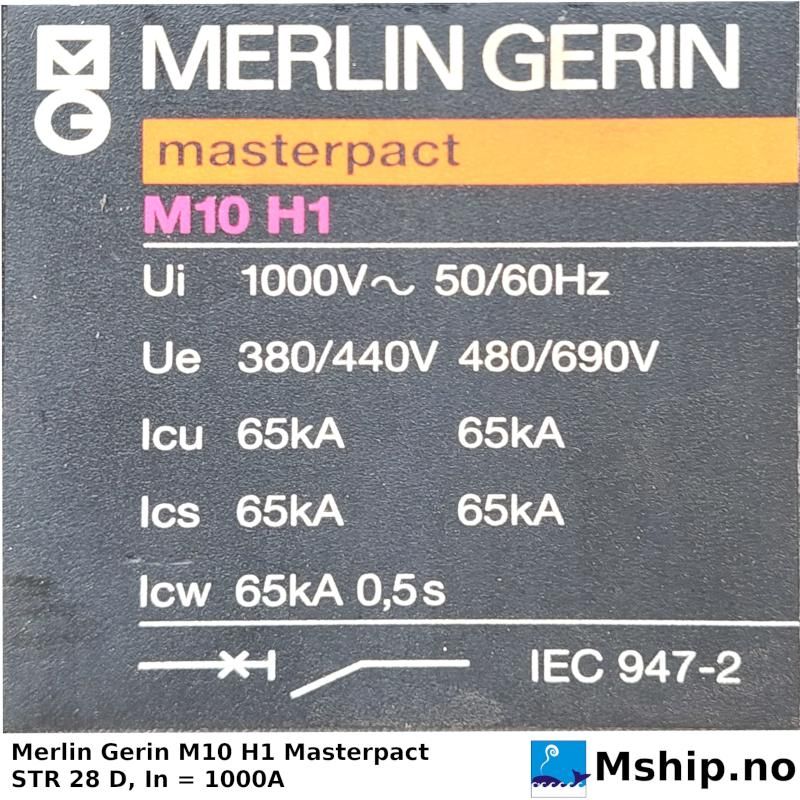

Breaking capacity (IEC 947-2)380/440 V480/690 V
Icu65 kA65 kA
Ics65 kA65 kA
Icw65 kA 0.5 s

Trip unit

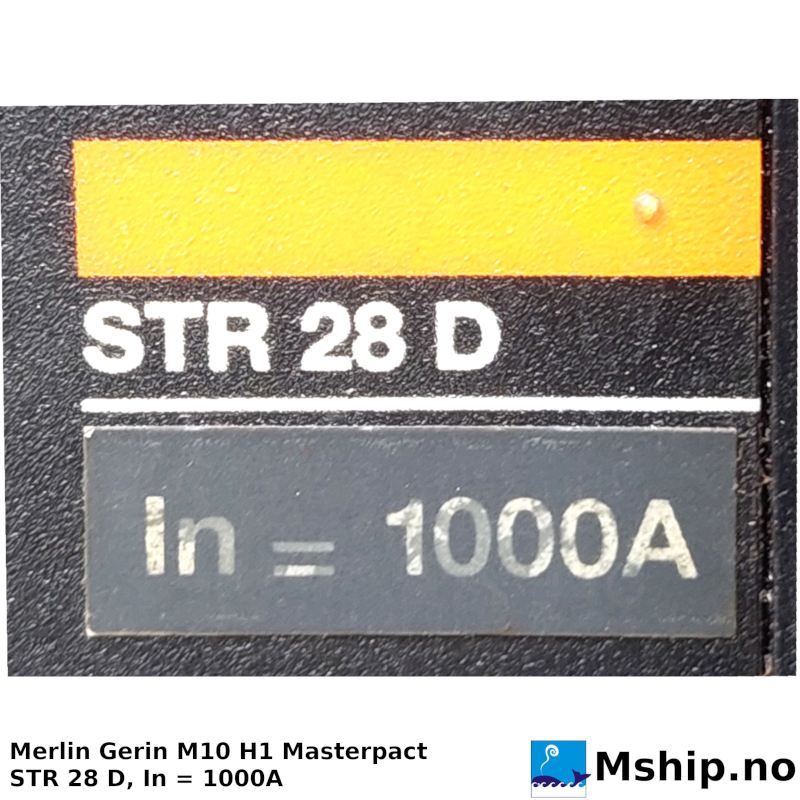

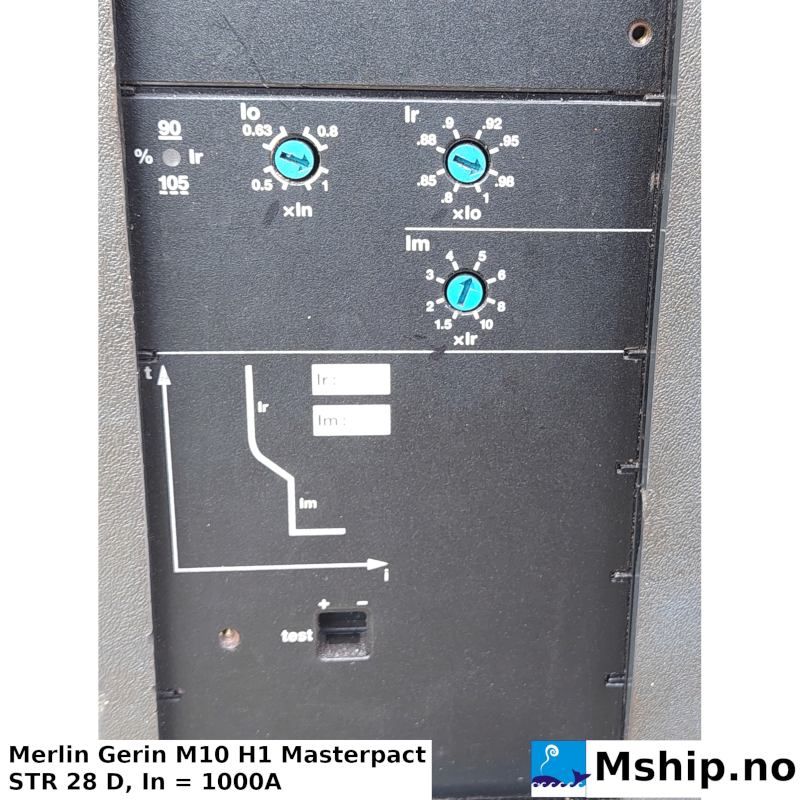

STR 28 D electronic trip unit, In = 1000 A, settings Io, Ir, Im

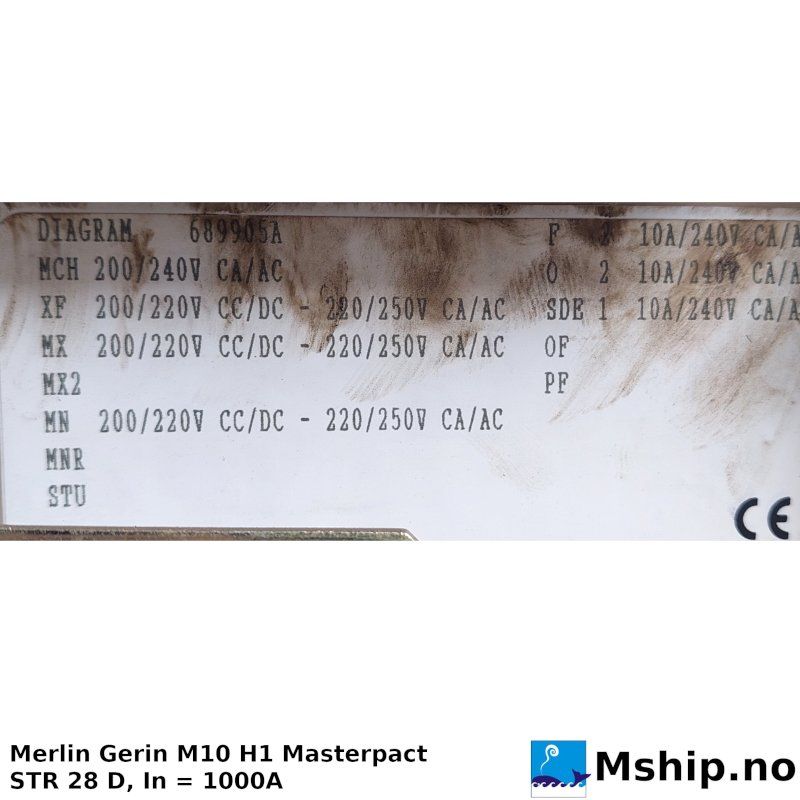

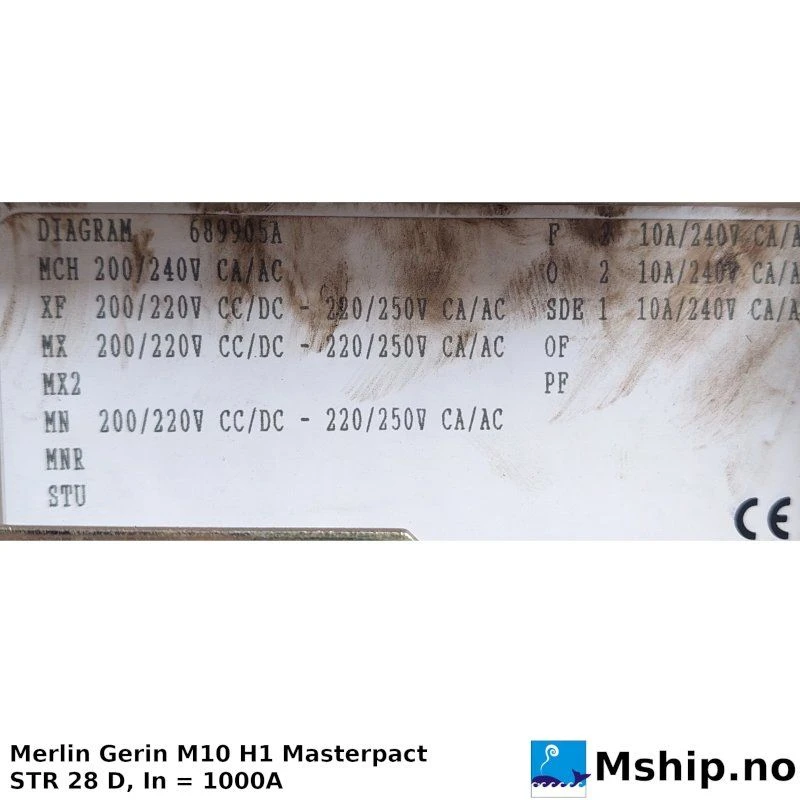

Accessories (from the label on the breaker)
MCH spring charging motor: 200/240 V AC
XF closing coil: 200/220 V DC – 220/250 V AC
MX shunt trip: 200/220 V DC – 220/250 V AC
MN undervoltage release: 200/220 V DC – 220/250 V AC
Auxiliary contacts: F 2, O 2 (10 A/240 V AC)
SDE fault-trip indication contact: 1 (10 A/240 V AC)
Wiring diagram: 689905A

Contact us for price and delivery.
