Merlin Gerin C1001 H Compact 1000 A/H

merlin-c1001h

Used

Merlin Gerin C1001 H Compact
STR 25D 1000 A/H Circuit Breaker

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Merlin Gerin / Schneider Electric
Model Compact C1001 H

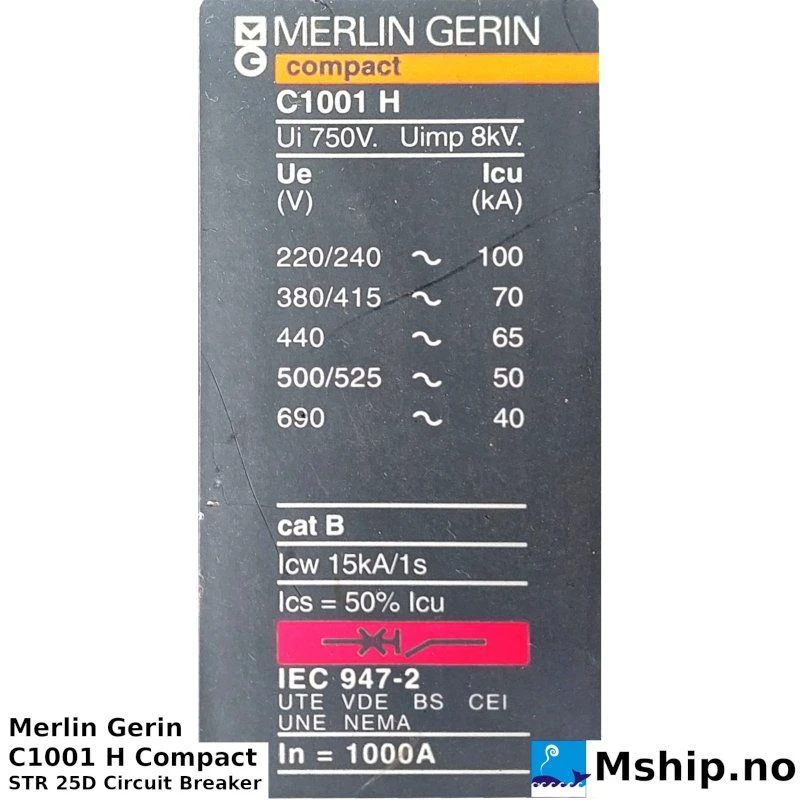

Other Icu 100 kA @ 220/240 V, 70 kA @ 380/415 V, 65 kA @ 440 V, 50 kA @ 500/525 V, 40 kA @ 690 V; cat. B, Icw 15 kA 1 s, Ics 50 % Icu; 3 poles; IEC 947-2, UTE, VDE, BS, CEI, UNE, NEMA
Amps In 1000 A, electronic trip unit STR 25DE (adjustable Ir and Im)
Volt Ui 750 V, Uimp 8 kV, Ue up to 690 V AC

More info

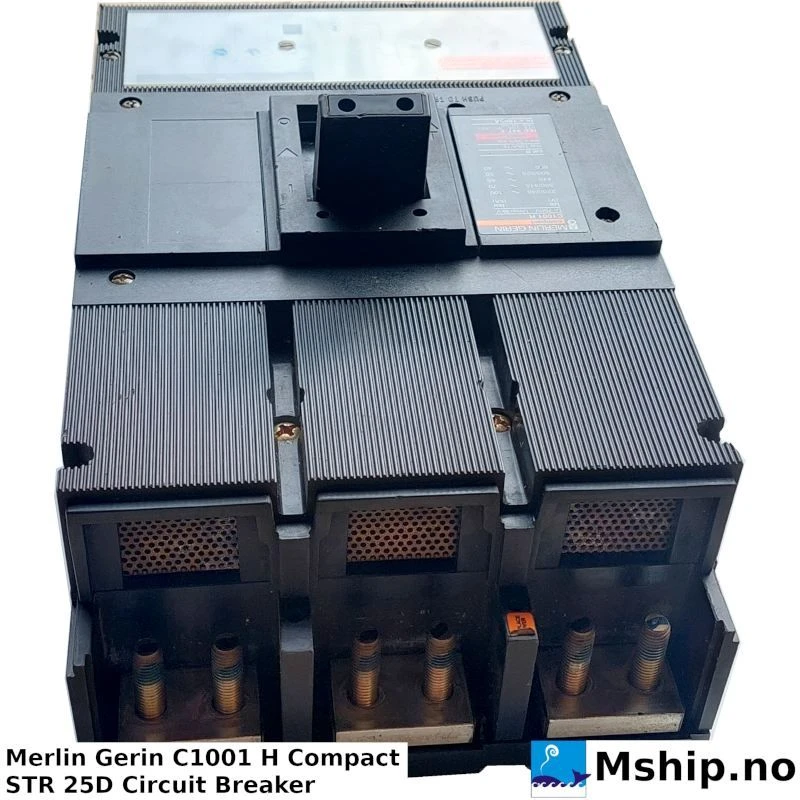

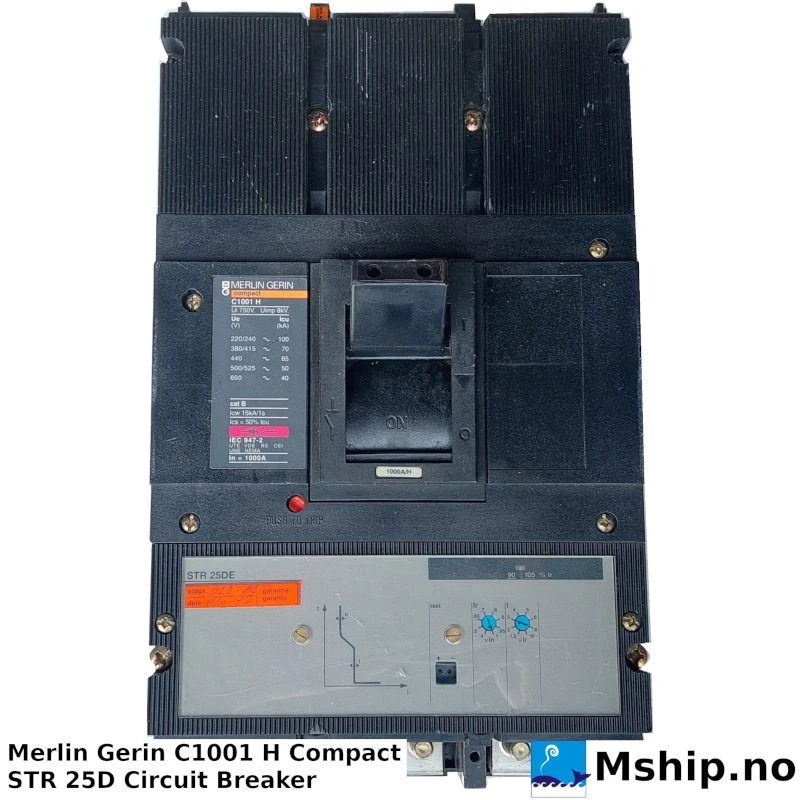

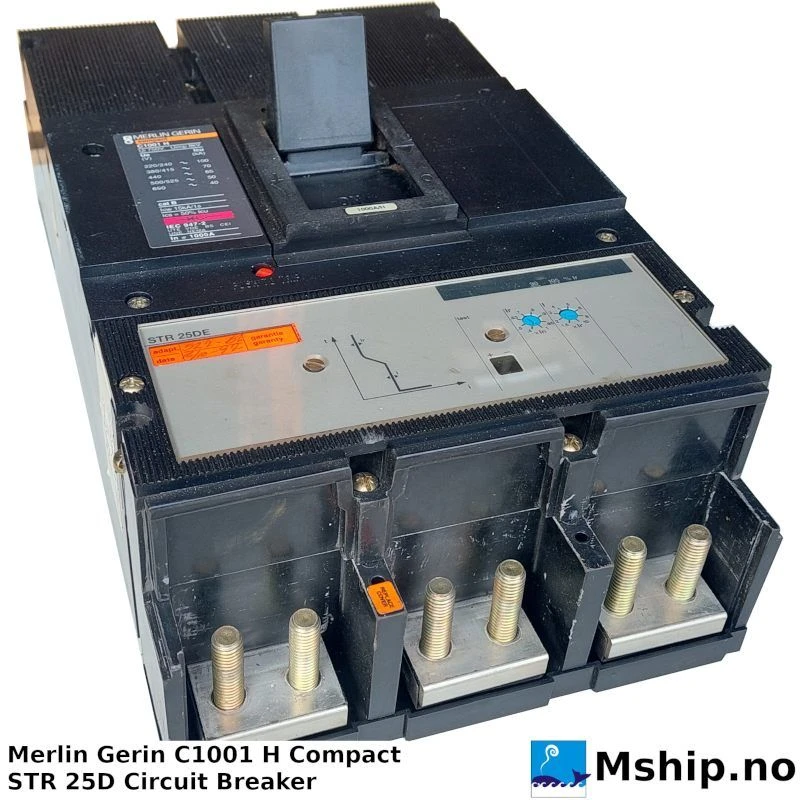

Merlin Gerin Compact C1001 H circuit breaker 1000 A, 3 pole

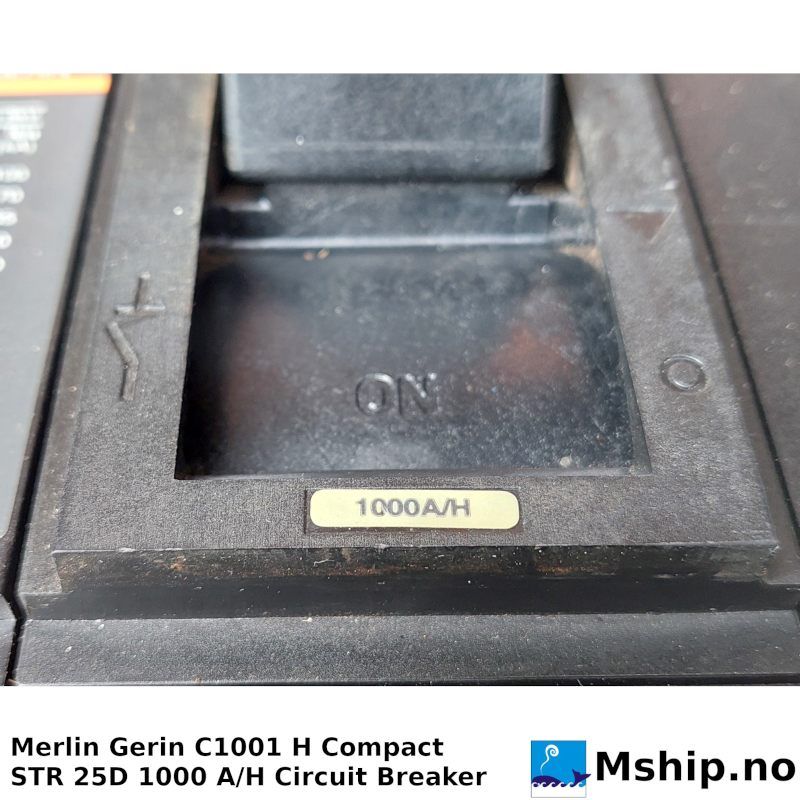

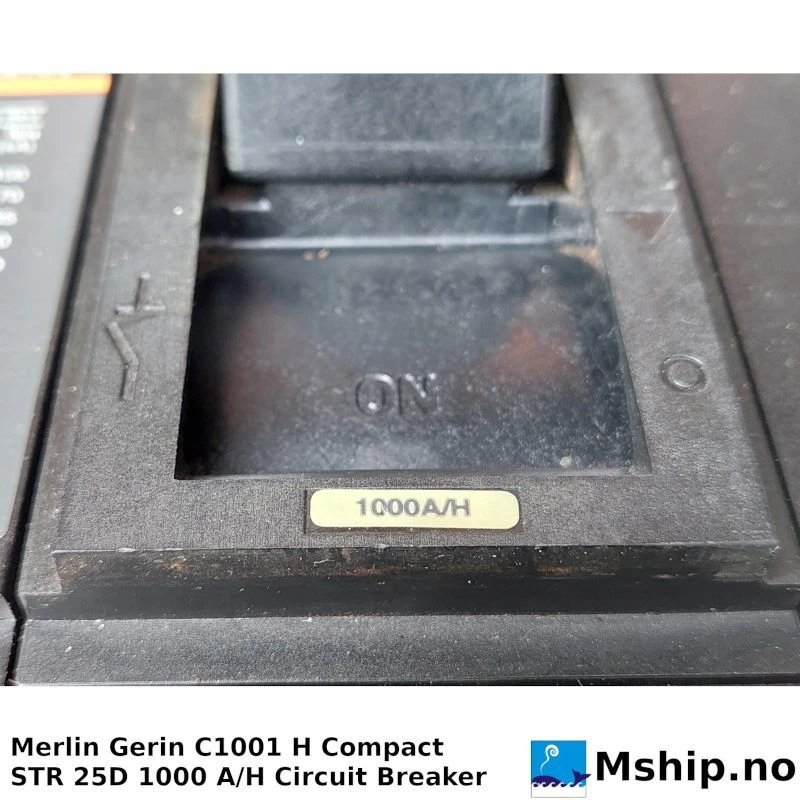

  • Rated current: In = 1000 A (1000 A/H)

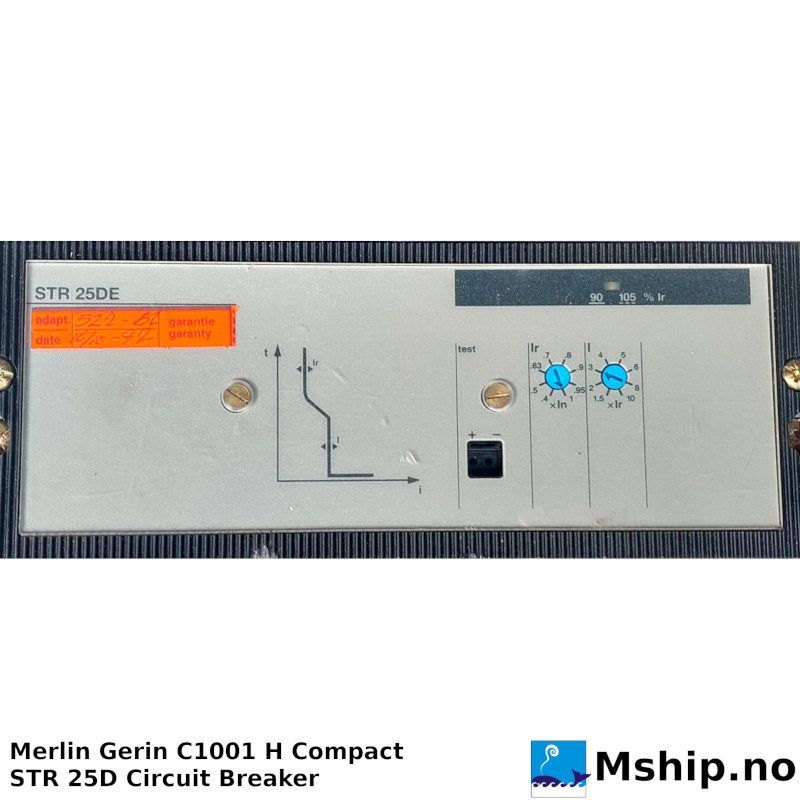

  • Trip unit: STR 25DE electronic, adjustable Ir and Im
  • Rated voltage: Ui 750 V, Uimp 8 kV, Ue up to 690 V AC
  • Breaking capacity Icu: 100 kA @ 220/240 V, 70 kA @ 380/415 V, 65 kA @ 440 V, 50 kA @ 500/525 V, 40 kA @ 690 V
  • Category B, Icw 15 kA 1 s, Ics = 50 % Icu
  • IEC 947-2, UTE, VDE, BS, CEI, UNE, NEMA
  • Used, good condition.
