Autronica 116-BG-201MRK

Autronica116BG201MRK

New product

MED WheelmarkYes – 0575/18 on the detector label (see photos)

Autronica 116-BG-201 & MRK

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Autronica
Model AutroFlame IR flame detector BGA-500
Manufacturers part number 116-BG-201MRK
Alternative part number 116BG201MRK
Serial number ID 0030201814800034
MED / Wheelmark Yes – 0575/18 on the detector label (see photos)

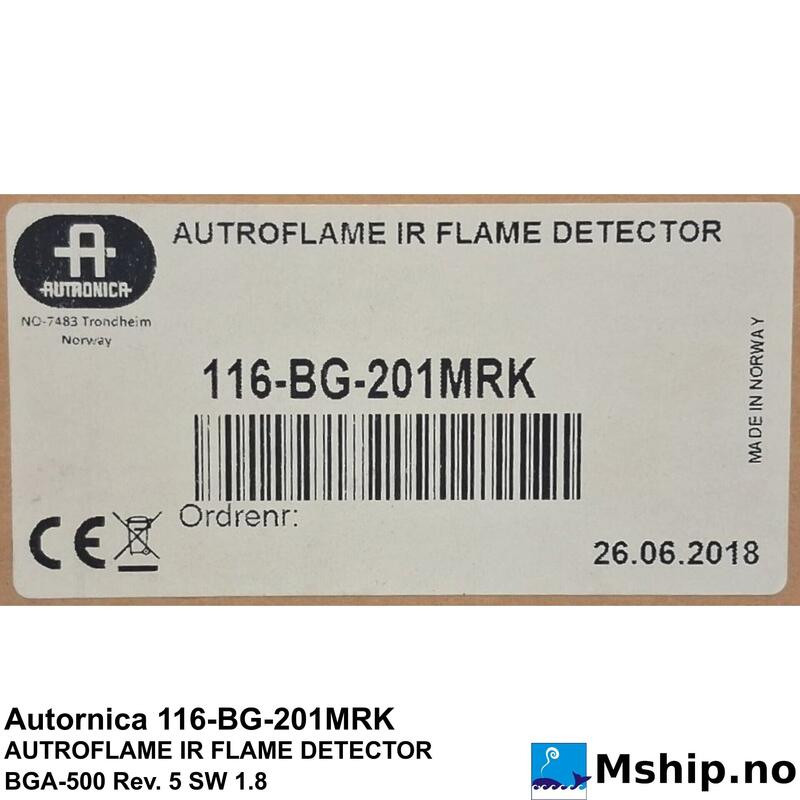

Other Rev. 5 SW 1.8, made in Norway, CE, date 26.06.2018; dual IR sensor, solar resistant; performance class 1 up to 25 m, class 2 up to 17 m, class 3 up to 12 m (EN 54-10); field of view ±45° horizontal, +30°/−45° vertical
Weight 210 g
Amps Stand-by 90 µA; alarm LED on 2.1 mA
Volt Loop powered (Al_Com loop, AutroSafe / Autroprime); conventional mode: 10–24 V loop voltage

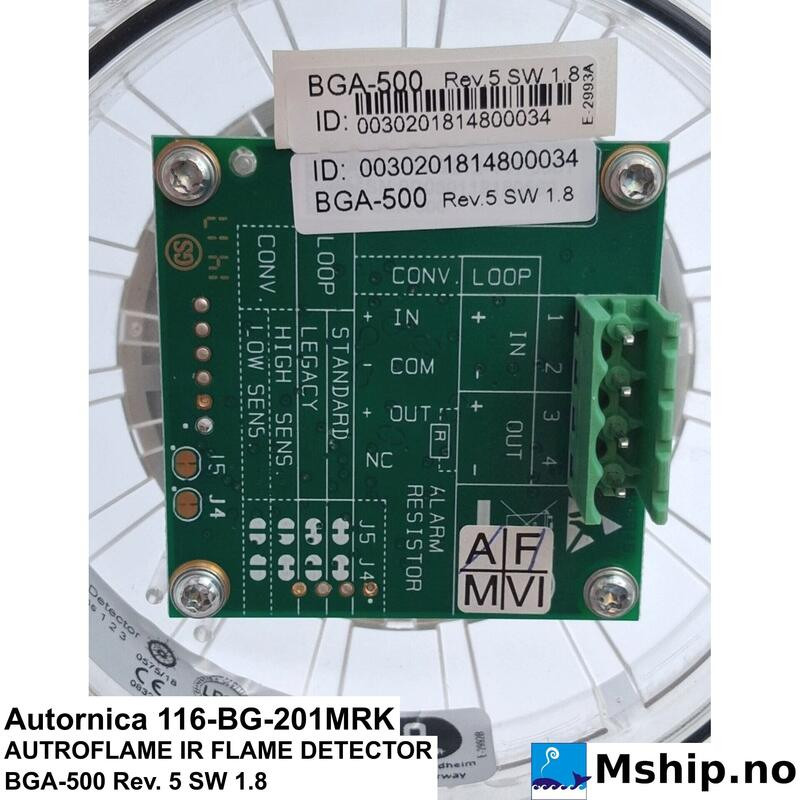

Connection / terminals Terminals 1–4: Al_Com loop IN +/− (1/2), OUT +/− (3/4); conventional: 1 +in, 2 −in/out, 3 +out/alarm resistor, 4 alarm resistor (470 or 680 Ω); jumper J4 Standard/Legacy, J5 loop/conventional, high/low sensitivity
Mounting Wall or ceiling base; detector pointing down (e.g. 45° on a wall); 2 cable glands for cable Ø 6–12 mm, max. 2.5 mm² / AWG14
Standards / approvals EN 54-10:2002 + A1:2005 class 1, 2, 3 (angle ±30°), EN 54-17:2005; CE 0832-CPD-1999; LPCB 1130a/01; FM Approved; IP66 and IP67
Working temperature max, celsius degrees Operating −40 °C to +70 °C; storage −50 °C to +70 °C
DIMENSIONs Ø 119 × 63.5 mm; fixing holes 100 mm apart

More info

Autronica 116-BG-201MRK
AUTROFLAME IR FLAME DETECTOR BGA-500 Rev. 5 SW 1.8

Autronica 116-BG-201 also in stock

Data sheet values (Autronica BG-201)

AutroFlame BG-201 is an interactive IR flame detector for Autronica AutroSafe / Autroprime Al_Com detection loops, for fires involving carbonaceous materials. Dual IR sensor with signal processing that is solar resistant, not blinded by an oil film on the window and highly immune to false alarm sources. Short-circuit isolator and alarm LED built in, automatic addressing. Performance class (EN 54-10) set from the system: class 1 up to 25 m, class 2 up to 17 m, class 3 up to 12 m; field of view ±45° horizontal, +30°/−45° vertical. Jumper J4 selects Standard (AutroSafe / Autroprime) or Legacy mode (emulates the older FDI interface; class 2 only).

  • Power from the detector loop; stand-by 90 µA, 2.1 mA with alarm LED on

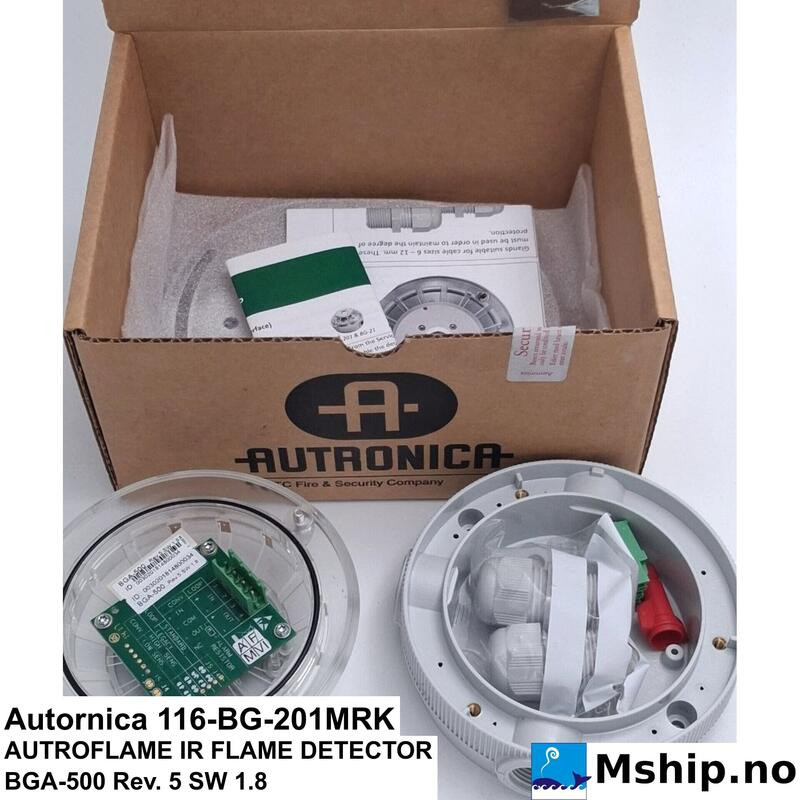

  • Polycarbonate housing with sapphire glass window, transparent / light grey, 210 g
  • IP66 and IP67; operating −40 °C to +70 °C, storage −50 °C to +70 °C; humidity 0–96 % RH
  • Pluggable 4-pole connector: loop in +/−, loop out +/−; two cable glands for cable Ø 6–12 mm, max. 2.5 mm²
  • EN 54-10 and EN 54-17; designed for the major maritime classification societies. Autronica Fire and Security AS (Trondheim) holds ABS manufacturing assessment 24-6708597 (valid to 17-11-2029) covering flame detectors

Retrofit for the AutroSafe 601F flame detector

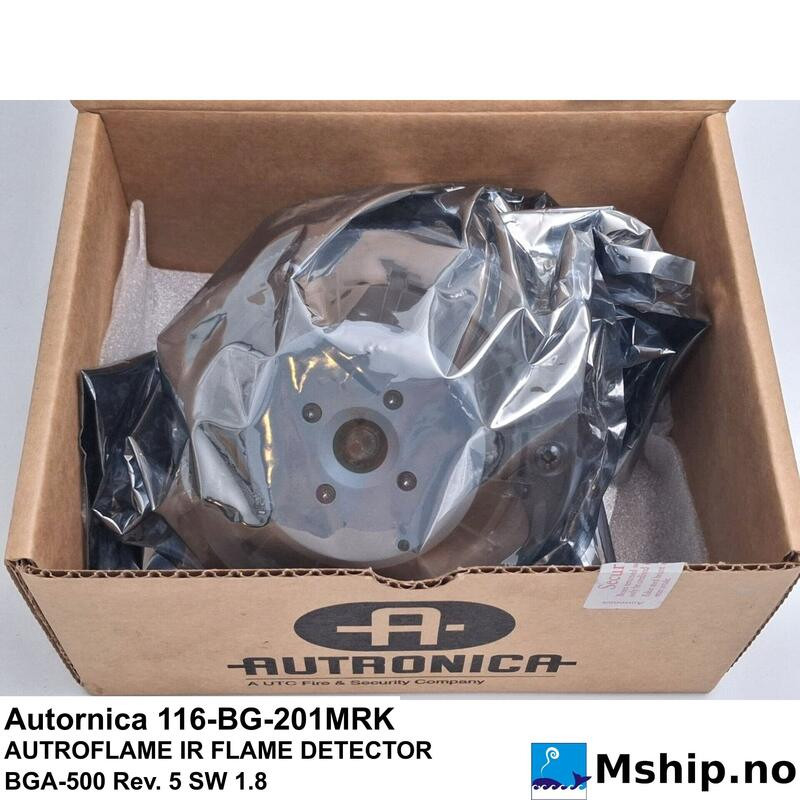

The box contains Autronica's instruction «Replacement of 601F to BG-201» (116-P-601FBG201MOUNT/DGB): the BG-201 is the replacement for the older 601F IR flame detector (head 116-5861-010.2011, base 116-5861-010.2012, flame detector interface FDI 116-5861-010.2015).

  • Case A – 601F on an FDI in an AutroSafe loop: remove the old head, base and FDI, connect the loop to the BG-201 (FDI 1+ → BG-201 1 input +, 2+ → 3 output +, 3− → 2 input −, 4− → 4 output −) and cut J4 to set Legacy mode.
  • Case B – 601F used as a conventional detector: cut the J5 bridge; the detector then works like the conventional BG-21 on any panel with 10–24 V loop voltage (compatible with interface units BN-33A, BNB-330 and BNB-331). Fit an alarm resistor between terminals 3 and 4, typically 470 or 680 Ω (680 Ω gives about 35 mA alarm current at 24 V), and use the same end-of-line as for the 601F.

Dimensions Ø 119 × 63.5 mm, fixing holes 100 mm apart; supplied glands for cable Ø 6–12 mm. CE 0832-CPD-1999, EN 54-10:2002 + A1:2005 and EN 54-17:2005, made in Norway.

Connection diagram

Pluggable 4-pole connector. Al_Com loop: 1 loop in +, 2 loop in −, 3 loop out +, 4 loop out −. Conventional (J5 cut): 1 + in, 2 − in/out (EOL on the last detector), 3 + out / alarm resistor, 4 alarm resistor. Replacing a 601F on an FDI: FDI 1+ → 1, 2+ → 3, 3− → 2, 4− → 4 and cut J4 for Legacy mode.

Autronica BG-201 connection diagram
